CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

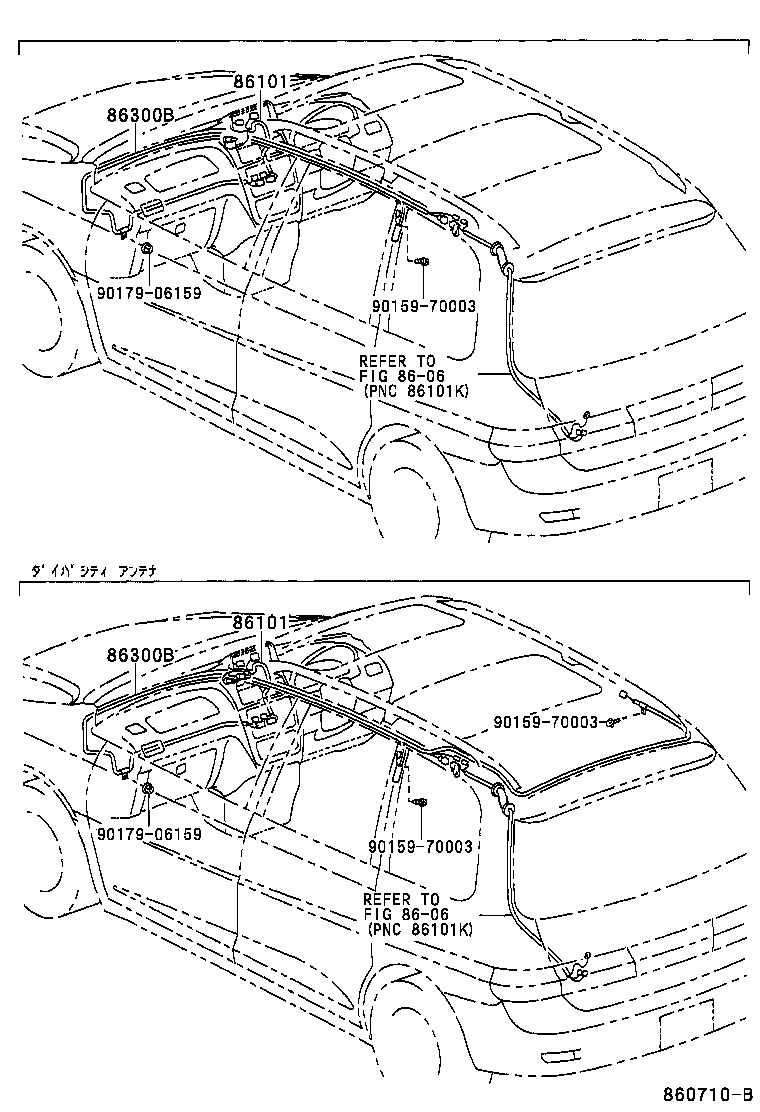

Click highlighted areas on diagram

diagram 8606 8606 86101 86101 86300B 86300B 9015970003 9015970003 9015970003 9017906159 9017906159
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-44100

CXM10,SXM1#

 1
86101-44260

ACM1#,CXM10,SXM15

 1
86101-44250

ACM1#,CXM10,SXM15

ｱﾘ(ﾀﾞｲﾊﾞ-ｼﾃｲ & ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
86101-44270

ACM1#,CXM10,SXM15

ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
86101-44090

CXM10,SXM1#

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-44100

CXM10,SXM1#

 1
86101-44260

ACM1#,CXM10,SXM15

 1
86101-44250

ACM1#,CXM10,SXM15

ｱﾘ(ﾀﾞｲﾊﾞ-ｼﾃｲ & ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
86101-44270

ACM1#,CXM10,SXM15

ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
86101-44090

CXM10,SXM1#

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-44050

CXM10,SXM1#

ｱﾘ(ﾀﾞｲﾊﾞ-ｼﾃｲ & ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
86300-44080

CXM10,SXM1#

ｱﾘ(ﾀﾞｲﾊﾞ-ｼﾃｲ & ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
86300-44030

CXM10,SXM1#

 1
86300-44130

ACM1#,CXM10,SXM15

ｱﾘ(ﾀﾞｲﾊﾞ-ｼﾃｲ & ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
86300-44150

ACM1#,CXM10,SXM15

ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
86300-44040

CXM10,SXM1#

ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
86300-44140

ACM1#,CXM10,SXM15

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-44050

CXM10,SXM1#

ｱﾘ(ﾀﾞｲﾊﾞ-ｼﾃｲ & ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
86300-44080

CXM10,SXM1#

ｱﾘ(ﾀﾞｲﾊﾞ-ｼﾃｲ & ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
86300-44030

CXM10,SXM1#

 1
86300-44130

ACM1#,CXM10,SXM15

ｱﾘ(ﾀﾞｲﾊﾞ-ｼﾃｲ & ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
86300-44150

ACM1#,CXM10,SXM15

ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
86300-44040

CXM10,SXM1#

ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
86300-44140

ACM1#,CXM10,SXM15

 1
Common parts
90159-70003
90179-06159
Linked diagrams
8606
