CXM10G-BRSET (1998)
Toyota Gaia
(9805-0104)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86010 - TUNER ASSY, TELEVISION | ||||
| 86010-44010 |
CXM10,SXM1# |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-44160 |
ACM1#,CXM10,SXM15 NO.3 |
1 | ||
| 86117-44050 |
CXM10,SXM1# 左側 |
1 | ||
| 86117-44140 |
ACM1#,CXM10,SXM15 NO.1 |
1 | ||
| 86117-44150 |
ACM1#,CXM10,SXM15 NO.2 |
1 | ||
| 86117-44040 |
CXM10,SXM1# 右側 |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-44160 |
ACM1#,CXM10,SXM15 NO.3 |
1 | ||
| 86117-44050 |
CXM10,SXM1# 左側 |
1 | ||
| 86117-44140 |
ACM1#,CXM10,SXM15 NO.1 |
1 | ||
| 86117-44150 |
ACM1#,CXM10,SXM15 NO.2 |
1 | ||
| 86117-44040 |
CXM10,SXM1# 右側 |
1 | ||
| 86117B - BRACKET, TELEVISION DISPLAY, B | ||||
| 86117-44060 |
CXM10,SXM1# |
1 | ||
| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86120-44030 |
CXM10,SXM1# MATSUSHITA,ID=56026 |
1 | ||
| 86120-44050 |
CXM10,SXM1# MATSUSHITA,ID=56042 |
1 | ||
| 86120-44101 |
ACM1#,CXM10 FUJITSU TEN,ID=16049 |
1 | ||
| 86120-44100 |
ACM1#,CXM10,SXM15 FUJITSU TEN,ID=16033 |
1 | ||
| 86273A - MAGAZINE, DISC PLAYER | ||||
| 86273-44020 |
CXM10,SXM1# |
1 | ||
| 86275B - CHANGER, DISC PLAYER | ||||
| 86275-44020 |
CXM10,SXM1# |
1 | ||
| 86807 - DISC KIT, CD-ROM | ||||
| 86807-44011 |
CXM10,SXM1# |
1 | ||
| 86807-52010 |
CXM10,SXM1# |
1 | ||
| 86808 - CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1 | ||||
| 86808-44050 |
CXM10,SXM1# |
1 | ||
| 86808-44030 |
CXM10,SXM1# |
1 | ||
| 86860A - ANTENNA, NAVIGATION | ||||
| 86861-44010 |
CXM10,SXM1# |
1 | ||
| 86860-44050 |
ACM1#,CXM10,SXM15 |
1 | ||
| 86862 - BRACKET, NAVIGATION ANTENNA | ||||
| 86862-44010 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90153-50010 | ||||
| 90159-60469 | ||||
| 90179-06178 | ||||
| 93381-55008 | ||||
| 93568-55016 | ||||

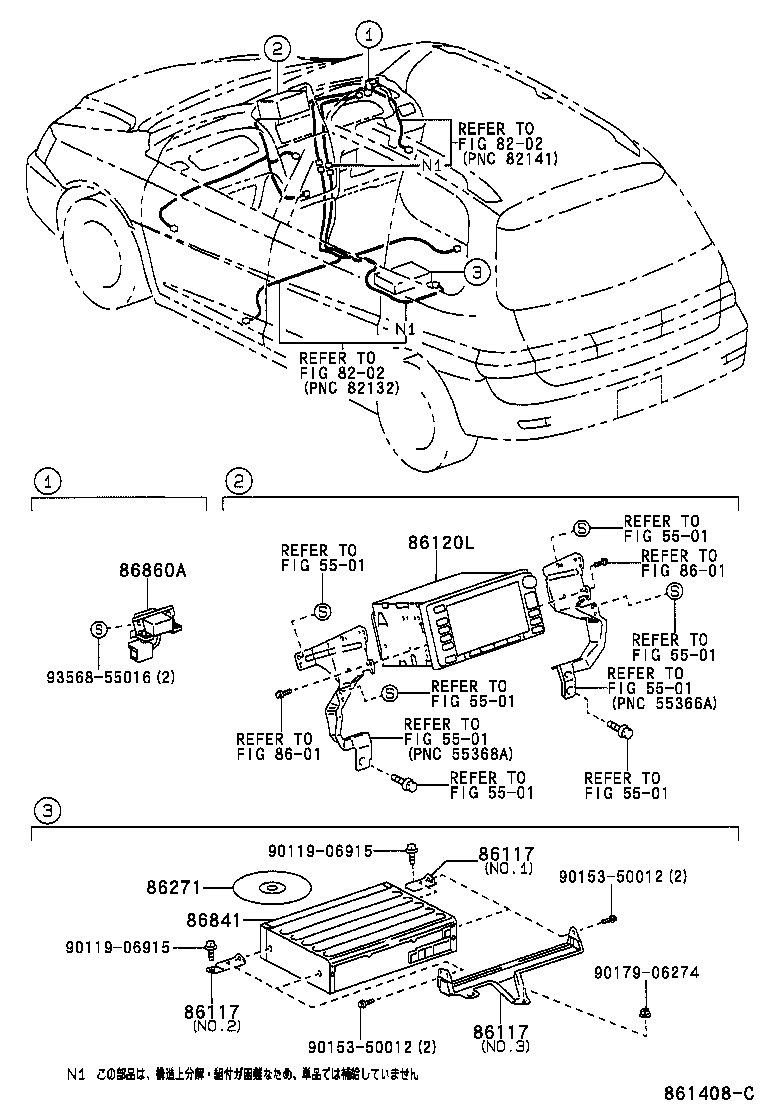

(0104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-44160 |
ACM1#,CXM10,SXM15 NO.3 |
1 | ||
| 86117-44050 |
CXM10,SXM1# 左側 |
1 | ||
| 86117-44140 |
ACM1#,CXM10,SXM15 NO.1 |
1 | ||
| 86117-44150 |
ACM1#,CXM10,SXM15 NO.2 |
1 | ||
| 86117-44040 |
CXM10,SXM1# 右側 |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-44160 |
ACM1#,CXM10,SXM15 NO.3 |
1 | ||
| 86117-44050 |
CXM10,SXM1# 左側 |
1 | ||
| 86117-44140 |
ACM1#,CXM10,SXM15 NO.1 |
1 | ||
| 86117-44150 |
ACM1#,CXM10,SXM15 NO.2 |
1 | ||
| 86117-44040 |
CXM10,SXM1# 右側 |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-44160 |
ACM1#,CXM10,SXM15 NO.3 |
1 | ||
| 86117-44050 |
CXM10,SXM1# 左側 |
1 | ||
| 86117-44140 |
ACM1#,CXM10,SXM15 NO.1 |
1 | ||
| 86117-44150 |
ACM1#,CXM10,SXM15 NO.2 |
1 | ||
| 86117-44040 |
CXM10,SXM1# 右側 |
1 | ||
| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86120-44030 |
CXM10,SXM1# MATSUSHITA,ID=56026 |
1 | ||
| 86120-44050 |
CXM10,SXM1# MATSUSHITA,ID=56042 |
1 | ||
| 86120-44101 |
ACM1#,CXM10 FUJITSU TEN,ID=16049 |
1 | ||
| 86120-44100 |
ACM1#,CXM10,SXM15 FUJITSU TEN,ID=16033 |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-44020 |
ACM1#,CXM10 |
1 | ||
| 86271-44022 |
ACM1#,CXM10 |
1 | ||
| 86271-44021 |
ACM1#,CXM10 |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86841-44010 |
ACM1#,CXM10 |
1 | ||
| 86860A - ANTENNA, NAVIGATION | ||||
| 86861-44010 |
CXM10,SXM1# |
1 | ||
| 86860-44050 |
ACM1#,CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90153-50012 | ||||
| 90179-06274 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8202 | ||||
| 8601 | ||||
