CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

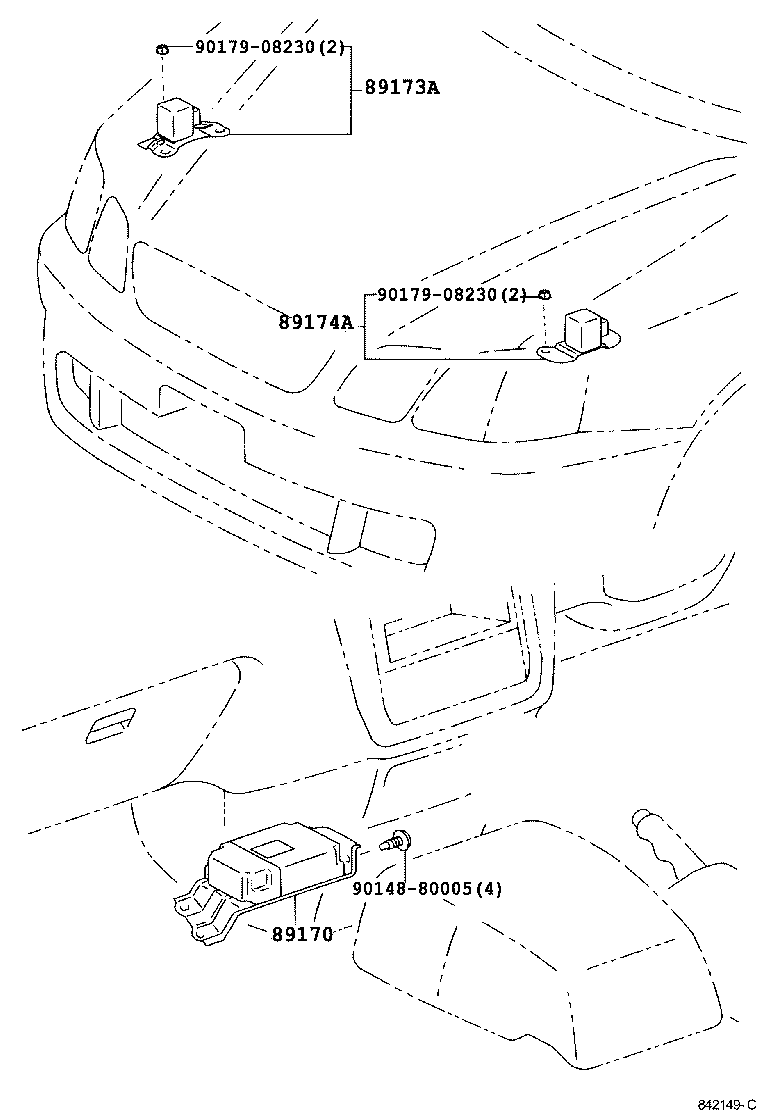

Click highlighted areas on diagram

diagram 89170 89173A 89174A 9014880005 9017908230 9017908230
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-44030

ACM1#,CXM10,SXM15

 1
89170-44021

CXM10,SXM1#

 1
89170-44030

CXM10,SXM1#

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-49235

CXM10,SXM1#

 1
89173-49115

CXM10,SXM1#

 1
89173-49215

CXM10,SXM1#

 1
89173-49235

ACM1#,CXM10

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-49225

ACM1#,CXM10

 1
89173-49225

CXM10,SXM1#

 1
89173-49125

CXM10,SXM1#

 1
Common parts
90148-80005
90179-08230
