CXM10G-BRSET (1998)
Toyota Gaia
Production
May 1998
-
Sep 2004
Engine
3CTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805-0104)

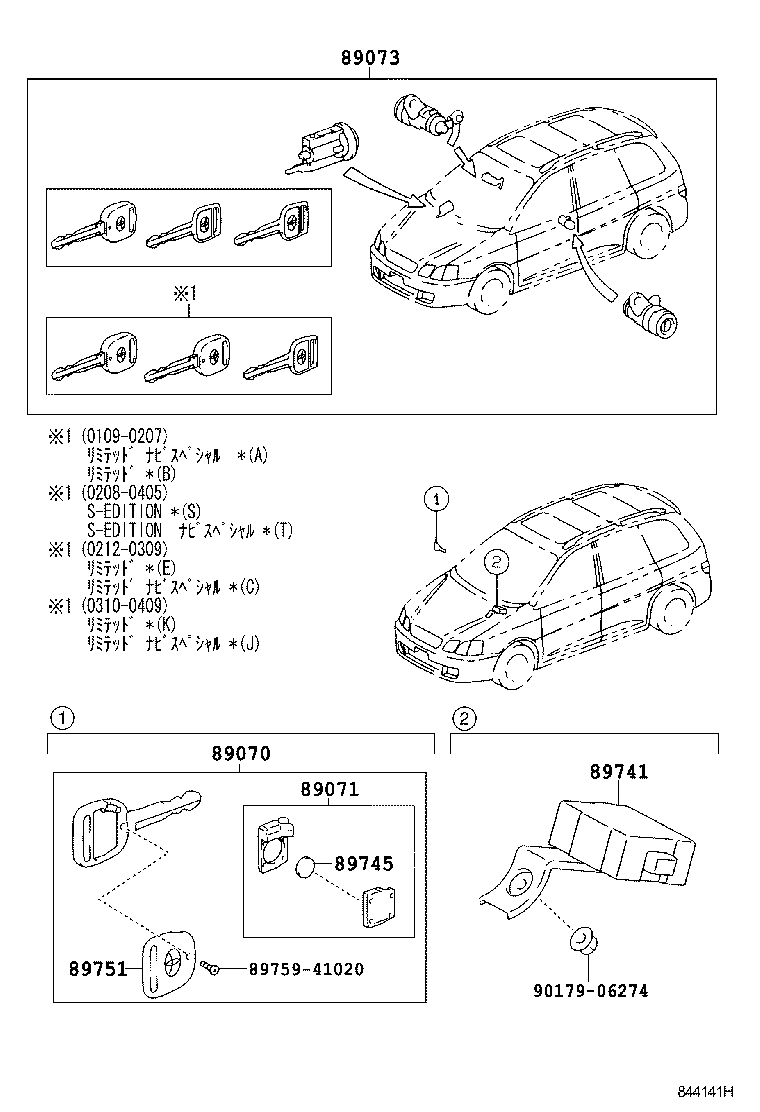

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89740 - COMPUTER ASSY, DOOR CONTROL W/RECEIVER | ||||
| 89740-44011 |
CXM10,SXM1# |
1 | ||
| 89742 - TRANSMITTER, DOOR CONTROL | ||||
| 89742-44010 |
CXM10,SXM1# |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-50010 |
CXM10,SXM1# |
1 | ||
| 89745-26010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 89751 - COVER, TRANSMITTER HOUSING | ||||
| 89751-44050 |
CXM10,SXM1# |
1 | ||
| 89751-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 89752 - CASE, TRANSMITTER HOUSING | ||||
| 89752-44020 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 90159-60469 | ||||
(0104- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89070 - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-12011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-12021 |
ACM1#,CXM10,SXM15 |
1 | ||
| 89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE) | ||||
| 89073-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-44100 |
ACM1#,CXM10,SXM15 |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-50010 |
CXM10,SXM1# |
1 | ||
| 89745-26010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 89751 - COVER, TRANSMITTER HOUSING | ||||
| 89751-44050 |
CXM10,SXM1# |
1 | ||
| 89751-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 89759-41020 | ||||
| 90179-06274 | ||||
