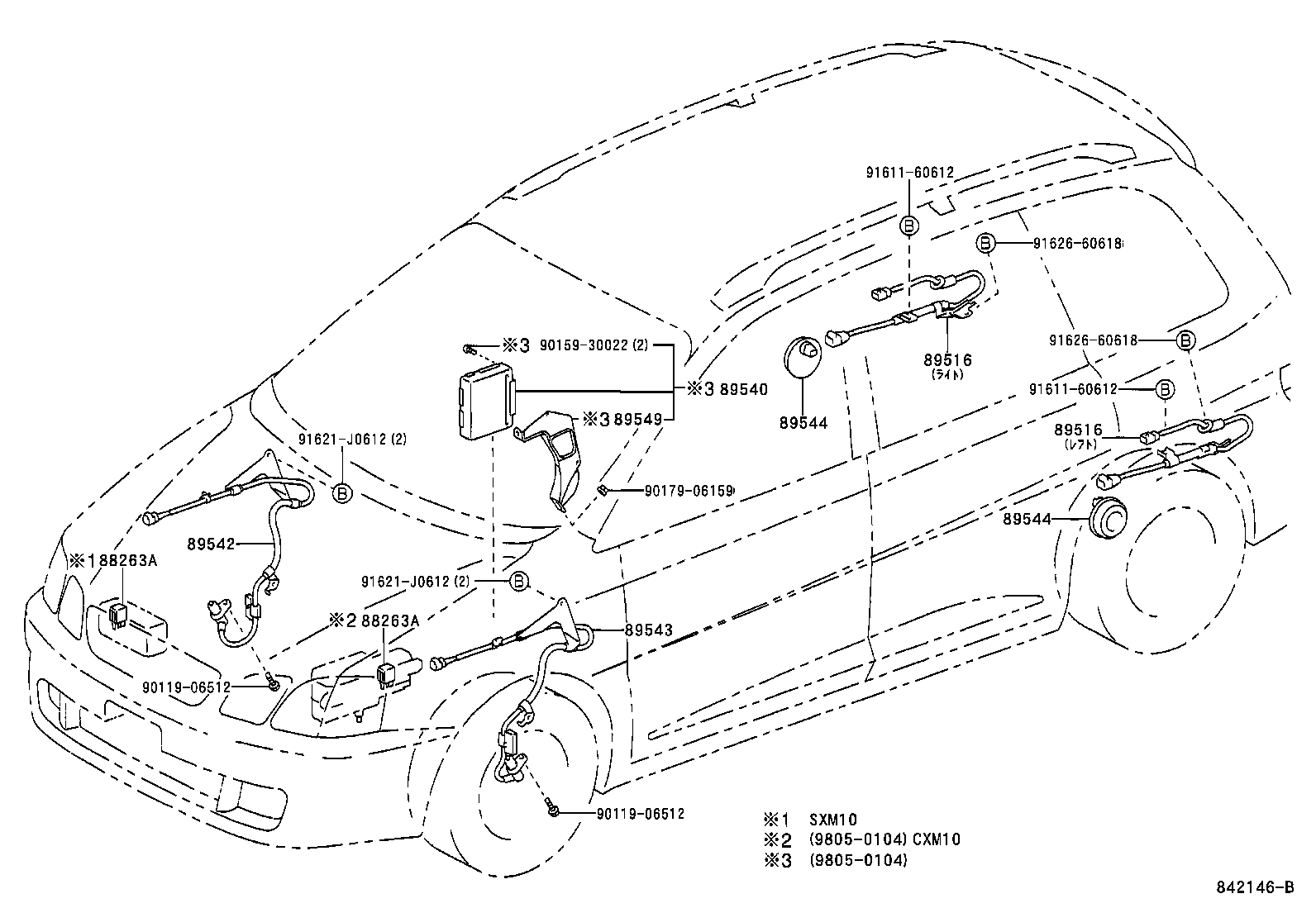

Toyota Gaia CXM10 ABS & VSC - JDM Part Detective

Part #	Description	Period	Qty
88263A - RELAY, SKID CONTROL
88263-24030	CXM10,SXM1#	05/1998 - 04/2001	1
88263A - RELAY, SKID CONTROL
88263-24030	CXM10,SXM1#	05/1998 - 04/2001	1
89516 - WIRE, SKID CONTROL SENSOR
89516-44030	CXM10,SXM10 左側	05/1998 - 04/2001	1
89516-44010	CXM10,SXM10 右側	05/1998 - 04/2001	1
89516-44030	ACM10,CXM10 左側	04/2001 - 12/2999	1
89516-44010	ACM10,CXM10 右側	04/2001 - 12/2999	1
89516 - WIRE, SKID CONTROL SENSOR
89516-44030	CXM10,SXM10 左側	05/1998 - 04/2001	1
89516-44010	CXM10,SXM10 右側	05/1998 - 04/2001	1
89516-44030	ACM10,CXM10 左側	04/2001 - 12/2999	1
89516-44010	ACM10,CXM10 右側	04/2001 - 12/2999	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-44070	CXM10,SXM10	05/1998 - 04/2001	1
89542 - SENSOR, SPEED, FRONT RH
89542-44010	CXM10,SXM1#	05/1999 - 04/2001	1
89542-44010	ACM1#,CXM10	04/2001 - 09/2004	1
89542-20130	CXM10,SXM1#	05/1998 - 05/1999	1
89543 - SENSOR, SPEED, FRONT LH
89543-20130	CXM10,SXM1#	05/1998 - 05/1999	1
89543-44010	ACM1#,CXM10	04/2001 - 09/2004	1
89543-44010	CXM10,SXM1#	05/1999 - 04/2001	1
89544 - SENSOR, SKID CONTROL
89544-44010	CXM10,SXM10	05/1998 - 04/2001	2
89544-44010	ACM10,CXM10	04/2001 - 09/2004	2
89544 - SENSOR, SKID CONTROL
89544-44010	CXM10,SXM10	05/1998 - 04/2001	2
89544-44010	ACM10,CXM10	04/2001 - 09/2004	2
89549 - BRACKET, SKID CONTROL COMPUTER
89549-44030	CXM10,SXM1#	05/1998 - 04/2001	1
Common parts
90119-06512
90159-30022
90179-06159
91611-60612
91621-J0612
91626-60618

CXM10G-BRSET (1998)
