CXM10G-BRSET (1998)
Toyota Gaia

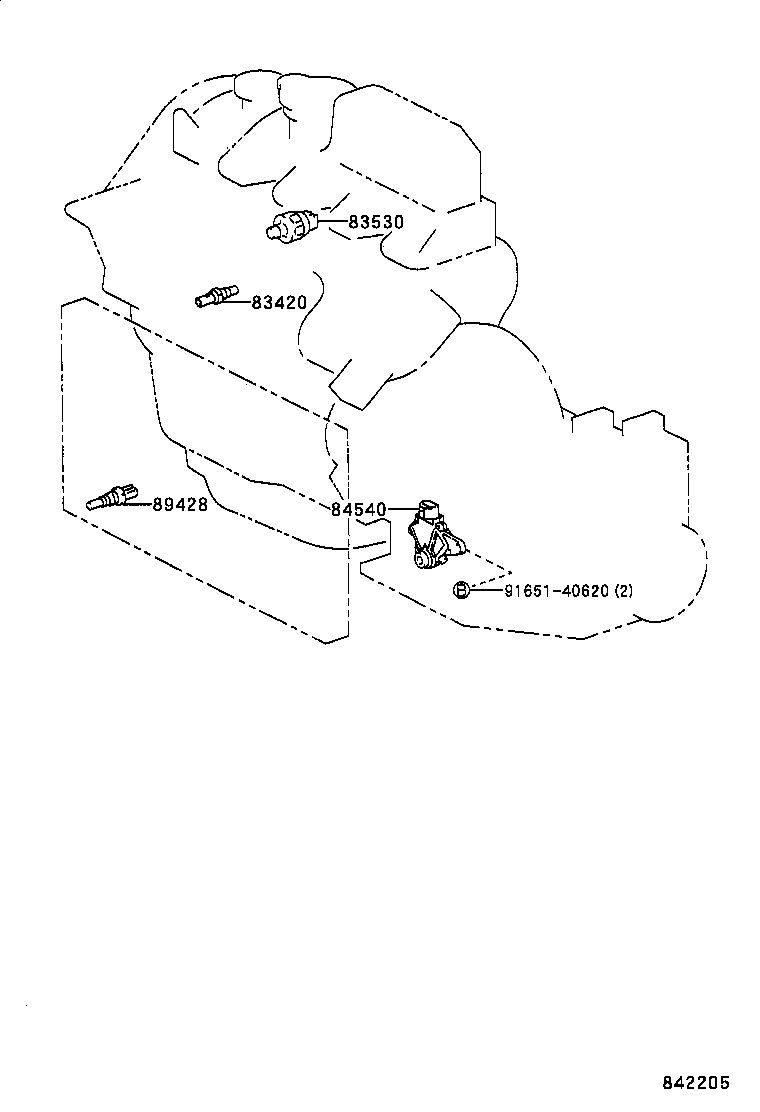

ILLUST NO. 1 OF 6(9805- )CXM10
ｴﾝｼﾞﾝ & ﾄﾗﾝｽ ﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
CXM10 |
1 | ||
| 83420-16040 |
CXM10 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
CXM10 |
1 | ||
| 83530-60010 |
CXM10 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16050 |
CXM10,SXM15 |
1 | ||
| 84540-52010 |
CXM10 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20110 |
CXM10 |
1 | ||
| 89428-20110 |
CXM10 |
1 | ||
| Common parts | ||||
| 91651-40620 | ||||

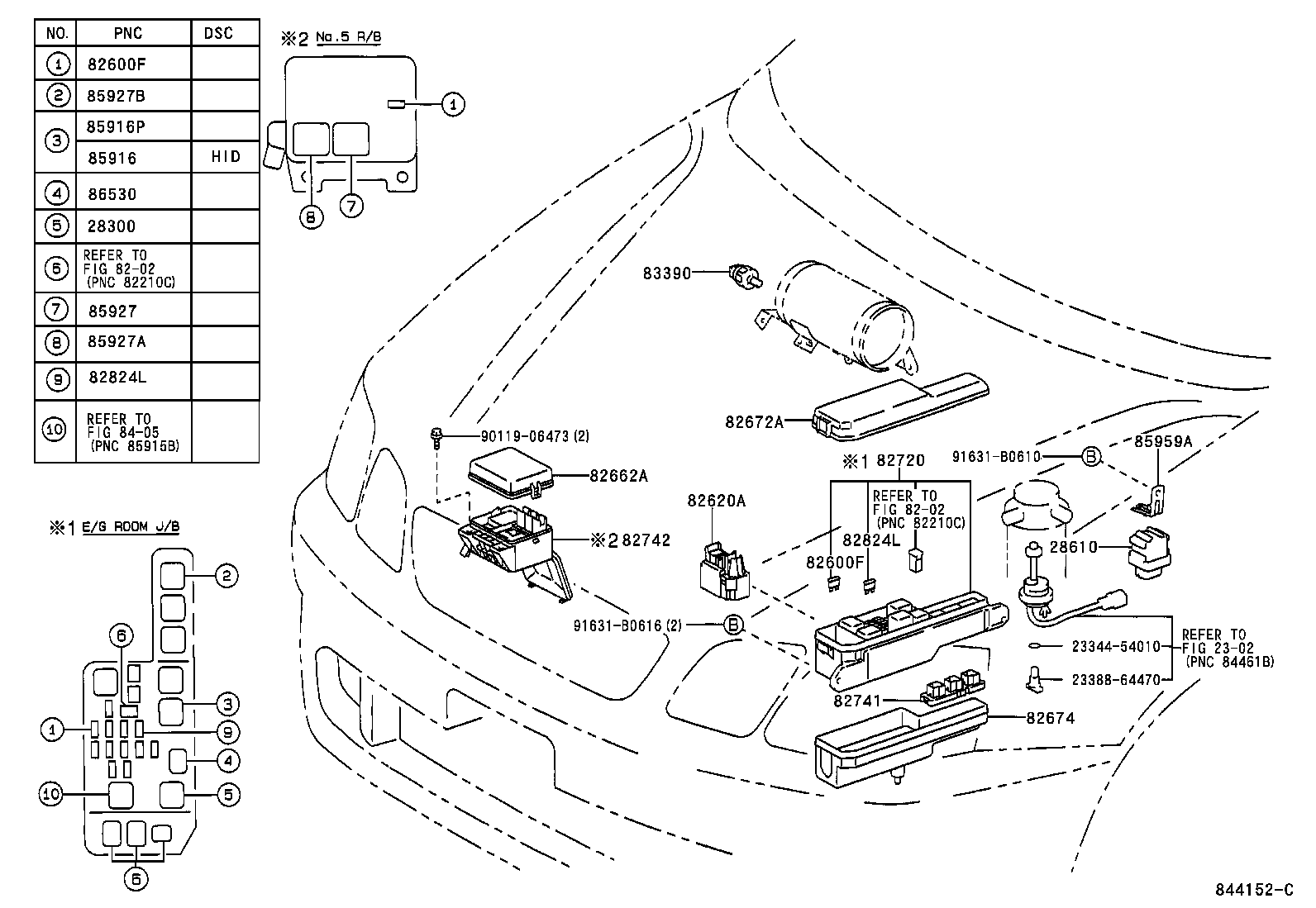

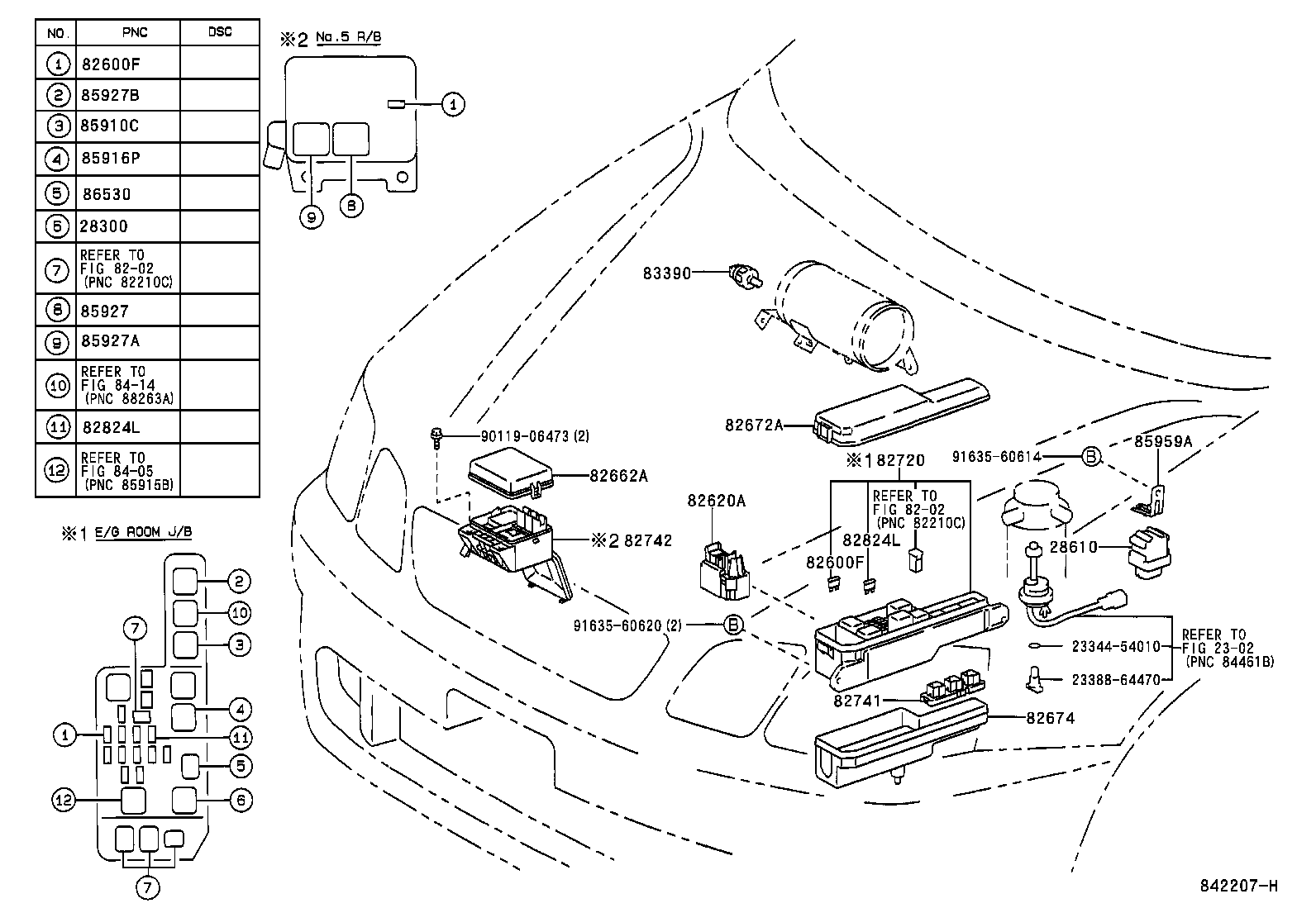

ILLUST NO. 2 OF 6(9805-0104)CXM10
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15 |
1 | ||
| 28300-10020 |
3CTE,3SFE..CXM10,SXM1# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
3CTE..CXM10 |
1 | ||
| 28610-67010 |
3CTE..CXM10 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
CXM10,SXM1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
CXM10,SXM1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09007 |
CXM10,SXM1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
CXM10,SXM1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
CXM10,SXM1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09012 |
ACM1#,CXM10,SXM15 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
ACM10,CXM10,SXM15 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
ACM1#,CXM10,SXM15 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ACM1#,CXM10,SXM15 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
ACM1#,CXM10,SXM15 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09007 |
ACM10,CXM10 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09009 |
CXM10,SXM10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09009 |
ACM1#,CXM10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
ACM1#,CXM10,SXM15 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
ACM1#,CXM10,SXM15 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
CXM10,SXM1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
CXM10,SXM1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09007 |
CXM10,SXM1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
CXM10,SXM1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
CXM10,SXM1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09012 |
ACM1#,CXM10,SXM15 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
ACM10,CXM10,SXM15 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
ACM1#,CXM10,SXM15 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ACM1#,CXM10,SXM15 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
ACM1#,CXM10,SXM15 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09007 |
ACM10,CXM10 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09009 |
CXM10,SXM10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09009 |
ACM1#,CXM10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
ACM1#,CXM10,SXM15 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
ACM1#,CXM10,SXM15 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20170 |
ACM15,CXM10 |
1 | ||
| 82620-20170 |
CXM10,SXM1# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-44060 |
CXM10 |
1 | ||
| 82662-44140 |
CXM10 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-44090 |
CXM10 |
1 | ||
| 82672-44030 |
CXM10 |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-20040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 82674-20040 |
CXM10,SXM1# |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-44030 |
CXM10 |
1 | ||
| 82720-44030 |
CXM10 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-20030 |
CXM10 |
1 | ||
| 82741-20030 |
CXM10 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-44010 |
CXM10 |
1 | ||
| 82742-44010 |
CXM10 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ACM1#,CXM10,SXM15 |
1 | ||
| 82824-20140 |
CXM10,SXM1# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ACM1#,CXM10,SXM15 |
1 | ||
| 82824-20140 |
CXM10,SXM1# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-32100 |
CXM10 |
1 | ||
| 83390-32100 |
CXM10 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
ACM1#,CXM10,SXM15 |
1 | ||
| 90987-04002 |
CXM10,SXM1# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
ACM1#,CXM10,SXM15 |
1 | ||
| 90987-02006 |
CXM10,SXM1# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02006 |
CXM10 |
1 | ||
| 90987-02006 |
CXM10 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04002 |
CXM10 |
1 | ||
| 90987-04002 |
CXM10 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02006 |
CXM10 |
1 | ||
| 90987-02006 |
CXM10 |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-44010 |
CXM10 |
1 | ||
| 85959-44010 |
CXM10 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
CXM10,SXM15 |
1 | ||
| 86530-20070 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 23344-54010 | ||||
| 23388-64470 | ||||
| 90119-06473 | ||||
| 91635-60614 | ||||
| 91635-60620 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8405 | ||||
| 8414 | ||||

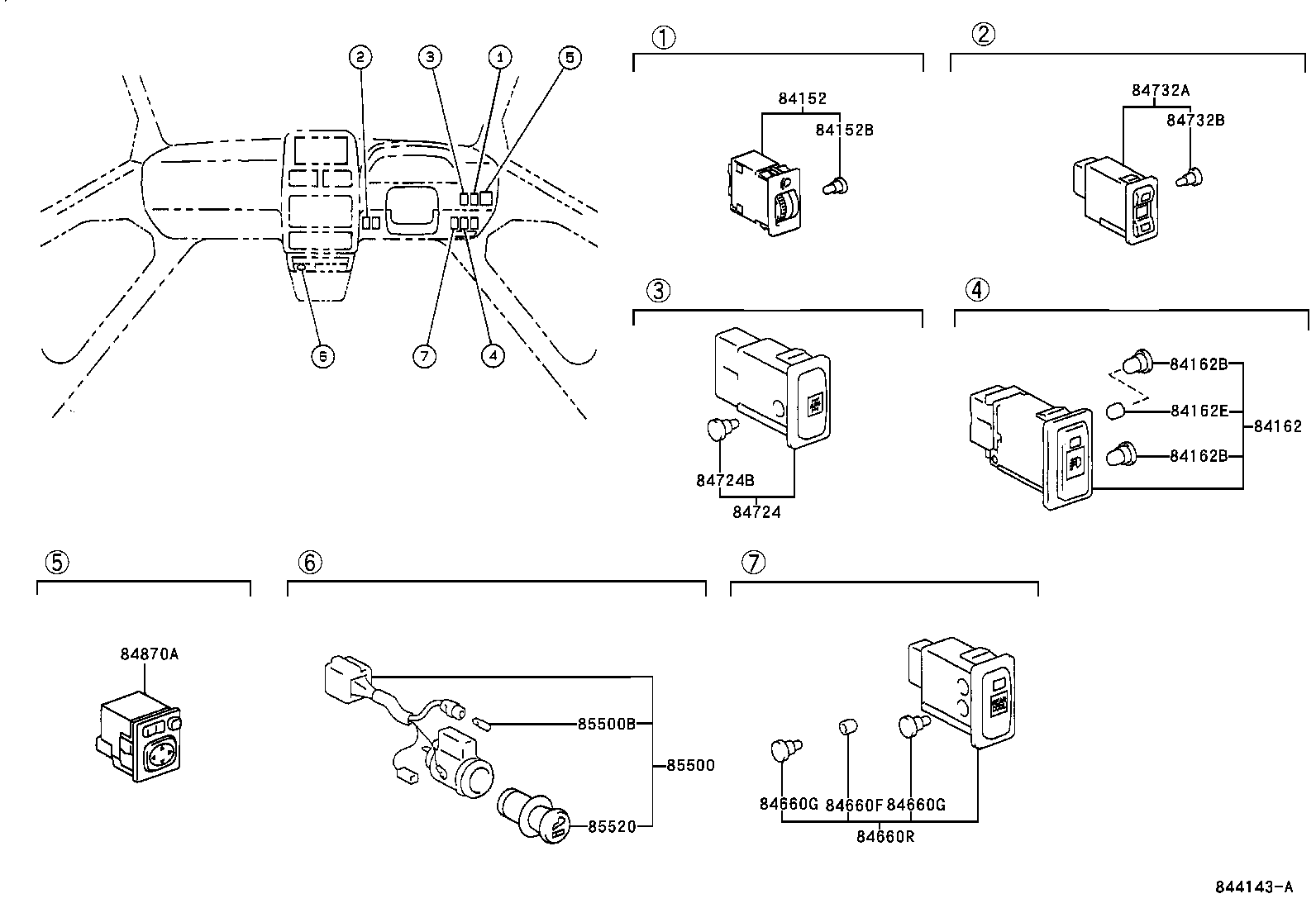

ILLUST NO. 3 OF 6(9805-0104)
ｲﾝﾊﾟﾈ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-44020 |
ACM1#,CXM10 |
1 | ||
| 84160-44020 |
CXM10,SXM1# |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10310 |
ACM1#,CXM10,SXM15 14V 0.91W |
2 | ||
| 84999-10310 |
CXM10,SXM1# 14V 0.91W |
2 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10310 |
ACM1#,CXM10,SXM15 14V 0.91W |
2 | ||
| 84999-10310 |
CXM10,SXM1# 14V 0.91W |
2 | ||
| 84162E - CAP, FOG LAMP BULB | ||||
| 84998-10740 |
CXM10,SXM1# |
1 | ||
| 84998-10740 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20350 |
CXM10,SXM1# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 84332-44010 |
CXM10,SXM1# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
CXM10,SXM1# 14V 0.91W |
1 | ||
| 84660F - CAP, COOLER SWITCH BULB | ||||
| 84998-10090 |
CXM10,SXM1# |
1 | ||
| 84998-10090 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84660G - BULB(FOR REAR COOLER SWITCH) | ||||
| 84999-10320 |
CXM10,SXM1# 14V 0.84W |
2 | ||
| 84999-10320 |
ACM1#,CXM10,SXM15 14V 0.84W |
2 | ||
| 84660G - BULB(FOR REAR COOLER SWITCH) | ||||
| 84999-10320 |
CXM10,SXM1# 14V 0.84W |
2 | ||
| 84999-10320 |
ACM1#,CXM10,SXM15 14V 0.84W |
2 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84660-44010 |
CXM10,SXM1# |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84730-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84730-44010 |
CXM10,SXM1# |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 84999-10190 |
ACM1#,CXM10,SXM15 12V 0.87W |
1 | ||
| 84999-10190 |
CXM10,SXM1# 12V 0.87W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16040 |
CXM10,SXM1# |
1 | ||
| 84870-28020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 85500-44010 |
CXM10,SXM1# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
ACM1#,CXM10,SXM15 14V 1.4W |
1 | ||
| 90981-11014 |
CXM10,SXM1# 14V 1.4W |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 85520-28010 |
CXM10,SXM1# |
1 | ||

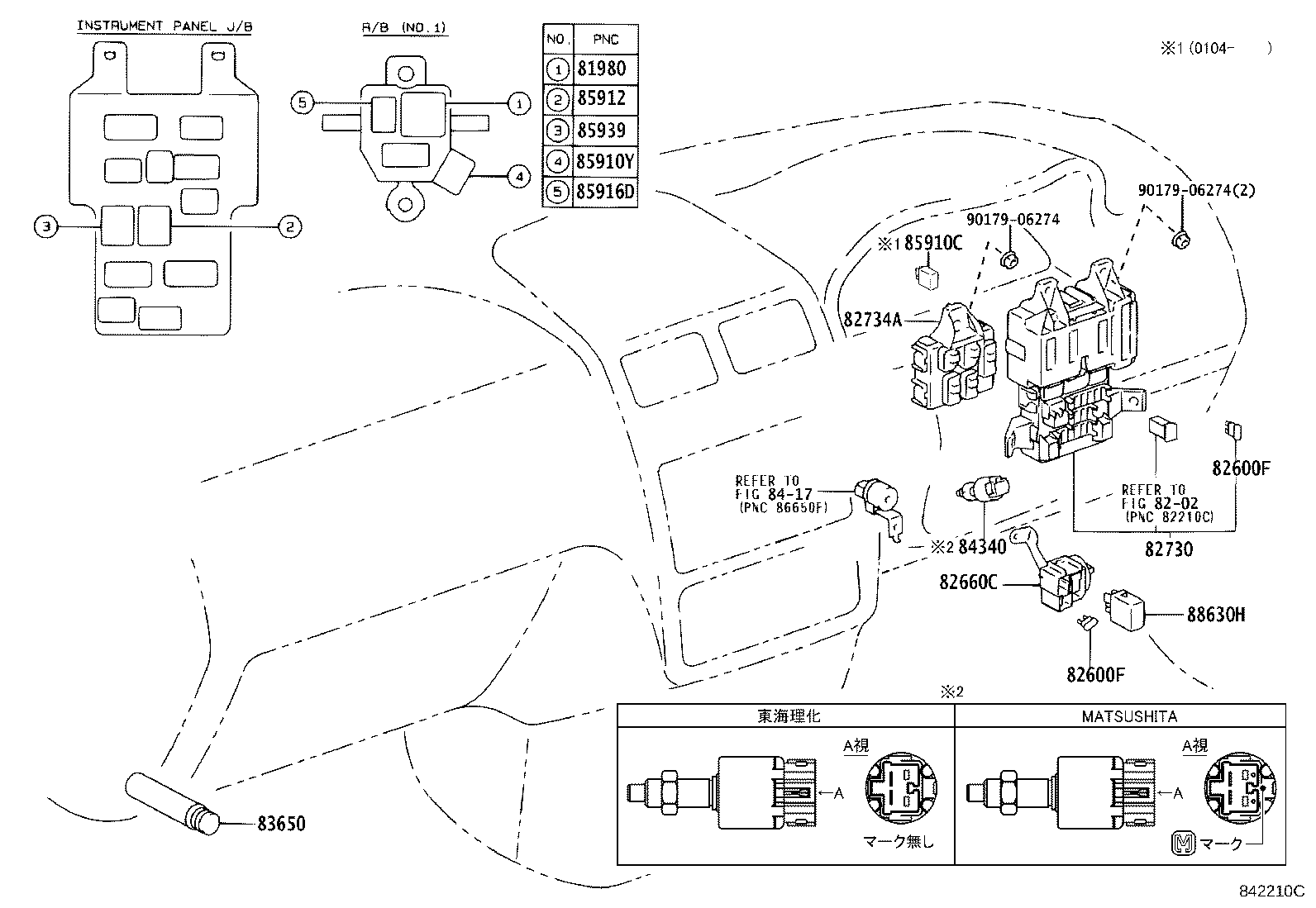

ILLUST NO. 4 OF 6(9805- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12110 |
CXM10,SXM1# |
1 | ||
| 81980-50030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
CXM10,SXM1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
CXM10,SXM1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09007 |
CXM10,SXM1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
CXM10,SXM1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
CXM10,SXM1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09012 |
ACM1#,CXM10,SXM15 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
ACM10,CXM10,SXM15 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
ACM1#,CXM10,SXM15 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ACM1#,CXM10,SXM15 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
ACM1#,CXM10,SXM15 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09007 |
ACM10,CXM10 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09009 |
CXM10,SXM10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09009 |
ACM1#,CXM10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
ACM1#,CXM10,SXM15 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
ACM1#,CXM10,SXM15 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
CXM10,SXM1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
CXM10,SXM1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09007 |
CXM10,SXM1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
CXM10,SXM1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
CXM10,SXM1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09012 |
ACM1#,CXM10,SXM15 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
ACM10,CXM10,SXM15 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
ACM1#,CXM10,SXM15 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ACM1#,CXM10,SXM15 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
ACM1#,CXM10,SXM15 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09007 |
ACM10,CXM10 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09009 |
CXM10,SXM10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09009 |
ACM1#,CXM10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
ACM1#,CXM10,SXM15 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
ACM1#,CXM10,SXM15 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-44020 |
CXM10,SXM1# |
1 | ||
| 82660-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-44030 |
CXM10,SXM1# |
1 | ||
| 82730-44121 |
ACM1#,CXM10 |
1 | ||
| 82730-44120 |
ACM10,CXM10,SXM15 |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-44010 |
CXM10,SXM1# |
1 | ||
| 82734-44010 |
ACM10,CXM10,SXM15 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
CXM10,SXM1# |
1 | ||
| 90986-01005 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
CXM10,SXM1# |
1 | ||
| 84340-35020 |
CXM10,SXM15 東海理化 |
1 | ||
| 84340-35030 |
ACM1#,CXM10 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
ACM1#,CXM10,SXM15 |
1 | ||
| 90987-04002 |
CXM10,SXM1# |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-04002 |
ACM1#,CXM10,SXM15 |
1 | ||
| 90987-04002 |
CXM10,SXM1# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
CXM10,SXM1# |
1 | ||
| 90987-02012 |
ACM1#,CXM10,SXM15 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
ACM1#,CXM10 |
1 | ||
| 90987-02012 |
CXM10,SXM1# |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02012 |
CXM10,SXM1# |
1 | ||
| 90987-02012 |
ACM1#,CXM10,SXM15 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02012 |
CXM10,SXM1# |
1 | ||
| 90987-02012 |
ACM1#,CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8417 | ||||

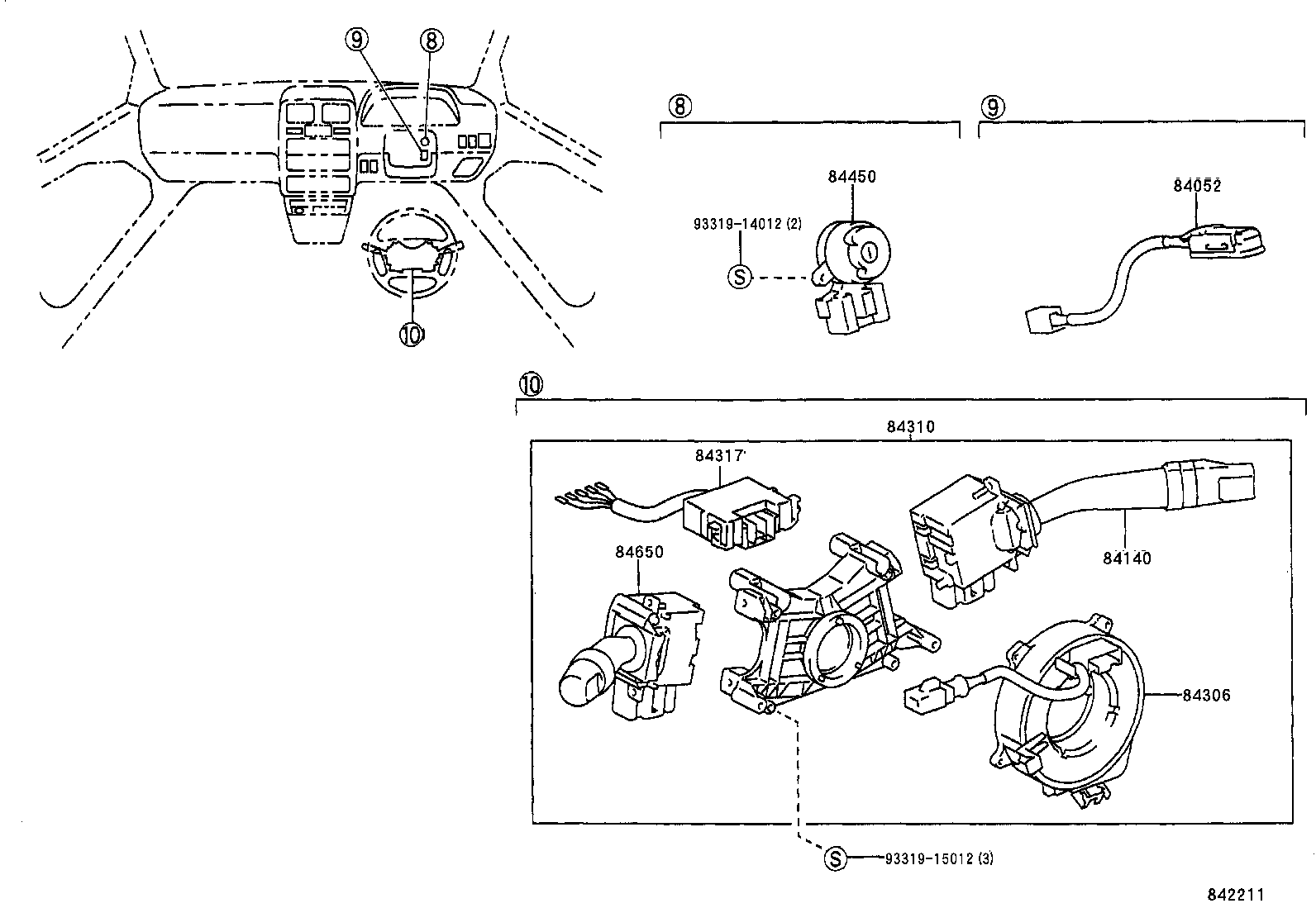

ILLUST NO. 5 OF 6(9805-0104)
ﾀ-ﾝｼｸﾞﾅﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
CXM10,SXM1# |
1 | ||
| 84052-12070 |
ACM1#,CXM10 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20570 |
CXM10,SXM1# |
1 | ||
| 84140-20570 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12070 |
ACM10,CXM10 |
1 | ||
| 84306-12070 |
CXM10,SXM1# |
1 | ||
| 84306-33070 |
ACM10,CXM10 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-44100 |
ACM10,CXM10 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 84310-1G060 |
CXM10,SXM10 |
1 | ||
| 84310-1G060 |
ACM10,CXM10 |
1 | ||
| 84310-44150 |
ACM10,CXM10 |
1 | ||
| 84310-44090 |
ACM10,CXM10 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
ACM1#,CXM10 |
1 | ||
| 84450-12200 |
CXM10,SXM1# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-44030 |
ACM10,CXM10,SXM15 |
1 | ||
| 84652-44030 |
CXM10,SXM1# |
1 | ||
| 84652-44050 |
ACM1#,CXM10 |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

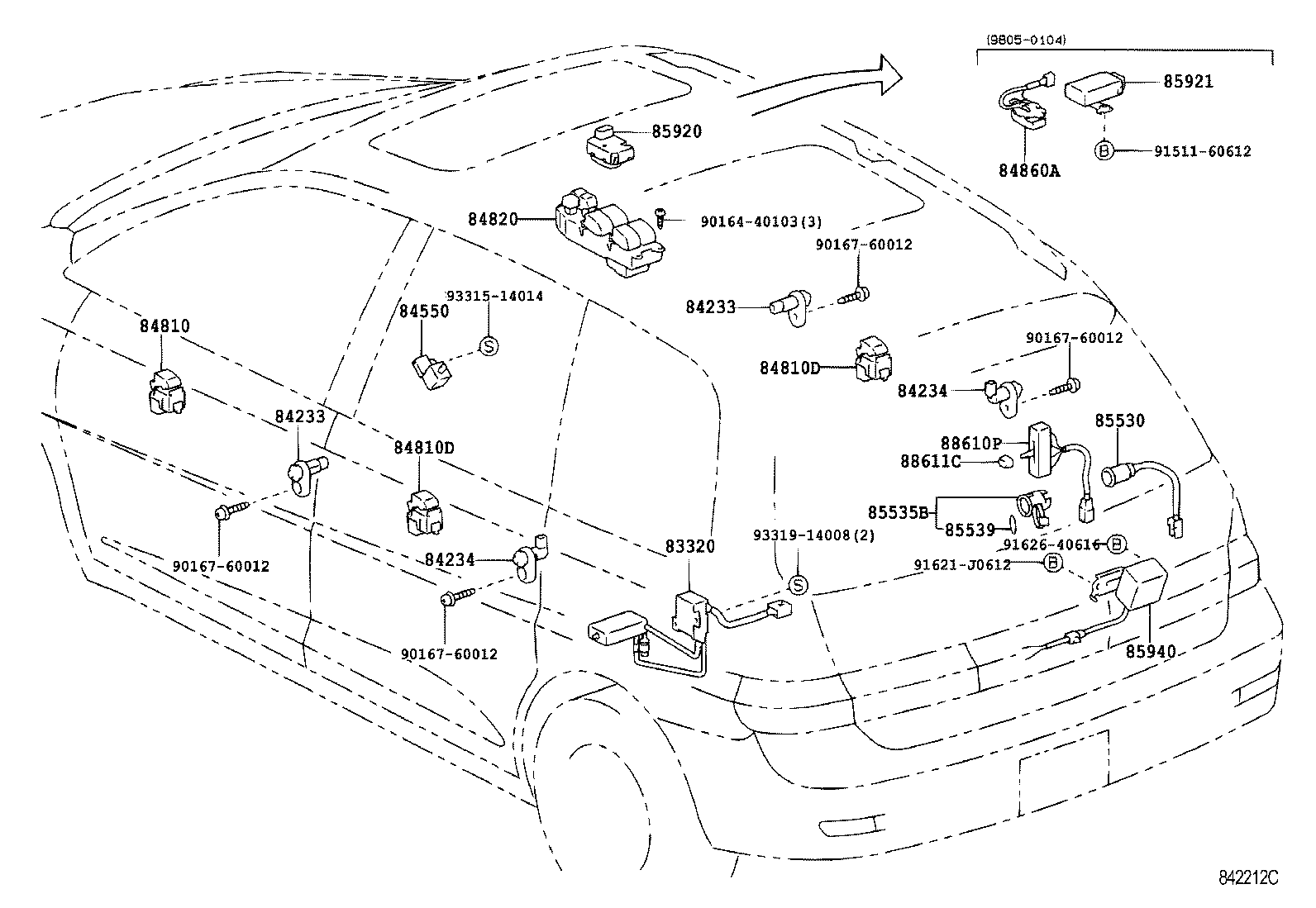

ILLUST NO. 6 OF 6(9805- )
ﾄﾞｱ,ﾙ-ﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-44030 |
CXM10 |
1 | ||
| 83320-44030 |
CXM10 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12160 |
ACM1#,CXM10,SXM15 |
2 | ||
| 84231-12160 |
CXM10,SXM1# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12160 |
ACM1#,CXM10,SXM15 |
2 | ||
| 84231-12160 |
CXM10,SXM1# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12170 |
CXM10,SXM1# |
2 | ||
| 84231-12170 |
ACM1#,CXM10,SXM15 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12170 |
CXM10,SXM1# |
2 | ||
| 84231-12170 |
ACM1#,CXM10,SXM15 |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACM1#,CXM10 |
1 | ||
| 84550-16060 |
CXM10,SXM1# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84810-12080 |
CXM10,SXM1# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
CXM10,SXM1# |
2 | ||
| 84810-12080 |
ACM1#,CXM10,SXM15 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
CXM10,SXM1# |
2 | ||
| 84810-12080 |
ACM1#,CXM10,SXM15 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-44030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84820-44010 |
CXM10,SXM1# |
1 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-44010A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-44010 |
CXM10,SXM1# |
1 | ||
| 85530-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 85535-44010 |
CXM10,SXM1# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 85539-60010 |
CXM10,SXM1# |
1 | ||
| 85920 - RELAY & SWITCH ASSY, SLIDING ROOF | ||||
| 85920-44010A1 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-44010 |
CXM10,SXM1# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-44020 |
ACM1#,CXM10 |
1 | ||
| 85940-44020 |
CXM10,SXM1# |
1 | ||
| 88610P - SWITCH ASSY, CONTROL | ||||
| 88610-44030 |
ACM1#,CXM10 |
1 | ||
| 88610-44030 |
CXM10,SXM1# |
1 | ||
| 88611C - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-28020E1 |
CXM10,SXM1# SANDAL WOOD,TRIM0# |
1 | ||
| 88611-28020A1 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90167-60012 | ||||
| 91511-60612 | ||||
| 91621-J0612 | ||||
| 91626-40616 | ||||
| 93315-14014 | ||||
| 93319-14008 | ||||
ILLUST NO. 3 OF 6(0104- )
ｲﾝﾊﾟﾈ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-47010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08100 |
ACM1#,CXM10,SXM15 14V 40MA,ｸﾞﾘｰﾝ |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-44020 |
ACM1#,CXM10 |
1 | ||
| 84160-44020 |
CXM10,SXM1# |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10310 |
ACM1#,CXM10,SXM15 14V 0.91W |
2 | ||
| 84999-10310 |
CXM10,SXM1# 14V 0.91W |
2 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10310 |
ACM1#,CXM10,SXM15 14V 0.91W |
2 | ||
| 84999-10310 |
CXM10,SXM1# 14V 0.91W |
2 | ||
| 84162E - CAP, FOG LAMP BULB | ||||
| 84998-10740 |
CXM10,SXM1# |
1 | ||
| 84998-10740 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84660F - CAP, COOLER SWITCH BULB | ||||
| 84998-10090 |
CXM10,SXM1# |
1 | ||
| 84998-10090 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84660G - BULB(FOR REAR COOLER SWITCH) | ||||
| 84999-10320 |
CXM10,SXM1# 14V 0.84W |
2 | ||
| 84999-10320 |
ACM1#,CXM10,SXM15 14V 0.84W |
2 | ||
| 84660G - BULB(FOR REAR COOLER SWITCH) | ||||
| 84999-10320 |
CXM10,SXM1# 14V 0.84W |
2 | ||
| 84999-10320 |
ACM1#,CXM10,SXM15 14V 0.84W |
2 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84660-44010 |
CXM10,SXM1# |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84730-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84730-44010 |
CXM10,SXM1# |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 84999-10190 |
ACM1#,CXM10,SXM15 12V 0.87W |
1 | ||
| 84999-10190 |
CXM10,SXM1# 12V 0.87W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16040 |
CXM10,SXM1# |
1 | ||
| 84870-28020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 85500-44010 |
CXM10,SXM1# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
ACM1#,CXM10,SXM15 14V 1.4W |
1 | ||
| 90981-11014 |
CXM10,SXM1# 14V 1.4W |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 85520-28010 |
CXM10,SXM1# |
1 | ||
ILLUST NO. 5 OF 6(0104- )
ﾀ-ﾝｼｸﾞﾅﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
CXM10,SXM1# |
1 | ||
| 84052-12070 |
ACM1#,CXM10 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20570 |
CXM10,SXM1# |
1 | ||
| 84140-20570 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12070 |
ACM10,CXM10 |
1 | ||
| 84306-12070 |
CXM10,SXM1# |
1 | ||
| 84306-33070 |
ACM10,CXM10 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-44100 |
ACM10,CXM10 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 84310-1G060 |
CXM10,SXM10 |
1 | ||
| 84310-1G060 |
ACM10,CXM10 |
1 | ||
| 84310-44150 |
ACM10,CXM10 |
1 | ||
| 84310-44090 |
ACM10,CXM10 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
ACM1#,CXM10 |
1 | ||
| 84450-12200 |
CXM10,SXM1# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-44030 |
ACM10,CXM10,SXM15 |
1 | ||
| 84652-44030 |
CXM10,SXM1# |
1 | ||
| 84652-44050 |
ACM1#,CXM10 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-22030 |
ACM1#,CXM10 |
1 | ||
| 89246B - DISC, SENSOR STEERING | ||||
| 89246-44020 |
ACM1#,CXM10 |
1 | ||
| 89246-44010 |
ACM10,CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 2 OF 6(0104- )CXM10
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15 |
1 | ||
| 28300-10020 |
3CTE,3SFE..CXM10,SXM1# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
3CTE..CXM10 |
1 | ||
| 28610-67010 |
3CTE..CXM10 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
CXM10,SXM1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
CXM10,SXM1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09007 |
CXM10,SXM1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
CXM10,SXM1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
CXM10,SXM1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09012 |
ACM1#,CXM10,SXM15 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
ACM10,CXM10,SXM15 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
ACM1#,CXM10,SXM15 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ACM1#,CXM10,SXM15 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
ACM1#,CXM10,SXM15 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09007 |
ACM10,CXM10 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09009 |
CXM10,SXM10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09009 |
ACM1#,CXM10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
ACM1#,CXM10,SXM15 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
ACM1#,CXM10,SXM15 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
CXM10,SXM1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
CXM10,SXM1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09007 |
CXM10,SXM1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
CXM10,SXM1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
CXM10,SXM1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09012 |
ACM1#,CXM10,SXM15 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
ACM10,CXM10,SXM15 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
ACM1#,CXM10,SXM15 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ACM1#,CXM10,SXM15 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
ACM1#,CXM10,SXM15 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09007 |
ACM10,CXM10 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09009 |
CXM10,SXM10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09009 |
ACM1#,CXM10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
ACM1#,CXM10,SXM15 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
ACM1#,CXM10,SXM15 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20170 |
ACM15,CXM10 |
1 | ||
| 82620-20170 |
CXM10,SXM1# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-44060 |
CXM10 |
1 | ||
| 82662-44140 |
CXM10 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-44090 |
CXM10 |
1 | ||
| 82672-44030 |
CXM10 |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-20040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 82674-20040 |
CXM10,SXM1# |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-44030 |
CXM10 |
1 | ||
| 82720-44030 |
CXM10 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-20030 |
CXM10 |
1 | ||
| 82741-20030 |
CXM10 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-44010 |
CXM10 |
1 | ||
| 82742-44010 |
CXM10 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ACM1#,CXM10,SXM15 |
1 | ||
| 82824-20140 |
CXM10,SXM1# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ACM1#,CXM10,SXM15 |
1 | ||
| 82824-20140 |
CXM10,SXM1# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-32100 |
CXM10 |
1 | ||
| 83390-32100 |
CXM10 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85916-30060 |
ACM1#,CXM10,SXM15 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
ACM1#,CXM10,SXM15 |
1 | ||
| 90987-02006 |
CXM10,SXM1# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02006 |
CXM10 |
1 | ||
| 90987-02006 |
CXM10 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04002 |
CXM10 |
1 | ||
| 90987-04002 |
CXM10 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02006 |
CXM10 |
1 | ||
| 90987-02006 |
CXM10 |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-44010 |
CXM10 |
1 | ||
| 85959-44010 |
CXM10 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
CXM10,SXM15 |
1 | ||
| 86530-20070 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 23344-54010 | ||||
| 23388-64470 | ||||
| 90119-06473 | ||||
| 91631-B0610 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
