CXM10G-BRSET (1998)
Toyota Gaia

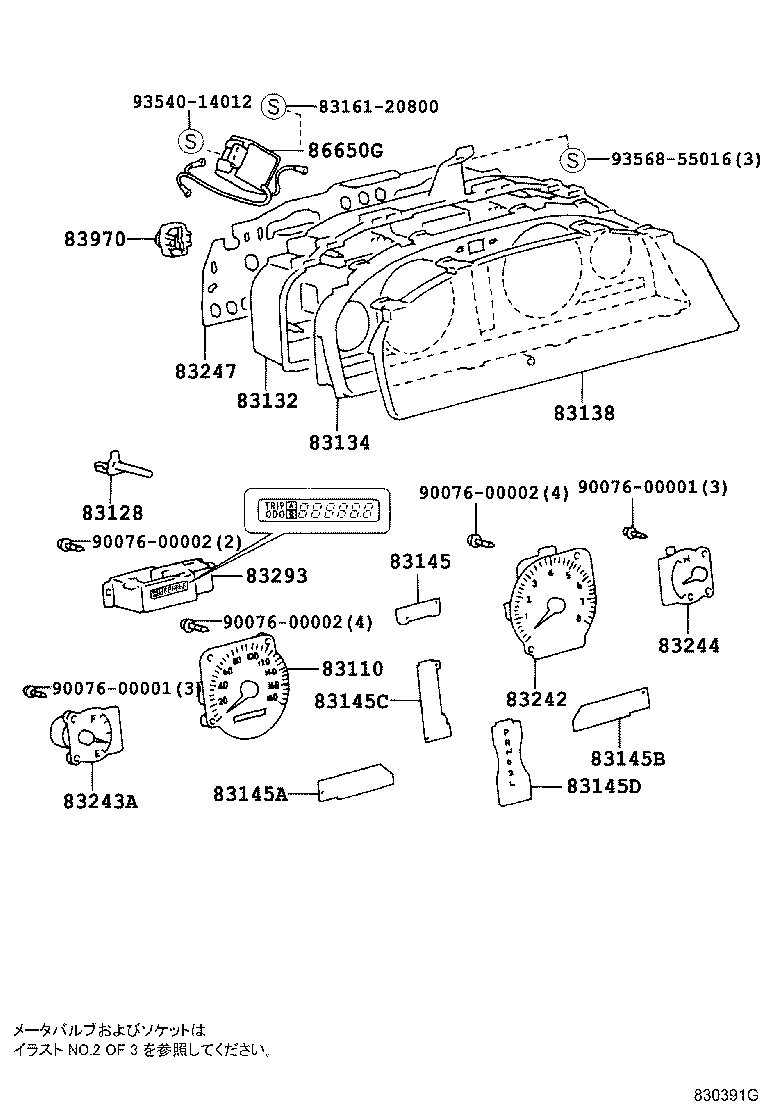

ILLUST NO. 1 OF 3(9805-0104)
ｱﾅﾛｸﾞﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-44070 |
CXM10,SXM1# YAZAKI |
1 | ||
| 83220-44150 |
ACM1#,CXM10,SXM15 YAZAKI |
1 | ||
| 83220-44220 |
CXM10 YAZAKI,ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83220-44100 |
CXM10 YAZAKI,ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83224-44010 |
CXM10,SXM1# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-44010 |
CXM10,SXM1# |
1 | ||
| 83841-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83841-44160 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-44120 |
CXM10,SXM1# |
1 | ||
| 83821-20590 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83821-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83821-44670 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-20130 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83852-20590 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83852-20130 |
CXM10,SXM1# |
1 | ||
| 83852-20590 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-20130 |
CXM10,SXM1# |
1 | ||
| 83831-20130 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-20130 |
CXM10,SXM15 |
1 | ||
| 83832-20130 |
CXM10,SXM1# |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83831-44090 |
CXM10 |
1 | ||
| 83831-44090 |
CXM10 |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83831-44010 |
CXM10,SXM1# |
1 | ||
| 83831-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83887-44010 |
CXM10,SXM1# |
1 | ||
| 83887-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-44140 |
CXM10 |
1 | ||
| 83881-44640 |
CXM10 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-44161 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-44590 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-44120 |
CXM10,SXM1# |
1 | ||
| 83882-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-44161 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-44120 |
CXM10,SXM1# |
1 | ||
| 83883-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-44590 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-44140 |
CXM10 |
1 | ||
| 83861-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83861-44160 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83861-44640 |
CXM10 |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-44040 |
CXM10 |
1 | ||
| 83293-44040 |
CXM10 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
CXM10,SXM1# |
1 | ||
| 83970-12020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-33020 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 83161-20800 | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 93540-14012 | ||||
| 93568-55016 | ||||

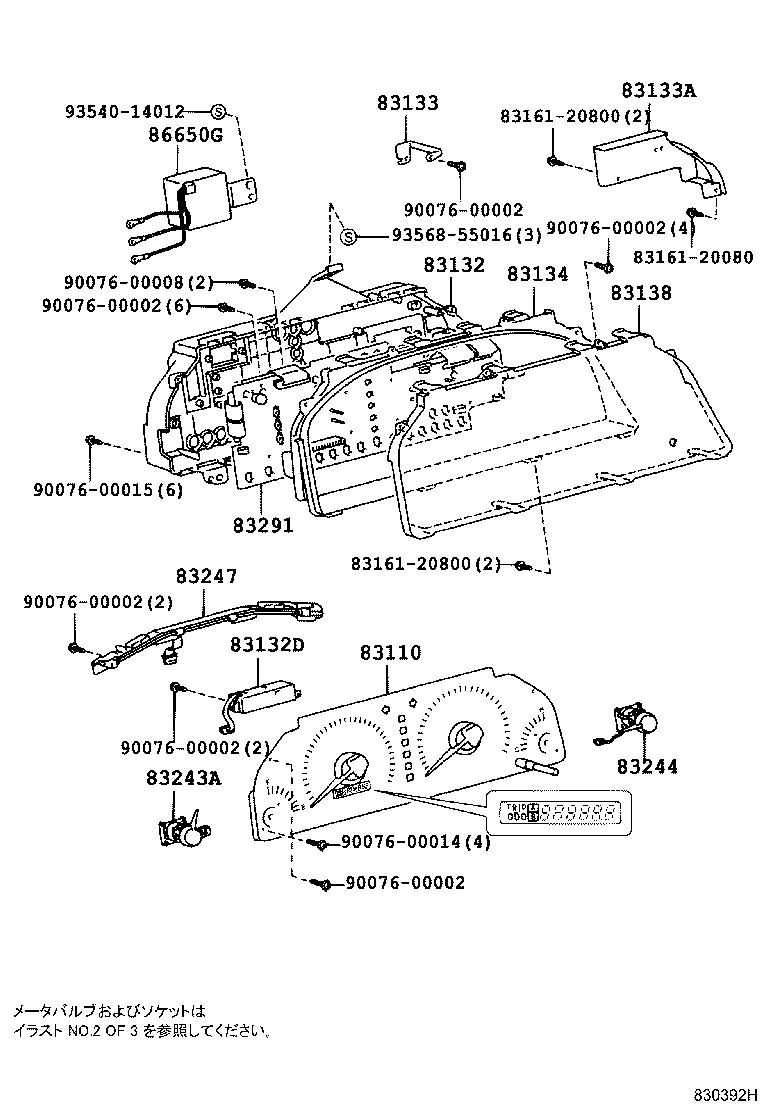

ILLUST NO. 1 OF 3(9805-0104)
ｵﾌﾟﾃｨﾄﾛﾝﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-44070 |
CXM10,SXM1# YAZAKI |
1 | ||
| 83220-44150 |
ACM1#,CXM10,SXM15 YAZAKI |
1 | ||
| 83220-44220 |
CXM10 YAZAKI,ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83220-44100 |
CXM10 YAZAKI,ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-44010 |
CXM10,SXM1# |
1 | ||
| 83841-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83841-44160 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83841-44670 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83842-20590 |
CXM10,SXM1# |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-20590 |
CXM10,SXM1# |
1 | ||
| 83811-20590 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83812-20590 |
CXM10,SXM1# |
1 | ||
| 83812-20590 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-44120 |
CXM10,SXM1# |
1 | ||
| 83821-20590 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83821-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83821-44670 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-20130 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83852-20590 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83852-20130 |
CXM10,SXM1# |
1 | ||
| 83852-20590 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-44161 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-44590 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-44120 |
CXM10,SXM1# |
1 | ||
| 83882-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-44161 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-44120 |
CXM10,SXM1# |
1 | ||
| 83883-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-44590 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-44140 |
CXM10 |
1 | ||
| 83861-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83861-44160 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83861-44640 |
CXM10 |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-44060 |
CXM10 YAZAKI |
1 | ||
| 83291-44140 |
CXM10 YAZAKI |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-33020 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20800 | ||||
| 90076-00002 | ||||
| 90076-00008 | ||||
| 90076-00014 | ||||
| 90076-00015 | ||||
| 93540-14012 | ||||
| 93568-55016 | ||||

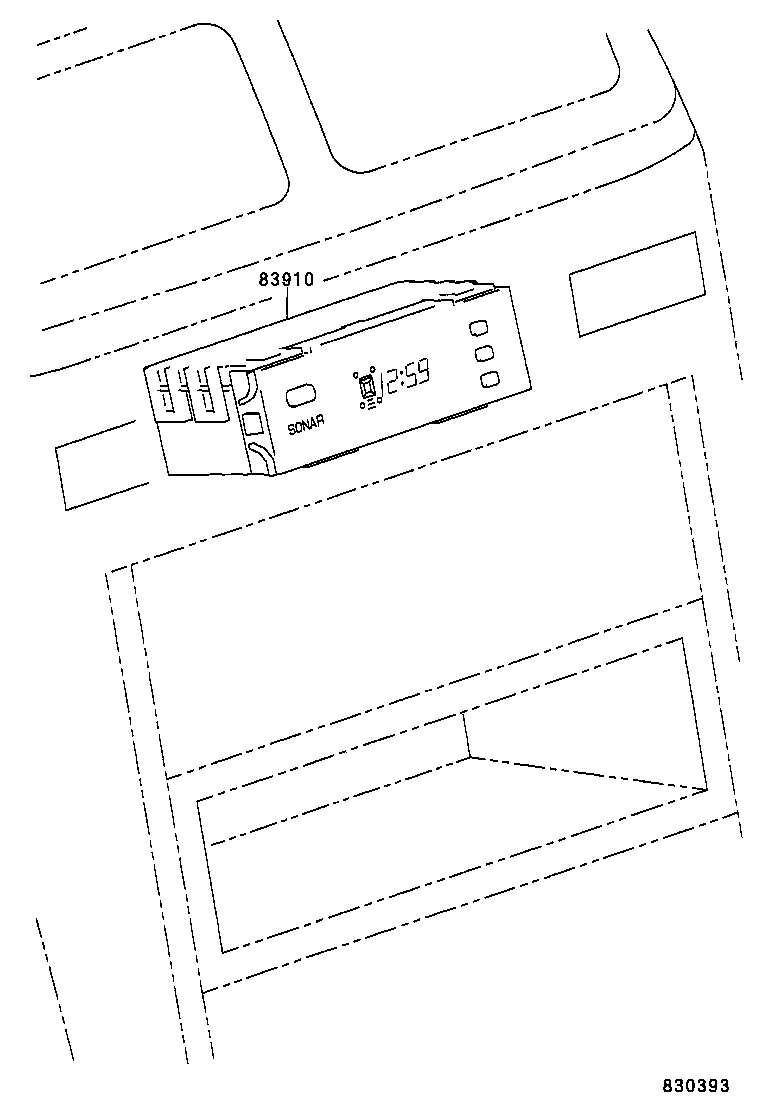

ILLUST NO. 3 OF 3(9805-0104)
ｸﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-44010 |
CXM10,SXM1# ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 83910-44020 |
CXM10,SXM1# |
1 | ||

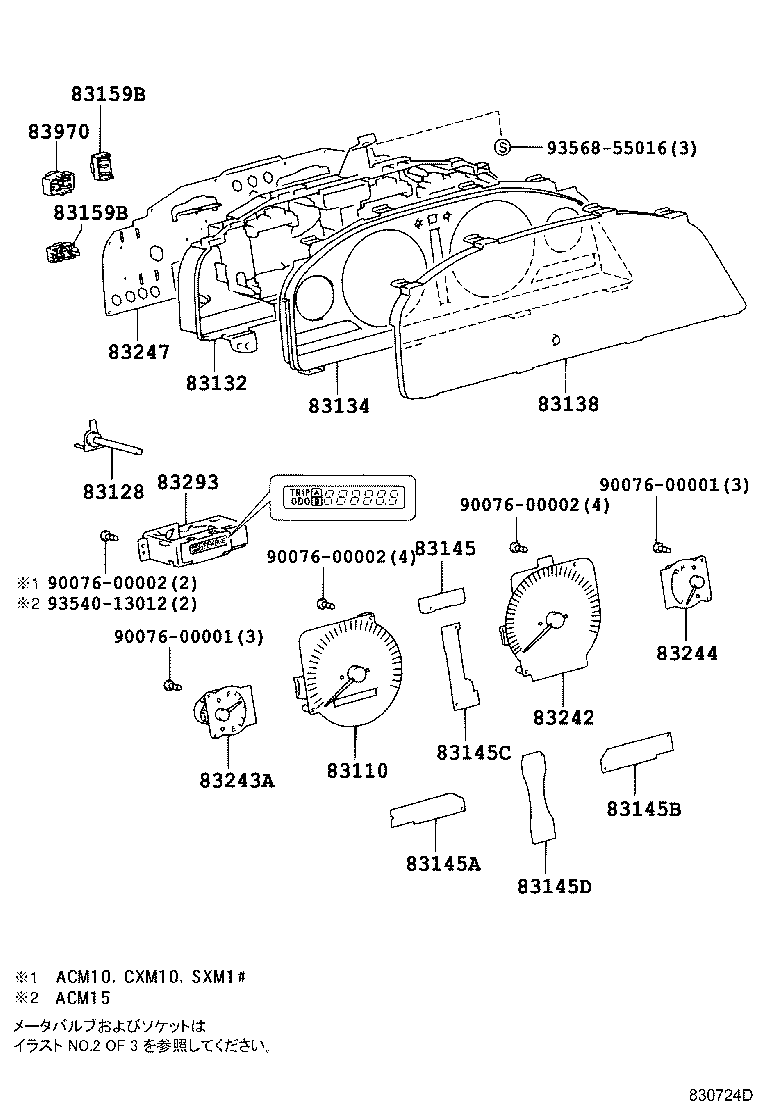

ILLUST NO. 1 OF 3(0104- )
ｱﾅﾛｸﾞﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-44070 |
CXM10,SXM1# YAZAKI |
1 | ||
| 83220-44150 |
ACM1#,CXM10,SXM15 YAZAKI |
1 | ||
| 83220-44220 |
CXM10 YAZAKI,ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83220-44100 |
CXM10 YAZAKI,ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83224-44010 |
CXM10,SXM1# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-44010 |
CXM10,SXM1# |
1 | ||
| 83841-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83841-44160 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-44120 |
CXM10,SXM1# |
1 | ||
| 83821-20590 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83821-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83821-44670 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-20130 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83852-20590 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83852-20130 |
CXM10,SXM1# |
1 | ||
| 83852-20590 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-20130 |
CXM10,SXM1# |
1 | ||
| 83831-20130 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-20130 |
CXM10,SXM15 |
1 | ||
| 83832-20130 |
CXM10,SXM1# |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83831-44090 |
CXM10 |
1 | ||
| 83831-44090 |
CXM10 |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83831-44010 |
CXM10,SXM1# |
1 | ||
| 83831-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83887-44010 |
CXM10,SXM1# |
1 | ||
| 83887-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
ACM1#,CXM10,SXM15 |
2 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
ACM1#,CXM10,SXM15 |
2 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-44140 |
CXM10 |
1 | ||
| 83881-44640 |
CXM10 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-44161 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-44590 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-44120 |
CXM10,SXM1# |
1 | ||
| 83882-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-44161 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-44120 |
CXM10,SXM1# |
1 | ||
| 83883-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-44590 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-44140 |
CXM10 |
1 | ||
| 83861-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83861-44160 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83861-44640 |
CXM10 |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-44040 |
CXM10 |
1 | ||
| 83293-44040 |
CXM10 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
CXM10,SXM1# |
1 | ||
| 83970-12020 |
ACM1#,CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 93540-13012 | ||||
| 93568-55016 | ||||

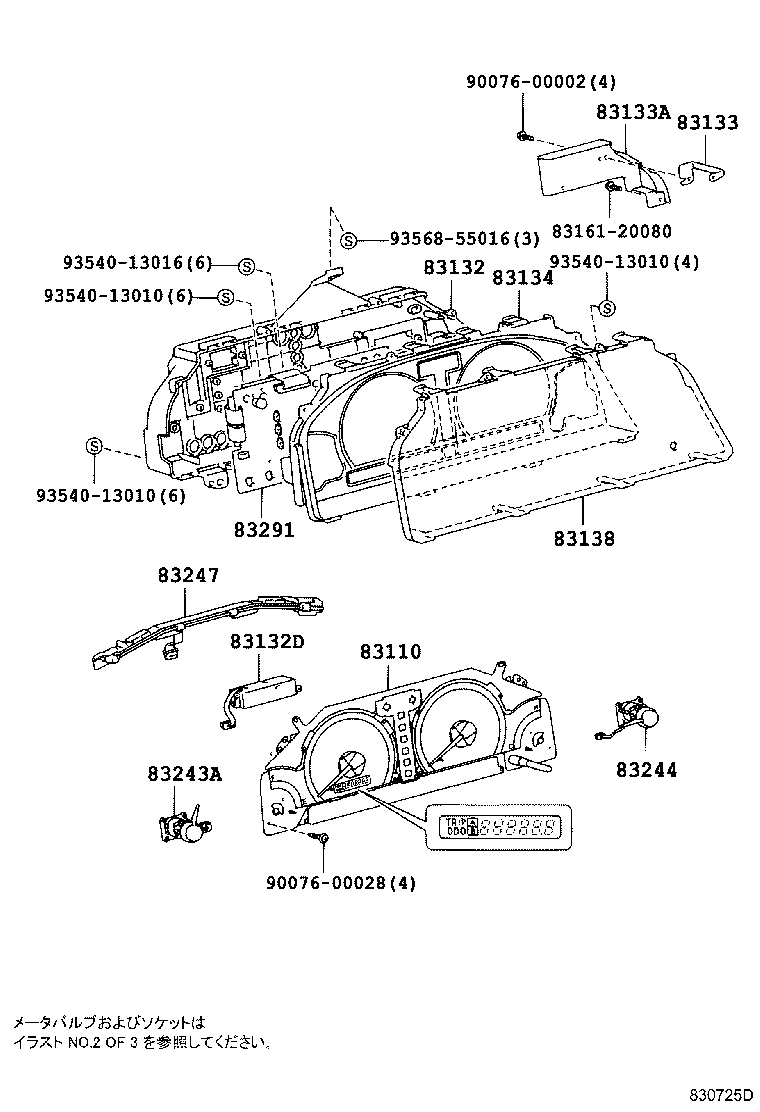

ILLUST NO. 1 OF 3(0104- )
ｵﾌﾟﾃｨﾄﾛﾝ ﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-44070 |
CXM10,SXM1# YAZAKI |
1 | ||
| 83220-44150 |
ACM1#,CXM10,SXM15 YAZAKI |
1 | ||
| 83220-44220 |
CXM10 YAZAKI,ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83220-44100 |
CXM10 YAZAKI,ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-44010 |
CXM10,SXM1# |
1 | ||
| 83841-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83841-44160 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83841-44670 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83842-20590 |
CXM10,SXM1# |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-20590 |
CXM10,SXM1# |
1 | ||
| 83811-20590 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83812-20590 |
CXM10,SXM1# |
1 | ||
| 83812-20590 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-44120 |
CXM10,SXM1# |
1 | ||
| 83821-20590 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83821-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83821-44670 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-20130 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83852-20590 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83852-20130 |
CXM10,SXM1# |
1 | ||
| 83852-20590 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-44161 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-44590 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-44120 |
CXM10,SXM1# |
1 | ||
| 83882-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-44161 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-44120 |
CXM10,SXM1# |
1 | ||
| 83883-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-44590 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-44620 |
ACM1#,CXM10,SXM15 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-44140 |
CXM10 |
1 | ||
| 83861-44160 |
CXM10,SXM1# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83861-44160 |
ACM1#,CXM10,SXM15 ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83861-44640 |
CXM10 |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-44060 |
CXM10 YAZAKI |
1 | ||
| 83291-44140 |
CXM10 YAZAKI |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 90076-00002 | ||||
| 90076-00028 | ||||
| 93540-13010 | ||||
| 93540-13016 | ||||
| 93568-55016 | ||||

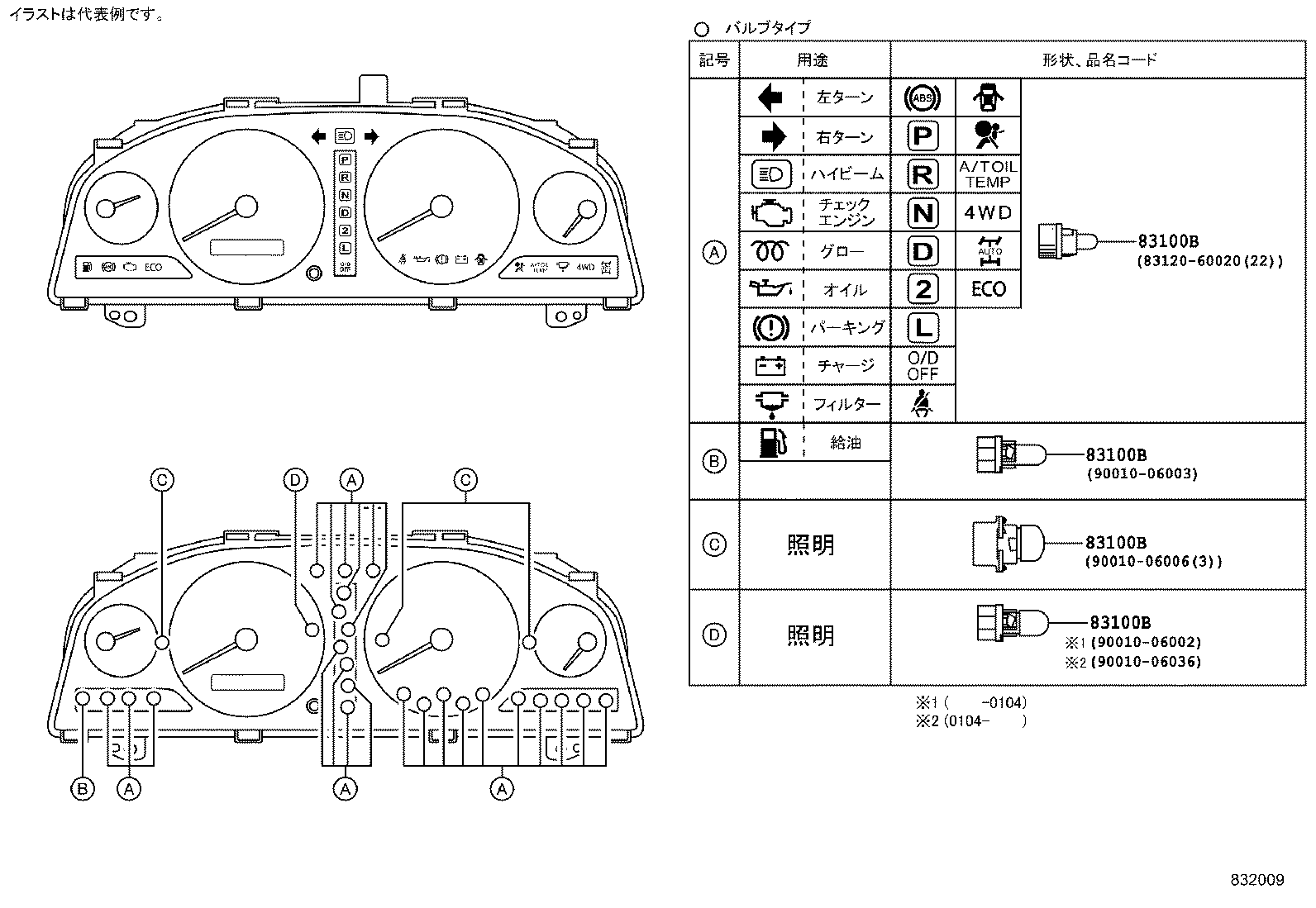

ILLUST NO. 2 OF 3(9805- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
CXM10,SXM1# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06003 |
CXM10,SXM1# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 84999-30040 |
CXM10,SXM1# 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CXM10,SXM1# 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84999-30040 |
ACM1#,CXM10,SXM15 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06002 |
CXM10,SXM1# 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06036 |
ACM1#,CXM10,SXM15 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06006 |
ACM1#,CXM10,SXM15 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06003 |
ACM1#,CXM10,SXM15 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83120-60020 |
ACM1#,CXM10,SXM15 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
CXM10,SXM1# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06003 |
CXM10,SXM1# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 84999-30040 |
CXM10,SXM1# 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CXM10,SXM1# 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84999-30040 |
ACM1#,CXM10,SXM15 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06002 |
CXM10,SXM1# 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06036 |
ACM1#,CXM10,SXM15 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06006 |
ACM1#,CXM10,SXM15 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06003 |
ACM1#,CXM10,SXM15 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83120-60020 |
ACM1#,CXM10,SXM15 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
CXM10,SXM1# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06003 |
CXM10,SXM1# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 84999-30040 |
CXM10,SXM1# 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CXM10,SXM1# 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84999-30040 |
ACM1#,CXM10,SXM15 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06002 |
CXM10,SXM1# 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06036 |
ACM1#,CXM10,SXM15 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06006 |
ACM1#,CXM10,SXM15 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06003 |
ACM1#,CXM10,SXM15 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83120-60020 |
ACM1#,CXM10,SXM15 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
CXM10,SXM1# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06003 |
CXM10,SXM1# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 84999-30040 |
CXM10,SXM1# 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CXM10,SXM1# 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84999-30040 |
ACM1#,CXM10,SXM15 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06002 |
CXM10,SXM1# 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06036 |
ACM1#,CXM10,SXM15 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06006 |
ACM1#,CXM10,SXM15 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06003 |
ACM1#,CXM10,SXM15 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83120-60020 |
ACM1#,CXM10,SXM15 12V 1.4W,ｿｹｯﾄ付き |
1 | ||

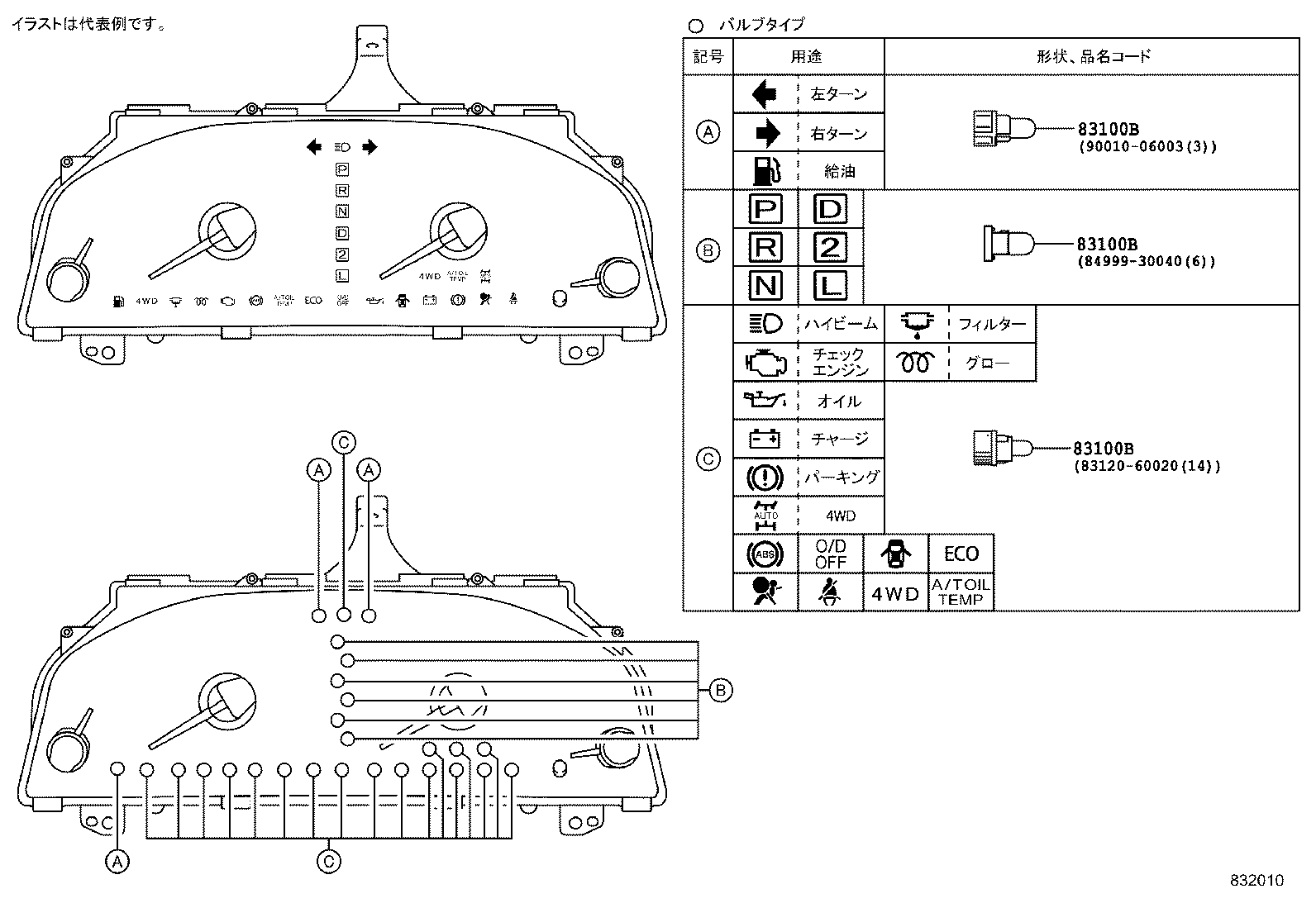

ILLUST NO. 2 OF 3(9805- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｵﾌﾟﾃｨﾄﾛﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
CXM10,SXM1# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06003 |
CXM10,SXM1# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 84999-30040 |
CXM10,SXM1# 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CXM10,SXM1# 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84999-30040 |
ACM1#,CXM10,SXM15 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06002 |
CXM10,SXM1# 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06036 |
ACM1#,CXM10,SXM15 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06006 |
ACM1#,CXM10,SXM15 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06003 |
ACM1#,CXM10,SXM15 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83120-60020 |
ACM1#,CXM10,SXM15 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
CXM10,SXM1# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06003 |
CXM10,SXM1# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 84999-30040 |
CXM10,SXM1# 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CXM10,SXM1# 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84999-30040 |
ACM1#,CXM10,SXM15 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06002 |
CXM10,SXM1# 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06036 |
ACM1#,CXM10,SXM15 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06006 |
ACM1#,CXM10,SXM15 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06003 |
ACM1#,CXM10,SXM15 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83120-60020 |
ACM1#,CXM10,SXM15 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
CXM10,SXM1# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06003 |
CXM10,SXM1# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 84999-30040 |
CXM10,SXM1# 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CXM10,SXM1# 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84999-30040 |
ACM1#,CXM10,SXM15 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06002 |
CXM10,SXM1# 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06036 |
ACM1#,CXM10,SXM15 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06006 |
ACM1#,CXM10,SXM15 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06003 |
ACM1#,CXM10,SXM15 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83120-60020 |
ACM1#,CXM10,SXM15 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
