Toyota Gaia CXM10 INTERIOR LAMP - JDM Part Detective

Part #	Description	Period	Qty
81240 - LAMP ASSY, ROOM, NO.1
81240-44010A0	CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	05/1998 - 04/2001	1
81240-52010A1	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2001 - 09/2004	1
81240-22120A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
81260-14080A1	ACM1#,CXM10 ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),IVORY,TRIM0#	04/2001 - 09/2004	1
81240-22120A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
81240 - LAMP ASSY, ROOM, NO.1
81240-22120A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
81240-44010A0	CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	05/1998 - 04/2001	1
81240-52010A1	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2001 - 09/2004	1
81260-14080A1	ACM1#,CXM10 ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),IVORY,TRIM0#	04/2001 - 09/2004	1
81240-22120A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
81240B - BULB, ROOM LAMP, NO.1
90981-14004	CXM10,SXM1# 12V 8W	05/1998 - 04/2001	1
90981-12005	ACM1#,CXM10,SXM15 12V 8W,ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ)	04/2001 - 12/2999	2
90981-14011	ACM10,CXM10,SXM15 12V 8W,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ)	04/2001 - 12/2999	1
90981-14004	ACM1#,CXM10,SXM15 12V 8W	04/2001 - 12/2999	1
90981-14011	CXM10,SXM1# 12V 8W,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ)	05/1998 - 04/2001	1
81240B - BULB, ROOM LAMP, NO.1
90981-14004	CXM10,SXM1# 12V 8W	05/1998 - 04/2001	1
90981-12005	ACM1#,CXM10,SXM15 12V 8W,ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ)	04/2001 - 12/2999	2
90981-14011	ACM10,CXM10,SXM15 12V 8W,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ)	04/2001 - 12/2999	1
90981-14004	ACM1#,CXM10,SXM15 12V 8W	04/2001 - 12/2999	1
90981-14011	CXM10,SXM1# 12V 8W,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ)	05/1998 - 04/2001	1
81240B - BULB, ROOM LAMP, NO.1
90981-14004	CXM10,SXM1# 12V 8W	05/1998 - 04/2001	1
90981-12005	ACM1#,CXM10,SXM15 12V 8W,ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ)	04/2001 - 12/2999	2
90981-14011	ACM10,CXM10,SXM15 12V 8W,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ)	04/2001 - 12/2999	1
90981-14004	ACM1#,CXM10,SXM15 12V 8W	04/2001 - 12/2999	1
90981-14011	CXM10,SXM1# 12V 8W,ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ)	05/1998 - 04/2001	1
81241 - LENS, ROOM LAMP, NO.1
81241-32031	CXM10,SXM1#	05/1998 - 04/2001	1
81241-44010	CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ)	05/1998 - 04/2001	1
81261-14080	ACM1#,CXM10,SXM15 ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ)	04/2001 - 12/2999	1
81241-44010	ACM1#,CXM10,SXM15 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ)	04/2001 - 12/2999	1
81241-32031	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
81241 - LENS, ROOM LAMP, NO.1
81241-32031	CXM10,SXM1#	05/1998 - 04/2001	1
81241-44010	CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ)	05/1998 - 04/2001	1
81261-14080	ACM1#,CXM10,SXM15 ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ)	04/2001 - 12/2999	1
81241-44010	ACM1#,CXM10,SXM15 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ)	04/2001 - 12/2999	1
81241-32031	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
81250 - LAMP ASSY, ROOM, NO.2
81250-44010A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
81250-44010A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
81250B - BULB, ROOM LAMP, NO.2
90981-14004	ACM1#,CXM10,SXM15 12V 8W	04/2001 - 12/2999	1
90981-14004	CXM10,SXM1# 12V 8W	05/1998 - 04/2001	1
81251 - LENS, ROOM LAMP, NO.2
81251-28010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
81251-28010	CXM10,SXM1#	05/1998 - 04/2001	1
81260A - LAMP ASSY, MAP
81260-22141A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/1999	1
81260-22180A1	CXM10,SXM1# IVORY,TRIM0#	04/1999 - 04/2001	1
81260-22180A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
81260C - BULB(FOR MAP LAMP)
90981-12020	CXM10,SXM1# 12V 8W	05/1998 - 04/2001	2
90981-12020	ACM1#,CXM10,SXM15 12V 8W	04/2001 - 12/2999	2
81260C - BULB(FOR MAP LAMP)
90981-12020	CXM10,SXM1# 12V 8W	05/1998 - 04/2001	2
90981-12020	ACM1#,CXM10,SXM15 12V 8W	04/2001 - 12/2999	2
81261 - LENS AND COVER, MAP LAMP
81261-32081A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
81261-32081A1	ACM1#,CXM10,SXM15 IVORY,TRIM0#	04/2001 - 12/2999	1
81870D - LAMP ASSY, KEY CYLINDER
81870-20050	CXM10,SXM1#	05/1998 - 04/2001	1
81870-20050	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
81870E - BULB, KEY CYLINDER LAMP
90981-11014	CXM10,SXM1# 14V 1.4W	05/1998 - 04/2001	1
90981-11014	ACM1#,CXM10,SXM15 14V 1.4W	04/2001 - 12/2999	1
Common parts
90164-45005
90467-06132
93510-44016

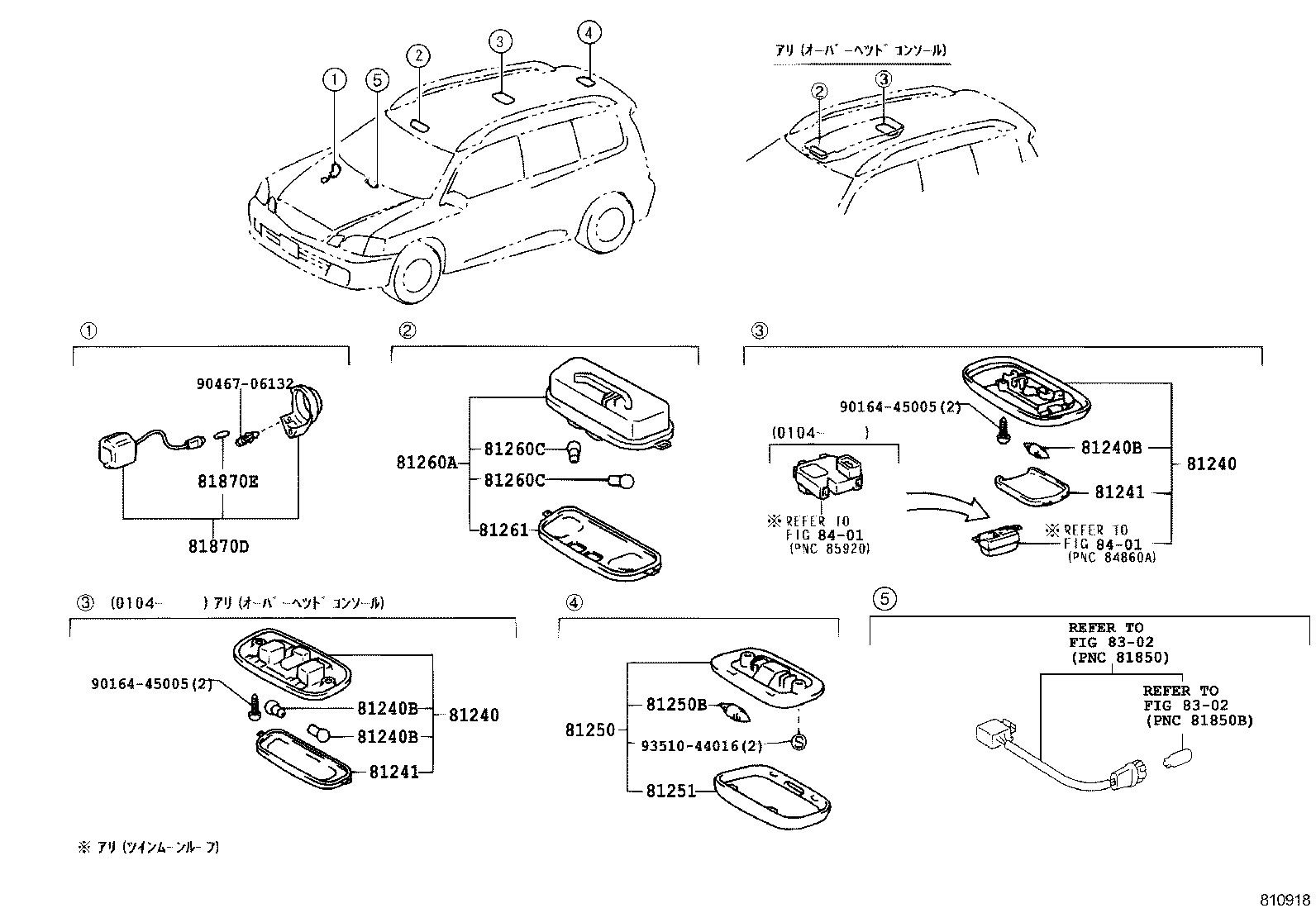

Linked diagrams
8302
8401

CXM10G-BRSET (1998)

(9805- )
