CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

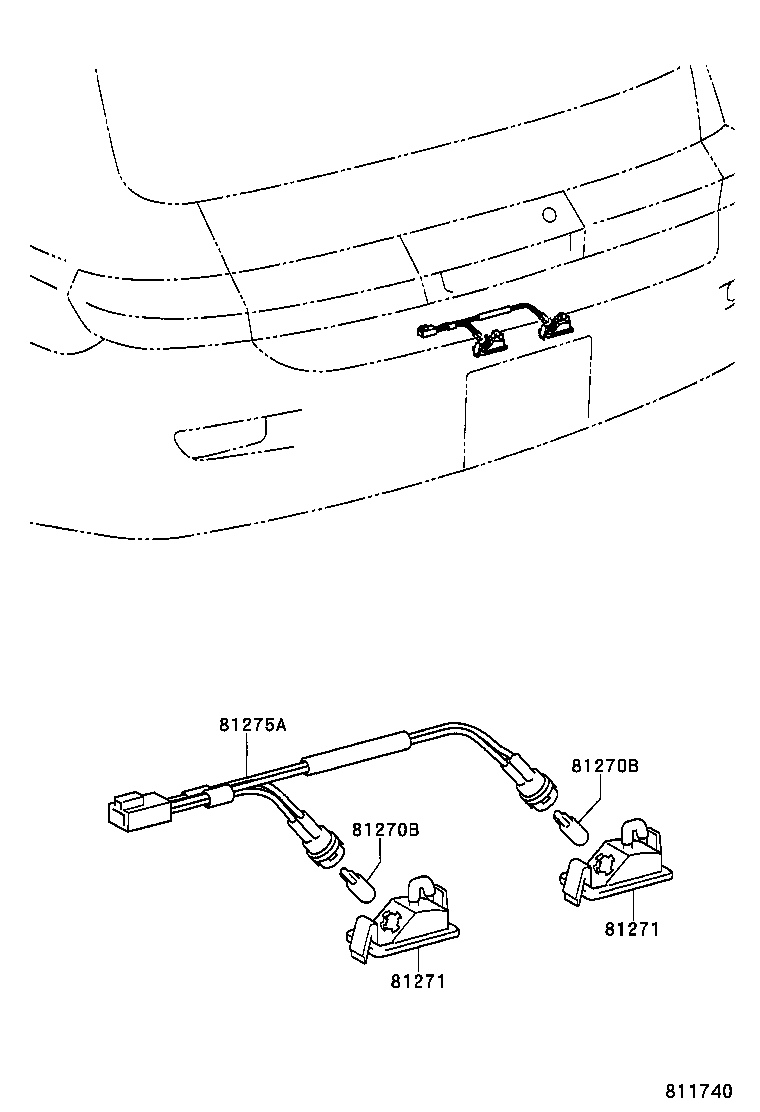

Click highlighted areas on diagram

diagram 81270B 81270B 81271 81271 81275A
Part # Description Qty Price
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

CXM10,SXM1#

12V 5W

 2
99132-12050

ACM1#,CXM10,SXM15

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

CXM10,SXM1#

12V 5W

 2
99132-12050

ACM1#,CXM10,SXM15

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-30240

CXM10,SXM1#

 2
81271-30240

ACM1#,CXM10,SXM15

 2
81271 - LENS, LICENSE PLATE LAMP
81271-30240

CXM10,SXM1#

 2
81271-30240

ACM1#,CXM10,SXM15

 2
81275A - CORD, LICENSE PLATE LAMP
81275-44040

ACM1#,CXM10,SXM15

 1
81275-44040

CXM10,SXM1#

 1
