CXM10G-BRSET (1998)
Toyota Gaia
Production
May 1998
-
Sep 2004
Engine
3CTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805-0104)

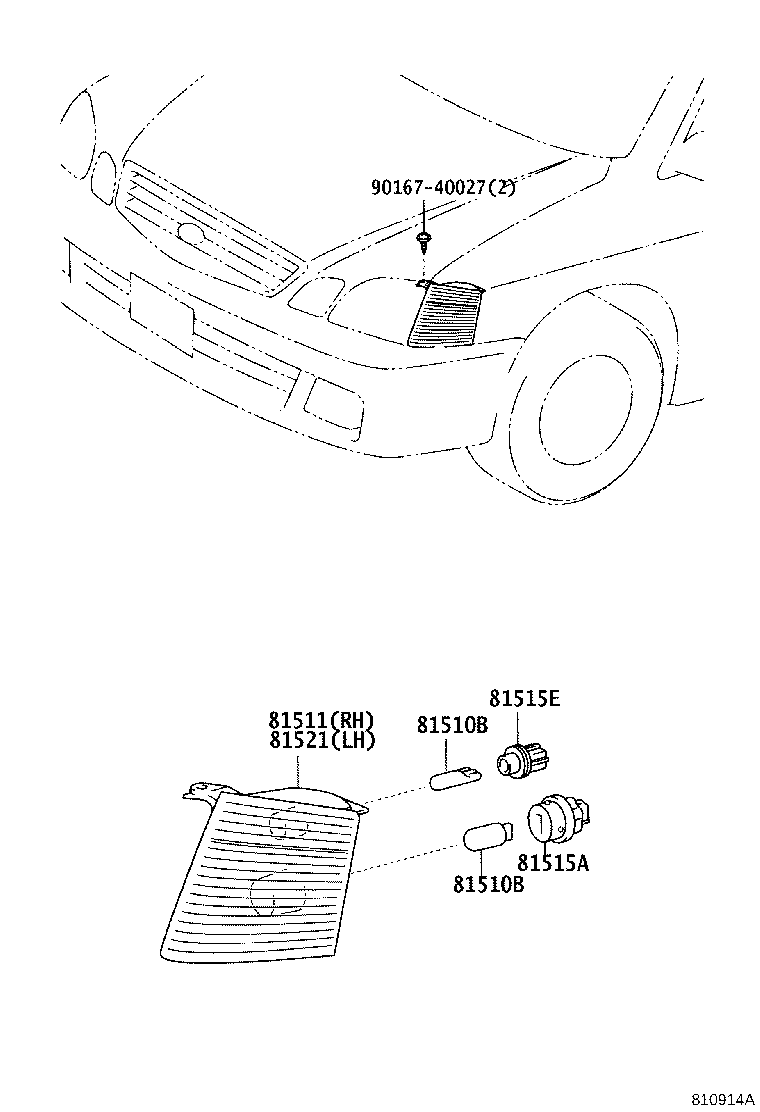

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-12050 |
CXM10,SXM1# 12V 5W |
2 | ||
| 90981-13043 |
ACM1#,CXM10,SXM15 12V 21W |
2 | ||
| 90981-13043 |
CXM10,SXM1# 12V 21W |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-12050 |
CXM10,SXM1# 12V 5W |
2 | ||
| 90981-13043 |
ACM1#,CXM10,SXM15 12V 21W |
2 | ||
| 90981-13043 |
CXM10,SXM1# 12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-44030 |
CXM10,SXM1# |
1 | ||
| 81511-44060 |
ACM1#,CXM10,SXM15 |
1 | ||
| 81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP | ||||
| 90075-99080 |
CXM10,SXM1# |
2 | ||
| 90075-99080 |
ACM1#,CXM10,SXM15 |
2 | ||
| 81515E - SOCKET PLUG ASSY | ||||
| 90075-99109 |
CXM10,SXM1# |
2 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-44030 |
CXM10,SXM1# |
1 | ||
| 81521-44060 |
ACM1#,CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 90167-40027 | ||||
(0104- )

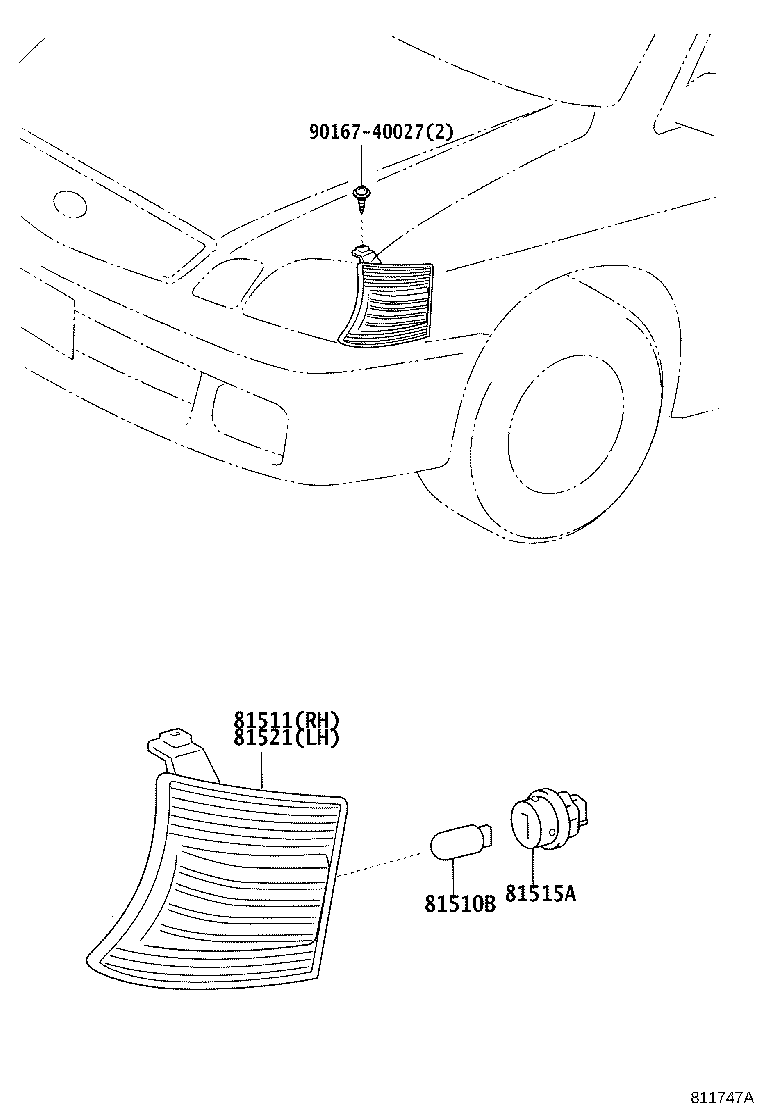

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-12050 |
CXM10,SXM1# 12V 5W |
2 | ||
| 90981-13043 |
ACM1#,CXM10,SXM15 12V 21W |
2 | ||
| 90981-13043 |
CXM10,SXM1# 12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-44030 |
CXM10,SXM1# |
1 | ||
| 81511-44060 |
ACM1#,CXM10,SXM15 |
1 | ||
| 81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP | ||||
| 90075-99080 |
CXM10,SXM1# |
2 | ||
| 90075-99080 |
ACM1#,CXM10,SXM15 |
2 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-44030 |
CXM10,SXM1# |
1 | ||
| 81521-44060 |
ACM1#,CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 90167-40027 | ||||
