CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004

Engine 3CTE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9805-0104)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046	CXM10,SXM1# 12V65W(SAE),60W(ECE)	05/1998 - 04/2001	2
90981-13046	ACM1#,CXM10 12V65W(SAE),60W(ECE)	12/2002 - 09/2004	2
90080-81041	ACM1#,CXM10,SXM15 12V 65W	04/2001 - 12/2002	2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13047	CXM10,SXM1# 12V 55W,ﾊﾛｹﾞﾝ	05/1998 - 04/2001	2
90981-13047	ACM1#,CXM10,SXM15 12V 55W,ﾊﾛｹﾞﾝ	04/2001 - 12/2999	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-44080	CXM10,SXM1#	05/1998 - 04/2001	1
81130-44180	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
81140-44190	ACM1#,CXM10,SXM15 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	04/2001 - 12/2999	1
81145C - COVER, HEADLAMP SOCKET, NO.2
90075-65006	CXM10,SXM1#	05/1998 - 04/2001	4
81145C - COVER, HEADLAMP SOCKET, NO.2
90075-65006	CXM10,SXM1#	05/1998 - 04/2001	4
81175 - UNIT ASSY, HEADLAMP, LH
81170-44080	CXM10,SXM1#	05/1998 - 04/2001	1
81170-44180	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
81070-44190	ACM1#,CXM10,SXM15 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	04/2001 - 12/2999	1
Common parts
90075-02724
90159-50311
90189-05121
90189-05142

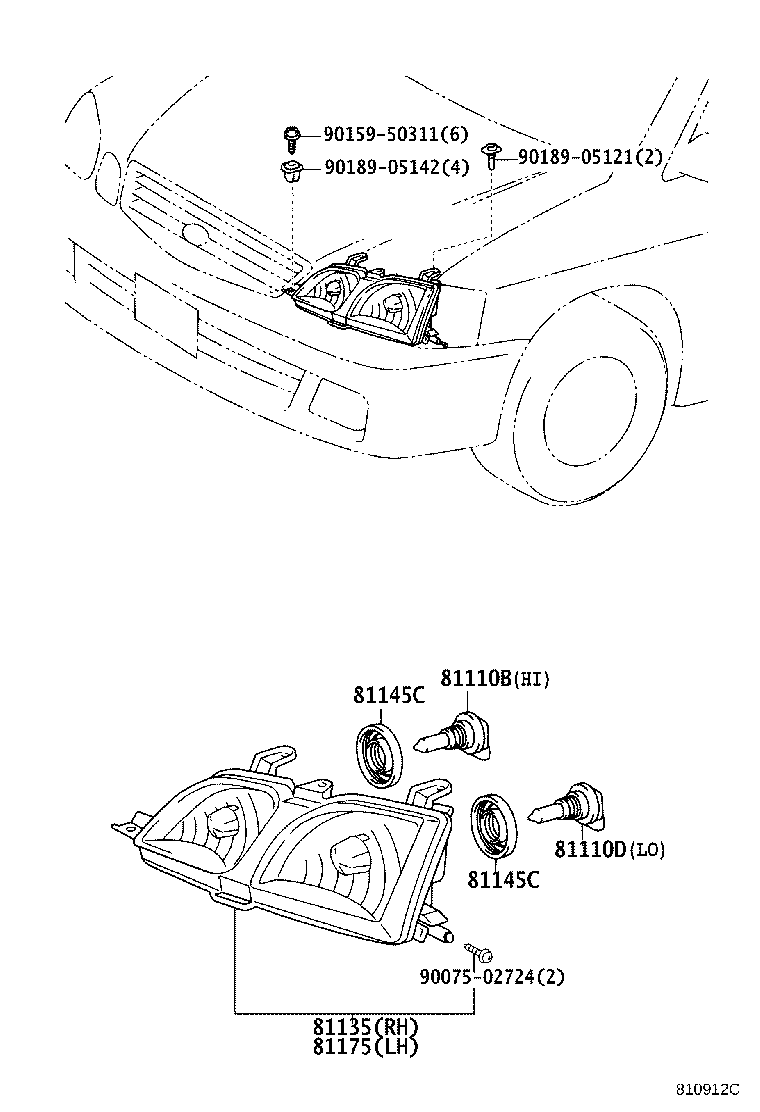

ILLUST NO. 1 OF 2(0104- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046	CXM10,SXM1# 12V65W(SAE),60W(ECE)	05/1998 - 04/2001	2
90981-13046	ACM1#,CXM10 12V65W(SAE),60W(ECE)	12/2002 - 09/2004	2
90080-81041	ACM1#,CXM10,SXM15 12V 65W	04/2001 - 12/2002	2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13047	CXM10,SXM1# 12V 55W,ﾊﾛｹﾞﾝ	05/1998 - 04/2001	2
90981-13047	ACM1#,CXM10,SXM15 12V 55W,ﾊﾛｹﾞﾝ	04/2001 - 12/2999	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-44080	CXM10,SXM1#	05/1998 - 04/2001	1
81130-44180	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
81140-44190	ACM1#,CXM10,SXM15 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	04/2001 - 12/2999	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-44080	CXM10,SXM1#	05/1998 - 04/2001	1
81170-44180	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
81070-44190	ACM1#,CXM10,SXM15 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	04/2001 - 12/2999	1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	ACM1#,CXM10,SXM15 12V 5W	04/2001 - 12/2999	2
81615D - SOCKET, CLEARANCE LAMP
90075-60046	ACM1#,CXM10,SXM15	04/2001 - 12/2999	2
Common parts
90159-50311
90189-05121
90189-05142

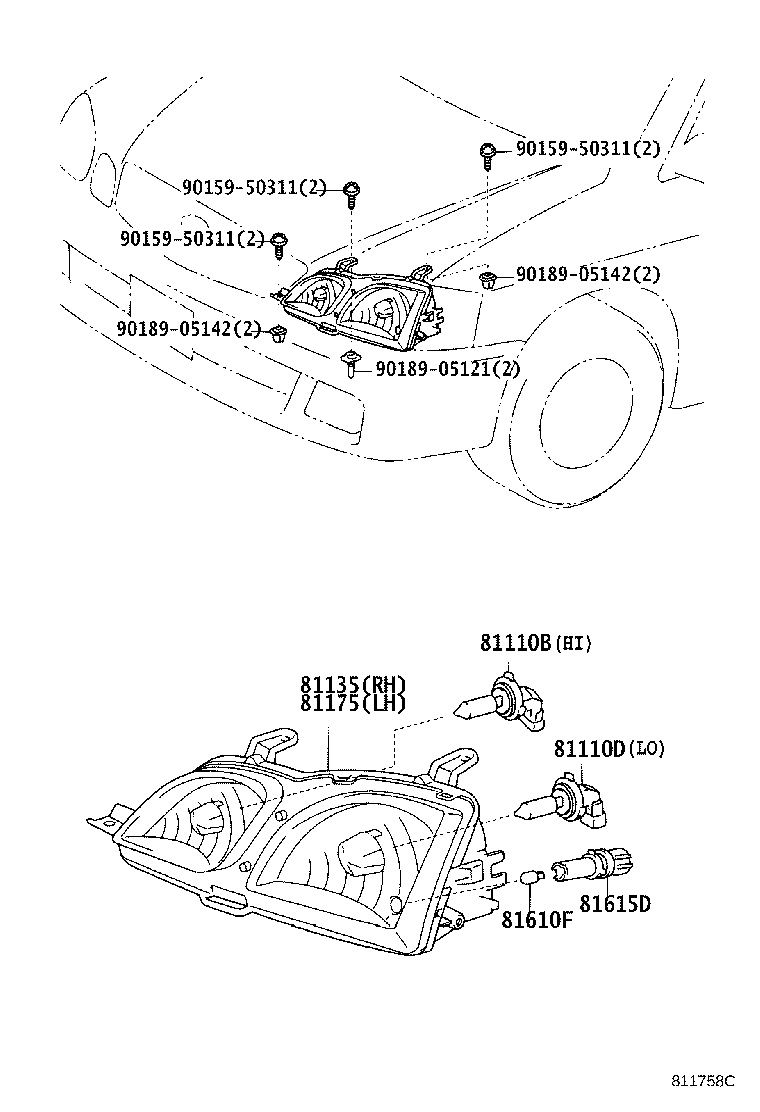

ILLUST NO. 1 OF 2(0104- )

Click highlighted areas on diagram

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗｲﾄ)

Part #	Description	Period	Qty
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-44190	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
81107A - COVER, HEADLAMP LIGHT CONTROL COMPUTER
90075-67002	ACM1#,CXM10,SXM15	04/2001 - 12/2999	2
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-44190	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046	CXM10,SXM1# 12V65W(SAE),60W(ECE)	05/1998 - 04/2001	2
90981-13046	ACM1#,CXM10 12V65W(SAE),60W(ECE)	12/2002 - 09/2004	2
90080-81041	ACM1#,CXM10,SXM15 12V 65W	04/2001 - 12/2002	2
81110L - BULB, DISCHARGE HEADLAMP
90981-20001	ACM1#,CXM10,SXM15 85V 35W	04/2001 - 12/2999	2
81134 - GASKET, HEADLAMP
90075-99137	ACM1#,CXM10,SXM15	04/2001 - 12/2999	6
81134 - GASKET, HEADLAMP
90075-99137	ACM1#,CXM10,SXM15	04/2001 - 12/2999	6
81134 - GASKET, HEADLAMP
90075-99137	ACM1#,CXM10,SXM15	04/2001 - 12/2999	6
81135 - UNIT ASSY, HEADLAMP, RH
81130-44080	CXM10,SXM1#	05/1998 - 04/2001	1
81130-44180	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
81140-44190	ACM1#,CXM10,SXM15 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	04/2001 - 12/2999	1
81139 - COVER, HEADLAMP SOCKET
81139-48040	ACM1#,CXM10,SXM15	04/2001 - 12/2999	2
81175 - UNIT ASSY, HEADLAMP, LH
81170-44080	CXM10,SXM1#	05/1998 - 04/2001	1
81170-44180	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
81070-44190	ACM1#,CXM10,SXM15 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ)	04/2001 - 12/2999	1
81189 - COVER, HEADLAMP
90075-99136	ACM1#,CXM10,SXM15	04/2001 - 12/2999	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	ACM1#,CXM10,SXM15 12V 5W	04/2001 - 12/2999	2
81615D - SOCKET, CLEARANCE LAMP
90075-60046	ACM1#,CXM10,SXM15	04/2001 - 12/2999	2
Common parts
90075-02025
90075-02727
90159-50311
90189-05121
90189-05142

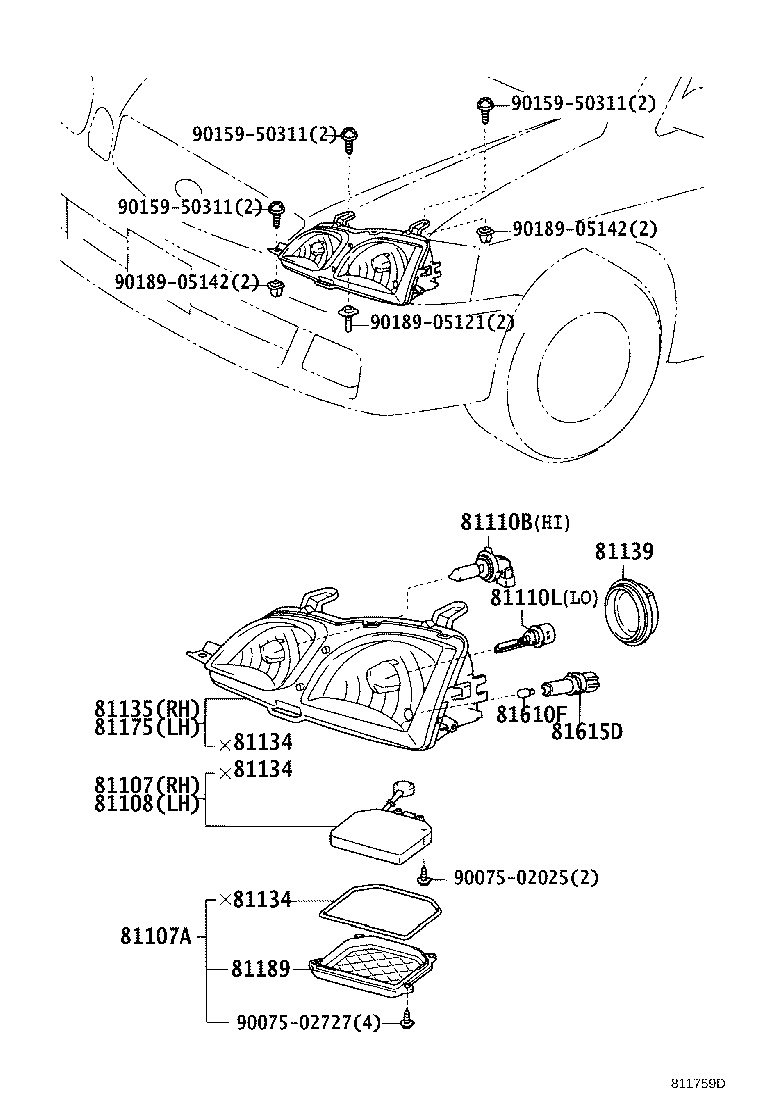

ILLUST NO. 2 OF 2(0104- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-44030	ACM1#,CXM10,SXM15	06/2001 - 12/2999	1
81193A - PROTECTOR, HEADLAMP, RH
81193-44040	ACM1#,CXM10,SXM15	06/2001 - 12/2999	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-44030	ACM1#,CXM10,SXM15	06/2001 - 12/2999	1
81194A - PROTECTOR, HEADLAMP, LH
81194-44040	ACM1#,CXM10,SXM15	06/2001 - 12/2999	1

CXM10G-BRSET (1998)

(9805-0104)

ILLUST NO. 1 OF 2(0104- )

ILLUST NO. 1 OF 2(0104- )

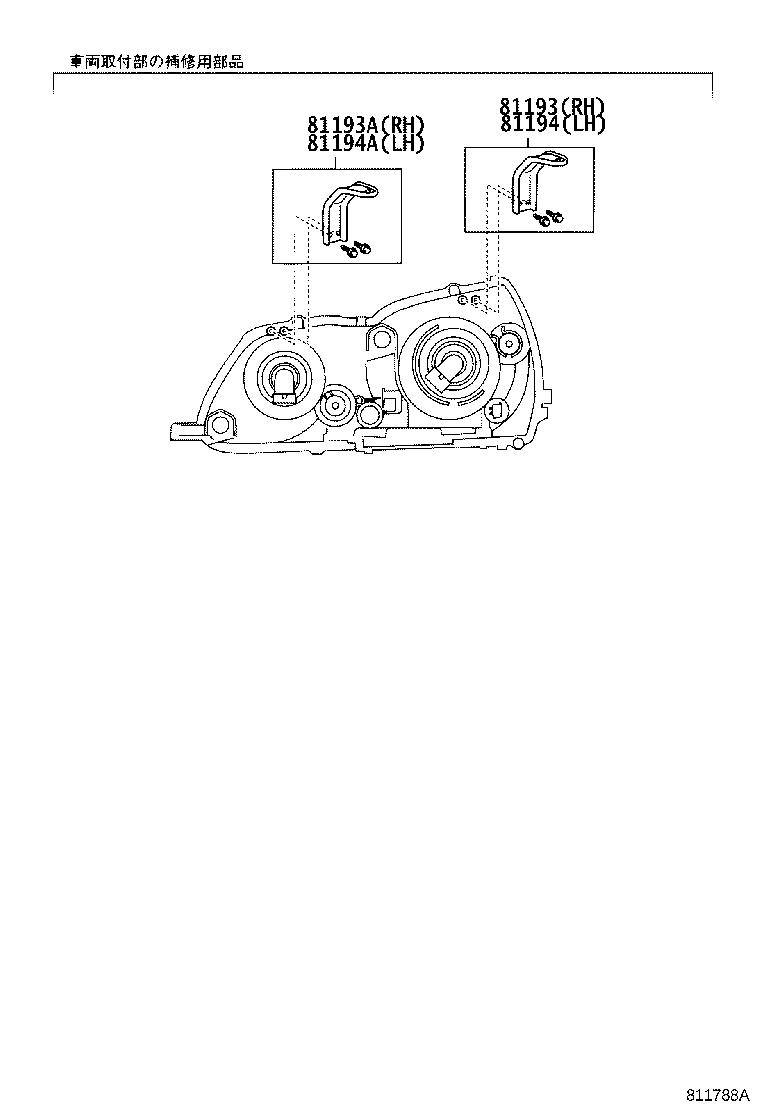

ILLUST NO. 2 OF 2(0104- )
