CXM10G-BRSET (1998)
Toyota Gaia
Production
May 1998
-
Sep 2004
Engine
3CTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )CXM10

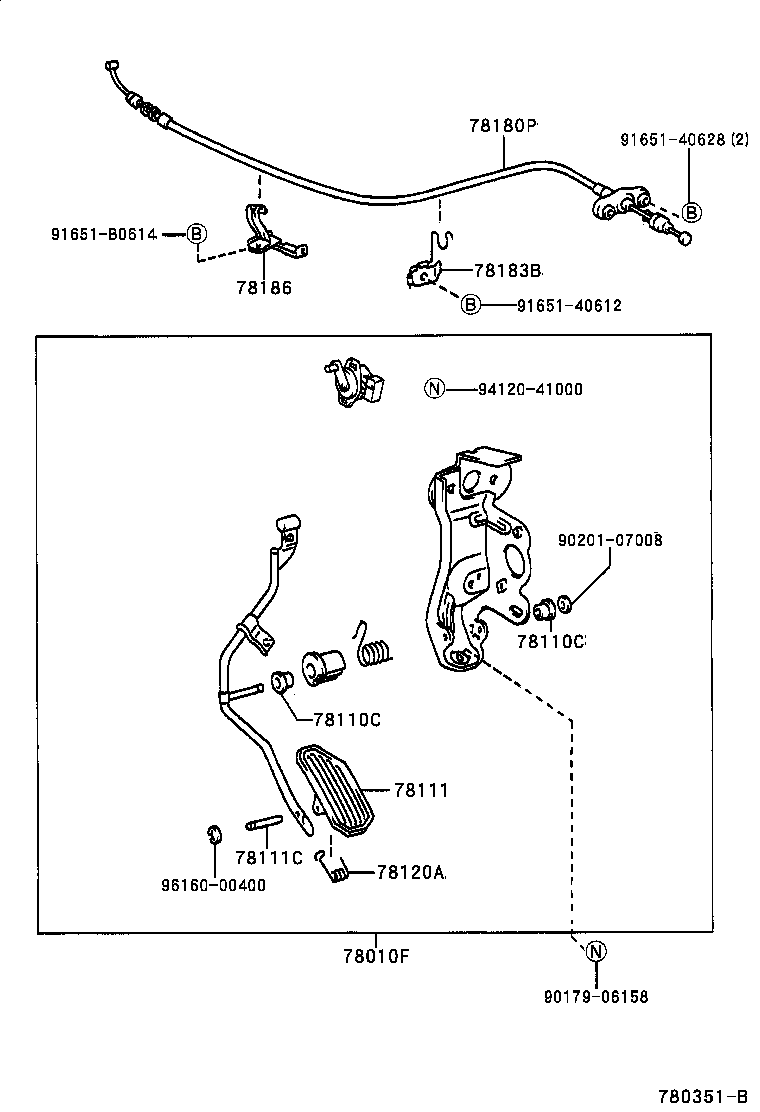

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010F - PEDAL ASSY, ACCELERATOR | ||||
| 78010-44010 |
CXM10 |
1 | ||
| 78010-44010 |
CXM10 |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08063 |
CXM10 |
2 | ||
| 90386-08063 |
CXM10 |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08063 |
CXM10 |
2 | ||
| 90386-08063 |
CXM10 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-20050 |
ACM1#,CXM10,SXM15 |
1 | ||
| 78111-20050 |
CXM10,SXM1# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
ACM1#,CXM10,SXM15 |
1 | ||
| 90249-05001 |
CXM10,SXM1# |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-18050 |
CXM10 |
1 | ||
| 90508-18050 |
CXM10 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-44050 |
CXM10 |
1 | ||
| 78180-44050 |
CXM10 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-44020 |
CXM10 |
1 | ||
| 78183-44020 |
CXM10 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-44020 |
CXM10 |
1 | ||
| 78186-44020 |
CXM10 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90201-07008 | ||||
| 91651-40612 | ||||
| 91651-40628 | ||||
| 91651-B0614 | ||||
| 94120-41000 | ||||
| 96160-00400 | ||||
