CXM10G-BRSET (1998)
Toyota Gaia

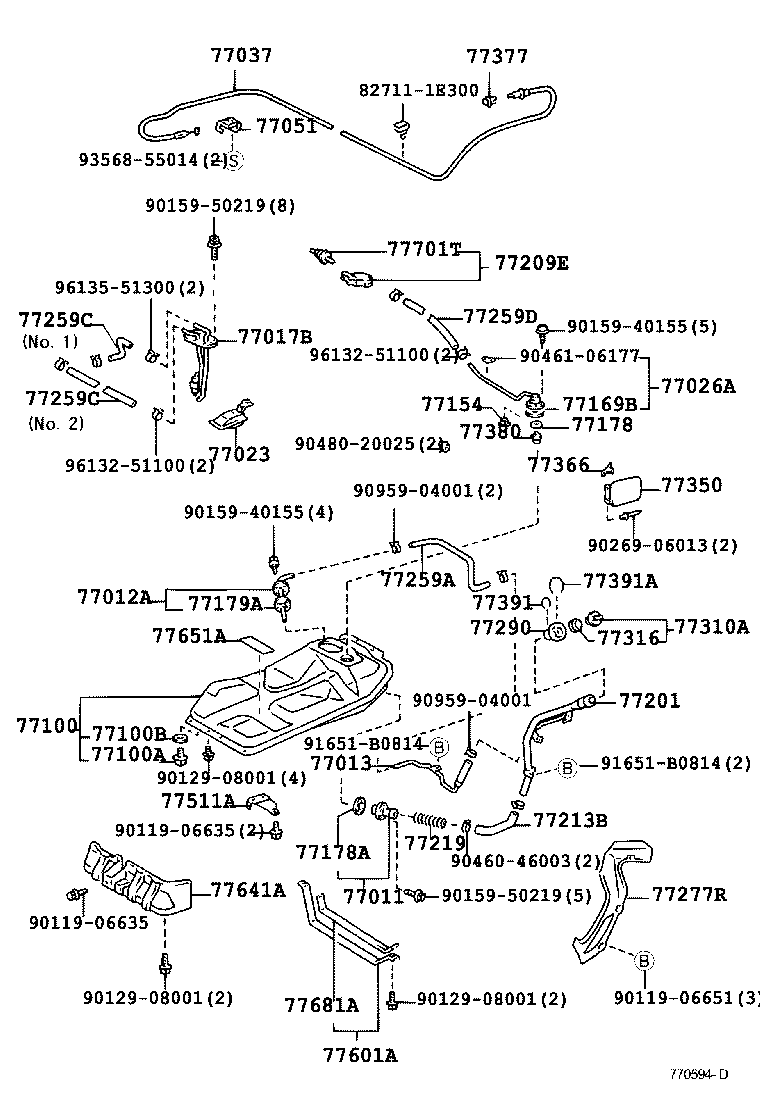

ILLUST NO. 1 OF 2(9805- )CXM10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-28010 |
CXM10,SXM1# |
1 | ||
| 77011-28010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-44020 |
CXM10,SXM1# |
1 | ||
| 77012-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-44010 |
CXM10,SXM1# |
1 | ||
| 77013-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-44020 |
CXM10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77017-44010 |
CXM10 |
1 | ||
| 77017-44010 |
CXM10 |
1 | ||
| 77017-44020 |
CXM10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32040 |
CXM10 |
1 | ||
| 77023-32040 |
CXM10 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77026-44020 |
CXM10,SXM1# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-44010 |
CXM10,SXM1# |
1 | ||
| 77037-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-44010E0 |
ACM1#,CXM10 SANDAL WOOD,TRIM0# |
1 | ||
| 77051-44010B1 |
CXM10,SXM1# DK.CHARCOAL,TRIM0# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-44020 |
CXM10 |
1 | ||
| 77001-44020 |
CXM10 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
CXM10 |
1 | ||
| 90105-12116 |
CXM10 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
CXM10 |
1 | ||
| 90430-12245 |
CXM10 |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
CXM10,SXM1# |
1 | ||
| 77169-14020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
CXM10,SXM1# |
1 | ||
| 77178-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77178A - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
CXM10,SXM1# |
1 | ||
| 77178-20030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-14030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77179-14030 |
CXM10,SXM1# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77201-44020 |
CXM10,SXM1# |
1 | ||
| 77209E - HOSE SUB-ASSY, FUEL EMISSION | ||||
| 77209-44020 |
CXM10 |
1 | ||
| 77209-44020 |
CXM10 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-44010 |
CXM10,SXM1# |
1 | ||
| 77213-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77219-44010 |
CXM10,SXM1# |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77049-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77049-44010 |
CXM10,SXM1# |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 95333-06020 |
CXM10 NO.2 |
1 | ||
| 77259-44040 |
CXM10 NO.1 |
1 | ||
| 95333-06020 |
CXM10 NO.2 |
1 | ||
| 77259-44040 |
CXM10 NO.1 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 95333-06020 |
CXM10 NO.2 |
1 | ||
| 77259-44040 |
CXM10 NO.1 |
1 | ||
| 95333-06020 |
CXM10 NO.2 |
1 | ||
| 77259-44040 |
CXM10 NO.1 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 95333-06060 |
CXM10 |
1 | ||
| 95333-06060 |
CXM10 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77277-44010 |
CXM10,SXM1# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-44011 |
CXM10,SXM1# |
1 | ||
| 77291-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12150 |
CXM10 |
1 | ||
| 77310-12150 |
CXM10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
CXM10,SXM1# |
1 | ||
| 77316-16010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-44020 |
ACM1#,CXM10 |
1 | ||
| 77350-44020 |
CXM10,SXM1# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-44020 |
CXM10,SXM1# |
1 | ||
| 77360-44010 |
CXM10,SXM1# |
1 | ||
| 77360-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77377-12050 |
CXM10,SXM1# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77380-26010 |
CXM10,SXM1# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77391-12020 |
CXM10,SXM1# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-44010 |
CXM10,SXM1# |
1 | ||
| 77391-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77511-44010 |
CXM10,SXM1# |
1 | ||
| 77511-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-44010 |
CXM10,SXM1# |
1 | ||
| 77601-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77641-44010 |
CXM10,SXM1# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-44010 |
ACM1#,CXM10,SXM15 |
6 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
CXM10,SXM1# |
1 | ||
| 77681-32060 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
CXM10 |
1 | ||
| 90917-10067 |
CXM10 |
1 | ||
| Common parts | ||||
| 82711-1E300 | ||||
| 90119-06635 | ||||
| 90119-06651 | ||||
| 90129-08001 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90269-06013 | ||||
| 90460-46003 | ||||
| 90461-06177 | ||||
| 90480-20025 | ||||
| 90959-04001 | ||||
| 91651-B0814 | ||||
| 93568-55014 | ||||
| 96132-51100 | ||||
| 96135-51300 | ||||

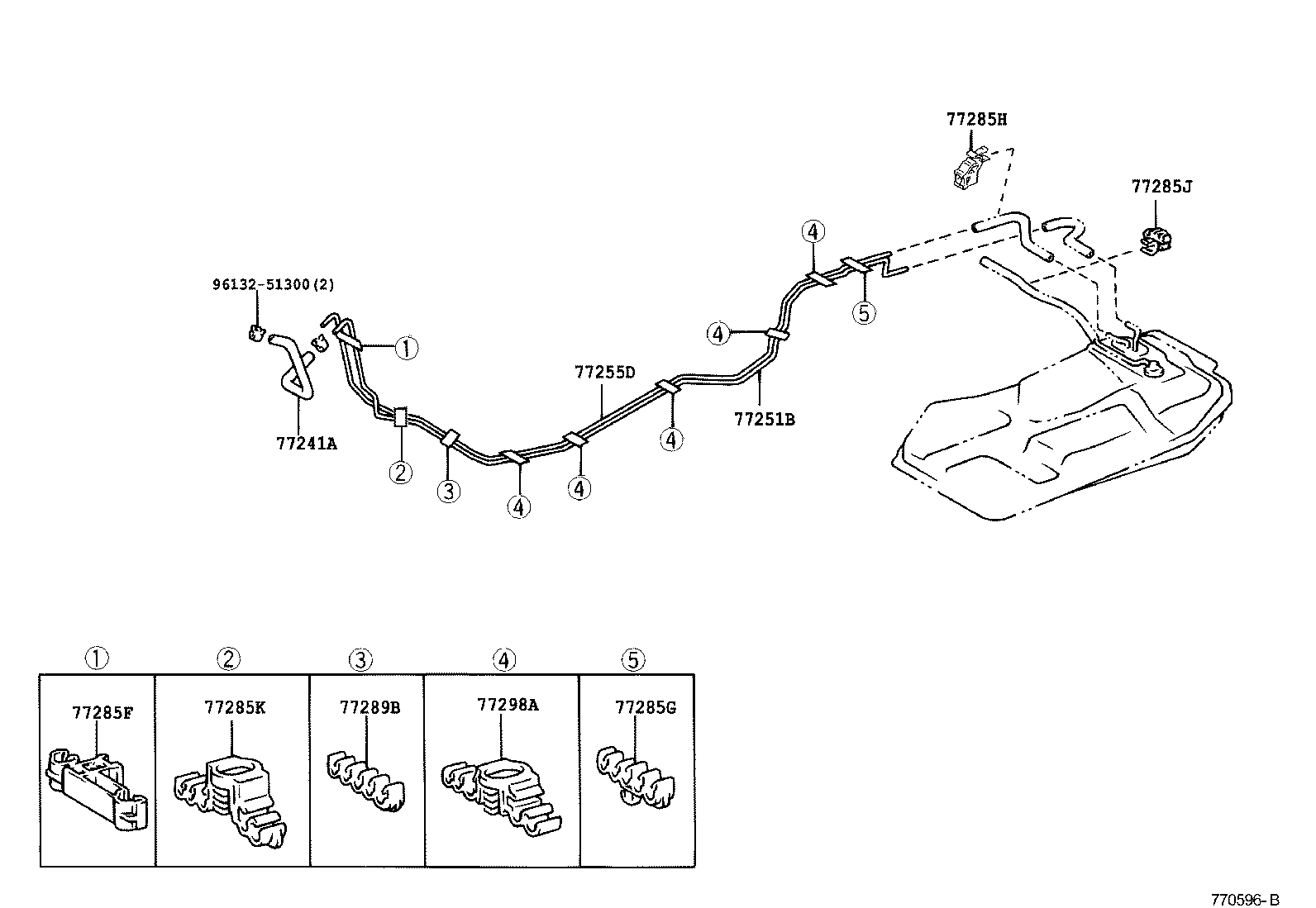

ILLUST NO. 2 OF 2(9805- )CXM10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 77259-44020 |
CXM10 |
1 | ||
| 77259-44020 |
CXM10 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-44040 |
CXM10 |
1 | ||
| 77251-44040 |
CXM10 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-44040 |
CXM10 |
1 | ||
| 77255-44040 |
CXM10 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44090 |
CXM10 |
1 | ||
| 77285-44090 |
CXM10 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44120 |
CXM10,SXM1# |
1 | ||
| 77285-44120 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44130 |
CXM10,SXM1# |
1 | ||
| 77285-44130 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44140 |
CXM10,SXM1# |
1 | ||
| 77285-44140 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44150 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77285-44150 |
CXM10,SXM1# |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-44010 |
CXM10,SXM1# |
1 | ||
| 77289-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-44020 |
CXM10,SXM1# |
5 | ||
| 77298-44020 |
ACM1#,CXM10,SXM15 |
5 | ||
| Common parts | ||||
| 96132-51300 | ||||
