CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

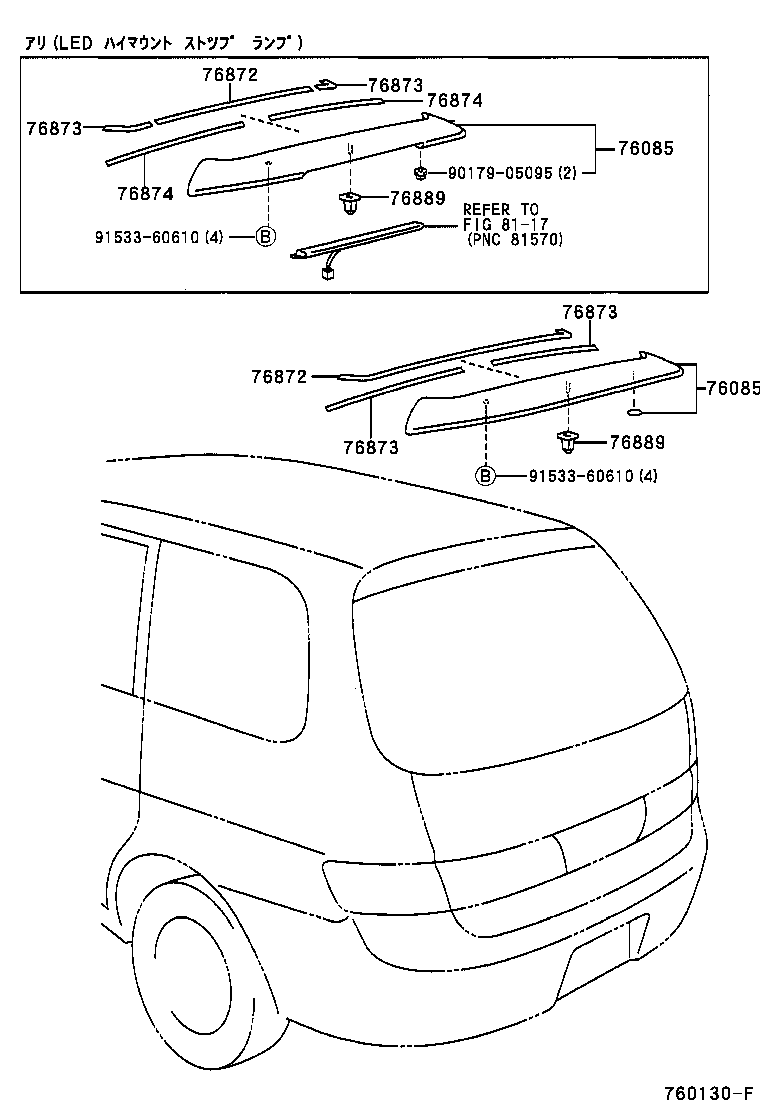

ILLUST NO. 1 OF 2(9805- )

Click highlighted areas on diagram

diagram 76085 76085 76872 76872 76873 76873 76873 76873 76874 76874 76889 76889 8117 9017905095 9153360610 9153360610
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-44900

CXM10,SXM1#

 1
76871-44903

ACM1#,CXM10

 1
76085 - SPOILER SUB-ASSY, REAR
76085-44900

CXM10,SXM1#

 1
76871-44903

ACM1#,CXM10

 1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-44010

CXM10,SXM1#

 1
76872-44010

ACM1#,CXM10,SXM15

 1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-44010

CXM10,SXM1#

 1
76872-44010

ACM1#,CXM10,SXM15

 1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-44030

CXM10,SXM1#

 2
76873-44080

ACM1#,CXM10

 2
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-44030

CXM10,SXM1#

 2
76873-44080

ACM1#,CXM10

 2
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-44030

CXM10,SXM1#

 2
76873-44080

ACM1#,CXM10

 2
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-44030

CXM10,SXM1#

 2
76873-44080

ACM1#,CXM10

 2
76874 - PROTECTOR, REAR SPOILER, NO.3
76873-44030

ACM1#,CXM10,SXM15

 2
76874 - PROTECTOR, REAR SPOILER, NO.3
76873-44030

ACM1#,CXM10,SXM15

 2
76889 - CLIP, REAR SPOILER, NO.2
76889-44020

ACM1#,CXM10,SXM15

 1
76889-44020

CXM10,SXM1#

 1
76889 - CLIP, REAR SPOILER, NO.2
76889-44020

ACM1#,CXM10,SXM15

 1
76889-44020

CXM10,SXM1#

 1
Common parts
90179-05095
91533-60610
Linked diagrams
8117

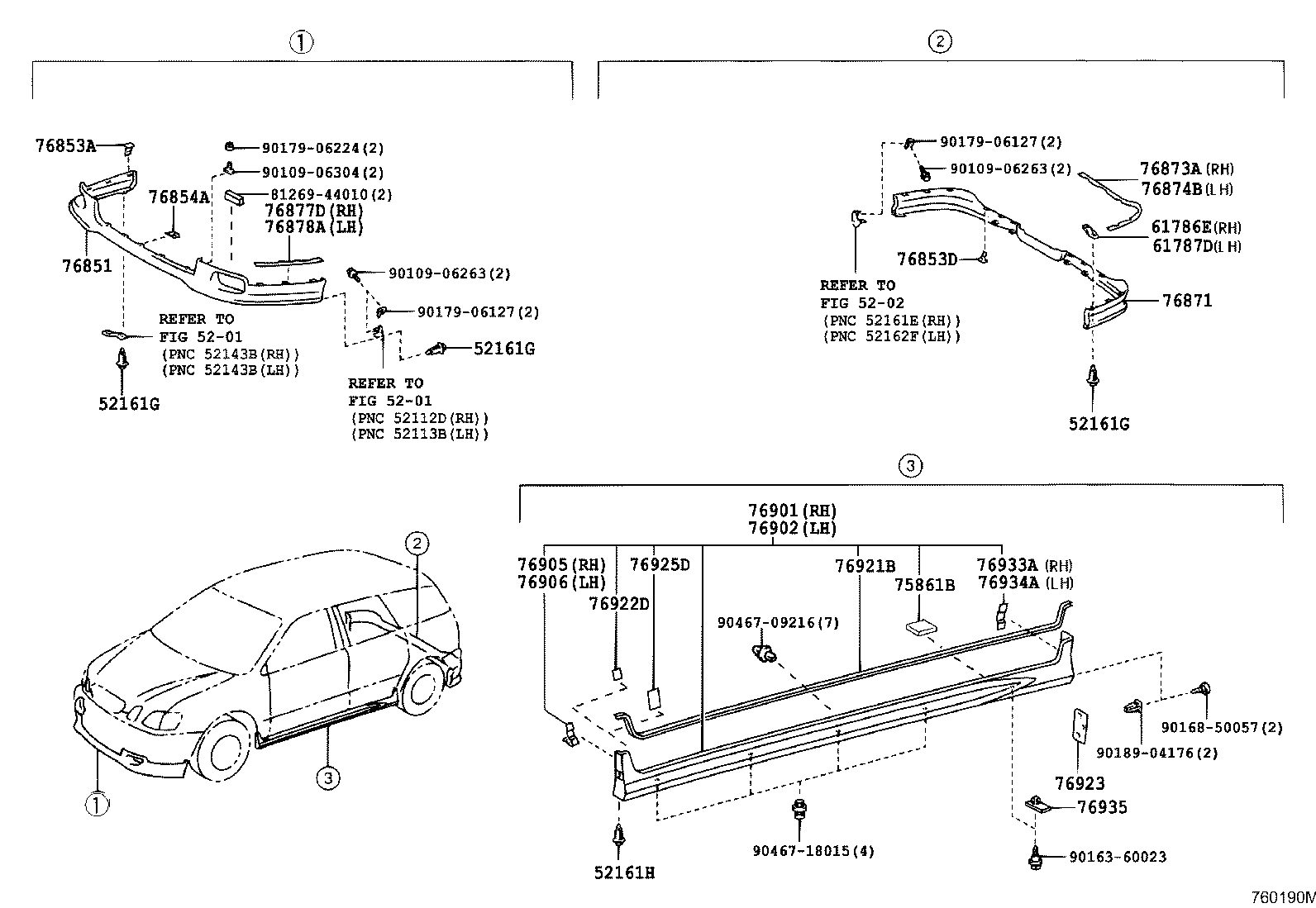

ILLUST NO. 2 OF 2(0004- )

Click highlighted areas on diagram

diagram 5201 5201 5202 52161G 52161G 52161G 52161H 61786E 61787D 75861B 76851 76853A 76853D 76854A 76871 76873A 76874B 76877D 76878A 76901 76902 76905 76906 76921B 76922D 76923 76925D 76933A 76934A 76935 8126944010 9010906263 9010906263 9010906304 9016360023 9016850057 9017906127 9017906127 9017906224 9018904176 9046709216 9046718015
Part # Description Qty Price
76851 - COVER, FRONT SPOILER
76851-44030A1

CXM10

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞ-ｼﾞﾖﾝ,WHITE PM.,042

 1
76871 - SPOILER, REAR
76871-44060A1

CXM10

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞ-ｼﾞﾖﾝ,WHITE PM.,042

 1
76873A - PROTECTOR, REAR SPOILER, RH
76873-44070B0

CXM10

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞ-ｼﾞﾖﾝ,GRAY,042

 1
76874B - PROTECTOR, REAR SPOILER, LH
76874-44060B0

CXM10

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞ-ｼﾞﾖﾝ,GRAY,042

 1
76877D - PROTECTOR, FRONT SPOILER SIDE, RH
76877-44020B0

CXM10

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞ-ｼﾞﾖﾝ,GRAY,042

 1
76878A - PROTECTOR, FRONT SPOILER SIDE, LH
76878-44030B0

CXM10

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞ-ｼﾞﾖﾝ,GRAY,042

 1
76901 - MUDGUARD SUB-ASSY, SIDE, RH
76901-44050A1

CXM10

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞ-ｼﾞﾖﾝ,WHITE PM.,042

 1
76902 - MUDGUARD SUB-ASSY, SIDE, LH
76902-44050A1

CXM10

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞ-ｼﾞﾖﾝ,WHITE PM.,042

 1
76921B - PROTECTOR, SIDE MUDGUARD, NO.1
76921-44050B0

CXM10

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞ-ｼﾞﾖﾝ,GRAY,042

 1
Common parts
81269-44010
90109-06263
90109-06304
90163-60023
90168-50057
90179-06127
90179-06224
90189-04176
90467-09216
90467-18015
Linked diagrams
5201
5202
