CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

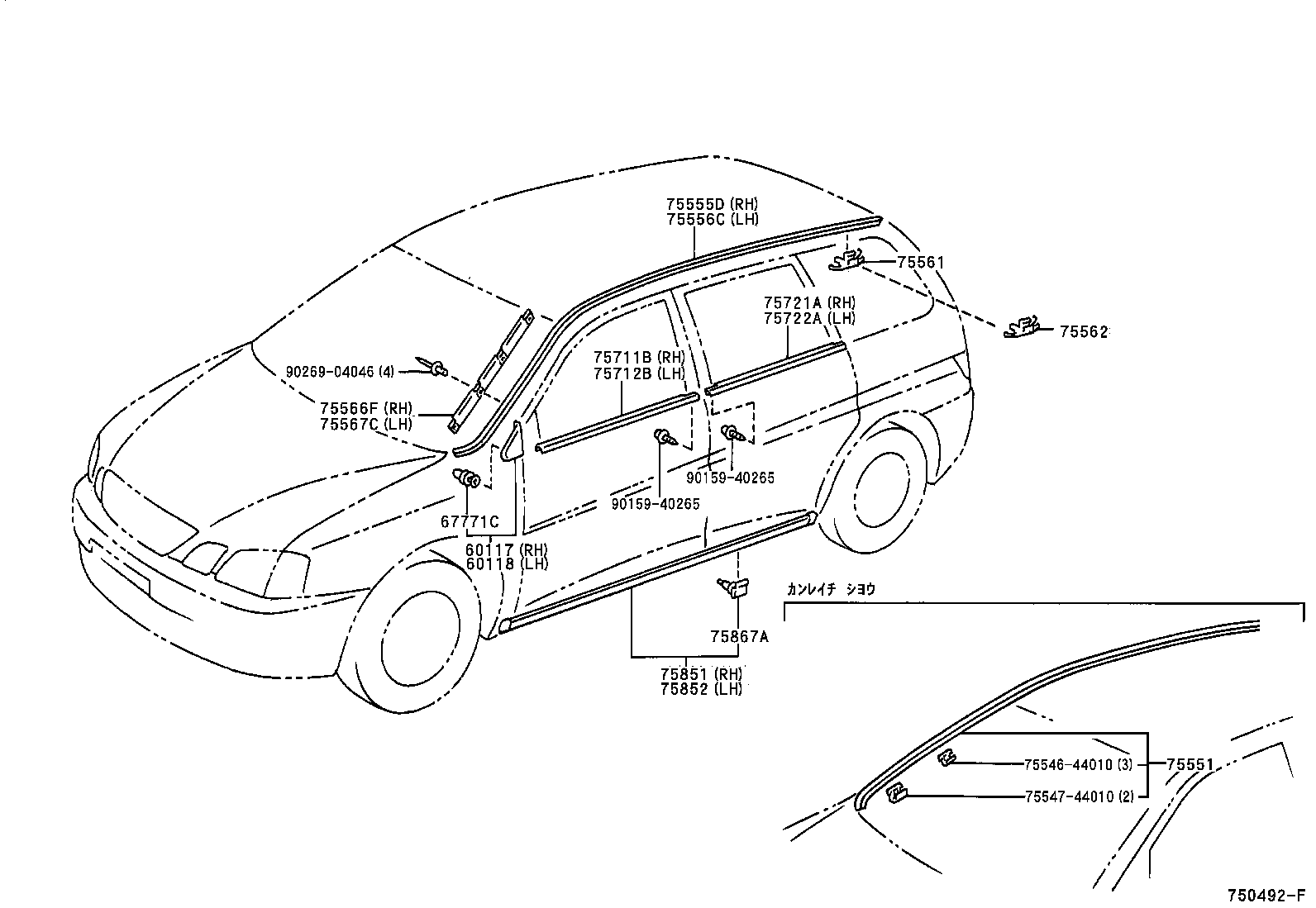

Click highlighted areas on diagram

diagram 60117 60118 67771C 7554644010 7554744010 75551 75555D 75556C 75561 75562 75566F 75567C 75711B 75712B 75721A 75722A 75851 75852 75867A 9015940265 9015940265 9026904046
Part # Description Qty Price
60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH
60117-44020H0

CXM10,SXM1#

DK.TURQUOISE MC.,760

 1
60117-44020D0

CXM10,SXM1#

RED MC.,3M8

 1
60117-44020B0

CXM10,SXM1#

SILVER GR.SF.,1B9

 1
60117-44020G0

CXM10,SXM1#

DK GREEN MICA,6M1

 1
60117-44020C0

ACM1#,CXM10

BLACK,202

 1
60117-44020C0

CXM10,SXM1#

BLACK,202

 1
60117-44020B2

ACM1#,CXM10

SILVER ME.,1C0

 1
60117-44020D0

ACM1#,CXM10

RED MC.,3M8

 1
60117-44020G0

ACM1#,CXM10

DK GREEN MICA,6M1

 1
60117-44020D1

ACM1#,CXM10

LT.ROSE M.M.,3Q1

 1
60117-44020F0

ACM1#,CXM10

CHAMPAGNE ME.,583

 1
60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH
60118-44020C0

CXM10,SXM1#

BLACK,202

 1
60118-44020D0

CXM10,SXM1#

RED MC.,3M8

 1
60118-44020H0

CXM10,SXM1#

DK.TURQUOISE MC.,760

 1
60118-44020G0

CXM10,SXM1#

DK GREEN MICA,6M1

 1
60118-44020B2

ACM1#,CXM10

SILVER ME.,1C0

 1
60118-44020D1

ACM1#,CXM10

LT.ROSE M.M.,3Q1

 1
60118-44020B0

CXM10,SXM1#

SILVER GR.SF.,1B9

 1
60118-44020F0

ACM1#,CXM10

CHAMPAGNE ME.,583

 1
60118-44020G0

ACM1#,CXM10

DK GREEN MICA,6M1

 1
60118-44020C0

ACM1#,CXM10

BLACK,202

 1
60118-44020D0

ACM1#,CXM10

RED MC.,3M8

 1
67771C - RETAINER, FRONT PILLAR COVER
67771-30070

ACM1#,CXM10,SXM15

 6
67771-30070

CXM10,SXM1#

 6
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75505-44010

CXM10,SXM1#

 1
75505-44010

ACM1#,CXM10,SXM15

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-44020

ACM1#,CXM10,SXM15

 1
75555-44020

CXM10,SXM1#

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-44020

ACM1#,CXM10,SXM15

 1
75556-44020

CXM10,SXM1#

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-44020

CXM10,SXM1#

 14
75561-44020

ACM1#,CXM10,SXM15

 14
75562 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75561-44020

CXM10,SXM1#

 1
75561-44020

ACM1#,CXM10,SXM15

 1
75566F - RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.4 RH
75566-44010

CXM10,SXM1#

 1
75566-44010

ACM1#,CXM10,SXM15

 1
75567C - RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.4 LH
75567-44010

CXM10,SXM1#

 1
75567-44010

ACM1#,CXM10,SXM15

 1
75711B - MOULDING, FRONT DOOR BELT, RH
75711-44020

ACM1#,CXM10,SXM15

 1
75711-44020

CXM10,SXM1#

 1
75712B - MOULDING, FRONT DOOR BELT, LH
75712-44020

CXM10,SXM1#

 1
75712-44020

ACM1#,CXM10,SXM15

 1
75721A - MOULDING, REAR DOOR BELT, RH
75721-44020

ACM1#,CXM10,SXM15

 1
75721-44020

CXM10,SXM1#

 1
75722A - MOULDING, REAR DOOR BELT, LH
75722-44020

CXM10,SXM1#

 1
75722-44020

ACM1#,CXM10,SXM15

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-44010

ACM1#,CXM10,SXM15

 1
75850-44010

CXM10,SXM1#

 1
75852 - MOULDING, ROCKER PANEL, LH
75860-44010

CXM10,SXM1#

 1
75860-44010

ACM1#,CXM10,SXM15

 1
75867A - CLIP, ROCKER PANEL MOULDING
75867-44010

ACM1#,CXM10,SXM15

 14
75867-44010

CXM10,SXM1#

 14
Common parts
75546-44010
75547-44010
90159-40265
90269-04046
