CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

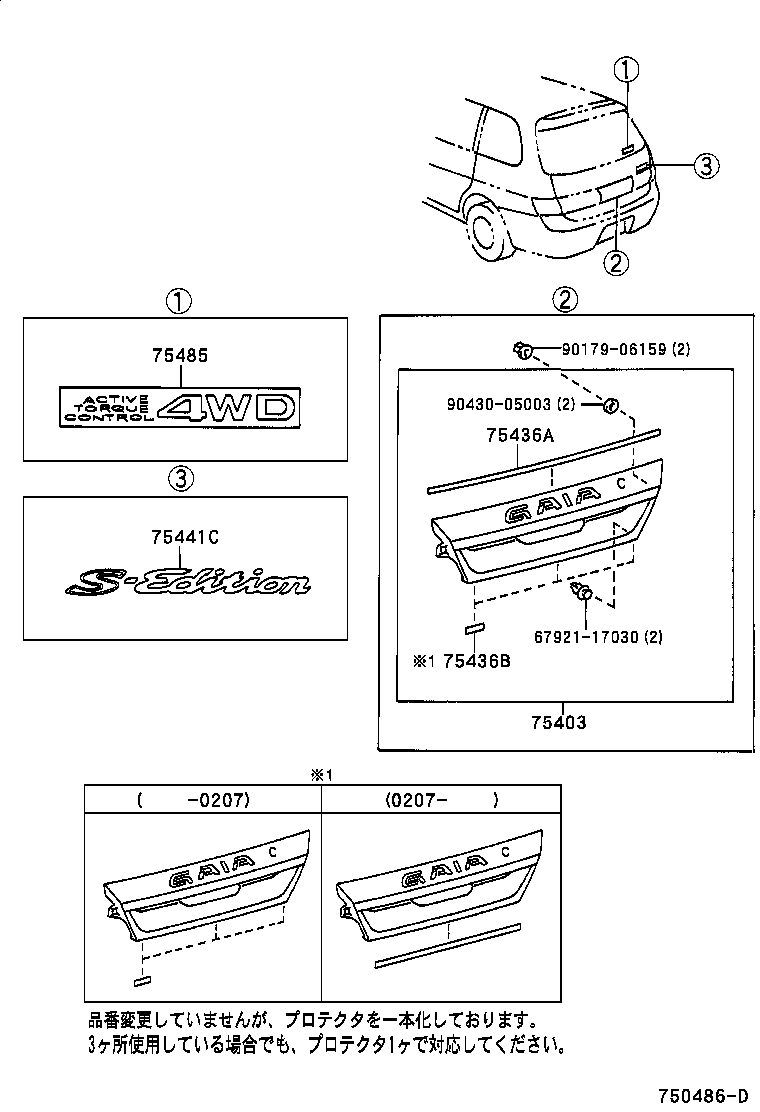

Click highlighted areas on diagram

diagram 6792117030 75403 75436A 75436B 75441C 75485 9017906159 9043005003
Part # Description Qty Price
75403 - ORNAMENT SUB-ASSY, BACK DOOR
75403-44110A0

CXM10,SXM1#

RVEX ﾊﾞ-ｼﾞﾖﾝ,WHITE PEARL MC.,057

 1
75403-44120A0

CXM10,SXM1#

RVEX ﾊﾞ-ｼﾞﾖﾝ & ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),WHITE PEARL MC.,057

 1
75403-44110C0

CXM10,SXM1#

RVEX ﾊﾞ-ｼﾞﾖﾝ,BLACK,202

 1
75403-44110B0

CXM10,SXM1#

RVEX ﾊﾞ-ｼﾞﾖﾝ,SILVER ME.GR.,1B9

 1
75403-44120B0

CXM10,SXM1#

RVEX ﾊﾞ-ｼﾞﾖﾝ & ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),SILVER ME.GR.,1B9

 1
75403-44160

ACM1#,CXM10,SXM15

 1
75403-44040

CXM10,SXM1#

 1
75403-44120C0

CXM10,SXM1#

RVEX ﾊﾞ-ｼﾞﾖﾝ & ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-),BLACK,202

 1
75403-44170

ACM1#,CXM10,SXM15

ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-)

 1
75403-44050

CXM10,SXM1#

ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-)

 1
75403-44200C0

ACM10,CXM10,SXM15

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞｰｼﾞﾖﾝ & ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),BLACK,202

 1
75403-44190C0

ACM10,CXM10,SXM15

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞ-ｼﾞﾖﾝ,BLACK,202

 1
75403-44200B0

ACM10,CXM10,SXM15

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞｰｼﾞﾖﾝ & ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),SILVER ME.,1C0

 1
75403-44190A0

ACM10,CXM10,SXM15

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞ-ｼﾞﾖﾝ,WHITE PM.,042

 1
75403-44190B0

ACM10,CXM10,SXM15

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞ-ｼﾞﾖﾝ,SILVER ME.,1C0

 1
75403-44200A0

ACM10,CXM10,SXM15

ﾓﾃﾞﾘｽﾀ- RVEXﾊﾞｰｼﾞﾖﾝ & ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-),WHITE PM.,042

 1
75436A - PROTECTOR, BACK DOOR ORNAMENT
75436-44100

ACM1#,CXM10,SXM15

 1
75436-44030

CXM10,SXM1#

 1
75436B - PROTECTOR, BACK DOOR ORNAMENT
75436-44110

ACM1#,CXM10,SXM15

 1
75436-44110

ACM10,CXM10,SXM15

 3
75436-44040

CXM10,SXM1#

 3
Common parts
67921-17030
90179-06159
90430-05003
