CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

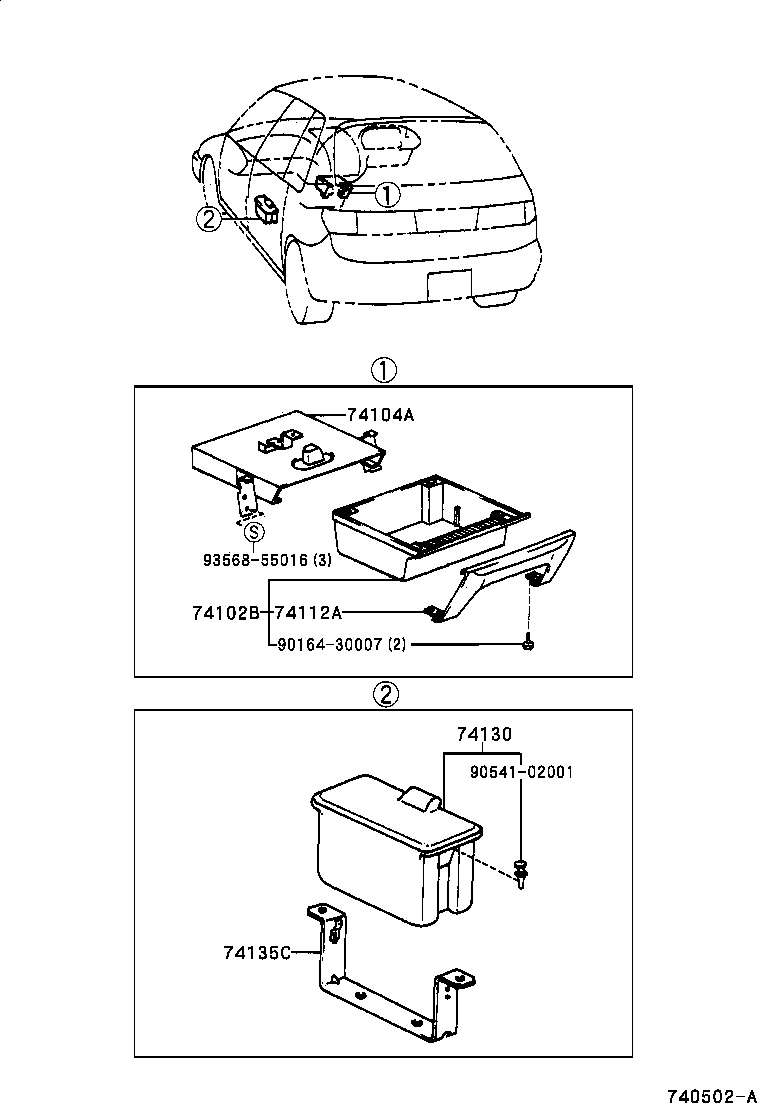

Click highlighted areas on diagram

diagram 74102B 74104A 74112A 74130 74135C 9016430007 9054102001 9356855016
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-44010E0

ACM1#,CXM10

SANDAL WOOD,TRIM0#

 1
74102-44010B2

CXM10,SXM1#

DK.CHARCOAL,TRIM0#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-44010

CXM10,SXM1#

 1
74104-44010

ACM1#,CXM10,SXM15

 1
74112A - DOOR, FRONT ASH RECEPTACLE
74112-44010B2

CXM10,SXM1#

DK.CHARCOAL,TRIM0#

 1
74112-44010E0

ACM1#,CXM10

SANDAL WOOD,TRIM0#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-44020

CXM10,SXM1#

 1
74130-44080

ACM1#,CXM10,SXM15

 1
74135C - RETAINER, ASH RECEPTACLE
74135-44010

CXM10,SXM1#

 1
74135-44010

ACM1#,CXM10,SXM15

 1
Common parts
90164-30007
90541-02001
93568-55016
