CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

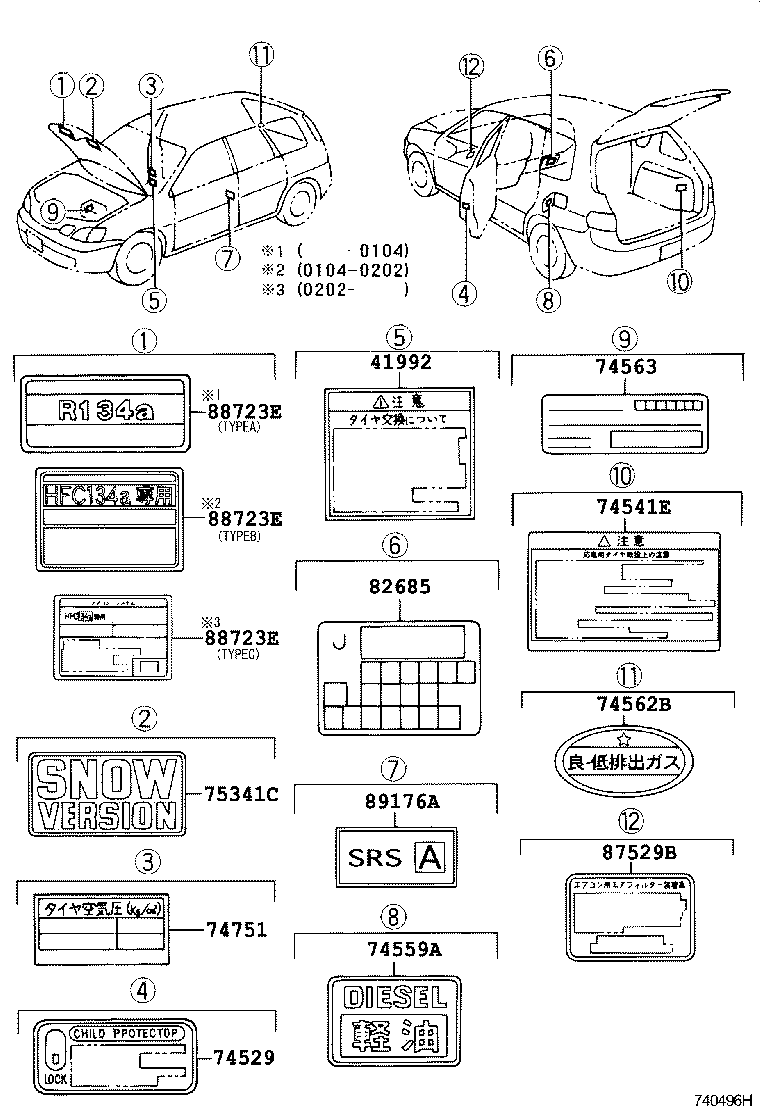

Click highlighted areas on diagram

diagram 41992 74529 74541E 74559A 74562B 74563 74751 75341C 82685 87529B 88723E 88723E 88723E 89176A
Part # Description Qty Price
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-33010

ACM1#,CXM10,SXM15

右側

 1
69339-33010

CXM10,SXM1#

右側

 1
69349-33010

CXM10,SXM1#

左側

 1
69349-33010

ACM1#,CXM10,SXM15

左側

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-33010

CXM10,SXM1#

 1
42668-28060

ACM1#,CXM10,SXM15

 1
42668-28060

CXM10,SXM1#

 1
42668-32010

CXM10,SXM1#

 1
74559A - PLATE, FUEL CAUTION
74559-14030

CXM10

 1
74559-14030

CXM10

 1
74563 - PLATE, EMISSION CONTROL DEVICE IDENTIFICATION
74563-44020

CXM10

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-44080

CXM10

 1
42661-44081

CXM10

 1
42661-44140

CXM10

 1
75341C - PLATE, HOOD NAME
75341-20060

ACM1#,CXM10,SXM15

 1
75341-20060

CXM10,SXM1#

 1
82685 - PLATE, CAUTION
82685-44060

ACM10,CXM10,SXM15

 1
82685-44061

ACM1#,CXM10

 1
82685-44060

CXM10,SXM1#

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020

ACM1#,CXM10,SXM15

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-20030

CXM10,SXM1#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
88723-42050

ACM10,CXM10,SXM15

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
88733-30050

ACM1#,CXM10,SXM15

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-20030

CXM10,SXM1#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
88723-42050

ACM10,CXM10,SXM15

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
88733-30050

ACM1#,CXM10,SXM15

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-20030

CXM10,SXM1#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
88723-42050

ACM10,CXM10,SXM15

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
88733-30050

ACM1#,CXM10,SXM15

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-32010

ACM1#,CXM10,SXM15

 1
89176-32010

CXM10,SXM1#

 1
