Toyota Gaia CXM10 BATTERY CARRIER

Home Blog About Contact Search

CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004

Engine 3CTE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

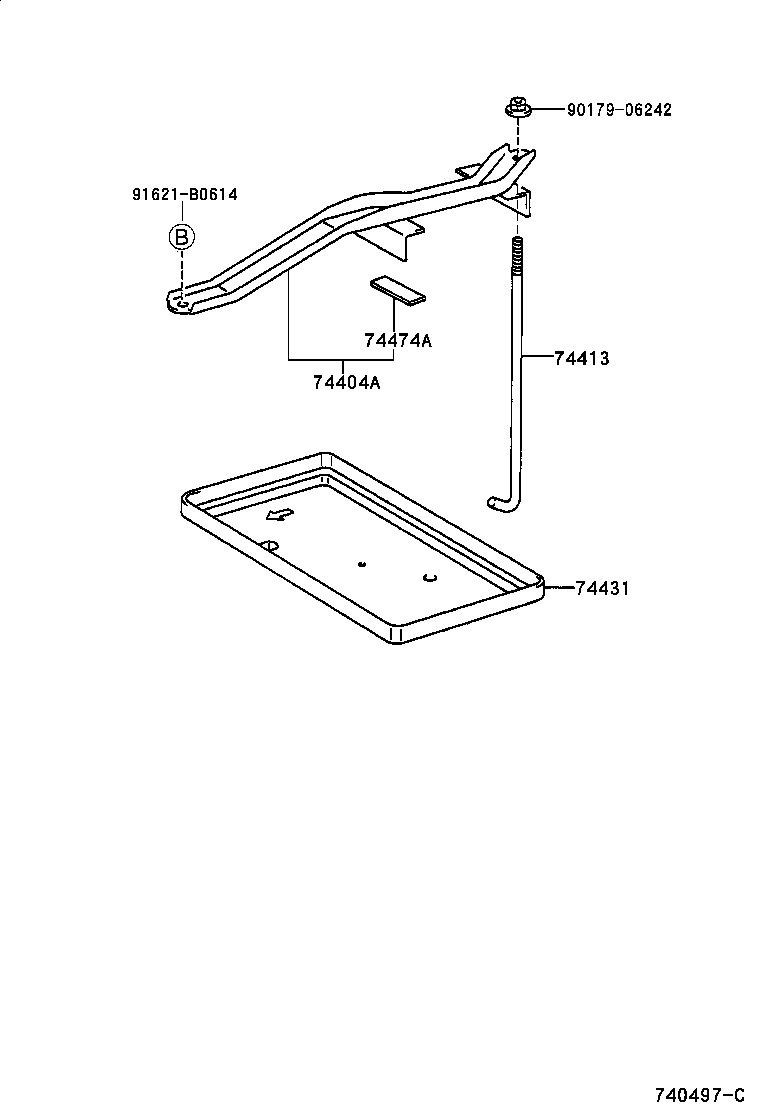

Click highlighted areas on diagram

Part #	Description	Period	Qty
74404A - CLAMP SUB-ASSY, BATTERY
74404-44030	CXM10	05/1998 - 04/2001	1
74404-44030	CXM10	04/2001 - 12/2999	1
74413 - BOLT, BATTERY CLAMP
74451-10060	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
74451-10060	CXM10,SXM1#	05/1998 - 04/2001	1
74431 - TRAY, BATTERY
74431-44040	CXM10	04/2001 - 12/2999	1
74431-44040	CXM10	05/1998 - 04/2001	1
Common parts
90179-06242
91621-B0614
