Toyota Gaia CXM10 ARMREST & VISOR

CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004

Engine 3CTE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9805- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-44040	CXM10,SXM1# ﾓｸﾒ	05/1998 - 04/2001	1
74231-44050	CXM10,SXM1# ﾓｸﾒ & ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ)	05/1998 - 04/2001	1
74231-44150	ACM1#,CXM10 ﾓｸﾒ & ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ)	04/2001 - 09/2004	1
74231-44140	ACM1#,CXM10 ﾓｸﾒ	04/2001 - 09/2004	1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-44090	ACM1#,CXM10,SXM15 ﾓｸﾒ	04/2001 - 12/2999	1
74232-44040	CXM10,SXM1# ﾓｸﾒ	05/1998 - 04/2001	1
74250A - ARMREST ASSY, QUARTER, RH
74250-44090A0	CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0#	05/1998 - 04/2000	1
74250-44090A1	CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0#	04/2000 - 04/2001	1
74250-44080A0	CXM10,SXM1# ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0#	05/1998 - 04/2001	1
74250-44250A0	ACM1#,CXM10,SXM15 ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0#	04/2001 - 09/2004	1
74250-44240A0	ACM1#,CXM10,SXM15 ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0#	04/2001 - 09/2004	1
74257 - SPRING, ARMREST, NO.1
74257-44010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	2
74257-44010	CXM10,SXM1#	05/1998 - 04/2001	2
74257 - SPRING, ARMREST, NO.1
74257-44010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	2
74257-44010	CXM10,SXM1#	05/1998 - 04/2001	2
74260A - ARMREST ASSY, QUARTER, LH
74260-44060A1	CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0#	04/2000 - 04/2001	1
74260-44060A0	CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0#	05/1998 - 04/2000	1
74260-44050A0	CXM10,SXM1# ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0#	05/1998 - 04/2001	1
74260-44190A0	ACM1#,CXM10,SXM15 ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0#	04/2001 - 09/2004	1
74260-44200A0	ACM1#,CXM10,SXM15 ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0#	04/2001 - 09/2004	1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-44040	CXM10,SXM1# ﾓｸﾒ	05/1998 - 04/2001	1
74271-44120	ACM1#,CXM10,SXM15 ﾓｸﾒ	04/2001 - 12/2999	1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-44030	CXM10,SXM1# ﾓｸﾒ	05/1998 - 04/2001	1
74272-44110	ACM1#,CXM10,SXM15 ﾓｸﾒ	04/2001 - 12/2999	1
Common parts
90168-40061
93540-54014
Linked diagrams
7404

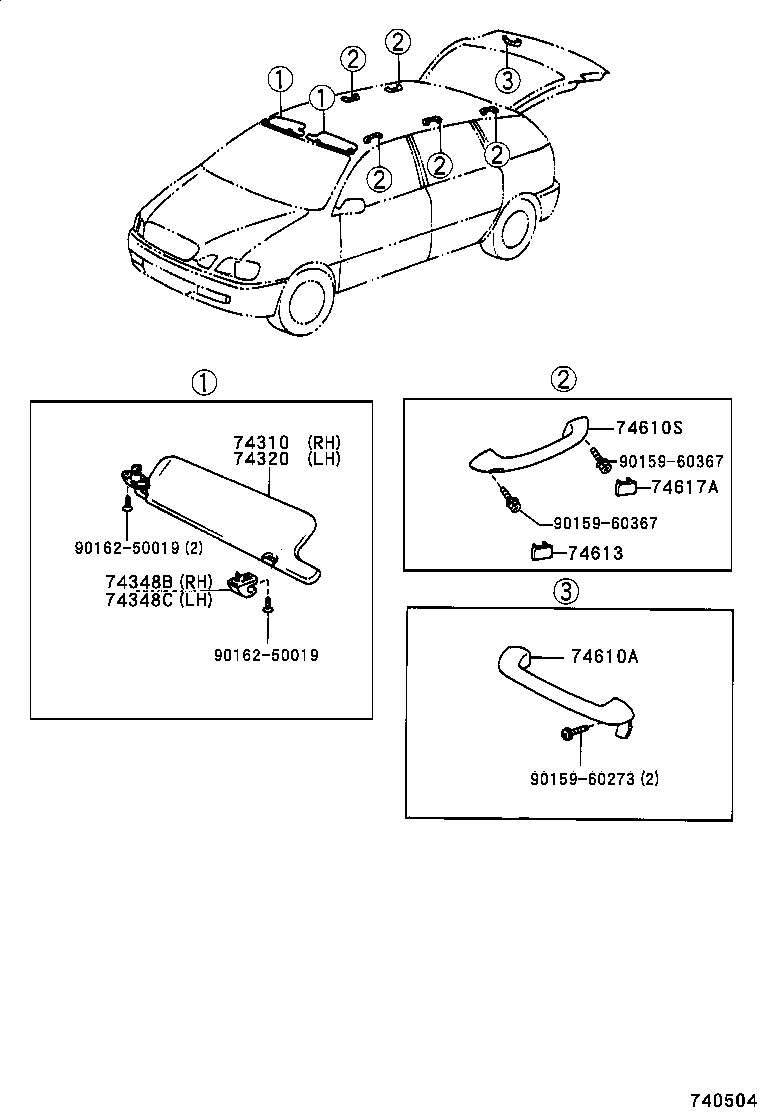

ILLUST NO. 2 OF 2(9805- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
74310 - VISOR ASSY, RH
74310-44040A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
74310-44140A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
74320 - VISOR ASSY, LH
74320-44040A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
74320-44130A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
74348B - HOLDER, VISOR, RH
74348-26020A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
74348-26020A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
74348C - HOLDER, VISOR, LH
74348-26020A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
74348-26020A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
74610A - GRIP SUB-ASSY, ASSIST
74611-20030A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
74611-20030A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
74610S - GRIP ASSY, ASSIST
74603-44020A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	5
74603-44020A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	5
74613 - PLUG, ASSIST GRIP
74617-44010A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	5
74617-44010A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	5
74617A - PLUG, ASSIST GRIP
74617-44020A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	5
74617-44020A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	5
Common parts
90159-60273
90159-60367
90162-50019
