Toyota Gaia CXM10 SEAT BELT & CHILD RESTRAINT SEAT

Manufacturers Home
Toyota
JP
GAIA
CXM10G-BRSET (1998)
7104 - SEAT BELT & CHILD RESTRAINT SEAT

CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004

Engine 3CTE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

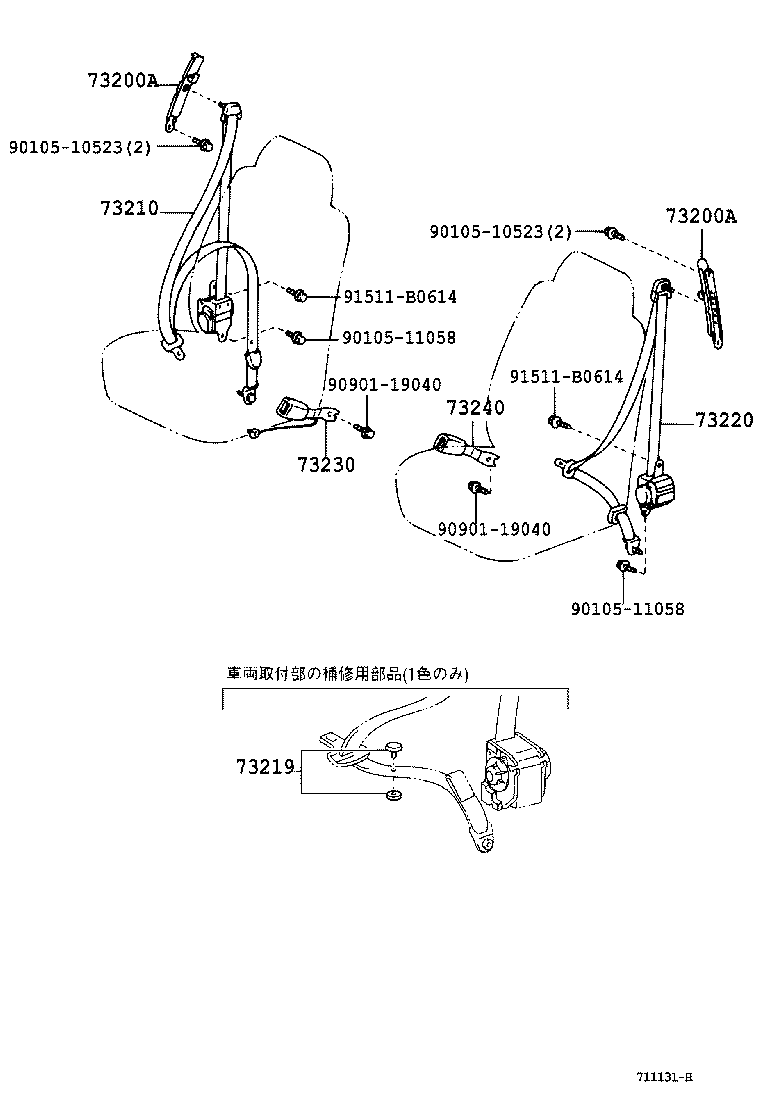

ILLUST NO. 1 OF 3(9805- )

Click highlighted areas on diagram

ﾌﾛﾝﾄｼ-ﾄ

Part #	Description	Period	Qty
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-20031A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	2
73200-20031A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-20031A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	2
73200-20031A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-44070A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
73210-44071A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
73219 - STOPPER, TONGUE PLATE
73219-33010	ACM1#,CXM10,SXM15 ﾌﾞﾗｯｸ	04/2001 - 12/2999	1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-44071A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
73220-44070A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-44010A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
73230-44010A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-44050A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
73230-44010A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
Common parts
90105-10523
90105-11058
90901-19040
91511-B0614

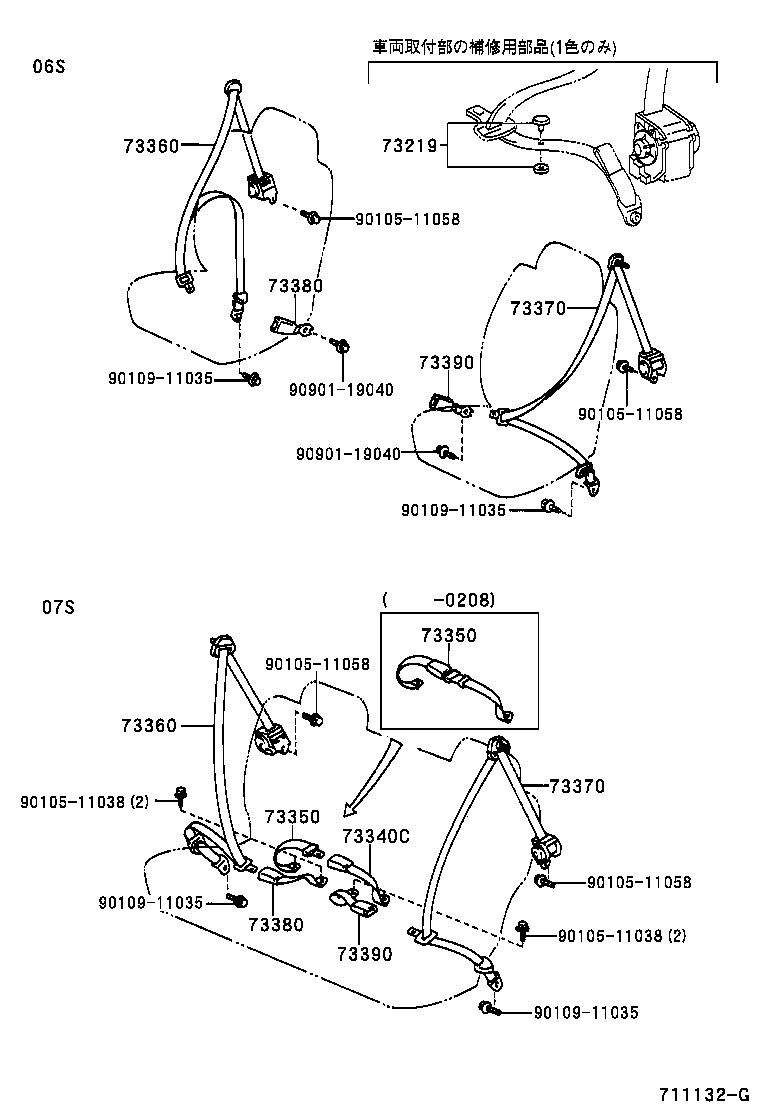

ILLUST NO. 2 OF 3(9805- )

Click highlighted areas on diagram

ﾘﾔ NO.1 ｼ-ﾄ

Part #	Description	Period	Qty
73219 - STOPPER, TONGUE PLATE
73219-33010	ACM1#,CXM10,SXM15 ﾌﾞﾗｯｸ	04/2001 - 12/2999	1
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73340-44010A0	ACM1#,CXM10..07S IVORY,TRIM0#	08/2002 - 09/2004	1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-44010A1	CXM10,SXM1#..07S IVORY,TRIM0#	05/1998 - 04/2001	1
73350-44010A1	ACM10,CXM10,SXM15..07S IVORY,TRIM0#	04/2001 - 08/2002	1
73350-44050A0	ACM1#,CXM10..07S IVORY,TRIM0#	08/2002 - 09/2004	1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-44010A1	CXM10,SXM1#..07S IVORY,TRIM0#	05/1998 - 04/2001	1
73350-44010A1	ACM10,CXM10,SXM15..07S IVORY,TRIM0#	04/2001 - 08/2002	1
73350-44050A0	ACM1#,CXM10..07S IVORY,TRIM0#	08/2002 - 09/2004	1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-44011A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
73360-44011A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-44011A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
73360-44011A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-44011A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
73370-44011A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-44011A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
73370-44011A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-44090A0	ACM1#,CXM10..07S IVORY,TRIM0#	08/2002 - 09/2004	1
73380-44020A1	CXM10,SXM1#..07S IVORY,TRIM0#	05/1998 - 04/2001	1
73380-44020A1	ACM10,CXM10,SXM15..07S IVORY,TRIM0#	04/2001 - 08/2002	1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-44090A0	ACM1#,CXM10..07S IVORY,TRIM0#	08/2002 - 09/2004	1
73380-44020A1	CXM10,SXM1#..07S IVORY,TRIM0#	05/1998 - 04/2001	1
73380-44020A1	ACM10,CXM10,SXM15..07S IVORY,TRIM0#	04/2001 - 08/2002	1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-44020A1	CXM10,SXM1#..07S IVORY,TRIM0#	05/1998 - 04/2001	1
73380-44020A1	ACM10,CXM10,SXM15..07S IVORY,TRIM0#	04/2001 - 08/2002	1
73380-44090A0	ACM1#,CXM10..07S IVORY,TRIM0#	08/2002 - 09/2004	1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-44020A1	CXM10,SXM1#..07S IVORY,TRIM0#	05/1998 - 04/2001	1
73380-44020A1	ACM10,CXM10,SXM15..07S IVORY,TRIM0#	04/2001 - 08/2002	1
73380-44090A0	ACM1#,CXM10..07S IVORY,TRIM0#	08/2002 - 09/2004	1
Common parts
90105-11038
90105-11058
90109-11035
90901-19040

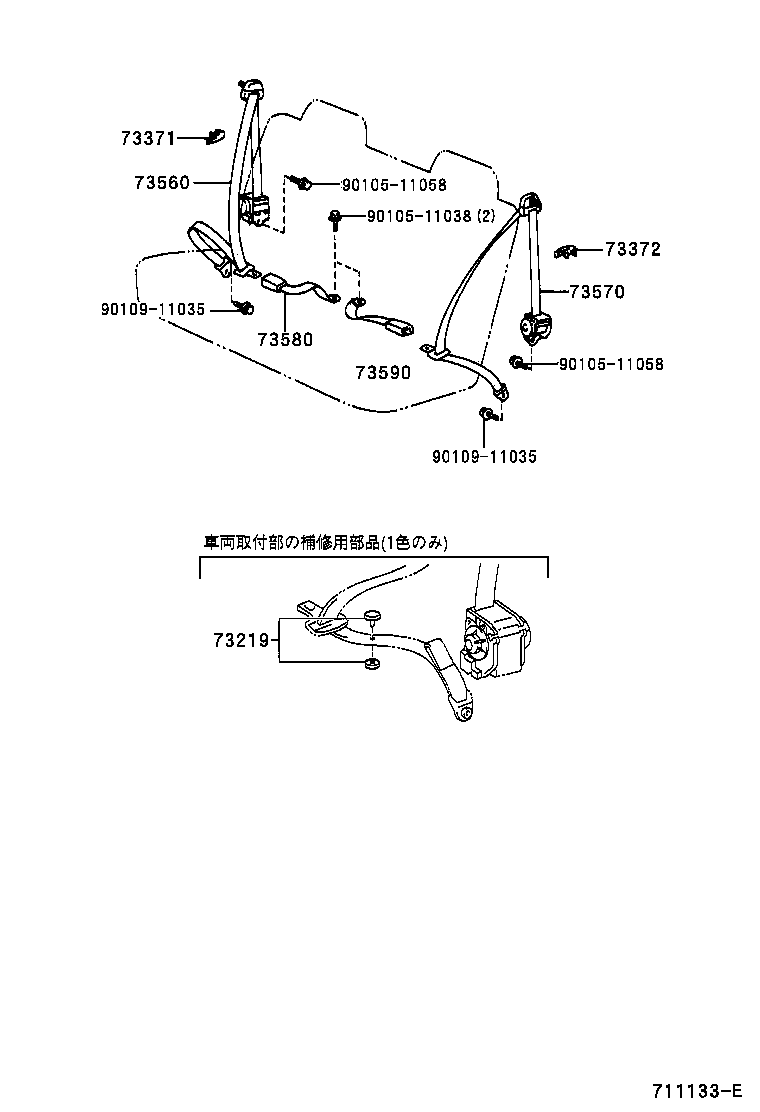

ILLUST NO. 3 OF 3(9805- )

Click highlighted areas on diagram

ﾘﾔ NO.2 ｼ-ﾄ

Part #	Description	Period	Qty
73219 - STOPPER, TONGUE PLATE
73219-33010	ACM1#,CXM10,SXM15 ﾌﾞﾗｯｸ	04/2001 - 12/2999	1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
73371-44020A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
73372 - HANGER, REAR SEAT SHOULDER BELT, LH
73371-44020A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
73371-44020A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-44030A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
73560-44030A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-44030A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
73570-44030A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH
73580-44020A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
73580-44020A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH
73580-44020A1	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
73580-44020A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
Common parts
90105-11038
90105-11058
90109-11035
