CXM10G-BRSET (1998)
Toyota Gaia
ILLUST NO. 1 OF 2(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-44020 |
CXM10,SXM1# |
1 | ||
| 71011-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-44010 |
CXM10,SXM1# |
1 | ||
| 71011-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-44020 |
CXM10,SXM1# |
1 | ||
| 71013-44120 |
ACM1#,CXM10 |
1 | ||
| 71013-44020 |
ACM10,CXM10,SXM15 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-44010 |
CXM10,SXM1# |
1 | ||
| 71014-44070 |
ACM1#,CXM10,SXM15 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-44090B0 |
CXM10,SXM1# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM0# |
1 | ||
| 71071-44080B0 |
CXM10,SXM1# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM0# |
1 | ||
| 71071-44580A0 |
ACM1#,CXM10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71071-44570A0 |
ACM1#,CXM10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-44070B0 |
CXM10,SXM1# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM0# |
1 | ||
| 71072-44080B0 |
CXM10,SXM1# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM0# |
1 | ||
| 71072-44250A0 |
ACM1#,CXM10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71072-44260A0 |
ACM1#,CXM10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-44080B0 |
CXM10,SXM1# ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM0# |
1 | ||
| 71073-44090B0 |
CXM10,SXM1# ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM0# |
1 | ||
| 71073-44670A0 |
ACM10,CXM10,SXM15 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-44840A0 |
ACM1#,CXM10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-44660A0 |
ACM10,CXM10,SXM15 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-44850A0 |
ACM1#,CXM10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-44080B0 |
CXM10,SXM1#..07S ｼ-ﾄ = TYPE B-*104,DARK CHARCOAL,TRIM0# |
1 | ||
| 71074-44040B0 |
CXM10,SXM1#..07S ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM0# |
1 | ||
| 71074-44480A0 |
ACM1#,CXM10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-44490A0 |
ACM1#,CXM10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074-44390A0 |
ACM10,CXM10,SXM15..07S ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074-44370A0 |
ACM10,CXM10,SXM15..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71081S - COVER SUB-ASSY, FRONT SEAT BACK SIDE, RH | ||||
| 71081-44020 |
CXM10,SXM1# |
1 | ||
| 71081-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 71082S - COVER SUB-ASSY, FRONT SEAT BACK SIDE, LH | ||||
| 71082-44010 |
CXM10,SXM1# |
1 | ||
| 71082-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-44080A0 |
CXM10,SXM1# ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71410-44090A0 |
CXM10,SXM1# ***,ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-44080A0 |
CXM10,SXM1# ***,ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71420-44070A0 |
CXM10,SXM1# ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-44080A0 |
CXM10,SXM1# ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71430-44090A0 |
CXM10,SXM1# ***,ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-44080A0 |
CXM10,SXM1#..07S ***,ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71440-44100A0 |
CXM10,SXM1#..07S ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-44011 |
CXM10,SXM1# |
1 | ||
| 71511-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-44011 |
CXM10,SXM1# |
1 | ||
| 71511-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-44010 |
CXM10,SXM1# |
1 | ||
| 71052-44050 |
ACM1#,CXM10,SXM15 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-44010 |
CXM10,SXM1# |
1 | ||
| 71052-44050 |
ACM1#,CXM10,SXM15 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-44020 |
ACM10,CXM10,SXM15 |
1 | ||
| 71551-44020 |
CXM10,SXM1# |
1 | ||
| 71551-44120 |
ACM1#,CXM10 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 71552-44020 |
CXM10,SXM1# |
1 | ||
| 71563A - PAD, FRONT SEAT BACK SIDE, RH | ||||
| 71563-44010 |
CXM10,SXM1# |
1 | ||
| 71563-44010 |
ACM10,CXM10,SXM15 |
1 | ||
| 71564A - PAD, FRONT SEAT BACK SIDE, LH | ||||
| 71564-44010 |
ACM10,CXM10,SXM15 |
1 | ||
| 71564-44010 |
CXM10,SXM1# |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-28040A1 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-44060A0 |
CXM10,SXM1# ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-44050A0 |
CXM10,SXM1# ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-44330A0 |
ACM10,CXM10,SXM15 ｼ-ﾄ = TYPE B-*104 & ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71910-44320A0 |
CXM10 ｼ-ﾄ = TYPE A-*104 & ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71910-44330A0 |
ACM10,CXM10,SXM15 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-44320A0 |
ACM10,CXM10,SXM15..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030E7 |
CXM10,SXM1# ﾛｯｸ無,ｼ-ﾄ = TYPE A OR TYPE B-*104,SANDAL WOOD,TRIM0# |
2 | ||
| 71930-44010E5 |
CXM10,SXM1# ﾛｯｸ付,ｼ-ﾄ = TYPE A OR TYPE B-*104,SANDAL WOOD,TRIM0# |
2 | ||
| 71930-44010A1 |
ACM1#,CXM10,SXM15 ﾛｯｸ付,ｼ-ﾄ = TYPE A-*104 & ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-28030A1 |
ACM1#,CXM10,SXM15 ﾛｯｸ無,ｼ-ﾄ = TYPE B-*104 & ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,IVORY,TRIM0# |
1 | ||
| 71930-44010A1 |
ACM1#,CXM10,SXM15 ﾛｯｸ付,ｼ-ﾄ = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71931-28030A1 |
ACM1#,CXM10,SXM15 ﾛｯｸ無,ｼ-ﾄ = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030E7 |
CXM10,SXM1# ﾛｯｸ無,ｼ-ﾄ = TYPE A OR TYPE B-*104,SANDAL WOOD,TRIM0# |
2 | ||
| 71930-44010E5 |
CXM10,SXM1# ﾛｯｸ付,ｼ-ﾄ = TYPE A OR TYPE B-*104,SANDAL WOOD,TRIM0# |
2 | ||
| 71930-44010A1 |
ACM1#,CXM10,SXM15 ﾛｯｸ付,ｼ-ﾄ = TYPE A-*104 & ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-28030A1 |
ACM1#,CXM10,SXM15 ﾛｯｸ無,ｼ-ﾄ = TYPE B-*104 & ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,IVORY,TRIM0# |
1 | ||
| 71930-44010A1 |
ACM1#,CXM10,SXM15 ﾛｯｸ付,ｼ-ﾄ = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71931-28030A1 |
ACM1#,CXM10,SXM15 ﾛｯｸ無,ｼ-ﾄ = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 72848 - CAP, NO.3 SEAT ARMREST | ||||
| 72848-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 72848-44010A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 72849 - CAP, SEAT ARMREST, NO.2 | ||||
| 72848-44040 |
ACM1#,CXM10 |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-44230A0 |
ACM1#,CXM10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 72880-44010A0 |
CXM10,SXM1# ｼ-ﾄ = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 72880-44240A0 |
ACM1#,CXM10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-44130A0 |
ACM1#,CXM10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 72890-44140A0 |
ACM1#,CXM10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 89953A - SENSOR, BELT WARNING OCCUPANT DETECTION | ||||
| 89953-44010 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 90119-10720 | ||||
| 93530-55016 | ||||

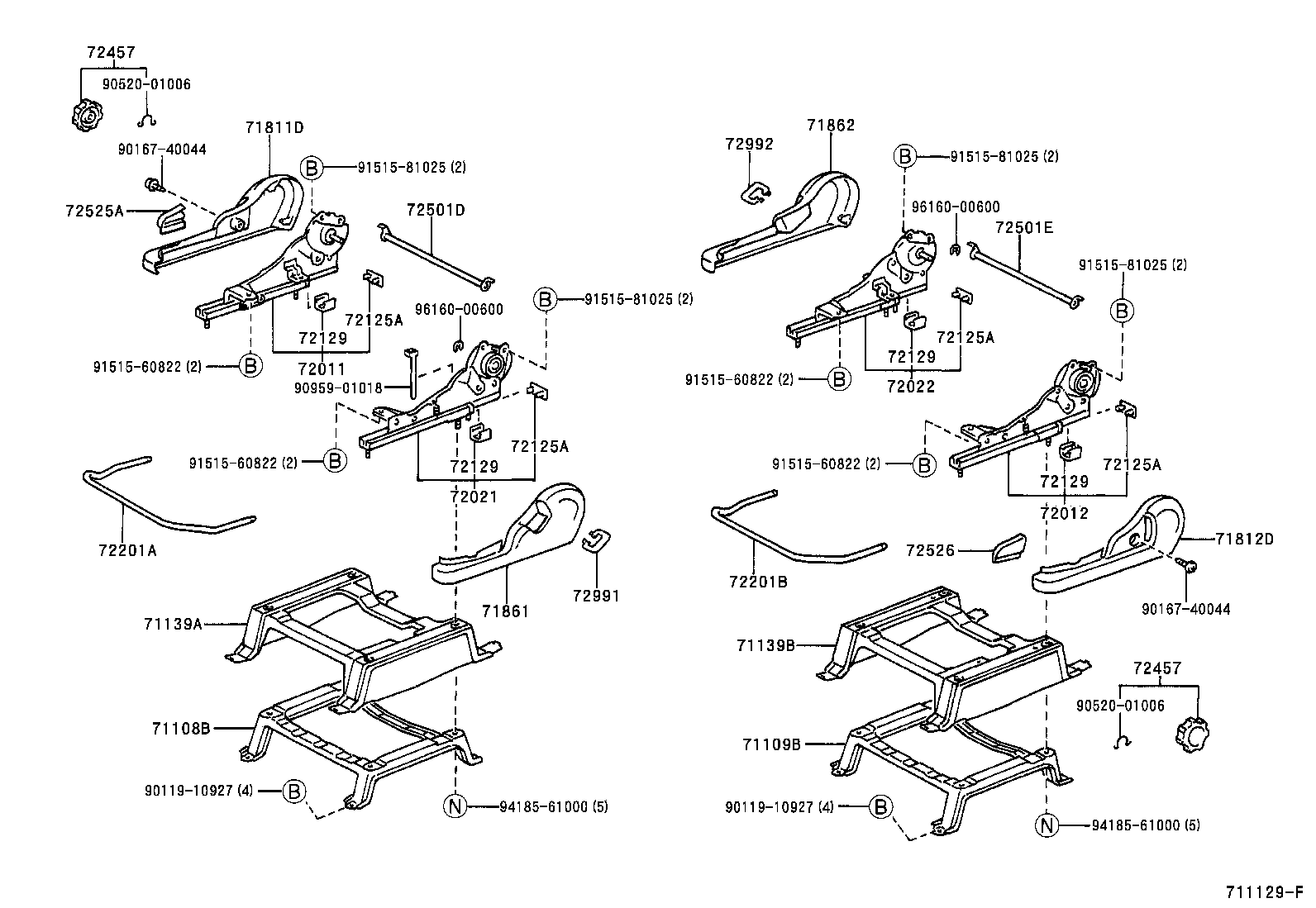

ILLUST NO. 2 OF 2(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-44011 |
CXM10,SXM1# |
1 | ||
| 71108-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-44011 |
CXM10,SXM1# |
1 | ||
| 71109-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 71139A - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-44021A0 |
CXM10,SXM1# ｱﾘ(ﾘﾔﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71139-44011A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 71139-44021A0 |
ACM1#,CXM10 ｱﾘ(ﾘﾔﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71139-44011A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 71139B - COVER, FRONT SEAT LEG, NO.2 | ||||
| 71139-44031A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 71139-44041A0 |
CXM10,SXM1# ｱﾘ(ﾘﾔﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71139-44041A0 |
ACM1#,CXM10 ｱﾘ(ﾘﾔﾋ-ﾀ),IVORY,TRIM0# |
1 | ||
| 71139-44031A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-44011A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 71811-44011A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-44011A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 71812-44011A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-44011A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 71861-44011A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-44011A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 71862-44011A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-44020 |
CXM10,SXM1# |
1 | ||
| 72011-44100 |
ACM10,CXM10,SXM15 |
1 | ||
| 72011-44150 |
ACM1#,CXM10,SXM15 |
1 | ||
| 72011-44100 |
CXM10,SXM1# |
1 | ||
| 72011-44060 |
CXM10,SXM1# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-44070 |
CXM10,SXM1# |
1 | ||
| 72012-44011 |
CXM10,SXM1# |
1 | ||
| 72012-44110 |
ACM10,CXM10,SXM15 |
1 | ||
| 72012-44180 |
ACM1#,CXM10,SXM15 |
1 | ||
| 72012-44110 |
CXM10,SXM1# |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-44060 |
CXM10,SXM1# |
1 | ||
| 72021-44020 |
CXM10,SXM1# |
1 | ||
| 72021-44100 |
ACM1#,CXM10,SXM15 |
1 | ||
| 72021-44100 |
CXM10,SXM1# |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-44011 |
CXM10,SXM1# |
1 | ||
| 72022-44110 |
CXM10,SXM1# |
1 | ||
| 72022-44110 |
ACM1#,CXM10,SXM15 |
1 | ||
| 72022-44070 |
CXM10,SXM1# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-44010 |
CXM10,SXM1# |
4 | ||
| 72125-44010 |
ACM1#,CXM10,SXM15 |
4 | ||
| 72125-44010 |
ACM1#,CXM10,SXM15 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-44010 |
CXM10,SXM1# |
4 | ||
| 72125-44010 |
ACM1#,CXM10,SXM15 |
4 | ||
| 72125-44010 |
ACM1#,CXM10,SXM15 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-44010 |
CXM10,SXM1# |
4 | ||
| 72125-44010 |
ACM1#,CXM10,SXM15 |
4 | ||
| 72125-44010 |
ACM1#,CXM10,SXM15 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-44010 |
CXM10,SXM1# |
4 | ||
| 72125-44010 |
ACM1#,CXM10,SXM15 |
4 | ||
| 72125-44010 |
ACM1#,CXM10,SXM15 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-44010 |
CXM10,SXM1# 内側 |
2 | ||
| 72129-44010 |
ACM1#,CXM10,SXM15 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,内側 |
1 | ||
| 72129-44010 |
ACM1#,CXM10,SXM15 内側 |
2 | ||
| 72129-44030 |
ACM1#,CXM10,SXM15 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,外側 |
1 | ||
| 72129-44030 |
CXM10,SXM1# 外側 |
2 | ||
| 72129-44030 |
ACM1#,CXM10,SXM15 外側 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-44010 |
CXM10,SXM1# 内側 |
2 | ||
| 72129-44010 |
ACM1#,CXM10,SXM15 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,内側 |
1 | ||
| 72129-44010 |
ACM1#,CXM10,SXM15 内側 |
2 | ||
| 72129-44030 |
ACM1#,CXM10,SXM15 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,外側 |
1 | ||
| 72129-44030 |
CXM10,SXM1# 外側 |
2 | ||
| 72129-44030 |
ACM1#,CXM10,SXM15 外側 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-44010 |
CXM10,SXM1# 内側 |
2 | ||
| 72129-44010 |
ACM1#,CXM10,SXM15 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,内側 |
1 | ||
| 72129-44010 |
ACM1#,CXM10,SXM15 内側 |
2 | ||
| 72129-44030 |
ACM1#,CXM10,SXM15 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,外側 |
1 | ||
| 72129-44030 |
CXM10,SXM1# 外側 |
2 | ||
| 72129-44030 |
ACM1#,CXM10,SXM15 外側 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-44010 |
CXM10,SXM1# 内側 |
2 | ||
| 72129-44010 |
ACM1#,CXM10,SXM15 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,内側 |
1 | ||
| 72129-44010 |
ACM1#,CXM10,SXM15 内側 |
2 | ||
| 72129-44030 |
ACM1#,CXM10,SXM15 ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,外側 |
1 | ||
| 72129-44030 |
CXM10,SXM1# 外側 |
2 | ||
| 72129-44030 |
ACM1#,CXM10,SXM15 外側 |
2 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-44010 |
CXM10,SXM1# |
1 | ||
| 72201-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 72201-44010 |
CXM10,SXM1# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-44010A1 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 72457-44010A1 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-44010A1 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 72457-44010A1 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-44050 |
CXM10,SXM1# |
1 | ||
| 72345-44050 |
ACM1#,CXM10,SXM15 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-44050 |
CXM10,SXM1# |
1 | ||
| 72345-44050 |
ACM1#,CXM10,SXM15 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010A1 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 72525-16010A1 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010A1 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 72526-16010A1 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-44010A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 72991-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 72992 - COVER, FRONT SEAT CUSHION, LH | ||||
| 72992-44010A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 72992-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10927 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 90959-01018 | ||||
| 91515-60822 | ||||
| 91515-81025 | ||||
| 94185-61000 | ||||
| 96160-00600 | ||||
(9805- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(9805-0104)
| Part # | Description | Qty | Price |
|---|
(0104- )
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
