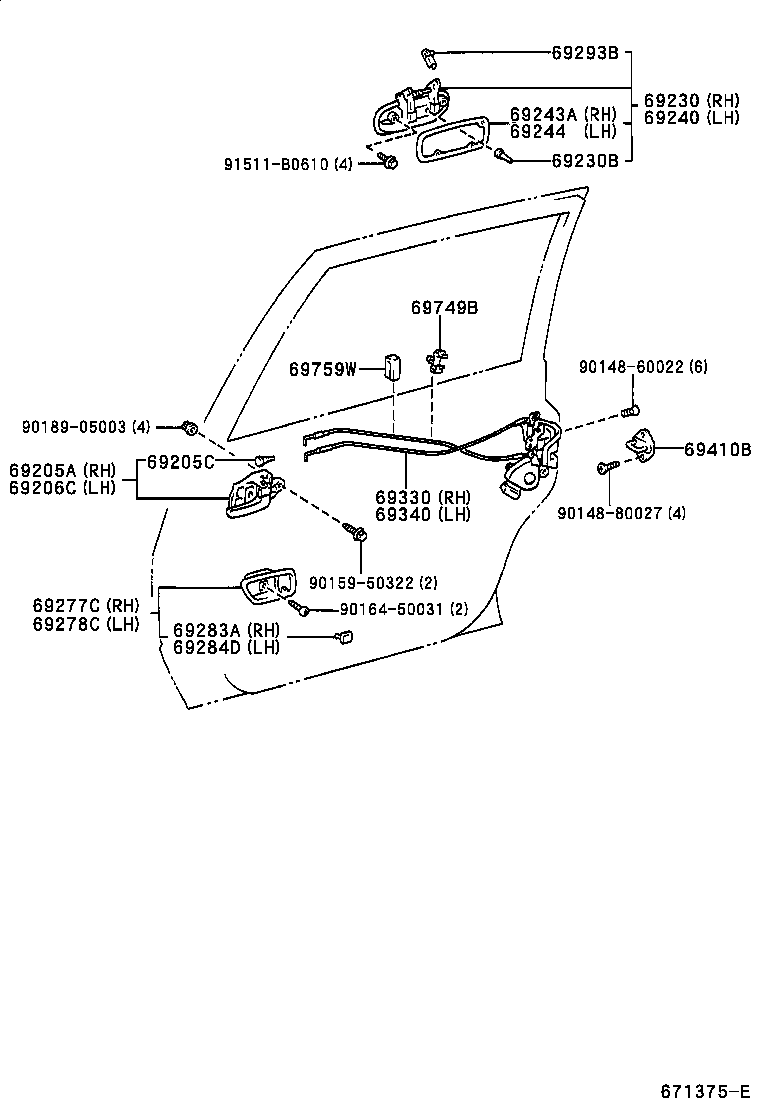

Toyota Gaia CXM10 REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-44010E0	CXM10,SXM1# SANDAL WOOD,TRIM0#	05/1998 - 04/2001	1
69205-28090A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014	CXM10,SXM1#	05/1998 - 04/2001	2
90541-04014	ACM1#,CXM10,SXM15	04/2001 - 12/2999	2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-44010E0	CXM10,SXM1# SANDAL WOOD,TRIM0#	05/1998 - 04/2001	1
69206-28060A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-44010	CXM10,SXM1# ｸﾛﾑﾒﾂｷ	05/1998 - 04/2001	1
69230-44010	ACM1#,CXM10 ｸﾛﾑﾒﾂｷ	04/2001 - 09/2004	1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-04018	ACM1#,CXM10,SXM15	04/2001 - 12/2999	4
90541-04018	CXM10,SXM1#	05/1998 - 04/2001	4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-44010	CXM10,SXM1# ｸﾛﾑﾒﾂｷ	05/1998 - 04/2001	1
69240-44010	ACM1#,CXM10 ｸﾛﾑﾒﾂｷ	04/2001 - 09/2004	1
69243A - PAD, REAR DOOR OUTSIDE HANDLE, RH
69243-12020	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
69243-12020	CXM10,SXM1#	05/1998 - 04/2001	1
69244 - PAD, REAR DOOR OUTSIDE HANDLE, LH
69244-12020	CXM10,SXM1#	05/1998 - 04/2001	1
69244-12020	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-30150E2	CXM10,SXM1# SANDAL WOOD,TRIM0#	05/1998 - 04/2001	1
69277-22090A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-30080E2	CXM10,SXM1# SANDAL WOOD,TRIM0#	05/1998 - 04/2001	1
69278-22050A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-30040E2	CXM10,SXM1# SANDAL WOOD,TRIM0#	05/1998 - 04/2001	1
69283-30040A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-30040A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
69284-30040E2	CXM10,SXM1# SANDAL WOOD,TRIM0#	05/1998 - 04/2001	1
69293B - SNAP, REAR DOOR OUTSIDE HANDLE
69293-12030	ACM1#,CXM10,SXM15 右側	04/2001 - 12/2999	1
69293-12040	ACM1#,CXM10,SXM15 左側	04/2001 - 12/2999	1
69293-12030	CXM10,SXM1# 右側	05/1998 - 04/2001	1
69293-12040	CXM10,SXM1# 左側	05/1998 - 04/2001	1
69330 - LOCK ASSY, REAR DOOR, RH
69050-44030	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
69050-44030	CXM10,SXM1#	05/1998 - 04/2001	1
69340 - LOCK ASSY, REAR DOOR, LH
69060-44030	CXM10,SXM1#	05/1998 - 04/2001	1
69060-44030	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-20110	CXM10,SXM1#	05/1998 - 04/2001	2
69410-20110	ACM1#,CXM10,SXM15	04/2001 - 12/2999	2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-30050	CXM10,SXM1#	05/1998 - 04/2001	2
69749-30050	ACM1#,CXM10,SXM15	04/2001 - 12/2999	2
69759W - SNAP, REAR DOOR LOCK CONTROL LINK
69759-44030	ACM1#,CXM10,SXM15	04/2001 - 12/2999	2
69759-44030	CXM10,SXM1#	05/1998 - 04/2001	2
Common parts
90148-60022
90148-80027
90159-50322
90164-50031
90189-05003
91511-B0610

CXM10G-BRSET (1998)

(9805- )
