CXM10G-BRSET (1998)
Toyota Gaia

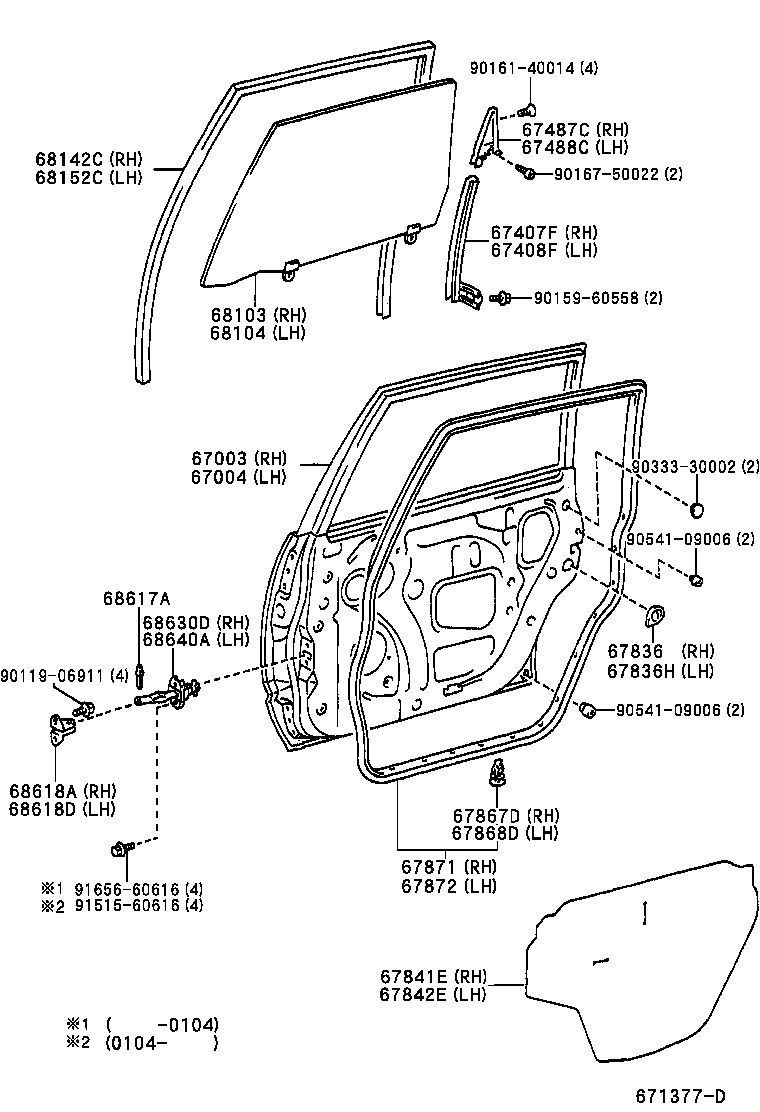

ILLUST NO. 2 OF 2(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-44020 |
CXM10,SXM1# |
1 | ||
| 67003-44020 |
ACM1#,CXM10 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-44020 |
CXM10,SXM1# |
1 | ||
| 67004-44020 |
ACM1#,CXM10 |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67407-44020 |
CXM10,SXM1# |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-44020 |
CXM10,SXM1# |
1 | ||
| 67408-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67487-44020 |
CXM10,SXM1# |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-44020 |
CXM10,SXM1# |
1 | ||
| 67488-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67836-44010 |
CXM10,SXM1# |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67846-44010 |
CXM10,SXM1# |
1 | ||
| 67846-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-44030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67841-44030 |
CXM10,SXM1# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-44030 |
CXM10,SXM1# |
1 | ||
| 67841-44030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
CXM10,SXM1# |
19 | ||
| 67867-12150 |
ACM1#,CXM10,SXM15 |
19 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
CXM10,SXM1# |
19 | ||
| 67867-12150 |
ACM1#,CXM10,SXM15 |
19 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-44020 |
CXM10,SXM1# |
1 | ||
| 67871-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67872-44020 |
CXM10,SXM1# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-44050 |
CXM10,SXM1# *SERT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-44030 |
CXM10,SXM1# *UVCTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-44110 |
ACM1#,CXM10,SXM15 *TT,厚さ=3.5,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68103-44150 |
ACM1#,CXM10,SXM15 *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-44050 |
CXM10,SXM1# *SERT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104-44110 |
ACM1#,CXM10,SXM15 *TT,厚さ=3.5,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68104-44030 |
CXM10,SXM1# *UVCTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104-44150 |
ACM1#,CXM10,SXM15 *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-44020 |
CXM10,SXM1# |
1 | ||
| 68142-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-44020 |
CXM10,SXM1# |
1 | ||
| 68152-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-53010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 68617-20050 |
CXM10,SXM1# |
2 | ||
| 68618A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 68618-26010 |
CXM10,SXM1# |
1 | ||
| 68618-20030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 68618D - BRACKET, REAR DOOR CHECK ARM, RH | ||||
| 68618-26010 |
CXM10,SXM1# |
1 | ||
| 68618-20030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-44010 |
CXM10,SXM1# |
1 | ||
| 68630-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-44010 |
CXM10,SXM1# |
1 | ||
| 68630-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 90119-06911 | ||||
| 90159-60558 | ||||
| 90161-40014 | ||||
| 90167-50022 | ||||
| 90333-30002 | ||||
| 90541-09006 | ||||
| 91515-60616 | ||||
| 91656-60616 | ||||

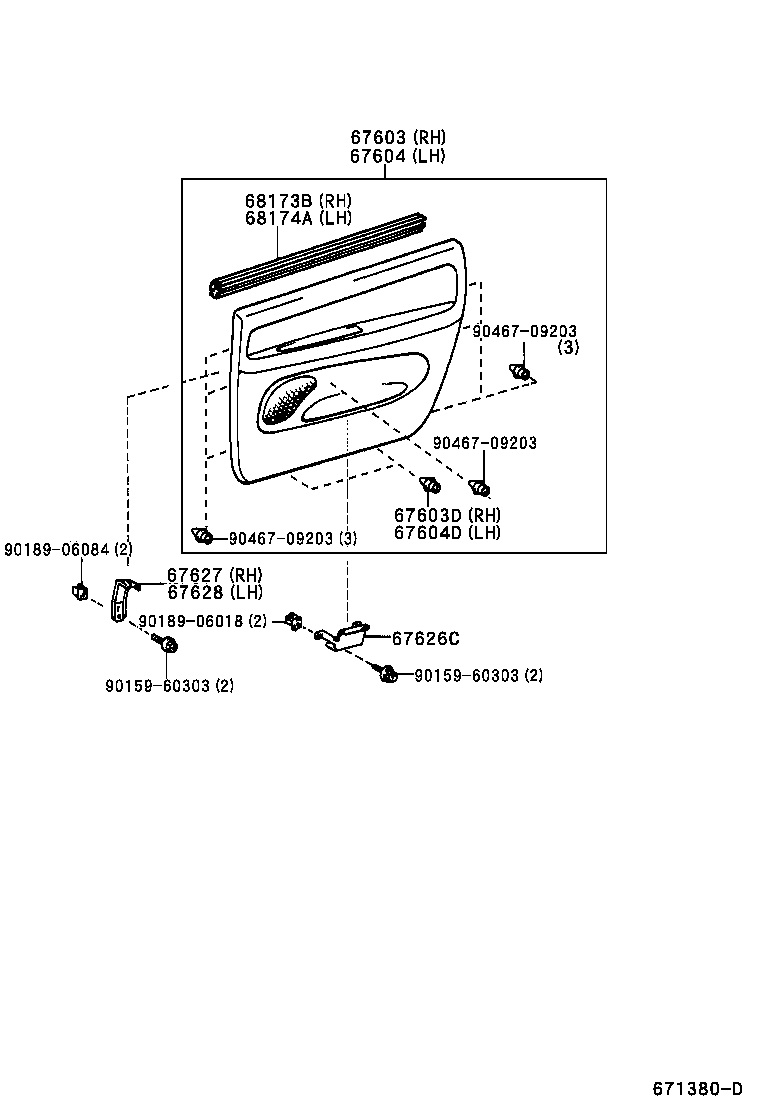

ILLUST NO. 1 OF 2(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-44060B0 |
CXM10,SXM1# ﾄﾘﾑ = TYPE A-*104,CHARCOAL,TRIM0# |
1 | ||
| 67630-44070B0 |
CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,CHARCOAL,TRIM0# |
1 | ||
| 67630-44330A0 |
ACM1#,CXM10 ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67630-44340A0 |
ACM1#,CXM10 ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-28020 |
CXM10,SXM1# |
2 | ||
| 67771-28020 |
ACM10,CXM10,SXM15 |
2 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-44070B0 |
CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,CHARCOAL,TRIM0# |
1 | ||
| 67640-44060B0 |
CXM10,SXM1# ﾄﾘﾑ = TYPE A-*104,CHARCOAL,TRIM0# |
1 | ||
| 67640-44330A0 |
ACM1#,CXM10 ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67640-44340A0 |
ACM1#,CXM10 ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-28020 |
CXM10,SXM1# |
2 | ||
| 67771-28020 |
ACM10,CXM10,SXM15 |
2 | ||
| 67626C - BRACKET, REAR DOOR TRIM, NO.2 | ||||
| 67625-44010 |
CXM10,SXM1# |
2 | ||
| 67625-44010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67643-44010 |
CXM10,SXM1# |
1 | ||
| 67643-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67644-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67644-44010 |
CXM10,SXM1# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-44020 |
ACM1#,CXM10 |
1 | ||
| 68173-44020 |
CXM10,SXM1# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-44020 |
CXM10,SXM1# |
1 | ||
| 68174-44020 |
ACM1#,CXM10 |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| 90189-06084 | ||||
| 90467-09203 | ||||
