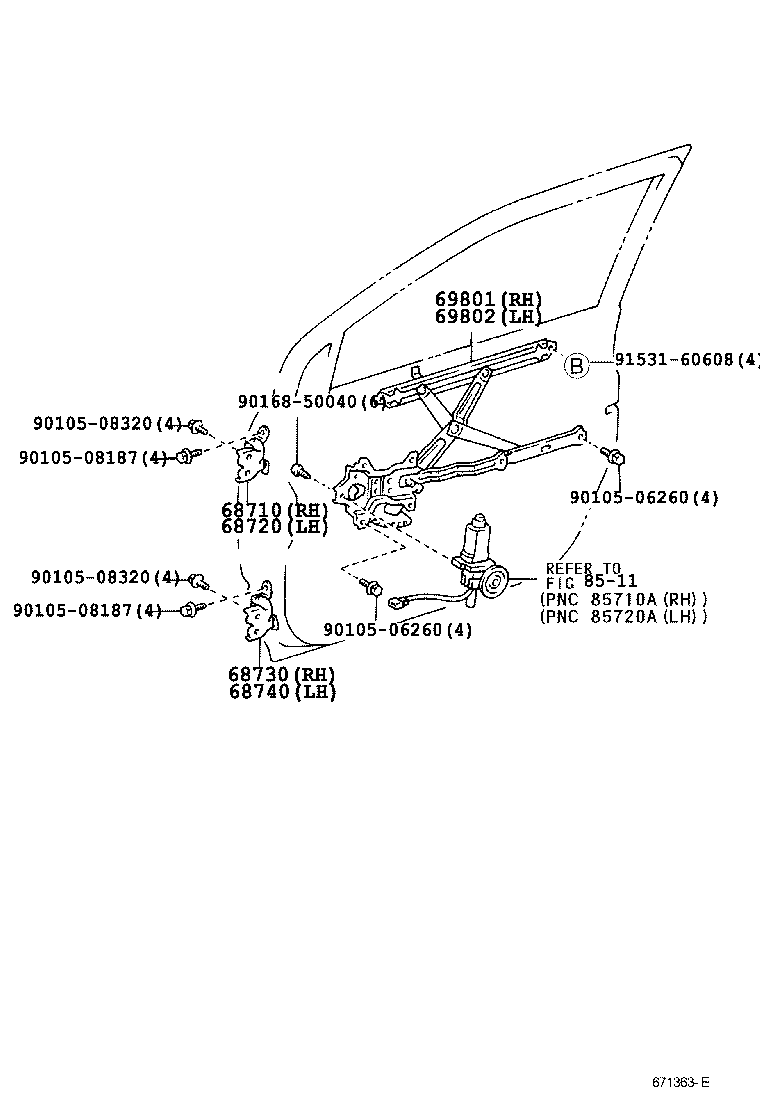

Toyota Gaia CXM10 FRONT DOOR WINDOW REGULATOR & HINGE

Part #	Description	Period	Qty
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-44010	CXM10,SXM1#	05/1998 - 04/2001	1
68710-44010	ACM1#,CXM10	04/2001 - 09/2004	1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-44010	CXM10,SXM1#	05/1998 - 04/2001	1
68720-44010	ACM1#,CXM10	04/2001 - 09/2004	1
68720-44030	ACM1#,CXM10 ｳｴﾙｷﾔﾌﾞ	04/2001 - 09/2004	1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-44010	CXM10,SXM1#	05/1998 - 04/2001	1
68720-44010	ACM1#,CXM10	04/2001 - 09/2004	1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-44010	CXM10,SXM1#	05/1998 - 04/2001	1
68710-44010	ACM1#,CXM10	04/2001 - 09/2004	1
68710-44020	ACM1#,CXM10 ｳｴﾙｷﾔﾌﾞ	04/2001 - 09/2004	1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-44010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
69801-44010	CXM10,SXM1#	05/1998 - 04/2001	1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-44010	CXM10,SXM1#	05/1998 - 04/2001	1
69802-44010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
Common parts
90105-06260
90105-08187
90105-08320
90168-50040
91531-60608
Linked diagrams
8511

CXM10G-BRSET (1998)
