CXM10G-BRSET (1998)
Toyota Gaia

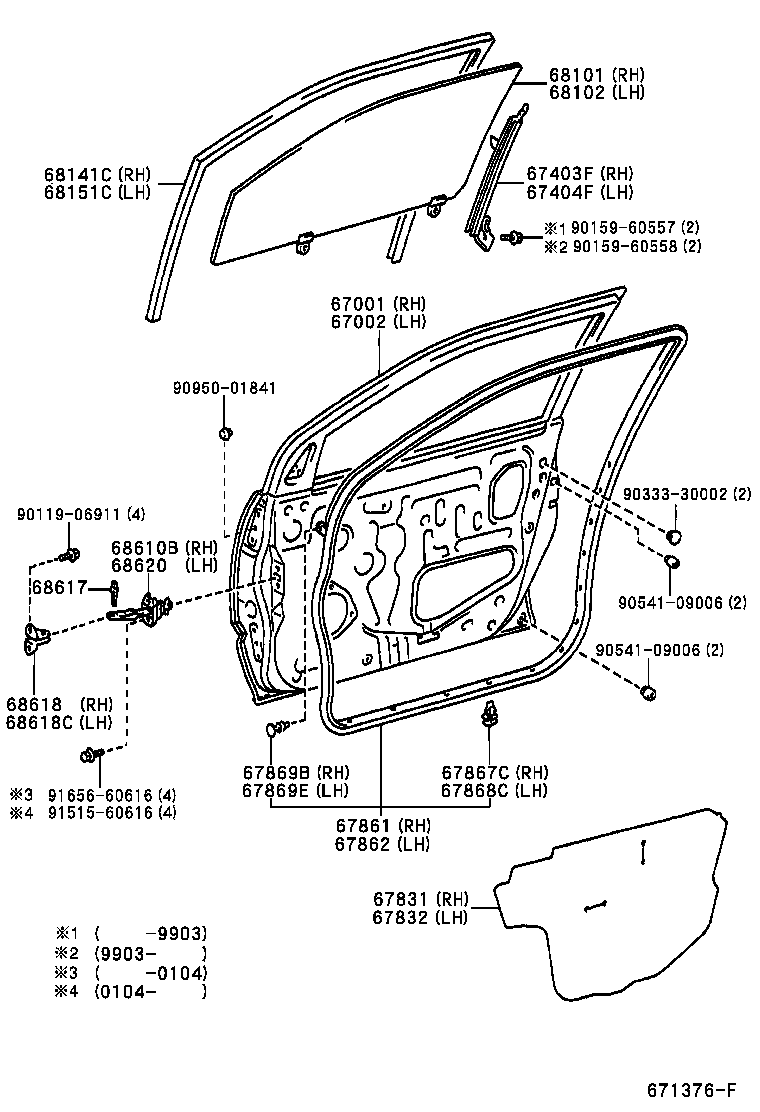

ILLUST NO. 2 OF 3(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-44020 |
CXM10,SXM1# |
1 | ||
| 67001-44021 |
CXM10,SXM1# |
1 | ||
| 67001-44021 |
ACM1#,CXM10 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-44020 |
CXM10,SXM1# |
1 | ||
| 67002-44021 |
ACM1#,CXM10 |
1 | ||
| 67002-44021 |
CXM10,SXM1# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-44020 |
CXM10,SXM1# |
1 | ||
| 67403-44021 |
CXM10,SXM1# |
1 | ||
| 67403-44021 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-44021 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67404-44020 |
CXM10,SXM1# |
1 | ||
| 67404-44021 |
CXM10,SXM1# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-44020 |
CXM10,SXM1# |
1 | ||
| 67831-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67831-44020 |
CXM10,SXM1# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-44020 |
CXM10,SXM1# |
1 | ||
| 67861-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67862-44020 |
CXM10,SXM1# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ACM1#,CXM10,SXM15 |
17 | ||
| 67867-12150 |
CXM10,SXM1# |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ACM1#,CXM10,SXM15 |
17 | ||
| 67867-12150 |
CXM10,SXM1# |
17 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
CXM10,SXM1# |
1 | ||
| 67869-20030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67869-20030 |
CXM10,SXM1# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-44100 |
CXM10,SXM1# *UVCTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-44150 |
ACM1#,CXM10,SXM15 *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾊﾂｽｲ ｶｺｳ) |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-44150 |
ACM1#,CXM10,SXM15 *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾊﾂｽｲ ｶｺｳ) |
1 | ||
| 68102-44100 |
CXM10,SXM1# *UVCTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-44020 |
CXM10,SXM1# |
1 | ||
| 68141-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 68151-44020 |
CXM10,SXM1# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 68610-44010 |
CXM10,SXM1# |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20050 |
CXM10,SXM1# |
2 | ||
| 68617-53010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 68618 - BRACKET, FRONT DOOR CHECK ARM, RH | ||||
| 68618-26010 |
CXM10,SXM1# |
1 | ||
| 68618-20030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 68618C - BRACKET, FRONT DOOR CHECK ARM, LH | ||||
| 68618-26010 |
CXM10,SXM1# |
1 | ||
| 68618-20030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-44010 |
CXM10,SXM1# |
1 | ||
| 68620-44030 |
ACM1#,CXM10,SXM15 ｳｴﾙｷﾔﾌﾞ |
1 | ||
| 68610-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 90119-06911 | ||||
| 90159-60557 | ||||
| 90159-60558 | ||||
| 90333-30002 | ||||
| 90541-09006 | ||||
| 90950-01841 | ||||
| 91515-60616 | ||||
| 91656-60616 | ||||

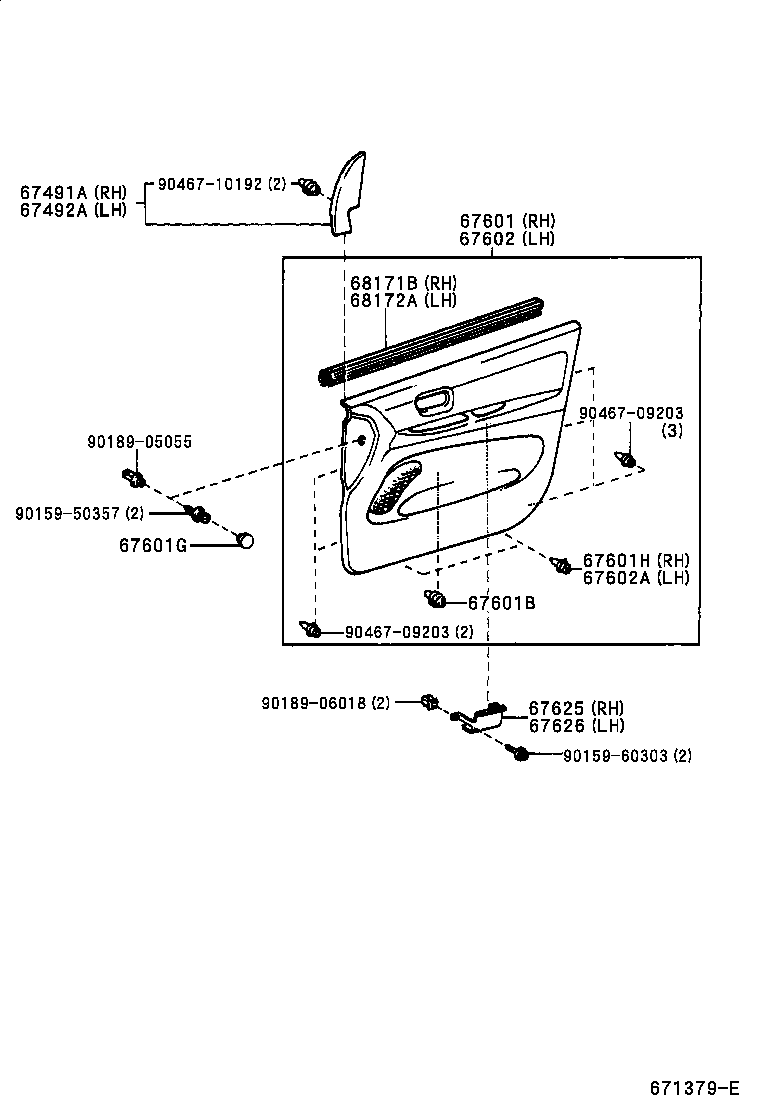

ILLUST NO. 1 OF 3(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-44020 |
CXM10,SXM1# |
1 | ||
| 67491-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-44020 |
CXM10,SXM1# |
1 | ||
| 67492-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-44090B0 |
CXM10,SXM1# ﾄﾘﾑ = TYPE A-*104,CHARCOAL,TRIM0# |
1 | ||
| 67610-44110B0 |
CXM10,SXM1# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) & ﾄﾘﾑ = TYPE A-*104,CHARCOAL,TRIM0# |
1 | ||
| 67610-44120B0 |
CXM10,SXM1# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) & ﾄﾘﾑ = TYPE B-*104,CHARCOAL,TRIM0# |
1 | ||
| 67610-44100B0 |
CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,CHARCOAL,TRIM0# |
1 | ||
| 67610-44560A0 |
ACM1#,CXM10 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) & ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67610-44550A0 |
ACM1#,CXM10 ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67610-44540A0 |
ACM1#,CXM10 ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67610-44570A0 |
ACM1#,CXM10 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) & ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-08210 |
ACM1#,CXM10,SXM15 |
2 | ||
| 90467-08210 |
CXM10,SXM1# |
2 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800E5 |
CXM10,SXM1# SANDAL WOOD,TRIM0# |
2 | ||
| 90950-01800A1 |
ACM1#,CXM10 IVORY,TRIM0# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-28020 |
ACM10,CXM10,SXM15 |
2 | ||
| 67771-28020 |
CXM10,SXM1# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-44120B0 |
CXM10,SXM1# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) & ﾄﾘﾑ = TYPE B-*104,CHARCOAL,TRIM0# |
1 | ||
| 67620-44100B0 |
CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,CHARCOAL,TRIM0# |
1 | ||
| 67620-44090B0 |
CXM10,SXM1# ﾄﾘﾑ = TYPE A-*104,CHARCOAL,TRIM0# |
1 | ||
| 67620-44110B0 |
CXM10,SXM1# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) & ﾄﾘﾑ = TYPE A-*104,CHARCOAL,TRIM0# |
1 | ||
| 67620-44560A0 |
ACM1#,CXM10 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) & ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67620-44540A0 |
ACM1#,CXM10 ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67620-44550A0 |
ACM1#,CXM10 ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67620-44570A0 |
ACM1#,CXM10 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) & ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-28020 |
ACM10,CXM10,SXM15 |
2 | ||
| 67771-28020 |
CXM10,SXM1# |
2 | ||
| 67625 - BRACKET, FRONT DOOR TRIM, RH | ||||
| 67625-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67625-44010 |
CXM10,SXM1# |
1 | ||
| 67626 - BRACKET, FRONT DOOR TRIM, LH | ||||
| 67625-44010 |
CXM10,SXM1# |
1 | ||
| 67625-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-44020 |
CXM10,SXM1# |
1 | ||
| 68171-44020 |
ACM1#,CXM10 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-44020 |
CXM10,SXM1# |
1 | ||
| 68172-44020 |
ACM1#,CXM10 |
1 | ||
| Common parts | ||||
| 90159-50357 | ||||
| 90159-60303 | ||||
| 90189-05055 | ||||
| 90189-06018 | ||||
| 90467-09203 | ||||
| 90467-10192 | ||||
ILLUST NO. 3 OF 3(0104- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(9805-0104)
| Part # | Description | Qty | Price |
|---|
