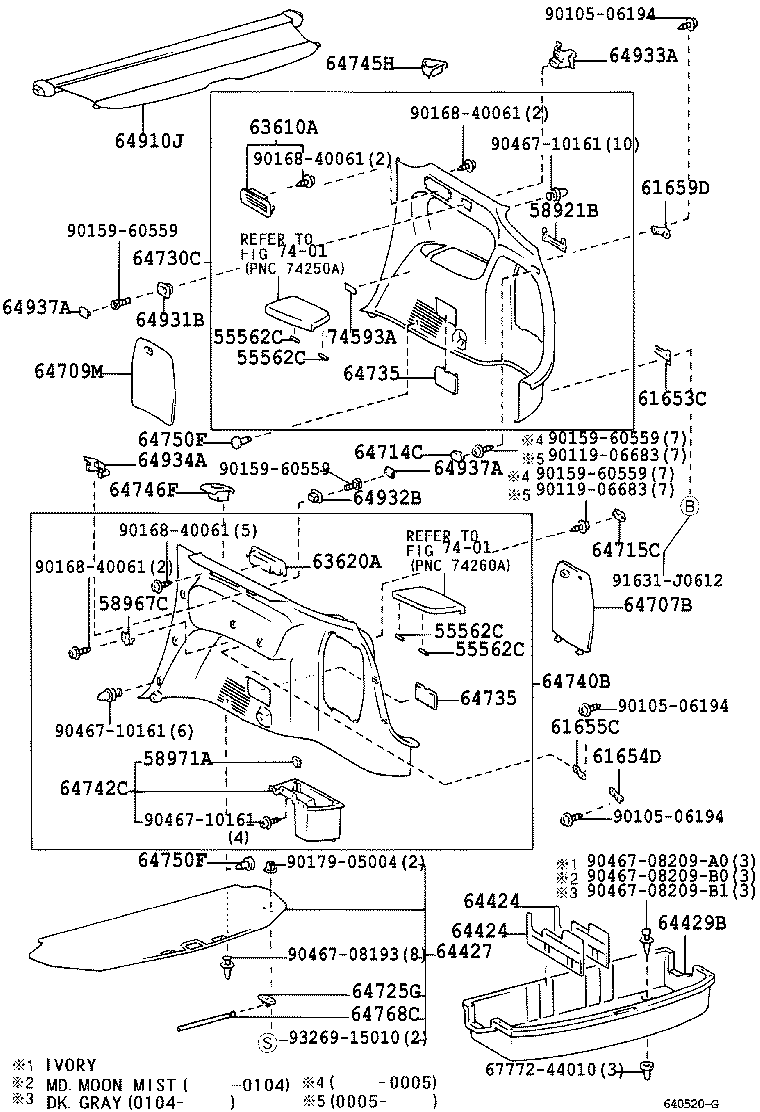

CXM10G-BRSET (1998)
Toyota Gaia
(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55562C - PIN, DECK TRIM DOOR LOCK | ||||
| 64973-44010 |
CXM10,SXM1# |
4 | ||
| 64973-44010 |
ACM1#,CXM10,SXM15 |
4 | ||
| 55562C - PIN, DECK TRIM DOOR LOCK | ||||
| 64973-44010 |
CXM10,SXM1# |
4 | ||
| 64973-44010 |
ACM1#,CXM10,SXM15 |
4 | ||
| 55562C - PIN, DECK TRIM DOOR LOCK | ||||
| 64973-44010 |
CXM10,SXM1# |
4 | ||
| 64973-44010 |
ACM1#,CXM10,SXM15 |
4 | ||
| 55562C - PIN, DECK TRIM DOOR LOCK | ||||
| 64973-44010 |
CXM10,SXM1# |
4 | ||
| 64973-44010 |
ACM1#,CXM10,SXM15 |
4 | ||
| 58921B - PLATE, DECK TRIM DOOR LOCK | ||||
| 58909-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 58909-44020 |
CXM10,SXM1# |
1 | ||
| 58967C - SPRING, DECK SIDE BOX DOOR STOPPER | ||||
| 58967-44020 |
CXM10,SXM1# |
1 | ||
| 58967-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 58971A - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-26010 |
CXM10,SXM1# |
2 | ||
| 58971-26010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 61653C - BRACKET, DECK SIDE TRIM, RH | ||||
| 61653-44010 |
CXM10,SXM1# |
1 | ||
| 61653-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 61654D - BRACKET, DECK SIDE TRIM, NO.2 | ||||
| 61654-44010 |
CXM10,SXM1# |
1 | ||
| 61654-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 61655C - BRACKET, DECK SIDE TRIM, NO.3 | ||||
| 61655-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 61655-44010 |
CXM10,SXM1# |
1 | ||
| 61659D - BRACKET, DECK SIDE TRIM LOWER, NO.3 | ||||
| 61659-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 61659-44010 |
CXM10,SXM1# |
1 | ||
| 63610A - REGISTER ASSY, AIR OUTLET, RH | ||||
| 63610-44020E0 |
CXM10,SXM1# SANDAL WOOD,TRIM0# |
1 | ||
| 63610-44020A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 63620A - REGISTER ASSY, AIR OUTLET, LH | ||||
| 63620-44020E0 |
CXM10,SXM1# SANDAL WOOD,TRIM0# |
1 | ||
| 63620-44020A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 64424 - SEPARATOR, LUGGAGE ROOM BOX | ||||
| 64424-44020A0 |
ACM1#,CXM10,SXM15 IVORY,TRIM0# |
2 | ||
| 64424-44020A0 |
CXM10,SXM1# IVORY,TRIM0# |
2 | ||
| 64424 - SEPARATOR, LUGGAGE ROOM BOX | ||||
| 64424-44020A0 |
ACM1#,CXM10,SXM15 IVORY,TRIM0# |
2 | ||
| 64424-44020A0 |
CXM10,SXM1# IVORY,TRIM0# |
2 | ||
| 64427 - LID, LUGGAGE ROOM BOX | ||||
| 64420-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 64420-44010A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 64429B - BOX, LUGGAGE ROOM | ||||
| 64429-44020A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 64429-44020A0 |
ACM1#,CXM10,SXM15 IVORY,TRIM0# |
1 | ||
| 64707B - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64766-44020A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 64766-44020A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 64709M - COVER SUB-ASSY, DECK TRIM POCKET | ||||
| 64974-44020A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 64974-44020A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 64714-44010A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-44010A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 64715-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 64725G - RETAINER, LUGGAGE ROOM BOX LID | ||||
| 64725-44010A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 64725-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 64730C - BOARD, DECK TRIM SIDE, RH | ||||
| 64730-44110A2 |
CXM10,SXM1# ｱﾘ(ﾄﾉｶﾊﾞ-) & ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 64730-44080A2 |
CXM10,SXM1# ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 64730-44100A2 |
CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 64730-44100A3 |
CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 64730-44110A3 |
CXM10,SXM1# ｱﾘ(ﾄﾉｶﾊﾞ-) & ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 64730-44090A2 |
CXM10,SXM1# ｱﾘ(ﾄﾉｶﾊﾞ-) & ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 64730-44340A0 |
CXM10 ｱﾘ(ﾄﾉｶﾊﾞ-) & ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 64730-44350A0 |
ACM1#,CXM10 ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 64730-44330A0 |
ACM1#,CXM10 ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 64730-44360A0 |
ACM1#,CXM10 ｱﾘ(ﾄﾉｶﾊﾞ-) & ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
2 | ||
| 64735-44010A0 |
CXM10,SXM1# IVORY,TRIM0# |
2 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
2 | ||
| 64735-44010A0 |
CXM10,SXM1# IVORY,TRIM0# |
2 | ||
| 64740B - BOARD, DECK TRIM SIDE, LH | ||||
| 64740-44090A2 |
CXM10,SXM1# ｱﾘ(ﾄﾉｶﾊﾞ-) & ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 64740-44100A2 |
CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 64740-44110A2 |
CXM10,SXM1# ｱﾘ(ﾄﾉｶﾊﾞ-) & ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 64740-44110A3 |
CXM10,SXM1# ｱﾘ(ﾄﾉｶﾊﾞ-) & ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 64740-44080A2 |
CXM10,SXM1# ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 64740-44330A0 |
ACM1#,CXM10 ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 64740-44360A0 |
ACM1#,CXM10 ｱﾘ(ﾄﾉｶﾊﾞ-) & ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 64740-44350A0 |
ACM1#,CXM10 ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 64740-44340A0 |
CXM10 ｱﾘ(ﾄﾉｶﾊﾞ-) & ﾄﾘﾑ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 64740-44100A3 |
CXM10,SXM1# ﾄﾘﾑ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 64742C - BOX, DECK SIDE TRIM, LH | ||||
| 64742-44020A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 64742-44020A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 64745H - HOLDER, DECK SIDE TRIM CUP, RH | ||||
| 64745-44020E0 |
CXM10,SXM1# SANDAL WOOD,TRIM0# |
1 | ||
| 64745-44020A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 64746F - HOLDER, DECK SIDE TRIM CUP, LH | ||||
| 64746-44020E0 |
CXM10,SXM1# SANDAL WOOD,TRIM0# |
1 | ||
| 64746-44020A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-06017A0 |
ACM1#,CXM10 IVORY,TRIM0# |
2 | ||
| 90467-06017A0 |
CXM10,SXM1# IVORY,TRIM0# |
2 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-06017A0 |
ACM1#,CXM10 IVORY,TRIM0# |
2 | ||
| 90467-06017A0 |
CXM10,SXM1# IVORY,TRIM0# |
2 | ||
| 64768C - STOPPER, LUGGAGE ROOM BOX LID | ||||
| 64768-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 64768-44010 |
CXM10,SXM1# |
1 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-44020A1 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 64910-44070A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 64931B - HANGER, TONNEAU COVER, RH | ||||
| 64931-44010E0 |
CXM10,SXM1# SANDAL WOOD,TRIM0# |
1 | ||
| 64931-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 64932B - HANGER, TONNEAU COVER, LH | ||||
| 64932-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 64932-44010E0 |
CXM10,SXM1# SANDAL WOOD,TRIM0# |
1 | ||
| 64933A - BRACKET, TONNEAU COVER HOLDER, RH | ||||
| 64933-44010 |
CXM10,SXM1# |
1 | ||
| 64933-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 64934A - BRACKET, TONNEAU COVER HOLDER, LH | ||||
| 64934-44010 |
CXM10,SXM1# |
1 | ||
| 64934-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-44010E0 |
CXM10,SXM1# SANDAL WOOD,TRIM0# |
2 | ||
| 64937-44010A1 |
ACM1#,CXM10 IVORY,TRIM0# |
2 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-44010E0 |
CXM10,SXM1# SANDAL WOOD,TRIM0# |
2 | ||
| 64937-44010A1 |
ACM1#,CXM10 IVORY,TRIM0# |
2 | ||
| 74593A - LABEL, DECK TRIM SIDE | ||||
| 74593-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 74593-44020 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 67772-44010 | ||||
| 90105-06194 | ||||
| 90119-06683 | ||||
| 90159-60559 | ||||
| 90168-40061 | ||||
| 90179-05004 | ||||
| 90467-08193 | ||||
| 90467-08209A0 | ||||
| 90467-08209B0 | ||||
| 90467-08209B1 | ||||
| 90467-10161 | ||||
| 91631-J0612 | ||||
| 93269-15010 | ||||
| Linked diagrams | ||||
| 7401 | ||||
