Toyota Gaia CXM10 ROOF HEADLINING & SILENCER PAD

Manufacturers Home
Toyota
JP
GAIA
CXM10G-BRSET (1998)
6402 - ROOF HEADLINING & SILENCER PAD

CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004

Engine 3CTE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9805- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
63303 - TRIM SUB-ASSY, SUNSHADE, NO.2
63303-44020A0	CXM10,SXM1# IVORY,TRIM0#	09/1998 - 04/2001	1
63303-44010A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 09/1998	1
63303-44020A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
63306 - TRIM SUB-ASSY, SUNSHADE
63306-44010A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 09/1998	1
63306-44030A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
63306-44030A0	CXM10,SXM1# IVORY,TRIM0#	09/1998 - 04/2001	1
63310 - HEADLINING ASSY, ROOF
63310-44040A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
63310-44050A0	CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	05/1998 - 04/2001	1
63310-44150A0	ACM1#,CXM10 ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),IVORY,TRIM0#	04/2001 - 09/2004	1
63310-44050A0	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2001 - 09/2004	1
63310-44040A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
63310 - HEADLINING ASSY, ROOF
63310-44040A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
63310-44050A0	CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	05/1998 - 04/2001	1
63310-44150A0	ACM1#,CXM10 ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),IVORY,TRIM0#	04/2001 - 09/2004	1
63310-44050A0	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2001 - 09/2004	1
63310-44040A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
63310D - CLIP, ROOF HEADLINING
90467-06177A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	5
90467-06177A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 04/2003	5
90467-06177A0	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2001 - 04/2003	3
90467-05164A1	ACM1#,CXM10 IVORY,TRIM0#	04/2003 - 09/2004	5
90467-06177A0	CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	05/1998 - 04/2001	3
90467-05164A1	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2003 - 09/2004	3
63310D - CLIP, ROOF HEADLINING
90467-06177A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	5
90467-06177A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 04/2003	5
90467-06177A0	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2001 - 04/2003	3
90467-05164A1	ACM1#,CXM10 IVORY,TRIM0#	04/2003 - 09/2004	5
90467-06177A0	CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	05/1998 - 04/2001	3
90467-05164A1	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2003 - 09/2004	3
63310D - CLIP, ROOF HEADLINING
90467-06177A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	5
90467-06177A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 04/2003	5
90467-06177A0	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2001 - 04/2003	3
90467-05164A1	ACM1#,CXM10 IVORY,TRIM0#	04/2003 - 09/2004	5
90467-06177A0	CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	05/1998 - 04/2001	3
90467-05164A1	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2003 - 09/2004	3
63310D - CLIP, ROOF HEADLINING
90467-06177A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	5
90467-06177A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 04/2003	5
90467-06177A0	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2001 - 04/2003	3
90467-05164A1	ACM1#,CXM10 IVORY,TRIM0#	04/2003 - 09/2004	5
90467-06177A0	CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	05/1998 - 04/2001	3
90467-05164A1	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2003 - 09/2004	3
63310D - CLIP, ROOF HEADLINING
90467-06177A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	5
90467-06177A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 04/2003	5
90467-06177A0	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2001 - 04/2003	3
90467-05164A1	ACM1#,CXM10 IVORY,TRIM0#	04/2003 - 09/2004	5
90467-06177A0	CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	05/1998 - 04/2001	3
90467-05164A1	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2003 - 09/2004	3
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-44010	CXM10,SXM1# 長さ=1992	05/1998 - 06/1998	1
63318-44010A0	ACM1#,CXM10 長さ=1992,IVORY,TRIM0#	04/2001 - 09/2004	1
63318-44010A0	CXM10,SXM1# 長さ=1992,IVORY,TRIM0#	06/1998 - 04/2001	1
63319C - JOINT, SUN ROOF OPENING TRIM
63319-44010A0	CXM10,SXM1# IVORY,TRIM0#	06/1998 - 04/2001	2
63319-44010	CXM10,SXM1#	05/1998 - 06/1998	2
63319-44010A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	2
63319C - JOINT, SUN ROOF OPENING TRIM
63319-44010A0	CXM10,SXM1# IVORY,TRIM0#	06/1998 - 04/2001	2
63319-44010	CXM10,SXM1#	05/1998 - 06/1998	2
63319-44010A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	2
63328C - KNOB, SUNSHADE TRIM
63328-12030A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	2
63328-12030A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	2
63328C - KNOB, SUNSHADE TRIM
63328-12030A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	2
63328-12030A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	2
63329 - MOULDING, SUN ROOF OPENING TRIM, NO.2
63329-44040A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
63329-44040A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
63351B - PAD, ROOF HEADLINING
63351-44020	CXM10,SXM1# NO.2	05/1998 - 04/2001	1
63351-44010	CXM10,SXM1# NO.1	05/1998 - 04/2001	1
63351-44030	CXM10,SXM1# NO.3	05/1998 - 04/2001	1
63351-44040	ACM1#,CXM10 NO.4	04/2001 - 09/2004	3
63351-44030	ACM1#,CXM10 NO.3	04/2001 - 09/2004	1
63351-44010	ACM1#,CXM10 NO.1	04/2001 - 09/2004	5
63351-44010	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) OR ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),NO.1	04/2001 - 09/2004	4
63351-44050	ACM1#,CXM10 NO.5	04/2001 - 09/2004	1
63351-44020	ACM1#,CXM10 NO.2	04/2001 - 09/2004	1
63351-44040	CXM10,SXM1# NO.4	05/1998 - 04/2001	1
63351-44040	ACM1#,CXM10 ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),NO.4	04/2001 - 09/2004	1

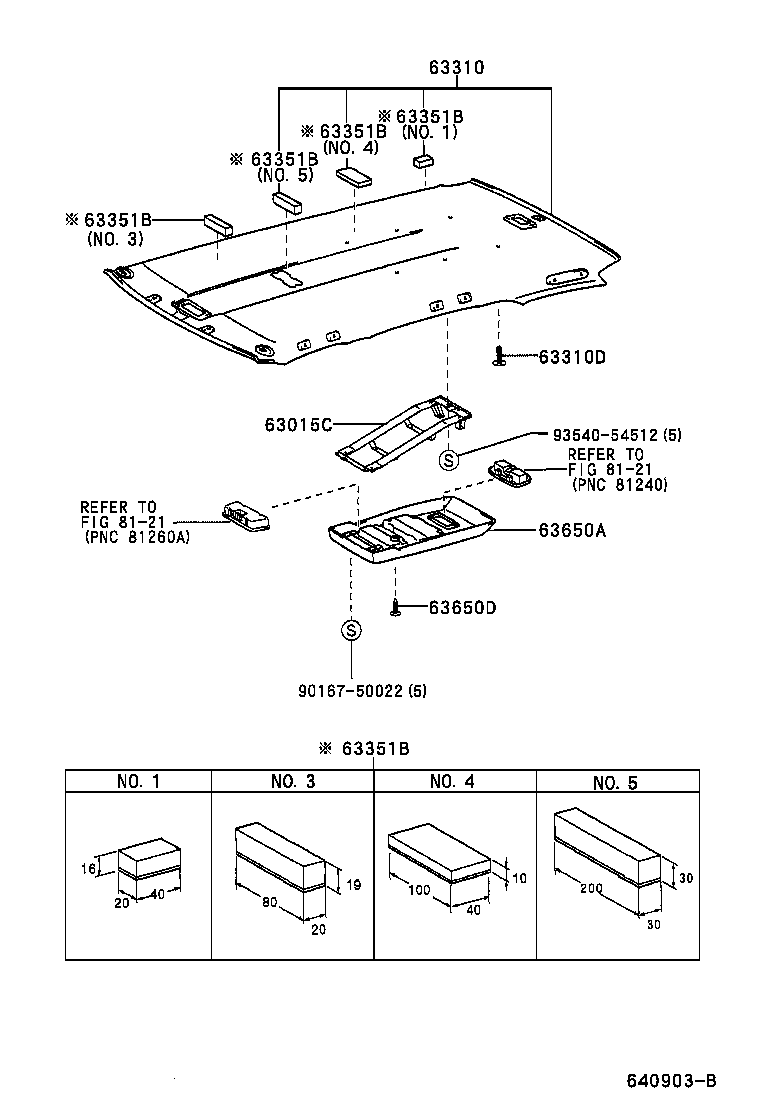

(0104- )

Click highlighted areas on diagram

ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ)

Part #	Description	Period	Qty
63015C - BRACKET SUB-ASSY, ROOF CONSOLE
63015-44010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
63310 - HEADLINING ASSY, ROOF
63310-44040A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	1
63310-44050A0	CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	05/1998 - 04/2001	1
63310-44150A0	ACM1#,CXM10 ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),IVORY,TRIM0#	04/2001 - 09/2004	1
63310-44050A0	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2001 - 09/2004	1
63310-44040A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
63310D - CLIP, ROOF HEADLINING
90467-06177A0	CXM10,SXM1# IVORY,TRIM0#	05/1998 - 04/2001	5
90467-06177A0	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 04/2003	5
90467-06177A0	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2001 - 04/2003	3
90467-05164A1	ACM1#,CXM10 IVORY,TRIM0#	04/2003 - 09/2004	5
90467-06177A0	CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	05/1998 - 04/2001	3
90467-05164A1	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#	04/2003 - 09/2004	3
63351B - PAD, ROOF HEADLINING
63351-44020	CXM10,SXM1# NO.2	05/1998 - 04/2001	1
63351-44010	CXM10,SXM1# NO.1	05/1998 - 04/2001	1
63351-44030	CXM10,SXM1# NO.3	05/1998 - 04/2001	1
63351-44040	ACM1#,CXM10 NO.4	04/2001 - 09/2004	3
63351-44030	ACM1#,CXM10 NO.3	04/2001 - 09/2004	1
63351-44010	ACM1#,CXM10 NO.1	04/2001 - 09/2004	5
63351-44010	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) OR ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),NO.1	04/2001 - 09/2004	4
63351-44050	ACM1#,CXM10 NO.5	04/2001 - 09/2004	1
63351-44020	ACM1#,CXM10 NO.2	04/2001 - 09/2004	1
63351-44040	CXM10,SXM1# NO.4	05/1998 - 04/2001	1
63351-44040	ACM1#,CXM10 ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),NO.4	04/2001 - 09/2004	1
63351B - PAD, ROOF HEADLINING
63351-44020	CXM10,SXM1# NO.2	05/1998 - 04/2001	1
63351-44010	CXM10,SXM1# NO.1	05/1998 - 04/2001	1
63351-44030	CXM10,SXM1# NO.3	05/1998 - 04/2001	1
63351-44040	ACM1#,CXM10 NO.4	04/2001 - 09/2004	3
63351-44030	ACM1#,CXM10 NO.3	04/2001 - 09/2004	1
63351-44010	ACM1#,CXM10 NO.1	04/2001 - 09/2004	5
63351-44010	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) OR ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),NO.1	04/2001 - 09/2004	4
63351-44050	ACM1#,CXM10 NO.5	04/2001 - 09/2004	1
63351-44020	ACM1#,CXM10 NO.2	04/2001 - 09/2004	1
63351-44040	CXM10,SXM1# NO.4	05/1998 - 04/2001	1
63351-44040	ACM1#,CXM10 ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),NO.4	04/2001 - 09/2004	1
63351B - PAD, ROOF HEADLINING
63351-44020	CXM10,SXM1# NO.2	05/1998 - 04/2001	1
63351-44010	CXM10,SXM1# NO.1	05/1998 - 04/2001	1
63351-44030	CXM10,SXM1# NO.3	05/1998 - 04/2001	1
63351-44040	ACM1#,CXM10 NO.4	04/2001 - 09/2004	3
63351-44030	ACM1#,CXM10 NO.3	04/2001 - 09/2004	1
63351-44010	ACM1#,CXM10 NO.1	04/2001 - 09/2004	5
63351-44010	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) OR ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),NO.1	04/2001 - 09/2004	4
63351-44050	ACM1#,CXM10 NO.5	04/2001 - 09/2004	1
63351-44020	ACM1#,CXM10 NO.2	04/2001 - 09/2004	1
63351-44040	CXM10,SXM1# NO.4	05/1998 - 04/2001	1
63351-44040	ACM1#,CXM10 ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),NO.4	04/2001 - 09/2004	1
63351B - PAD, ROOF HEADLINING
63351-44020	CXM10,SXM1# NO.2	05/1998 - 04/2001	1
63351-44010	CXM10,SXM1# NO.1	05/1998 - 04/2001	1
63351-44030	CXM10,SXM1# NO.3	05/1998 - 04/2001	1
63351-44040	ACM1#,CXM10 NO.4	04/2001 - 09/2004	3
63351-44030	ACM1#,CXM10 NO.3	04/2001 - 09/2004	1
63351-44010	ACM1#,CXM10 NO.1	04/2001 - 09/2004	5
63351-44010	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) OR ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),NO.1	04/2001 - 09/2004	4
63351-44050	ACM1#,CXM10 NO.5	04/2001 - 09/2004	1
63351-44020	ACM1#,CXM10 NO.2	04/2001 - 09/2004	1
63351-44040	CXM10,SXM1# NO.4	05/1998 - 04/2001	1
63351-44040	ACM1#,CXM10 ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),NO.4	04/2001 - 09/2004	1
63351B - PAD, ROOF HEADLINING
63351-44020	CXM10,SXM1# NO.2	05/1998 - 04/2001	1
63351-44010	CXM10,SXM1# NO.1	05/1998 - 04/2001	1
63351-44030	CXM10,SXM1# NO.3	05/1998 - 04/2001	1
63351-44040	ACM1#,CXM10 NO.4	04/2001 - 09/2004	3
63351-44030	ACM1#,CXM10 NO.3	04/2001 - 09/2004	1
63351-44010	ACM1#,CXM10 NO.1	04/2001 - 09/2004	5
63351-44010	ACM1#,CXM10 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) OR ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),NO.1	04/2001 - 09/2004	4
63351-44050	ACM1#,CXM10 NO.5	04/2001 - 09/2004	1
63351-44020	ACM1#,CXM10 NO.2	04/2001 - 09/2004	1
63351-44040	CXM10,SXM1# NO.4	05/1998 - 04/2001	1
63351-44040	ACM1#,CXM10 ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞｺﾝｿ-ﾙ),NO.4	04/2001 - 09/2004	1
63650A - BOX ASSY, ROOF CONSOLE
63650-44020A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
63650D - CLIP(FOR ROOF CONSOLE BOX)
90467-06061A1	ACM1#,CXM10 IVORY,TRIM0#	04/2001 - 09/2004	1
Common parts
90167-50022
93540-54512
