CXM10G-BRSET (1998)
Toyota Gaia

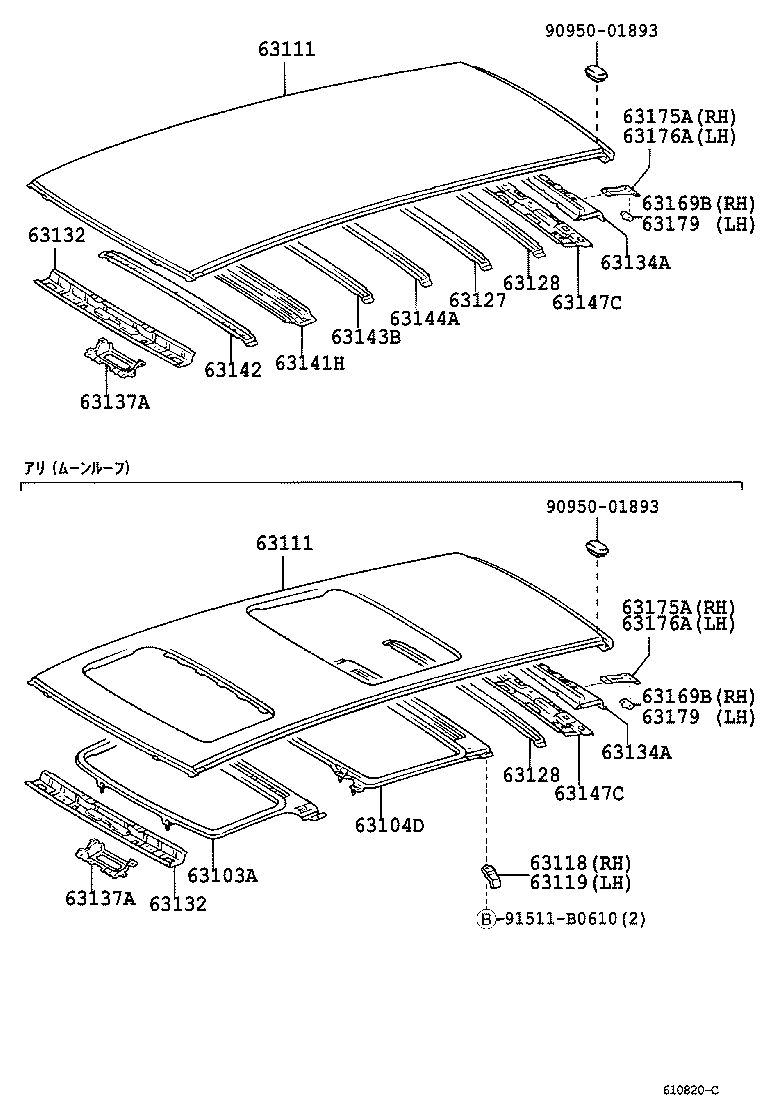

ILLUST NO. 1 OF 3(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-44020 |
CXM10,SXM1# |
1 | ||
| 63103-44020 |
ACM1#,CXM10 |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-44020 |
CXM10,SXM1# |
1 | ||
| 63104-44020 |
ACM1#,CXM10 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-44031 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63111-44040 |
CXM10,SXM1# ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111-44041 |
ACM1#,CXM10,SXM15 ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111-44050 |
CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-44060 |
CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111-44030 |
CXM10,SXM1# |
1 | ||
| 63111-44051 |
ACM1#,CXM10,SXM15 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-44061 |
ACM1#,CXM10,SXM15 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-44031 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63111-44040 |
CXM10,SXM1# ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111-44041 |
ACM1#,CXM10,SXM15 ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111-44050 |
CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-44060 |
CXM10,SXM1# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111-44030 |
CXM10,SXM1# |
1 | ||
| 63111-44051 |
ACM1#,CXM10,SXM15 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-44061 |
ACM1#,CXM10,SXM15 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-44020 |
CXM10,SXM1# |
1 | ||
| 63118-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63118-44020 |
CXM10,SXM1# |
1 | ||
| 63127 - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63127-44010 |
CXM10,SXM1# |
1 | ||
| 63127-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63128-44010 |
CXM10,SXM1# |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63128-44010 |
CXM10,SXM1# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-44020 |
CXM10,SXM1# |
1 | ||
| 63132-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-44020 |
CXM10,SXM1# |
1 | ||
| 63132-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-44020 |
CXM10,SXM1# |
1 | ||
| 63134-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-44020 |
CXM10,SXM1# |
1 | ||
| 63134-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-44020 |
CXM10,SXM1# |
1 | ||
| 63137-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-44020 |
CXM10,SXM1# |
1 | ||
| 63137-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63141-44020 |
CXM10,SXM1# |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63142-44020 |
CXM10,SXM1# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-44020 |
CXM10,SXM1# |
1 | ||
| 63143-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-44020 |
CXM10,SXM1# |
1 | ||
| 63144-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63147C - REINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER | ||||
| 63147-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63147-44020 |
CXM10,SXM1# |
1 | ||
| 63147C - REINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER | ||||
| 63147-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63147-44020 |
CXM10,SXM1# |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-44010 |
CXM10,SXM1# |
1 | ||
| 63169-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-44010 |
CXM10,SXM1# |
1 | ||
| 63169-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH | ||||
| 63175-44020 |
CXM10,SXM1# |
1 | ||
| 63175-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH | ||||
| 63175-44020 |
CXM10,SXM1# |
1 | ||
| 63175-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH | ||||
| 63176-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63176-44020 |
CXM10,SXM1# |
1 | ||
| 63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH | ||||
| 63176-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63176-44020 |
CXM10,SXM1# |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63179-44010 |
CXM10,SXM1# |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63179-44010 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 90950-01893 | ||||
| 91511-B0610 | ||||

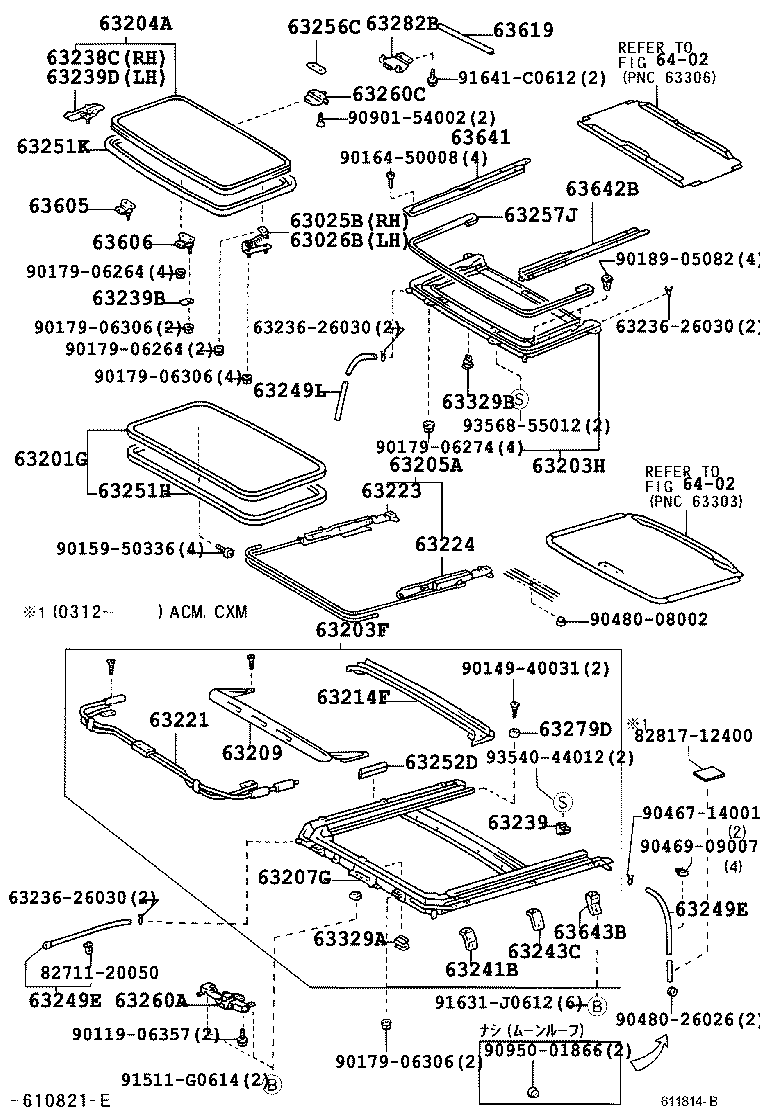

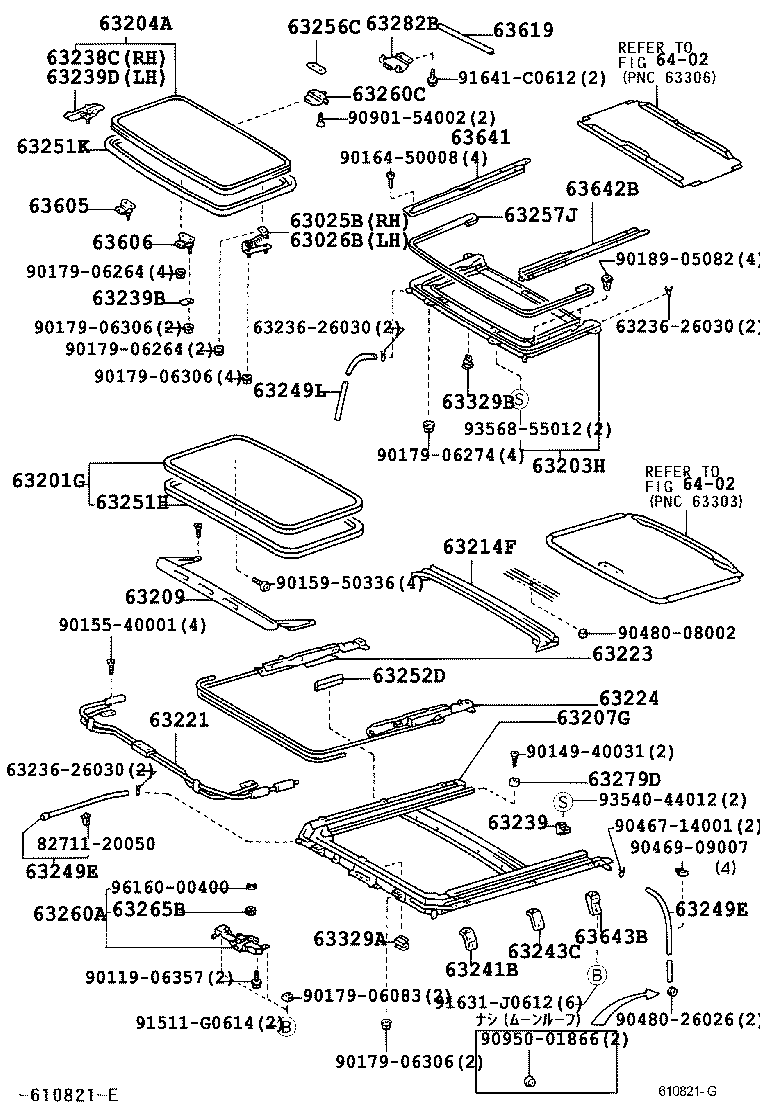

ILLUST NO. 2 OF 3(9805-0302)
ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63025B - LINK SUB-ASSY, TILT ROOF, RH | ||||
| 63025-44020 |
CXM10,SXM1# |
1 | ||
| 63025-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63026B - LINK SUB-ASSY, TILT ROOF, LH | ||||
| 63026-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63026-44020 |
CXM10,SXM1# |
1 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-44040 |
CXM10,SXM1# *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63201-44040 |
ACM1#,CXM10,SXM15 *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63203H - HOUSING SUB-ASSY, REMOVABLE ROOF | ||||
| 63203-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63203-44020 |
CXM10,SXM1# |
1 | ||
| 63204A - PANEL SUB-ASSY, SLIDING ROOF, INNER | ||||
| 63204-44030 |
ACM1#,CXM10,SXM15 *TEM,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 63204-44030 |
CXM10,SXM1# *TEM,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 63207G - RAIL SUB-ASSY, SLIDING ROOF GUIDE | ||||
| 63207-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63207-44011 |
CXM10,SXM1# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-44020 |
CXM10,SXM1# |
1 | ||
| 63209-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-44010 |
CXM10,SXM1# |
1 | ||
| 63214-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63214-44011 |
ACM1#,CXM10 |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-44010 |
CXM10,SXM1# |
1 | ||
| 63221-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63223-44010 |
CXM10,SXM1# |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-44010 |
CXM10,SXM1# |
1 | ||
| 63224-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63238C - RETAINER, REMOVABLE ROOF HOLDER, RH | ||||
| 63238-44020 |
CXM10,SXM1# |
1 | ||
| 63238-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63239-12030 |
CXM10,SXM1# |
2 | ||
| 63239B - PAD, TILT ROOF GLASS | ||||
| 63239-26020 |
CXM10,SXM1# |
2 | ||
| 63239-26020 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63239D - RETAINER, REMOVABLE ROOF HOLDER, LH | ||||
| 63239-44020 |
CXM10,SXM1# |
1 | ||
| 63239-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-44020 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63241-44020 |
CXM10,SXM1# |
2 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-44010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63243-44010 |
CXM10,SXM1# |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-44070 |
CXM10,SXM1# ﾘﾔ |
2 | ||
| 63249-44020 |
ACM1#,CXM10,SXM15 ﾌﾛﾝﾄ |
2 | ||
| 63249-44070 |
ACM1#,CXM10,SXM15 ﾘﾔ |
2 | ||
| 63249-44020 |
CXM10,SXM1# ﾌﾛﾝﾄ |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-44070 |
CXM10,SXM1# ﾘﾔ |
2 | ||
| 63249-44020 |
ACM1#,CXM10,SXM15 ﾌﾛﾝﾄ |
2 | ||
| 63249-44070 |
ACM1#,CXM10,SXM15 ﾘﾔ |
2 | ||
| 63249-44020 |
CXM10,SXM1# ﾌﾛﾝﾄ |
2 | ||
| 63249L - HOSE, TILT ROOF DRAIN | ||||
| 63249-44010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63249-44010 |
CXM10,SXM1# |
2 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63251-44020 |
CXM10,SXM1# |
1 | ||
| 63251K - WEATHERSTRIP, TILT ROOF | ||||
| 63251-44010 |
CXM10,SXM1# |
1 | ||
| 63251-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-44010 |
CXM10,SXM1# |
2 | ||
| 63252-44010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63256C - SEAL, TILT ROOF GLASS | ||||
| 63256-44010 |
CXM10,SXM1# |
1 | ||
| 63256-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63257J - SEAL, TILT ROOF HOUSING | ||||
| 63257-44010 |
CXM10,SXM1# |
1 | ||
| 63257-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63260-44010 |
CXM10,SXM1# |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-26030 |
CXM10,SXM1# |
1 | ||
| 63260-26030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-12040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63265-12040 |
CXM10,SXM1# |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12030 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63279-12030 |
CXM10,SXM1# |
2 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-44010 |
CXM10,SXM1# |
1 | ||
| 63282-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63282-13010 |
ACM1#,CXM10 |
1 | ||
| 63329A - STOPPER, SUNSHADE LOCK | ||||
| 63329-12020 |
CXM10,SXM1# |
1 | ||
| 63329-12020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63329B - STOPPER, SUNSHADE LOCK, NO.1 | ||||
| 63329-44030 |
CXM10,SXM1# |
1 | ||
| 63329-44030 |
ACM1#,CXM10 |
1 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63605-44010 |
CXM10,SXM1# |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63606-44010 |
CXM10,SXM1# |
1 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-44010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63619-44010 |
CXM10,SXM1# |
2 | ||
| 63641 - RAIL, SUNSHADE, NO.1 FRONT RH | ||||
| 63641-44010 |
CXM10,SXM1# |
1 | ||
| 63641-44010 |
ACM1#,CXM10 |
1 | ||
| 63642B - RAIL, SUNSHADE, NO.1 FRONT LH | ||||
| 63642-44010 |
CXM10,SXM1# |
1 | ||
| 63642-44010 |
ACM1#,CXM10 |
1 | ||
| 63643B - BRACKET, SLIDING ROOF HOUSING, NO.3 | ||||
| 63643-44010 |
CXM10,SXM1# |
2 | ||
| 63643-44010 |
ACM1#,CXM10,SXM15 |
2 | ||
| Common parts | ||||
| 63236-26030 | ||||
| 82711-20050 | ||||
| 90119-06357 | ||||
| 90149-40031 | ||||
| 90155-40001 | ||||
| 90159-50336 | ||||
| 90164-50008 | ||||
| 90179-06083 | ||||
| 90179-06264 | ||||
| 90179-06274 | ||||
| 90179-06306 | ||||
| 90189-05082 | ||||
| 90467-14001 | ||||
| 90469-09007 | ||||
| 90480-08002 | ||||
| 90480-26026 | ||||
| 90901-54002 | ||||
| 90950-01866 | ||||
| 91511-G0614 | ||||
| 91631-J0612 | ||||
| 91641-C0612 | ||||
| 93540-44012 | ||||
| 93568-55012 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 6402 | ||||

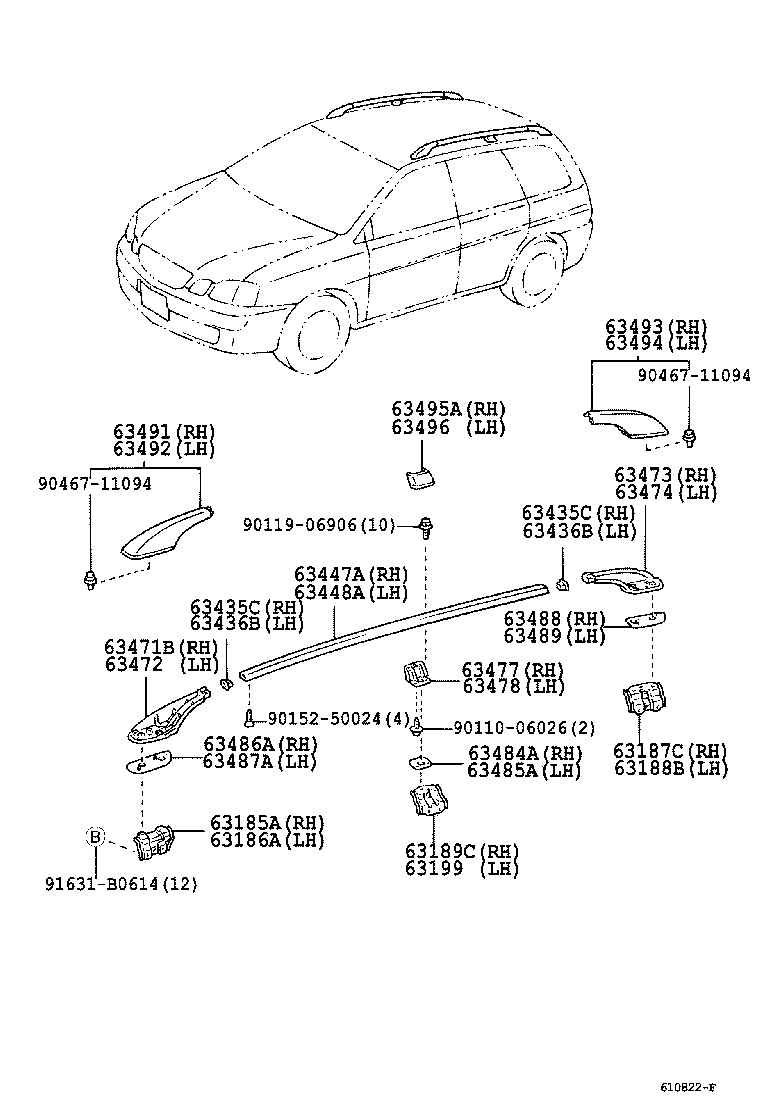

ILLUST NO. 3 OF 3(9805- )
ｱﾘ(ﾙ-ﾌ ﾚ-ﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63185-44020 |
CXM10,SXM1# |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63186-44020 |
CXM10,SXM1# |
1 | ||
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63187-44010 |
CXM10,SXM1# |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63188-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63188-44010 |
CXM10,SXM1# |
1 | ||
| 63189C - BRACKET, ROOF RACK, CENTER RH | ||||
| 63189-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63189-44020 |
CXM10,SXM1# |
1 | ||
| 63199 - BRACKET, ROOF RACK, CENTER LH | ||||
| 63199-44020 |
CXM10,SXM1# |
1 | ||
| 63199-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63436-44010 |
CXM10,SXM1# ﾘﾔ |
1 | ||
| 63435-44010 |
CXM10,SXM1# ﾌﾛﾝﾄ |
1 | ||
| 63436-44010 |
ACM1#,CXM10,SXM15 ﾘﾔ |
1 | ||
| 63435-44010 |
ACM1#,CXM10,SXM15 ﾌﾛﾝﾄ |
1 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63436-44010 |
CXM10,SXM1# ﾘﾔ |
1 | ||
| 63435-44010 |
CXM10,SXM1# ﾌﾛﾝﾄ |
1 | ||
| 63436-44010 |
ACM1#,CXM10,SXM15 ﾘﾔ |
1 | ||
| 63435-44010 |
ACM1#,CXM10,SXM15 ﾌﾛﾝﾄ |
1 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63436-44010 |
CXM10,SXM1# ﾌﾛﾝﾄ |
1 | ||
| 63436-44010 |
ACM1#,CXM10,SXM15 ﾌﾛﾝﾄ |
1 | ||
| 63435-44010 |
CXM10,SXM1# ﾘﾔ |
1 | ||
| 63435-44010 |
ACM1#,CXM10,SXM15 ﾘﾔ |
1 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63436-44010 |
CXM10,SXM1# ﾌﾛﾝﾄ |
1 | ||
| 63436-44010 |
ACM1#,CXM10,SXM15 ﾌﾛﾝﾄ |
1 | ||
| 63435-44010 |
CXM10,SXM1# ﾘﾔ |
1 | ||
| 63435-44010 |
ACM1#,CXM10,SXM15 ﾘﾔ |
1 | ||
| 63447A - ROOF RAIL, RH | ||||
| 63447-44030B0 |
ACM1#,CXM10,SXM15 BLACK ME.,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1 |
1 | ||
| 63447-44030B0 |
CXM10,SXM1# BLACK ME.,1B9 ,202 ,3M8 ,6M1 ,760 |
1 | ||
| 63448A - ROOF RAIL, LH | ||||
| 63448-44030B0 |
ACM1#,CXM10,SXM15 BLACK ME.,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1 |
1 | ||
| 63448-44030B0 |
CXM10,SXM1# BLACK ME.,1B9 ,202 ,3M8 ,6M1 ,760 |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-44030B0 |
CXM10,SXM1# BLACK ME.,1B9 ,202 ,3M8 ,6M1 ,760 |
1 | ||
| 63471-44030B0 |
ACM1#,CXM10,SXM15 BLACK ME.,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1 |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-44030B0 |
CXM10,SXM1# BLACK ME.,1B9 ,202 ,3M8 ,6M1 ,760 |
1 | ||
| 63472-44030B0 |
ACM1#,CXM10,SXM15 BLACK ME.,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1 |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-44030B0 |
ACM1#,CXM10,SXM15 BLACK ME.,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1 |
1 | ||
| 63473-44030B0 |
CXM10,SXM1# BLACK ME.,1B9 ,202 ,3M8 ,6M1 ,760 |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-44030B0 |
CXM10,SXM1# BLACK ME.,1B9 ,202 ,3M8 ,6M1 ,760 |
1 | ||
| 63474-44030B0 |
ACM1#,CXM10,SXM15 BLACK ME.,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1 |
1 | ||
| 63477 - SUPPORT, ROOF RACK, CENTER RH | ||||
| 63477-44030B0 |
CXM10,SXM1# BLACK ME.,1B9 ,202 ,3M8 ,6M1 ,760 |
1 | ||
| 63477-44030B0 |
ACM1#,CXM10,SXM15 BLACK ME.,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1 |
1 | ||
| 63478 - SUPPORT, ROOF RACK, CENTER LH | ||||
| 63478-44030B0 |
CXM10,SXM1# BLACK ME.,1B9 ,202 ,3M8 ,6M1 ,760 |
1 | ||
| 63478-44030B0 |
ACM1#,CXM10,SXM15 BLACK ME.,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1 |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-44020 |
CXM10,SXM1# |
1 | ||
| 63484-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63485-44020 |
CXM10,SXM1# |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-44020 |
CXM10,SXM1# |
1 | ||
| 63486-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63487-44020 |
CXM10,SXM1# |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-44020 |
CXM10,SXM1# |
1 | ||
| 63488-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-44020 |
CXM10,SXM1# |
1 | ||
| 63489-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-44030B0 |
CXM10,SXM1# BLACK ME.,1B9 ,202 ,3M8 ,6M1 ,760 |
1 | ||
| 63491-44030B0 |
ACM1#,CXM10,SXM15 BLACK ME.,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1 |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-44030B0 |
CXM10,SXM1# BLACK ME.,1B9 ,202 ,3M8 ,6M1 ,760 |
1 | ||
| 63492-44030B0 |
ACM1#,CXM10,SXM15 BLACK ME.,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-44030B0 |
CXM10,SXM1# BLACK ME.,1B9 ,202 ,3M8 ,6M1 ,760 |
1 | ||
| 63493-44030B0 |
ACM1#,CXM10,SXM15 BLACK ME.,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1 |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-44030B0 |
CXM10,SXM1# BLACK ME.,1B9 ,202 ,3M8 ,6M1 ,760 |
1 | ||
| 63494-44030B0 |
ACM1#,CXM10,SXM15 BLACK ME.,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1 |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-44030B0 |
CXM10,SXM1# BLACK ME.,1B9 ,202 ,3M8 ,6M1 ,760 |
1 | ||
| 63495-44030B0 |
ACM1#,CXM10,SXM15 BLACK ME.,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1 |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-44030B0 |
CXM10,SXM1# BLACK ME.,1B9 ,202 ,3M8 ,6M1 ,760 |
1 | ||
| 63496-44030B0 |
ACM1#,CXM10,SXM15 BLACK ME.,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1 |
1 | ||
| Common parts | ||||
| 90110-06026 | ||||
| 90119-06906 | ||||
| 90152-50024 | ||||
| 90467-11094 | ||||
| 91631-B0614 | ||||
ILLUST NO. 2 OF 3(0302- )
ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63025B - LINK SUB-ASSY, TILT ROOF, RH | ||||
| 63025-44020 |
CXM10,SXM1# |
1 | ||
| 63025-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63026B - LINK SUB-ASSY, TILT ROOF, LH | ||||
| 63026-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63026-44020 |
CXM10,SXM1# |
1 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-44040 |
CXM10,SXM1# *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63201-44040 |
ACM1#,CXM10,SXM15 *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-44050 |
ACM1#,CXM10 |
1 | ||
| 63203H - HOUSING SUB-ASSY, REMOVABLE ROOF | ||||
| 63203-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63203-44020 |
CXM10,SXM1# |
1 | ||
| 63204A - PANEL SUB-ASSY, SLIDING ROOF, INNER | ||||
| 63204-44030 |
ACM1#,CXM10,SXM15 *TEM,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 63204-44030 |
CXM10,SXM1# *TEM,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-44020 |
ACM1#,CXM10 |
1 | ||
| 63207G - RAIL SUB-ASSY, SLIDING ROOF GUIDE | ||||
| 63207-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63207-44011 |
CXM10,SXM1# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-44020 |
CXM10,SXM1# |
1 | ||
| 63209-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-44010 |
CXM10,SXM1# |
1 | ||
| 63214-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63214-44011 |
ACM1#,CXM10 |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-44010 |
CXM10,SXM1# |
1 | ||
| 63221-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63223-44010 |
CXM10,SXM1# |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-44010 |
CXM10,SXM1# |
1 | ||
| 63224-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63238C - RETAINER, REMOVABLE ROOF HOLDER, RH | ||||
| 63238-44020 |
CXM10,SXM1# |
1 | ||
| 63238-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63239-12030 |
CXM10,SXM1# |
2 | ||
| 63239B - PAD, TILT ROOF GLASS | ||||
| 63239-26020 |
CXM10,SXM1# |
2 | ||
| 63239-26020 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63239D - RETAINER, REMOVABLE ROOF HOLDER, LH | ||||
| 63239-44020 |
CXM10,SXM1# |
1 | ||
| 63239-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-44020 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63241-44020 |
CXM10,SXM1# |
2 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-44010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63243-44010 |
CXM10,SXM1# |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-44070 |
CXM10,SXM1# ﾘﾔ |
2 | ||
| 63249-44020 |
ACM1#,CXM10,SXM15 ﾌﾛﾝﾄ |
2 | ||
| 63249-44070 |
ACM1#,CXM10,SXM15 ﾘﾔ |
2 | ||
| 63249-44020 |
CXM10,SXM1# ﾌﾛﾝﾄ |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-44070 |
CXM10,SXM1# ﾘﾔ |
2 | ||
| 63249-44020 |
ACM1#,CXM10,SXM15 ﾌﾛﾝﾄ |
2 | ||
| 63249-44070 |
ACM1#,CXM10,SXM15 ﾘﾔ |
2 | ||
| 63249-44020 |
CXM10,SXM1# ﾌﾛﾝﾄ |
2 | ||
| 63249L - HOSE, TILT ROOF DRAIN | ||||
| 63249-44010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63249-44010 |
CXM10,SXM1# |
2 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63251-44020 |
CXM10,SXM1# |
1 | ||
| 63251K - WEATHERSTRIP, TILT ROOF | ||||
| 63251-44010 |
CXM10,SXM1# |
1 | ||
| 63251-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-44010 |
CXM10,SXM1# |
2 | ||
| 63252-44010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63256C - SEAL, TILT ROOF GLASS | ||||
| 63256-44010 |
CXM10,SXM1# |
1 | ||
| 63256-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63257J - SEAL, TILT ROOF HOUSING | ||||
| 63257-44010 |
CXM10,SXM1# |
1 | ||
| 63257-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63260-44010 |
CXM10,SXM1# |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-26030 |
CXM10,SXM1# |
1 | ||
| 63260-26030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12030 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63279-12030 |
CXM10,SXM1# |
2 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-44010 |
CXM10,SXM1# |
1 | ||
| 63282-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63282-13010 |
ACM1#,CXM10 |
1 | ||
| 63329A - STOPPER, SUNSHADE LOCK | ||||
| 63329-12020 |
CXM10,SXM1# |
1 | ||
| 63329-12020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63329B - STOPPER, SUNSHADE LOCK, NO.1 | ||||
| 63329-44030 |
CXM10,SXM1# |
1 | ||
| 63329-44030 |
ACM1#,CXM10 |
1 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63605-44010 |
CXM10,SXM1# |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 63606-44010 |
CXM10,SXM1# |
1 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-44010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 63619-44010 |
CXM10,SXM1# |
2 | ||
| 63641 - RAIL, SUNSHADE, NO.1 FRONT RH | ||||
| 63641-44010 |
CXM10,SXM1# |
1 | ||
| 63641-44010 |
ACM1#,CXM10 |
1 | ||
| 63642B - RAIL, SUNSHADE, NO.1 FRONT LH | ||||
| 63642-44010 |
CXM10,SXM1# |
1 | ||
| 63642-44010 |
ACM1#,CXM10 |
1 | ||
| 63643B - BRACKET, SLIDING ROOF HOUSING, NO.3 | ||||
| 63643-44010 |
CXM10,SXM1# |
2 | ||
| 63643-44010 |
ACM1#,CXM10,SXM15 |
2 | ||
| Common parts | ||||
| 63236-26030 | ||||
| 82711-20050 | ||||
| 82817-12400 | ||||
| 90119-06357 | ||||
| 90149-40031 | ||||
| 90159-50336 | ||||
| 90164-50008 | ||||
| 90179-06264 | ||||
| 90179-06274 | ||||
| 90179-06306 | ||||
| 90189-05082 | ||||
| 90467-14001 | ||||
| 90469-09007 | ||||
| 90480-08002 | ||||
| 90480-26026 | ||||
| 90901-54002 | ||||
| 90950-01866 | ||||
| 91511-G0614 | ||||
| 91631-J0612 | ||||
| 91641-C0612 | ||||
| 93540-44012 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 6402 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
