CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

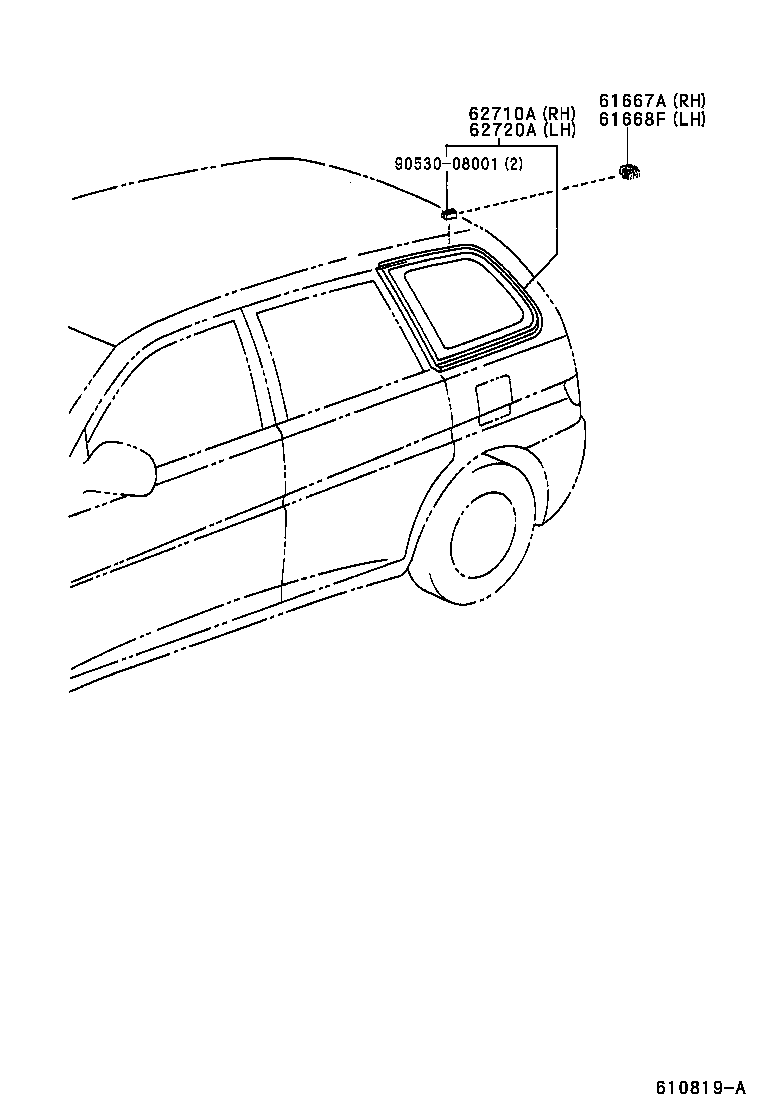

Click highlighted areas on diagram

diagram 61667A 61668F 62710A 62720A 9053008001
Part # Description Qty Price
61667A - SPACER QUARTER PANEL, NO.1
61667-14030

ACM1#,CXM10,SXM15

 1
61667-14030

CXM10,SXM1#

 1
61668F - SPACER, QUARTER PANEL, NO.2
61667-14030

CXM10,SXM1#

 1
61667-14030

ACM1#,CXM10,SXM15

 1
62710A - WINDOW ASSY, QUARTER, RH
62710-44040

CXM10,SXM1#

*UVCTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
62710-44060

CXM10,SXM1#

*SERT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｱﾝﾃﾅ)

 1
62710-44050

CXM10,SXM1#

*UVCTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｱﾝﾃﾅ)

 1
62710-44260

ACM1#,CXM10,SXM15

*SERT,厚さ=3.5,ﾀﾞｰｸｸﾞﾚｰ

 1
62710-44070

CXM10,SXM1#

*SERT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
62710-44270

ACM1#,CXM10,SXM15

*SERT,厚さ=3.5,ﾀﾞｰｸｸﾞﾚｰ,ｱﾘ(ｱﾝﾃﾅ)

 1
62710-44380

ACM1#,CXM10,SXM15

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62710-44390

ACM1#,CXM10,SXM15

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ｱﾝﾃﾅ)

 1
62720A - WINDOW ASSY, QUARTER, LH
62720-44040

CXM10,SXM1#

*UVCTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
62720-44370

ACM1#,CXM10,SXM15

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62720-44050

CXM10,SXM1#

*SERT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
62720-44240

ACM1#,CXM10,SXM15

*SERT,厚さ=3.5,ﾀﾞｰｸｸﾞﾚｰ

 1
Common parts
90530-08001
