CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

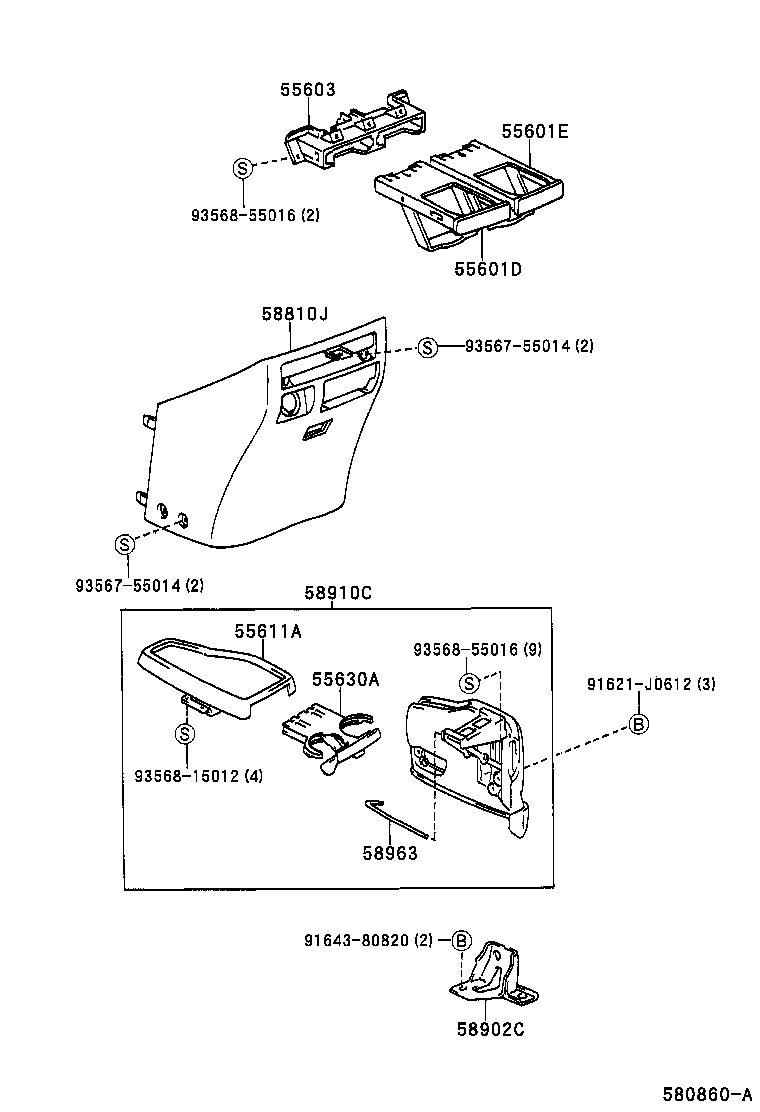

Click highlighted areas on diagram

diagram 55601D 55601E 55603 55611A 55630A 58810J 58902C 58910C 58963 91621J0612 9164380820 9356755014 9356755014 9356815012 9356855016 9356855016
Part # Description Qty Price
55601D - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER, LH
55601-44010E1

ACM1#,CXM10,SXM15

SANDAL WOOD,TRIM0#

 1
55601-44010B1

CXM10,SXM1#

DK.CHARCOAL,TRIM0#

 1
55601E - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER, RH
55601-44030E0

ACM1#,CXM10,SXM15

SANDAL WOOD,TRIM0#

 1
55601-44030B1

CXM10,SXM1#

DK.CHARCOAL,TRIM0#

 1
55603 - CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER
55603-44010

CXM10,SXM1#

 1
55603-44010

ACM1#,CXM10,SXM15

 1
55611A - TRAY, INSTRUMENT PANEL UNDER
55611-44030A0

CXM10,SXM1#

IVORY,TRIM0#

 1
55606-44020A0

ACM1#,CXM10

ｱﾘ(ﾓｸﾒ),IVORY,TRIM0#

 1
55611-44030A0

ACM1#,CXM10

IVORY,TRIM0#

 1
55630A - HOLDER, REAR CONSOLE BOX, CUP
55630-44010A0

CXM10,SXM1#

IVORY,TRIM0#

 1
55630-44010A0

ACM1#,CXM10

IVORY,TRIM0#

 1
58810J - BOX ASSY, CONSOLE
58810-44010E0

ACM1#,CXM10,SXM15

SANDAL WOOD,TRIM0#

 1
58810-44010B1

CXM10,SXM1#

DK.CHARCOAL,TRIM0#

 1
58810-44050E0

ACM1#,CXM10,SXM15

ｱﾘ(ﾋﾞﾃﾞｵ ﾀﾝｼ),SANDAL WOOD,TRIM0#

 1
58810-44050B1

CXM10,SXM1#

ｱﾘ(ﾋﾞﾃﾞｵ ﾀﾝｼ),DK.CHARCOAL,TRIM0#

 1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-44010

ACM1#,CXM10,SXM15

 1
58902-44010

CXM10,SXM1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-44010A0

ACM1#,CXM10

IVORY,TRIM0#

 1
58910-44110A0

ACM1#,CXM10

ｱﾘ(ﾓｸﾒ),IVORY,TRIM0#

 1
58910-44010A0

CXM10,SXM1#

IVORY,TRIM0#

 1
58963 - SHAFT, CONSOLE COMPARTMENT DOOR HINGE
58963-44010

ACM1#,CXM10,SXM15

 1
58963-44010

CXM10,SXM1#

 1
Common parts
91621-J0612
91643-80820
93567-55014
93568-15012
93568-55016
