CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

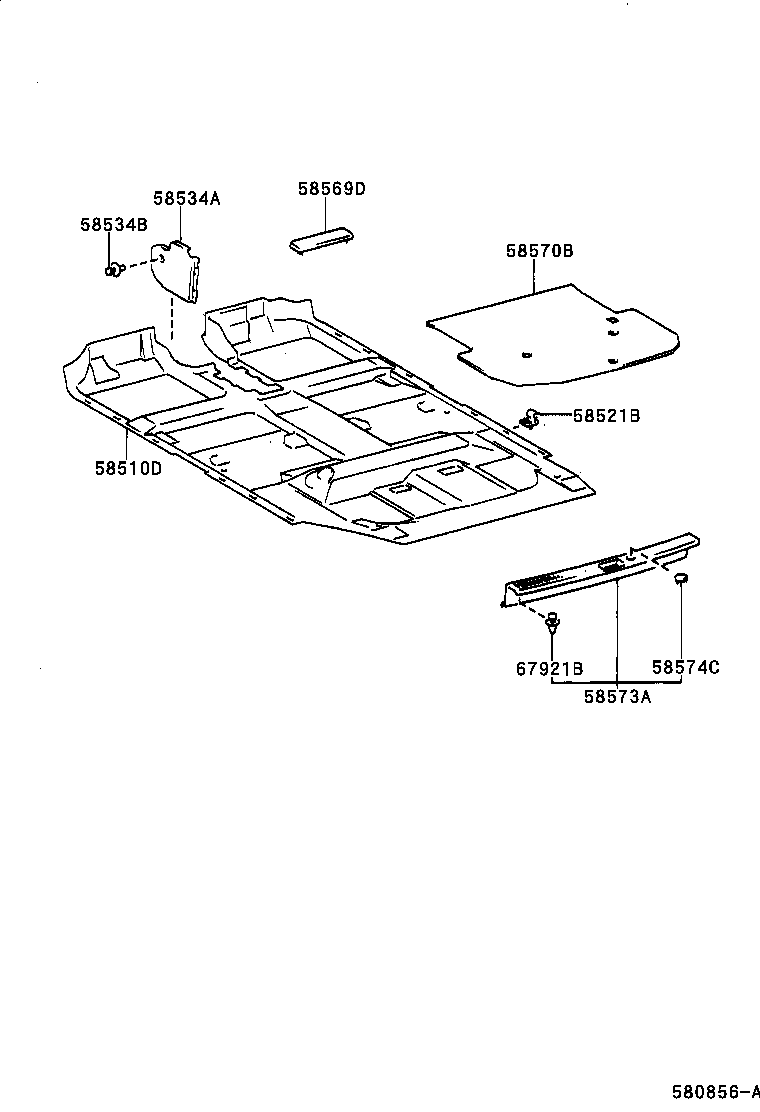

Click highlighted areas on diagram

diagram 58510D 58521B 58534A 58534B 58569D 58570B 58573A 58574C 67921B
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-44180A0

CXM10,SXM10..07S

IVORY,TRIM0#

 1
58510-44200A0

CXM10,SXM10..07S

ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾘﾔ ﾋ-ﾀ),IVORY,TRIM0#

 1
58510-44400A0

CXM10,SXM10..07S

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ ) & ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾘﾔ ﾋ-ﾀ),IVORY,TRIM0#

 1
58510-44380A0

CXM10,SXM10..07S

ﾊﾝﾃﾞｲｷﾔﾌﾞ,IVORY,TRIM0#

 1
58510-4C170A0

ACM10,CXM10..07S

IVORY,TRIM0#

 1
58510-4C190A0

ACM10,CXM10..07S

ｱﾘ(ﾘﾔ ﾋ-ﾀ),IVORY,TRIM0#

 1
58510-4C250A0

ACM10,CXM10..07S

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),IVORY,TRIM0#

 1
58510-4C270A0

ACM10,CXM10..07S

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & ﾘﾔ ﾋ-ﾀ),IVORY,TRIM0#

 1
58510-4C261A0

ACM10,CXM10

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),IVORY,TRIM0#

 1
58510-4C181A0

ACM10,CXM10

IVORY,TRIM0#

 1
58510-4C281A0

ACM10,CXM10

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & ﾘﾔ ﾋ-ﾀ),IVORY,TRIM0#

 1
58510-4C201A0

ACM10,CXM10

ｱﾘ(ﾘﾔ ﾋ-ﾀ),IVORY,TRIM0#

 1
58521B - HOOK, FLOOR CARPET
58521-44010

CXM10,SXM1#

 12
58521-44010

ACM1#,CXM10,SXM15

 12
58534A - MAT, TRANSMISSION COVER
58534-44010B1

CXM10,SXM1#

DK.CHARCOAL,TRIM0#

 1
58534-44010E0

ACM1#,CXM10

SANDAL WOOD,TRIM0#

 1
58534B - CLIP(FOR FLOOR CARPET CENTER COVER)
90467-07121B3

CXM10,SXM1#

DK.CHARCOAL,TRIM0#

 1
90467-07121E1

ACM1#,CXM10

SANDAL WOOD,TRIM0#

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-44010A0

CXM10,SXM1#

IVORY,TRIM0#

 1
58569-44010A0

ACM1#,CXM10

IVORY,TRIM0#

 1
58570B - MAT ASSY, REAR FLOOR
58517-44020

ACM1#,CXM10,SXM15

 1
58517-44020

CXM10,SXM1#

 1
58573A - PLATE, REAR FLOOR MAT SUPPORT
67935-44010A0

CXM10,SXM1#

IVORY,TRIM0#

 1
67935-44010A0

ACM1#,CXM10

IVORY,TRIM0#

 1
58574C - PLUG, REAR FLOOR MAT SUPPORT PLATE HOLE
67919-44010A0

ACM1#,CXM10

IVORY,TRIM0#

 1
67919-44010A0

CXM10,SXM1#

IVORY,TRIM0#

 1
67921B - RETAINER, REAR FLOOR MAT SUPPORT
67921-95501

CXM10,SXM1#

 4
67921-95501

ACM1#,CXM10,SXM15

 4
