CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

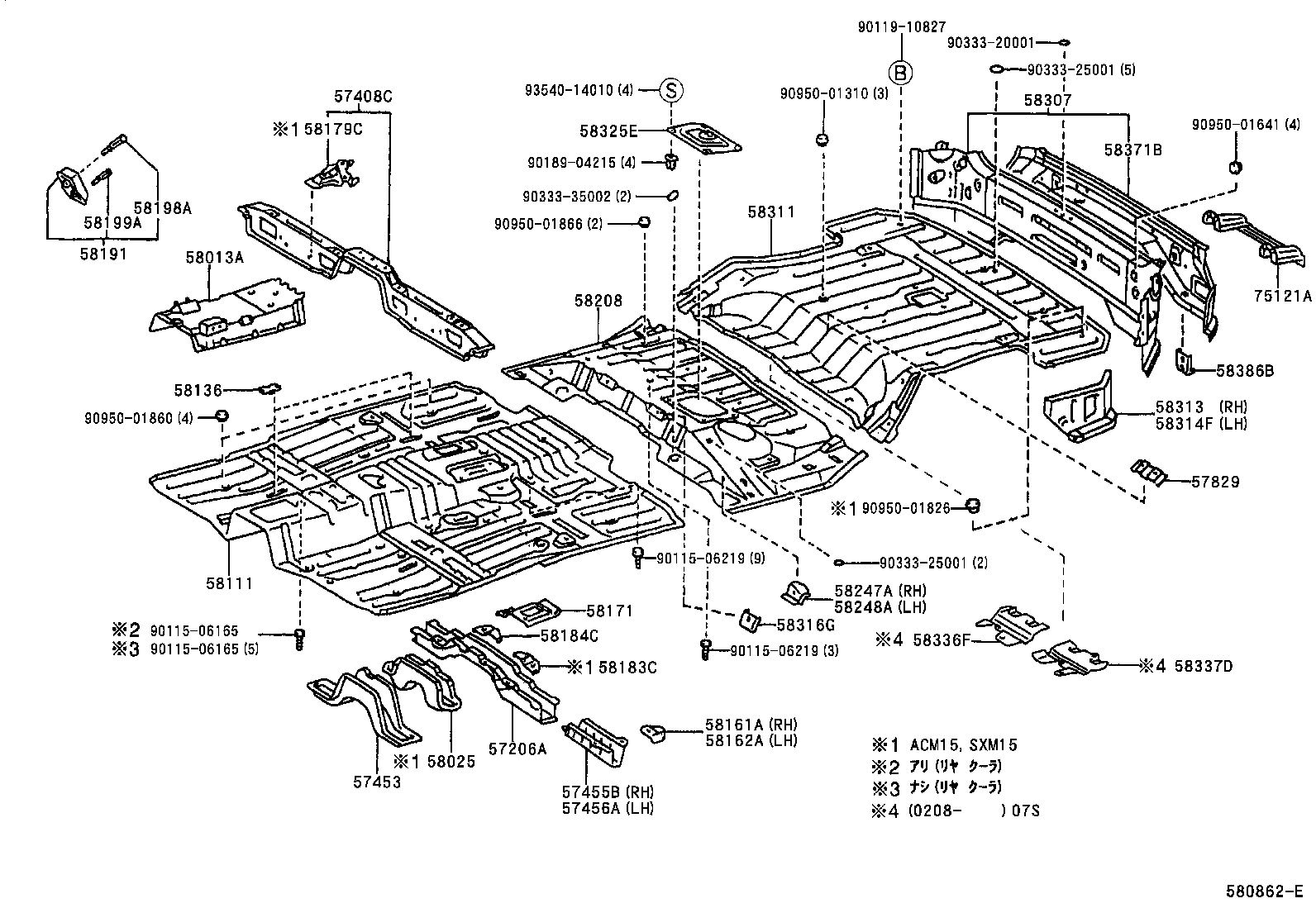

Click highlighted areas on diagram

diagram 57206A 57408C 57453 57455B 57456A 57829 58013A 58025 58111 58136 58161A 58162A 58171 58179C 58183C 58184C 58191 58198A 58199A 58208 58247A 58248A 58307 58311 58313 58314F 58316G 58325E 58336F 58337D 58371B 58386B 75121A 9011506165 9011506165 9011506219 9011506219 9011910827 9018904215 9033320001 9033325001 9033325001 9033335002 9095001310 9095001641 9095001826 9095001860 9095001866 9354014010
Part # Description Qty Price
57206A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57459-44902

CXM10,SXM1#

 1
57459-44902

ACM1#,CXM10,SXM15

 1
57408C - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-44902

ACM10,CXM10

 1
57408-44900

CXM10,SXM10

 1
57453 - MEMBER, FRONT FLOOR CROSS, NO.3
57453-44010

CXM10,SXM1#

 1
57453-44010

ACM1#,CXM10,SXM15

 1
57455B - GUSSET, FRONT FLOOR CROSSMEMBER, RH
57455-44010

CXM10,SXM1#

 1
57455-44010

ACM1#,CXM10,SXM15

 1
57456A - GUSSET, FRONT FLOOR CROSSMEMBER, LH
57456-44010

CXM10,SXM1#

 1
57456-44010

ACM1#,CXM10,SXM15

 1
57829 - REINFORCEMENT, SEAT LEG
57829-44010

CXM10,SXM1#

 1
57829-44010

ACM1#,CXM10,SXM15

 1
58013A - PANEL SUB-ASSY, FRONT FLOOR, REAR UPPER
58013-44010

ACM10,CXM10,SXM15

 1
58013-44110

ACM1#,CXM10

 1
58013-44010

CXM10,SXM1#

 1
58111 - PAN, FRONT FLOOR
58111-44050

ACM10,CXM10,SXM15

 1
58111-44050

CXM10,SXM1#

 1
58111-44190

ACM1#,CXM10

 1
58136 - COVER, FRONT FLOOR HOLE
58136-33010

CXM10,SXM1#

 4
58136-33010

ACM1#,CXM10,SXM15

 4
58161A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58161-44010

CXM10,SXM1#

 1
58161-44010

ACM1#,CXM10,SXM15

 1
58162A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58162-44010

ACM1#,CXM10,SXM15

 1
58162-44010

CXM10,SXM1#

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-44011

CXM10,SXM10

 1
58171-44011

ACM10,CXM10

 1
58184C - BRACKET, FRONT SEAT MOUNTING, INNER LH
58184-44010

ACM1#,CXM10,SXM15

 1
58184-44010

CXM10,SXM1#

 1
58191 - FOOTREST, FRONT FLOOR
58191-44010

CXM10,SXM1#

 1
58191-44010

ACM1#,CXM10,SXM15

 1
58198A - CLIP, FOOTREST, NO.1
58198-44011

ACM1#,CXM10,SXM15

 1
58198-44011

CXM10,SXM1#

 1
58199A - CLIP, FOOTREST, NO.2
58198-44021

CXM10,SXM1#

 1
58198-44021

ACM1#,CXM10,SXM15

 1
58208 - PAN, CENTER FLOOR
58211-44040

ACM1#,CXM10

 1
58211-44020

CXM10,SXM1#..07S

 1
58211-44020

ACM10,CXM10,SXM15..07S

 1
58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58247-44010

ACM1#,CXM10,SXM15

 1
58247-44010

CXM10,SXM1#

 1
58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58248-44010

CXM10,SXM1#

 1
58248-44010

ACM1#,CXM10,SXM15

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-44901

ACM1#,CXM10,SXM15

 1
58307-44901

CXM10,SXM1#

 1
58311 - PAN, REAR FLOOR
58311-44030

CXM10,SXM1#

 1
58311-44030

ACM1#,CXM10,SXM15

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-44010

ACM1#,CXM10,SXM15

 1
58313-44010

CXM10,SXM1#

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-44010

ACM1#,CXM10,SXM15

 1
58314-44010

CXM10,SXM1#

 1
58316G - RETAINER, REAR SEAT, NO.1
58316-44010

ACM1#,CXM10

 2
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-44010

CXM10,SXM1#

 1
58325-44010

ACM1#,CXM10,SXM15

 1
58336F - REINFORCEMENT, REAR FLOOR PAN, RH
58336-44050

ACM1#,CXM10..07S

 1
58337D - REINFORCEMENT, REAR FLOOR PAN, LH
58337-44020

ACM1#,CXM10..07S

 1
58371B - PANEL, BODY LOWER BACK, OUTER
58371-44020

CXM10,SXM1#

 1
58371-44020

ACM1#,CXM10,SXM15

 1
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-44010

ACM1#,CXM10,SXM15

 2
58386-44010

CXM10,SXM1#

 2
75121A - BRACKET, REAR LICENSE PLATE
75121-32020

ACM1#,CXM10,SXM15

 1
75121-32020

CXM10,SXM1#

 1
Common parts
90115-06165
90115-06219
90119-10827
90189-04215
90333-20001
90333-25001
90333-35002
90950-01310
90950-01641
90950-01826
90950-01860
90950-01866
93540-14010
