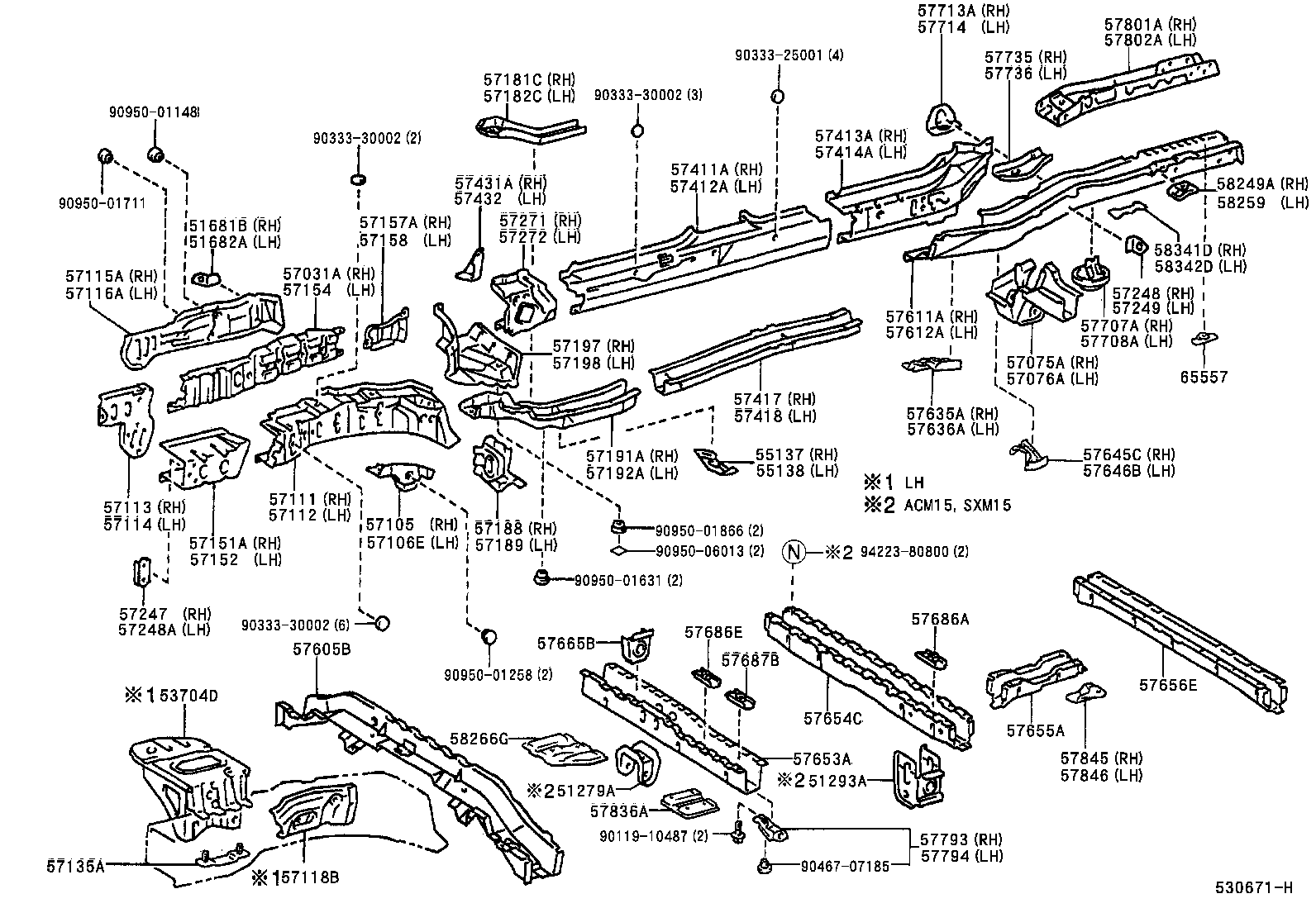

CXM10G-BRSET (1998)
Toyota Gaia
(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51681B - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH | ||||
| 51681-20060 |
CXM10,SXM1# |
1 | ||
| 51681-20060 |
ACM1#,CXM10,SXM15 |
1 | ||
| 51682A - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-20060 |
ACM1#,CXM10,SXM15 |
1 | ||
| 51682-20060 |
CXM10,SXM1# |
1 | ||
| 53704D - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-44011 |
CXM10,SXM1# |
1 | ||
| 53704-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55137 - BRACE, DASH TO FRAME, RH | ||||
| 55137-44010 |
CXM10,SXM1# |
1 | ||
| 55137-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 55138 - BRACE, DASH TO FRAME, LH | ||||
| 55138-44010 |
CXM10,SXM1# |
1 | ||
| 55138-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57031-44010 |
CXM10,SXM1# |
1 | ||
| 57075A - BRACKET SUB-ASSY, REAR SUSPENSION ARM, RH | ||||
| 57075-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57075-44011 |
CXM10,SXM1# |
1 | ||
| 57076A - BRACKET SUB-ASSY, REAR SUSPENSION ARM, LH | ||||
| 57076-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57076-44011 |
CXM10,SXM1# |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-20090 |
CXM10,SXM1# |
1 | ||
| 57105-20090 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-20080 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57106-20080 |
CXM10,SXM1# |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-44010 |
ACM1#,CXM10 |
1 | ||
| 57111-44010 |
CXM10,SXM1# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-44010 |
ACM1#,CXM10 |
1 | ||
| 57112-44010 |
CXM10,SXM1# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-44010 |
CXM10,SXM1# |
1 | ||
| 57113-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57114-44010 |
CXM10,SXM1# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-20180 |
CXM10,SXM1# |
1 | ||
| 57115-20180 |
ACM1#,CXM10 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-20200 |
ACM1#,CXM10 |
1 | ||
| 57116-20200 |
CXM10,SXM1# |
1 | ||
| 57118B - PLATE, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57118-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57118-44010 |
CXM10,SXM1# |
1 | ||
| 57135A - BRACKET, FRONT FLOOR SIDE, RH | ||||
| 57135-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57135-44011 |
CXM10,SXM1# |
1 | ||
| 57135-44010 |
CXM10,SXM1# |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-44011 |
CXM10,SXM1# |
1 | ||
| 57151-44010 |
CXM10,SXM1# |
1 | ||
| 57151-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57152-44011 |
CXM10,SXM1# |
1 | ||
| 57152-44010 |
CXM10,SXM1# |
1 | ||
| 57152-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57154-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57154-44011 |
CXM10,SXM1# |
1 | ||
| 57157A - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH | ||||
| 57157-20080 |
CXM10,SXM1# |
1 | ||
| 57157-20080 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57158 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH | ||||
| 57158-20080 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57158-20080 |
CXM10,SXM1# |
1 | ||
| 57181C - REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 RH | ||||
| 57181-44020 |
CXM10,SXM1# |
1 | ||
| 57181-44020 |
ACM1#,CXM10 |
1 | ||
| 57182C - REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH | ||||
| 57182-44020 |
CXM10,SXM1# |
1 | ||
| 57182-44020 |
ACM1#,CXM10 |
1 | ||
| 57188 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH | ||||
| 57188-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57188-44010 |
CXM10,SXM1# |
1 | ||
| 57189 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH | ||||
| 57189-44010 |
CXM10,SXM1# |
1 | ||
| 57189-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-44901 |
CXM10,SXM1# |
1 | ||
| 57191-44901 |
ACM1#,CXM10 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-44902 |
ACM1#,CXM10 |
1 | ||
| 57192-44902 |
CXM10,SXM1# |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57197-44010 |
CXM10,SXM1# |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-44010 |
CXM10,SXM1# |
1 | ||
| 57198-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57247 - RETAINER, FRONT BUMPER SUPPORT SPACER, NO.1 | ||||
| 57247-44010 |
CXM10,SXM1# |
1 | ||
| 57247-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57248 - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 57248-44010 |
CXM10,SXM1# |
1 | ||
| 57248-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57248A - RETAINER, FRONT BUMPER SUPPORT SPACER, NO.1 | ||||
| 57247-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57247-44010 |
CXM10,SXM1# |
1 | ||
| 57249 - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 57249-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57249-44010 |
CXM10,SXM1# |
1 | ||
| 57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH | ||||
| 57271-44010 |
CXM10,SXM1# |
1 | ||
| 57271-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH | ||||
| 57272-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57272-44010 |
CXM10,SXM1# |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-44010 |
CXM10,SXM1# |
1 | ||
| 57411-44010 |
ACM1#,CXM10 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-44010 |
CXM10,SXM1# |
1 | ||
| 57412-44010 |
ACM1#,CXM10 |
1 | ||
| 57413A - MEMBER, FLOOR SIDE, INNER REAR RH | ||||
| 57413-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57413-44010 |
CXM10,SXM1# |
1 | ||
| 57414A - MEMBER, FLOOR SIDE, INNER REAR LH | ||||
| 57414-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57414-44010 |
CXM10,SXM1# |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-44010 |
CXM10,SXM1# |
1 | ||
| 57417-44010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57506-44010 |
CXM10,SXM1# |
1 | ||
| 57506-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57431A - PATCH, STEP PANEL UNDER, RH | ||||
| 57431-44010 |
CXM10,SXM1# |
1 | ||
| 57431-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57432 - PATCH, STEP PANEL UNDER, LH | ||||
| 57432-44010 |
CXM10,SXM1# |
1 | ||
| 57432-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-44010 |
CXM10,SXM1# |
1 | ||
| 57605-44040 |
ACM1#,CXM10..07S |
1 | ||
| 57605-44010 |
ACM10,CXM10,SXM15 |
1 | ||
| 57611A - MEMBER, REAR FLOOR SIDE, RH | ||||
| 57611-44010 |
CXM10,SXM1# |
1 | ||
| 57611-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57612A - MEMBER, REAR FLOOR SIDE, LH | ||||
| 57612-44010 |
CXM10,SXM1# |
1 | ||
| 57612-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57635A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57635-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57635-44010 |
CXM10,SXM1# |
1 | ||
| 57635-44011 |
CXM10,SXM1# |
1 | ||
| 57636A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57636-44010 |
CXM10,SXM1# |
1 | ||
| 57636-44011 |
CXM10,SXM1# |
1 | ||
| 57636-44011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57645C - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR NO.3 RH | ||||
| 57645-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57645-44010 |
CXM10,SXM1# |
1 | ||
| 57646B - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR NO.3 LH | ||||
| 57646-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57646-44010 |
CXM10,SXM1# |
1 | ||
| 57653A - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57653-44010 |
CXM10,SXM1# |
1 | ||
| 57653-44020 |
CXM10,SXM1# |
1 | ||
| 57654C - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57654-44010 |
CXM10,SXM1# |
1 | ||
| 57655A - MEMBER, REAR FLOOR CROSS, NO.4 | ||||
| 57655-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57655-44010 |
CXM10,SXM1# |
1 | ||
| 57656E - MEMBER, REAR FLOOR CROSS, NO.5 | ||||
| 57609-44010 |
CXM10,SXM1# |
1 | ||
| 57609-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57686A - BRACKET, FUEL TANK MOUNTING, REAR RH | ||||
| 57686-30040 |
CXM10,SXM1# |
1 | ||
| 57686-30040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57686E - BRACKET, FUEL TANK MOUNTING, REAR RH | ||||
| 57686-30040 |
CXM10,SXM1# |
1 | ||
| 57686-30040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57687B - BRACKET, FUEL TANK MOUNTING, REAR LH | ||||
| 57686-30040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57686-30040 |
CXM10,SXM1# |
1 | ||
| 57707A - PLATE SUB-ASSY, REAR SPRING, RH | ||||
| 57707-44010 |
CXM10,SXM1# |
1 | ||
| 57707-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57708A - PLATE SUB-ASSY, REAR SPRING, LH | ||||
| 57708-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57708-44010 |
CXM10,SXM1# |
1 | ||
| 57713A - STOPPER, REAR SPRING BUMPER, NO.1 RH | ||||
| 57713-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57713-44010 |
CXM10,SXM1# |
1 | ||
| 57714 - STOPPER, REAR SPRING BUMPER, NO.1 LH | ||||
| 57714-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57714-44010 |
CXM10,SXM1# |
1 | ||
| 57735 - REINFORCEMENT, REAR TORQUE BOX, RH | ||||
| 57735-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57735-44010 |
CXM10,SXM1# |
1 | ||
| 57736 - REINFORCEMENT, REAR TORQUE BOX, LH | ||||
| 57736-44010 |
CXM10,SXM1# |
1 | ||
| 57736-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57793 - BRACKET, REAR SUSPENSION ARM, REAR RH NO.1 | ||||
| 57793-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57793-44010 |
CXM10,SXM1# |
1 | ||
| 57794 - BRACKET, REAR SUSPENSION ARM, REAR LH NO.1 | ||||
| 57794-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57794-44010 |
CXM10,SXM1# |
1 | ||
| 57801A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH | ||||
| 57801-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57801-44010 |
CXM10,SXM1# |
1 | ||
| 57802A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH | ||||
| 57802-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57802-44010 |
CXM10,SXM1# |
1 | ||
| 57836A - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 | ||||
| 57836-44010 |
ACM1#,CXM10 |
1 | ||
| 57845 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH | ||||
| 57845-44020 |
CXM10,SXM1# |
1 | ||
| 57845-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 57846 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH | ||||
| 57846-44010 |
CXM10,SXM1# |
1 | ||
| 57846-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 58249A - REINFORCEMENT, REAR SEAT MOUNTING | ||||
| 58249-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 58249-44010 |
CXM10,SXM1# |
1 | ||
| 58259 - REINFORCEMENT, REAR SEAT MOUNTING, NO.2 | ||||
| 58259-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 58259-44010 |
CXM10,SXM1# |
1 | ||
| 58266G - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 RH | ||||
| 58266-44020 |
CXM10,SXM1# |
1 | ||
| 58266-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 58341D - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH | ||||
| 58341-44010 |
CXM10,SXM1# |
1 | ||
| 58341-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 58342D - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH | ||||
| 58342-44010 |
CXM10,SXM1# |
1 | ||
| 58342-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 65557 - RETAINER, ROPE HOOK | ||||
| 65557-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 65557-44010 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 90119-10487 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90467-07185 | ||||
| 90950-01148 | ||||
| 90950-01258 | ||||
| 90950-01631 | ||||
| 90950-01711 | ||||
| 90950-01866 | ||||
| 90950-06013 | ||||
| 94223-80800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
