CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

Click highlighted areas on diagram

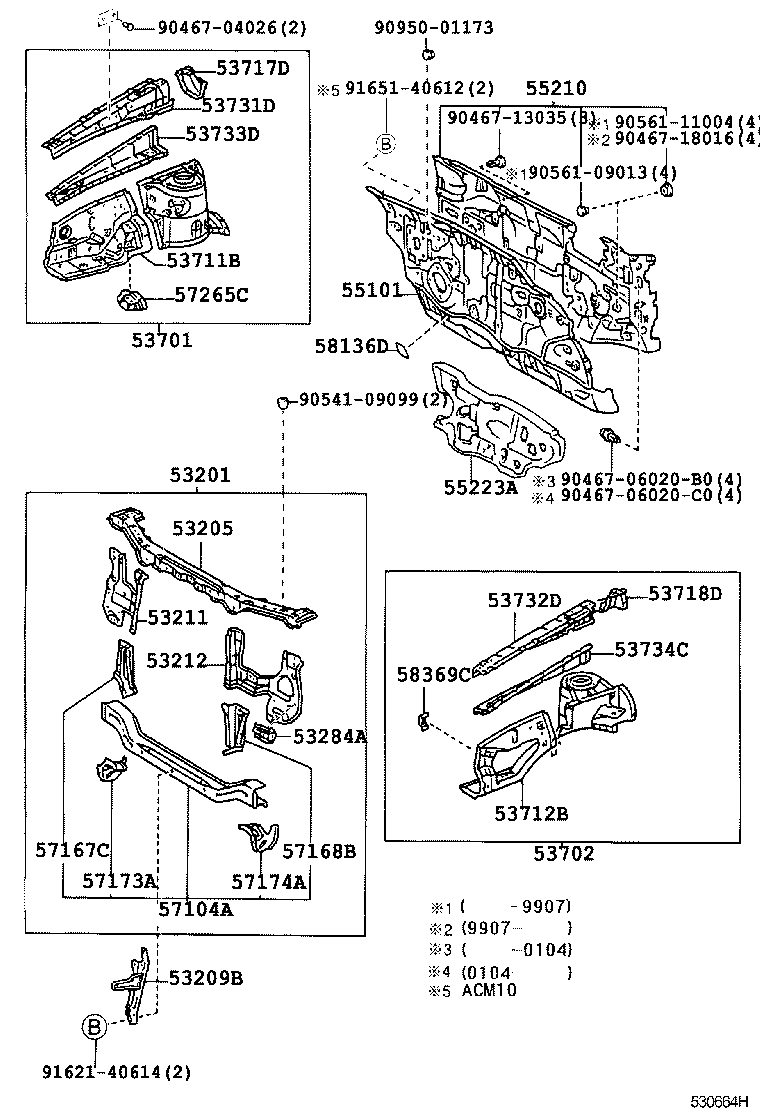

diagram 53201 53205 53209B 53211 53212 53284A 53701 53702 53711B 53712B 53717D 53718D 53731D 53732D 53733D 53734C 55101 55210 55223A 57104A 57167C 57168B 57173A 57174A 57265C 58136D 58369C 9046704026 9046706020B0 9046706020C0 9046713035 9046718016 9054109099 9056109013 9056111004 9095001173 9162140614 9165140612
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-44110

ACM1#,CXM10

 1
53201-44020

CXM10,SXM1#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-44011

ACM1#,CXM10,SXM15

 1
53205-44011

CXM10,SXM1#

 1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-44020

ACM1#,CXM10

 1
53209-44020

CXM10,SXM1#

 1
53211 - SUPPORT, RADIATOR, RH
53211-44020

CXM10,SXM1#

 1
53211-44040

ACM1#,CXM10,SXM15

 1
53212 - SUPPORT, RADIATOR, LH
53212-44020

CXM10,SXM1#

 1
53212-44050

ACM1#,CXM10,SXM15

 1
53284A - RETAINER, FRONT BODY MOUNTING
53284-44020

CXM10,SXM1#

 2
53284-44020

ACM1#,CXM10,SXM15

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-44010

CXM10,SXM1#

 1
53701-44040

ACM1#,CXM10

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-44010

CXM10,SXM1#

 1
53702-44050

ACM1#,CXM10

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-44010

CXM10,SXM1#

 1
53711-44040

ACM1#,CXM10,SXM15

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-44040

ACM1#,CXM10,SXM15

 1
53712-44010

CXM10,SXM1#

 1
53717D - GUSSET, FENDER APRON, RH
53717-44010

CXM10,SXM1#

 1
53717-44010

ACM1#,CXM10,SXM15

 1
53718D - GUSSET, FENDER APRON, LH
53718-44010

CXM10,SXM1#

 1
53718-44010

ACM1#,CXM10,SXM15

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-44010

ACM1#,CXM10,SXM15

 1
53731-44010

CXM10,SXM1#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-44010

CXM10,SXM1#

 1
53732-44010

ACM1#,CXM10,SXM15

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-44010

CXM10,SXM1#

 1
53733-44010

ACM1#,CXM10,SXM15

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-44010

ACM1#,CXM10,SXM15

 1
53734-44010

CXM10,SXM1#

 1
55101 - PANEL SUB-ASSY, DASH
55101-44130

CXM10

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55101-44140

CXM10

 1
55101-49075

CXM10

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55101-49035

CXM10

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-44040

ACM1#,CXM10,SXM15

 1
55210-44040

CXM10,SXM1#

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-44011

CXM10

 1
55223-44011

CXM10

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-20140

ACM1#,CXM10,SXM15

 1
57104-20140

CXM10,SXM1#

 1
57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH
57167-20160

CXM10,SXM1#

 1
57167-20160

ACM1#,CXM10,SXM15

 1
57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH
57168-20150

CXM10,SXM1#

 1
57168-20150

ACM1#,CXM10,SXM15

 1
57173A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH
57173-20050

CXM10,SXM1#

 1
57173-20050

ACM1#,CXM10,SXM15

 1
57174A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
57174-20050

ACM1#,CXM10,SXM15

 1
57174-20050

CXM10,SXM1#

 1
57265C - BRACKET, ENGINE MOUNTING, RH
57265-20110

ACM1#,CXM10,SXM15

 1
57265-20110

CXM10,SXM1#

 1
58136D - COVER, DASH PANEL SERVICE HOLE
58136-44010

CXM10,SXM1#

KOJIMA

 2
58136-44010

ACM1#,CXM10,SXM15

KOJIMA

 2
90950-06098

CXM10,SXM1#

 2
90950-06098

ACM1#,CXM10,SXM15

 2
58369C - BRACKET, FUEL TUBE, NO.3
58369-32010

CXM10,SXM1#

 1
58369-32010

ACM1#,CXM10,SXM15

 1
Common parts
90467-04026
90467-06020B0
90467-06020C0
90467-13035
90467-18016
90541-09099
90561-09013
90561-11004
90950-01173
91621-40614
91651-40612
