CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

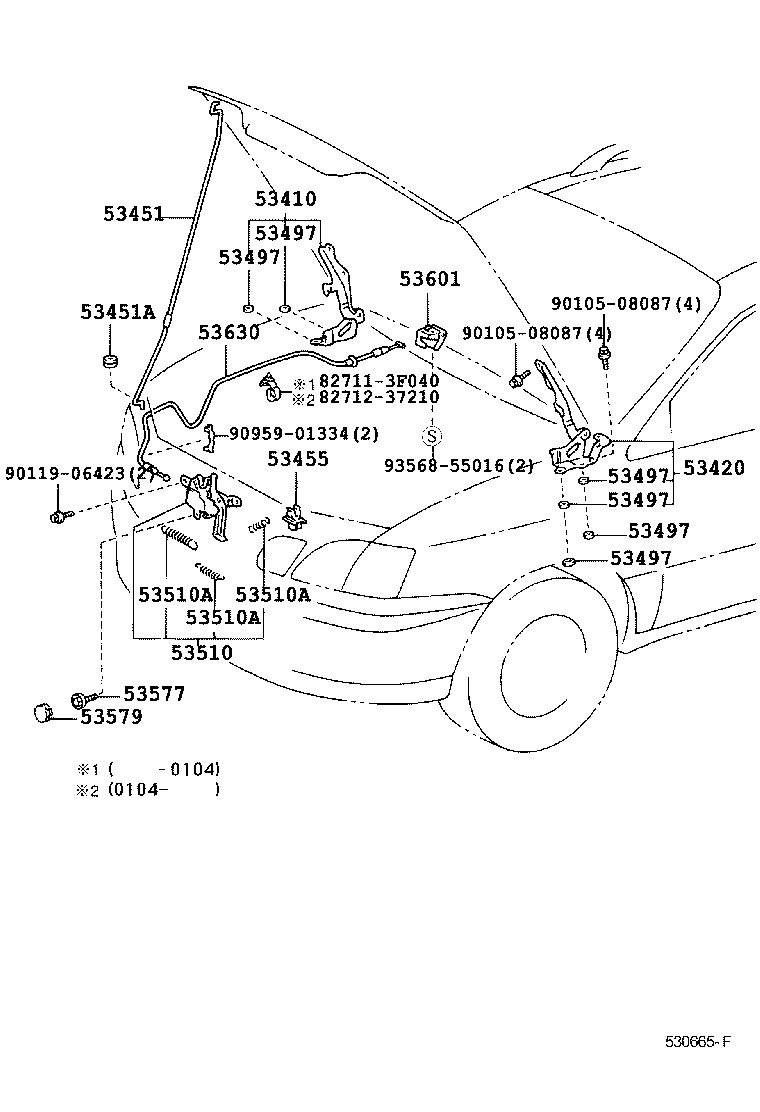

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53455 53497 53497 53497 53497 53497 53497 53510 53510A 53510A 53510A 53577 53579 53601 53630 827113F040 8271237210 9010508087 9010508087 9011906423 9095901334 9356855016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-44010

CXM10,SXM1#

 1
53410-44010

ACM1#,CXM10

 1
53420 - HINGE ASSY, HOOD, LH
53420-44010

CXM10,SXM1#

 1
53420-44010

ACM1#,CXM10

 1
53451 - ROD, HOOD SUPPORT
53451-44010

ACM1#,CXM10,SXM15

 1
53451-44020

CXM10,SXM1#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15032

ACM1#,CXM10,SXM15

 1
90480-15032

CXM10,SXM1#

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-44010

ACM1#,CXM10,SXM15

 1
53455-44010

CXM10,SXM1#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-10020

ACM1#,CXM10,SXM15

厚さ=1.5

 4
53497-12050

CXM10,SXM1#

厚さ=1.0

 4
53497-12050

ACM1#,CXM10,SXM15

厚さ=1.0

 4
53497-10020

CXM10,SXM1#

厚さ=1.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-10020

ACM1#,CXM10,SXM15

厚さ=1.5

 4
53497-12050

CXM10,SXM1#

厚さ=1.0

 4
53497-12050

ACM1#,CXM10,SXM15

厚さ=1.0

 4
53497-10020

CXM10,SXM1#

厚さ=1.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-10020

ACM1#,CXM10,SXM15

厚さ=1.5

 4
53497-12050

CXM10,SXM1#

厚さ=1.0

 4
53497-12050

ACM1#,CXM10,SXM15

厚さ=1.0

 4
53497-10020

CXM10,SXM1#

厚さ=1.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-10020

ACM1#,CXM10,SXM15

厚さ=1.5

 4
53497-12050

CXM10,SXM1#

厚さ=1.0

 4
53497-12050

ACM1#,CXM10,SXM15

厚さ=1.0

 4
53497-10020

CXM10,SXM1#

厚さ=1.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-10020

ACM1#,CXM10,SXM15

厚さ=1.5

 4
53497-12050

CXM10,SXM1#

厚さ=1.0

 4
53497-12050

ACM1#,CXM10,SXM15

厚さ=1.0

 4
53497-10020

CXM10,SXM1#

厚さ=1.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-10020

ACM1#,CXM10,SXM15

厚さ=1.5

 4
53497-12050

CXM10,SXM1#

厚さ=1.0

 4
53497-12050

ACM1#,CXM10,SXM15

厚さ=1.0

 4
53497-10020

CXM10,SXM1#

厚さ=1.5

 4
53510 - LOCK ASSY, HOOD
53510-44040

ACM1#,CXM10,SXM15

 1
53510-44040

CXM10,SXM1#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09057

CXM10,SXM1#

線径=0.9,ｺｲﾙ巻数=23

 1
90506-20065

CXM10,SXM1#

線径=2.0,ｺｲﾙ巻数=16.0

 1
90506-12067

CXM10,SXM1#

線径=1.4,ｺｲﾙ巻数=7.25

 1
90506-20065

ACM1#,CXM10,SXM15

線径=2.0,ｺｲﾙ巻数=16.0

 1
90506-09057

ACM1#,CXM10,SXM15

線径=0.9,ｺｲﾙ巻数=23

 1
90506-12067

ACM1#,CXM10,SXM15

線径=1.4,ｺｲﾙ巻数=7.25

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09057

CXM10,SXM1#

線径=0.9,ｺｲﾙ巻数=23

 1
90506-20065

CXM10,SXM1#

線径=2.0,ｺｲﾙ巻数=16.0

 1
90506-12067

CXM10,SXM1#

線径=1.4,ｺｲﾙ巻数=7.25

 1
90506-20065

ACM1#,CXM10,SXM15

線径=2.0,ｺｲﾙ巻数=16.0

 1
90506-09057

ACM1#,CXM10,SXM15

線径=0.9,ｺｲﾙ巻数=23

 1
90506-12067

ACM1#,CXM10,SXM15

線径=1.4,ｺｲﾙ巻数=7.25

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09057

CXM10,SXM1#

線径=0.9,ｺｲﾙ巻数=23

 1
90506-20065

CXM10,SXM1#

線径=2.0,ｺｲﾙ巻数=16.0

 1
90506-12067

CXM10,SXM1#

線径=1.4,ｺｲﾙ巻数=7.25

 1
90506-20065

ACM1#,CXM10,SXM15

線径=2.0,ｺｲﾙ巻数=16.0

 1
90506-09057

ACM1#,CXM10,SXM15

線径=0.9,ｺｲﾙ巻数=23

 1
90506-12067

ACM1#,CXM10,SXM15

線径=1.4,ｺｲﾙ巻数=7.25

 1
53577 - BOLT, HOOD LOCK
53577-44010

CXM10,SXM1#

 1
53577-44010

ACM1#,CXM10,SXM15

 1
53579 - CAP, HOOD LOCK NUT
53579-50010

CXM10,SXM1#

 1
53579-50010

ACM1#,CXM10,SXM15

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-44010C0

CXM10

BLACK,TRIM0#

 1
53601-44010C0

CXM10

BLACK,TRIM0#

 1
53601-44010C0

CXM10,SXM1#

BLACK,TRIM0#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-44030

CXM10,SXM1#

 1
53630-44030

ACM1#,CXM10,SXM15

 1
Common parts
82711-3F040
82712-37210
90105-08087
90119-06423
90959-01334
93568-55016
