CXM10G-BRSET (1998)
Toyota Gaia
Production
May 1998
-
Sep 2004
Engine
3CTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )ACM10,CXM10,SXM10

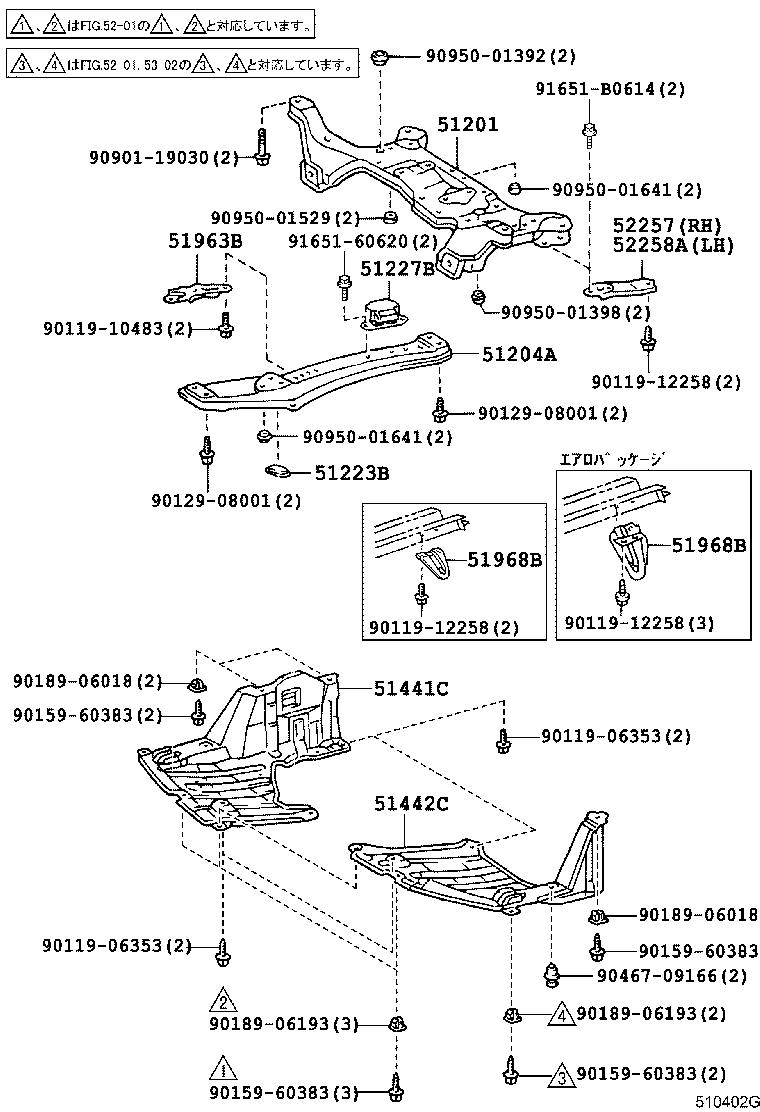

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-20320 |
CXM10,SXM10 |
1 | ||
| 51201-20320 |
ACM10,CXM10 |
1 | ||
| 51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER | ||||
| 51204-20111 |
CXM10,SXM10 |
1 | ||
| 51204-20111 |
ACM10,CXM10 |
1 | ||
| 51223B - COVER, ENGINE MOUNTING HOLE | ||||
| 51223-20050 |
ACM1#,CXM10,SXM15 |
1 | ||
| 51223-20050 |
CXM10,SXM1# |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-44010 |
ACM10,CXM10 |
1 | ||
| 51227-44010 |
CXM10 |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-44010 |
CXM10 |
1 | ||
| 51441-44010 |
CXM10 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-44010 |
CXM10 |
1 | ||
| 51442-44010 |
CXM10 |
1 | ||
| 51963B - HOOK, TRANSPORT, FRONT RH | ||||
| 51963-44010 |
CXM10 |
1 | ||
| 51963-44010 |
CXM10 |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-44010 |
CXM10,SXM1# |
1 | ||
| 51968-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-44010 |
CXM10,SXM1# |
1 | ||
| 51968-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-44010 |
ACM10,CXM10 |
1 | ||
| 52257-44010 |
CXM10,SXM10 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-44010 |
CXM10,SXM10 |
1 | ||
| 52258-44010 |
ACM10,CXM10 |
1 | ||
| Common parts | ||||
| 90119-06353 | ||||
| 90119-10483 | ||||
| 90119-12258 | ||||
| 90129-08001 | ||||
| 90159-60383 | ||||
| 90189-06018 | ||||
| 90189-06193 | ||||
| 90467-09166 | ||||
| 90901-19030 | ||||
| 90950-01392 | ||||
| 90950-01398 | ||||
| 90950-01529 | ||||
| 90950-01641 | ||||
| 91651-60620 | ||||
| 91651-B0614 | ||||
