CXM10G-BRSET (1998)
Toyota Gaia

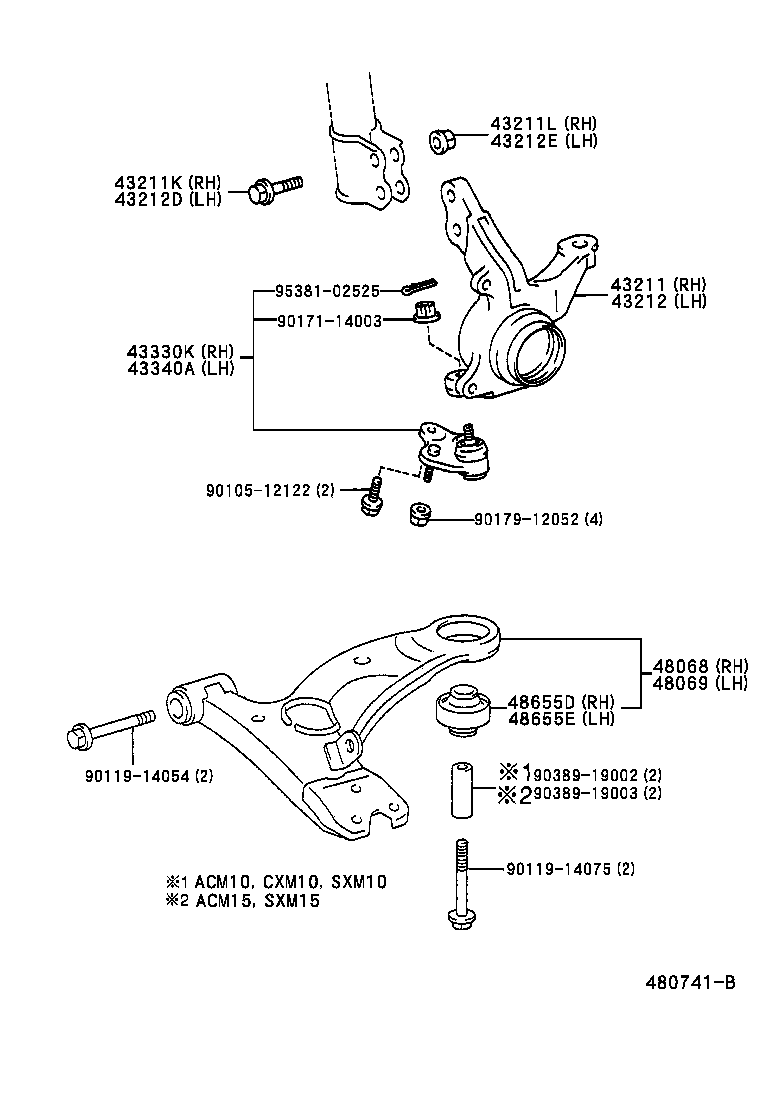

ILLUST NO. 1 OF 2(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-44011 |
ACM10,CXM10 |
1 | ||
| 43211-44011 |
CXM10,SXM10 |
1 | ||
| 43211-44010 |
CXM10,SXM10 |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15004 |
CXM10,SXM1# 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15005 |
ACM1#,CXM10,SXM15 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15006 |
ACM1#,CXM10,SXM15 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15005 |
CXM10,SXM1# 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15001 |
ACM1#,CXM10,SXM15 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90105-15006 |
CXM10,SXM1# 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15001 |
CXM10,SXM1# 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90105-15004 |
ACM1#,CXM10,SXM15 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-15006 |
ACM1#,CXM10,SXM15 |
2 | ||
| 90179-15006 |
CXM10,SXM1# |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-44010 |
CXM10,SXM10 |
1 | ||
| 43212-44011 |
CXM10,SXM10 |
1 | ||
| 43212-44011 |
ACM10,CXM10 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15001 |
CXM10,SXM1# 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90105-15004 |
ACM1#,CXM10,SXM15 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15006 |
CXM10,SXM1# 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15004 |
CXM10,SXM1# 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15001 |
ACM1#,CXM10,SXM15 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90105-15005 |
ACM1#,CXM10,SXM15 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15006 |
ACM1#,CXM10,SXM15 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15005 |
CXM10,SXM1# 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-15006 |
CXM10,SXM1# |
2 | ||
| 90179-15006 |
ACM1#,CXM10,SXM15 |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-29375 |
ACM1#,CXM10,SXM15 |
1 | ||
| 43330-29375 |
CXM10,SXM1# |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-29375 |
ACM1#,CXM10,SXM15 |
1 | ||
| 43330-29375 |
CXM10,SXM1# |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-44010 |
CXM10,SXM10 |
1 | ||
| 48068-44010 |
ACM10,CXM10 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-44010 |
ACM10,CXM10 |
1 | ||
| 48069-44010 |
CXM10,SXM10 |
1 | ||
| 48655D - BUSH, FRONT LOWER ARM, NO.2 RH | ||||
| 48655-44010 |
CXM10,SXM10 |
1 | ||
| 48655-44010 |
ACM10,CXM10 |
1 | ||
| 48655E - BUSH, FRONT LOWER ARM, NO.2 LH | ||||
| 48655-44010 |
ACM10,CXM10 |
1 | ||
| 48655-44010 |
CXM10,SXM10 |
1 | ||
| Common parts | ||||
| 90105-12122 | ||||
| 90119-14054 | ||||
| 90119-14075 | ||||
| 90171-14003 | ||||
| 90179-12052 | ||||
| 90389-19002 | ||||
| 90389-19003 | ||||
| 95381-02525 | ||||
ILLUST NO. 2 OF 2(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15004 |
CXM10,SXM1# 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15005 |
ACM1#,CXM10,SXM15 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15006 |
ACM1#,CXM10,SXM15 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15005 |
CXM10,SXM1# 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15001 |
ACM1#,CXM10,SXM15 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90105-15006 |
CXM10,SXM1# 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15001 |
CXM10,SXM1# 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90105-15004 |
ACM1#,CXM10,SXM15 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15001 |
CXM10,SXM1# 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90105-15004 |
ACM1#,CXM10,SXM15 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15006 |
CXM10,SXM1# 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15004 |
CXM10,SXM1# 外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15001 |
ACM1#,CXM10,SXM15 外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90105-15005 |
ACM1#,CXM10,SXM15 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15006 |
ACM1#,CXM10,SXM15 外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90105-15005 |
CXM10,SXM1# 外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
