CXM10G-BRSET (1998)
Toyota Gaia

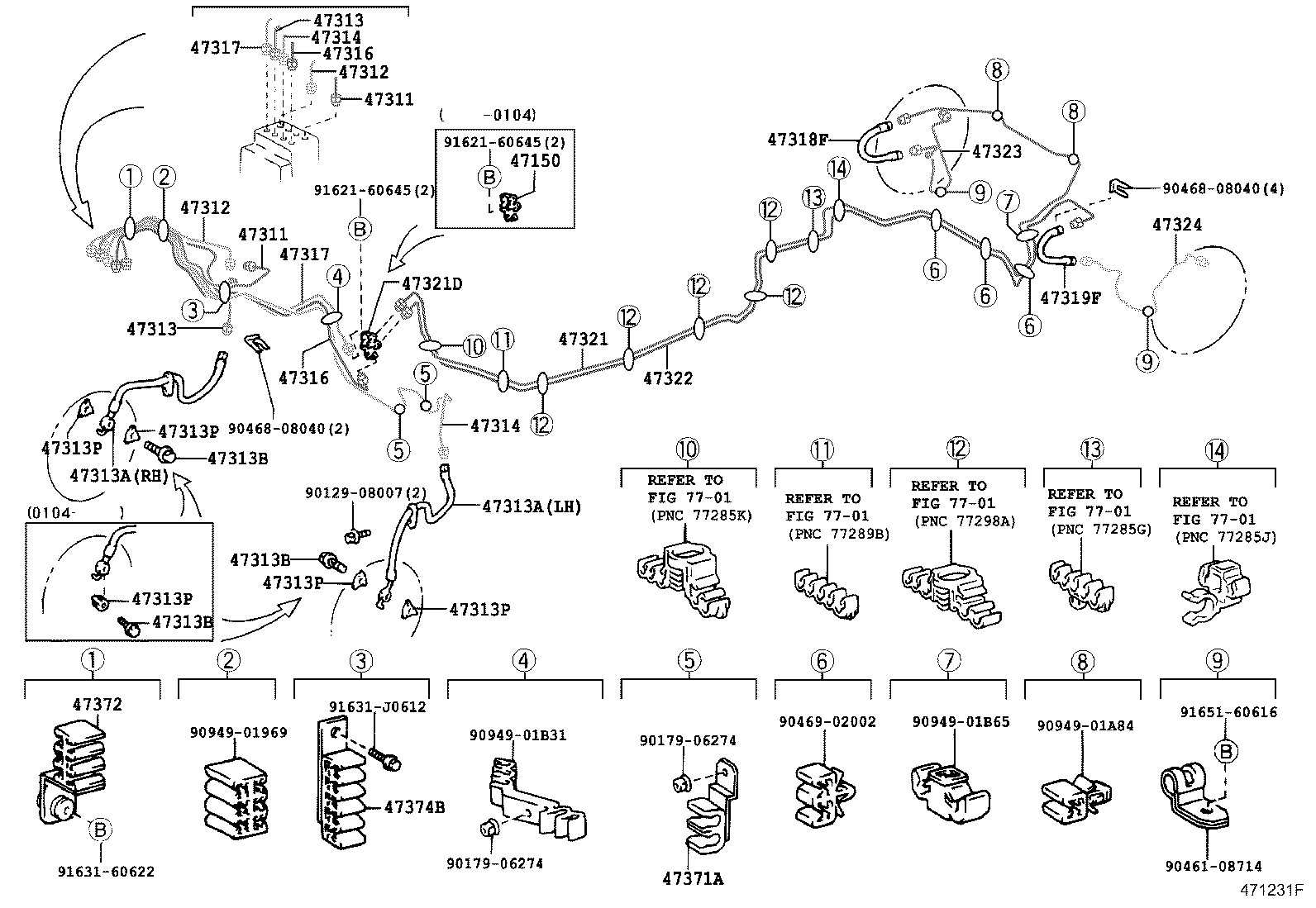

ILLUST NO. 1 OF 2(9805- )CXM10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-44020 |
CXM10,SXM1# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-44050 |
CXM10 |
1 | ||
| 47311-44150 |
CXM10 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-44050 |
CXM10 |
1 | ||
| 47311-44150 |
CXM10 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-44030 |
CXM10 |
1 | ||
| 47312-44110 |
CXM10 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-44030 |
CXM10 |
1 | ||
| 47312-44110 |
CXM10 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-44010 |
CXM10,SXM10 |
1 | ||
| 47313-44060 |
CXM10,SXM15 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-44010 |
CXM10,SXM10 |
1 | ||
| 47313-44060 |
CXM10,SXM15 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02888 |
ACM1#,CXM10,SXM15 左側 |
1 | ||
| 90947-02887 |
CXM10,SXM1# 右側 |
1 | ||
| 90947-02888 |
CXM10,SXM1# 左側 |
1 | ||
| 90947-02887 |
ACM1#,CXM10,SXM15 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02888 |
ACM1#,CXM10,SXM15 左側 |
1 | ||
| 90947-02887 |
CXM10,SXM1# 右側 |
1 | ||
| 90947-02888 |
CXM10,SXM1# 左側 |
1 | ||
| 90947-02887 |
ACM1#,CXM10,SXM15 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CXM10,SXM1# |
2 | ||
| 90401-10058 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CXM10,SXM1# |
2 | ||
| 90401-10058 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CXM10,SXM1# |
2 | ||
| 90401-10058 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47389-30010 |
CXM10,SXM1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47389-30010 |
CXM10,SXM1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47389-30010 |
CXM10,SXM1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47389-30010 |
CXM10,SXM1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47389-30010 |
CXM10,SXM1# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-44010 |
CXM10,SXM10 |
1 | ||
| 47314-44080 |
CXM10,SXM15 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-44010 |
CXM10,SXM10 |
1 | ||
| 47314-44080 |
CXM10,SXM15 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-44060 |
CXM10,SXM15 |
1 | ||
| 47316-44030 |
CXM10 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-44060 |
CXM10,SXM15 |
1 | ||
| 47316-44030 |
CXM10 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-44030 |
CXM10 |
1 | ||
| 47317-44070 |
CXM10,SXM15 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-44030 |
CXM10 |
1 | ||
| 47317-44070 |
CXM10,SXM15 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02874 |
CXM10,SXM1# |
1 | ||
| 90947-02C39 |
CXM10,SXM1# |
1 | ||
| 90947-02C39 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02874 |
CXM10,SXM1# |
1 | ||
| 90947-02C39 |
CXM10,SXM1# |
1 | ||
| 90947-02C39 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-44030 |
ACM15,CXM10 |
1 | ||
| 47321-44030 |
CXM10 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-44030 |
ACM15,CXM10 |
1 | ||
| 47322-44030 |
CXM10 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-44010 |
CXM10,SXM1# |
1 | ||
| 47323-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47324-44010 |
CXM10,SXM1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-16030 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47371-16030 |
CXM10,SXM1# |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-44040 |
CXM10,SXM1# |
1 | ||
| 47371-44040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-44030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47371-44030 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 90129-08007 | ||||
| 90179-06274 | ||||
| 90461-08714 | ||||
| 90468-08040 | ||||
| 90469-02002 | ||||
| 90949-01969 | ||||
| 90949-01A84 | ||||
| 90949-01B31 | ||||
| 90949-01B65 | ||||
| 91621-60645 | ||||
| 91631-60622 | ||||
| 91631-J0612 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 7701 | ||||

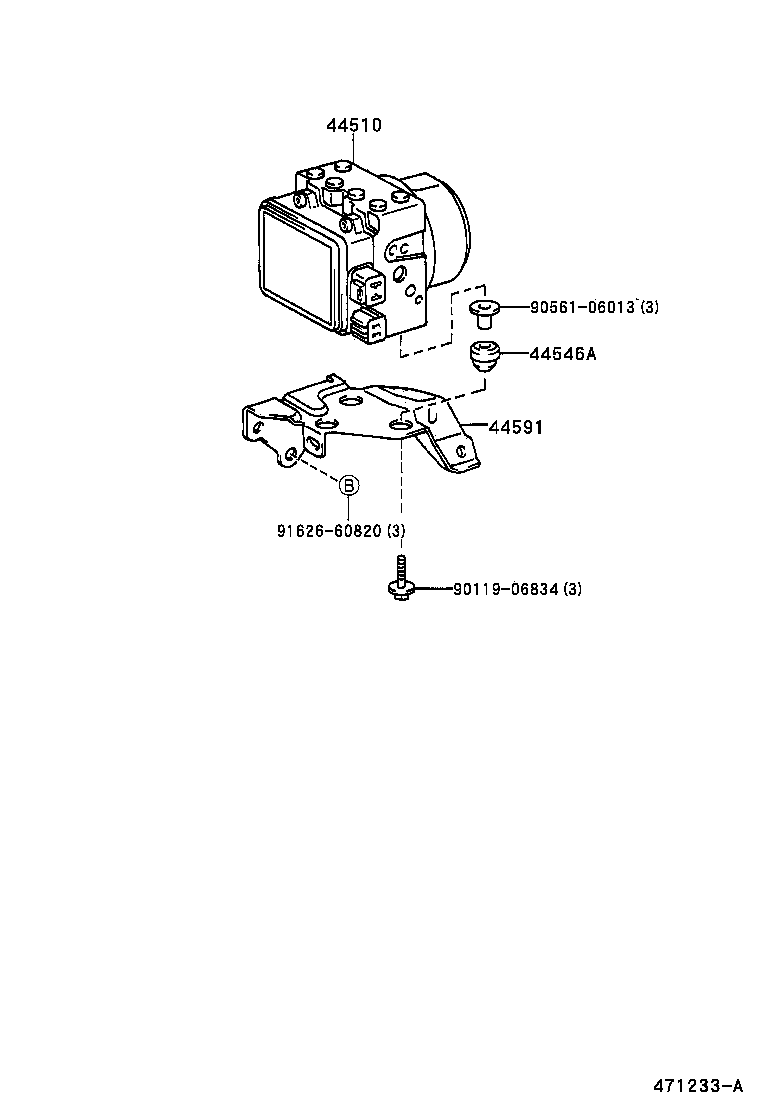

ILLUST NO. 2 OF 2(9805-0104)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-44010 |
CXM10,SXM10 |
1 | ||
| 44050-44141 |
CXM10 |
1 | ||
| 44050-44140 |
CXM10 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-44010 |
CXM10,SXM1# |
3 | ||
| 44546-44010 |
ACM1#,CXM10,SXM15 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-44010 |
CXM10,SXM10 |
1 | ||
| 44590-44030 |
ACM1#,CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 90119-06834 | ||||
| 90561-06013 | ||||
| 91626-60820 | ||||

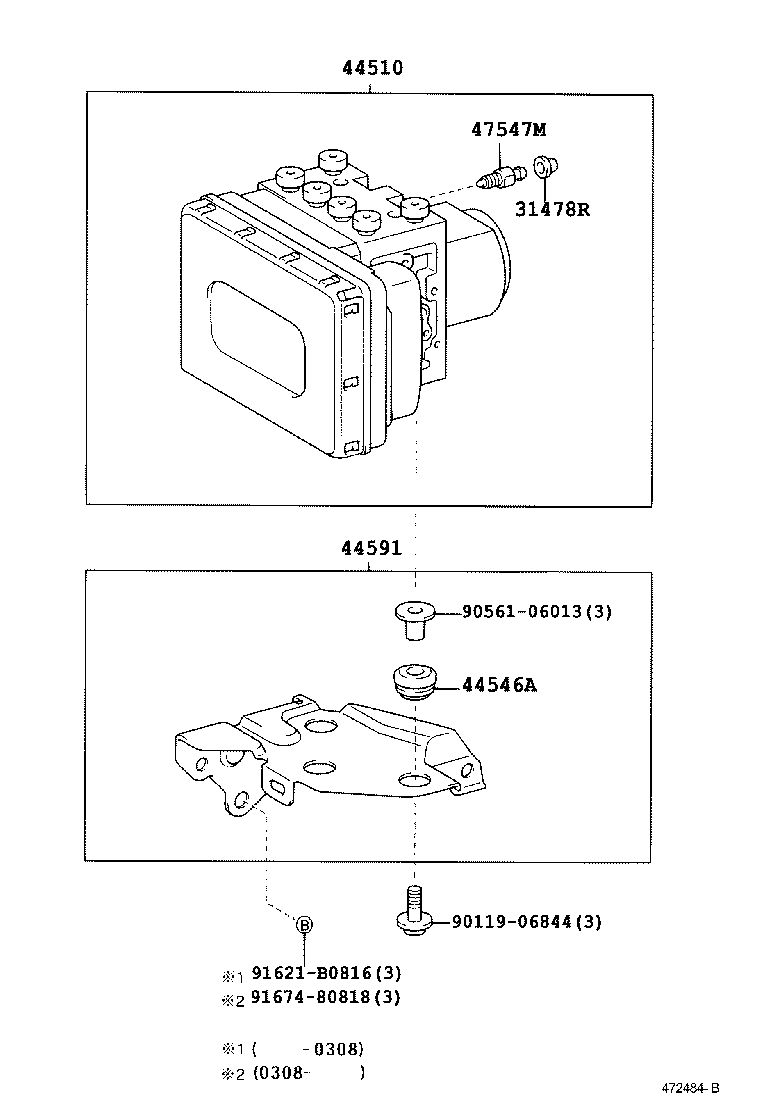

ILLUST NO. 2 OF 2(0104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478R - CAP, BLEEDER PLUG(FOR BRAKE ACTUATOR) | ||||
| 31478-30010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-44010 |
CXM10,SXM10 |
1 | ||
| 44050-44141 |
CXM10 |
1 | ||
| 44050-44140 |
CXM10 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-44010 |
CXM10,SXM1# |
3 | ||
| 44546-44010 |
ACM1#,CXM10,SXM15 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-44010 |
CXM10,SXM10 |
1 | ||
| 44590-44030 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47547M - PLUG, BLEEDER(FOR BRAKE ACTUATOR) | ||||
| 47547-22020 |
ACM1#,CXM10,SXM15 |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90561-06013 | ||||
| 91621-B0816 | ||||
| 91674-80818 | ||||
