CXM10G-BRSET (1998)
Toyota Gaia
(9805-0104)

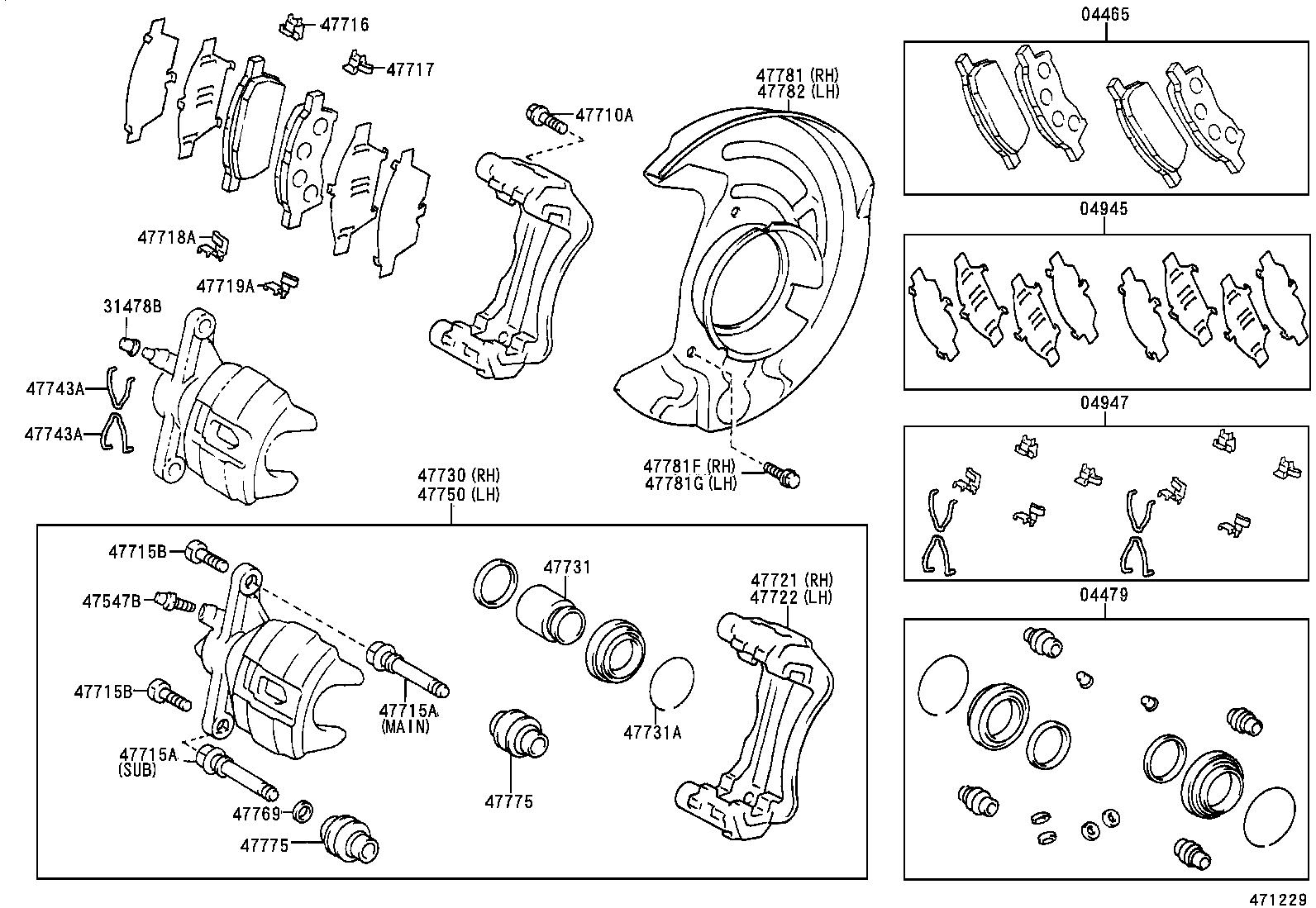

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-44030 |
CXM10,SXM1# ﾏｰｸ AK PA533 |
1 | ||
| 04465-33121 |
ACM10,CXM10,SXM15 ﾏｰｸ AK PA533 |
1 | ||
| 04465-33120 |
ACM1#,CXM10 ﾏｰｸ AK PA533 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-44010 |
CXM10,SXM1# |
1 | ||
| 04479-44050 |
ACM1#,CXM10,SXM15 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-44030 |
ACM1#,CXM10 |
1 | ||
| 04945-33040 |
ACM10,CXM10,SXM15 |
1 | ||
| 04945-44010 |
CXM10,SXM1# |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-33160 |
ACM1#,CXM10,SXM15 |
1 | ||
| 04947-33040 |
CXM10,SXM1# |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
CXM10,SXM1# |
2 | ||
| 31478-30010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47547-27030 |
CXM10,SXM1# |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
CXM10,SXM1# *12−1.25PX29.5−23 |
4 | ||
| 90105-12208 |
ACM1#,CXM10,SXM15 *12−1.25PX29.5−23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-48020 |
ACM1#,CXM10,SXM15 ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47715-22080 |
CXM10,SXM1# ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47714-48050 |
ACM1#,CXM10 ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715-48050 |
ACM1#,CXM10 ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47715-22070 |
CXM10,SXM1# ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715-48010 |
ACM1#,CXM10,SXM15 ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-48020 |
ACM1#,CXM10,SXM15 ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47715-22080 |
CXM10,SXM1# ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47714-48050 |
ACM1#,CXM10 ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715-48050 |
ACM1#,CXM10 ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47715-22070 |
CXM10,SXM1# ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715-48010 |
ACM1#,CXM10,SXM15 ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACM1#,CXM10,SXM15 |
4 | ||
| 90105-08164 |
CXM10,SXM1# |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACM1#,CXM10,SXM15 |
4 | ||
| 90105-08164 |
CXM10,SXM1# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-33010 |
CXM10,SXM1# |
2 | ||
| 47716-33080 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-33070 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47716-33020 |
CXM10,SXM1# |
2 | ||
| 47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47717-33010 |
CXM10,SXM1# |
2 | ||
| 47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47717-33020 |
CXM10,SXM1# |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-44010 |
CXM10,SXM1# |
1 | ||
| 47721-33080 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47721-33081 |
ACM1#,CXM10 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-44010 |
CXM10,SXM1# |
1 | ||
| 47721-33080 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47721-33081 |
ACM1#,CXM10 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-33120 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47730-44010 |
CXM10,SXM1# |
1 | ||
| 47730-33161 |
ACM1#,CXM10 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-44010 |
CXM10,SXM1# |
2 | ||
| 47731-33050 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-67001 |
ACM1#,CXM10,SXM15 |
2 | ||
| 90522-66001 |
CXM10,SXM1# |
2 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-50030 |
CXM10,SXM1# |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-50030 |
CXM10,SXM1# |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-33120 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47750-44010 |
CXM10,SXM1# |
1 | ||
| 47750-33161 |
ACM1#,CXM10 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
CXM10,SXM1# |
2 | ||
| 47769-33020 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-30070 |
CXM10,SXM1# |
4 | ||
| 47775-33020 |
ACM1#,CXM10,SXM15 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-30070 |
CXM10,SXM1# |
4 | ||
| 47775-33020 |
ACM1#,CXM10,SXM15 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-33010 |
CXM10,SXM1# |
1 | ||
| 47781-33020 |
ACM1#,CXM10 |
1 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90119-06227 |
CXM10,SXM1# |
4 | ||
| 90119-06227 |
ACM1#,CXM10 |
4 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90119-06227 |
ACM1#,CXM10 |
4 | ||
| 90119-06227 |
CXM10,SXM1# |
4 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-33010 |
CXM10,SXM1# |
1 | ||
| 47782-33020 |
ACM1#,CXM10 |
1 | ||

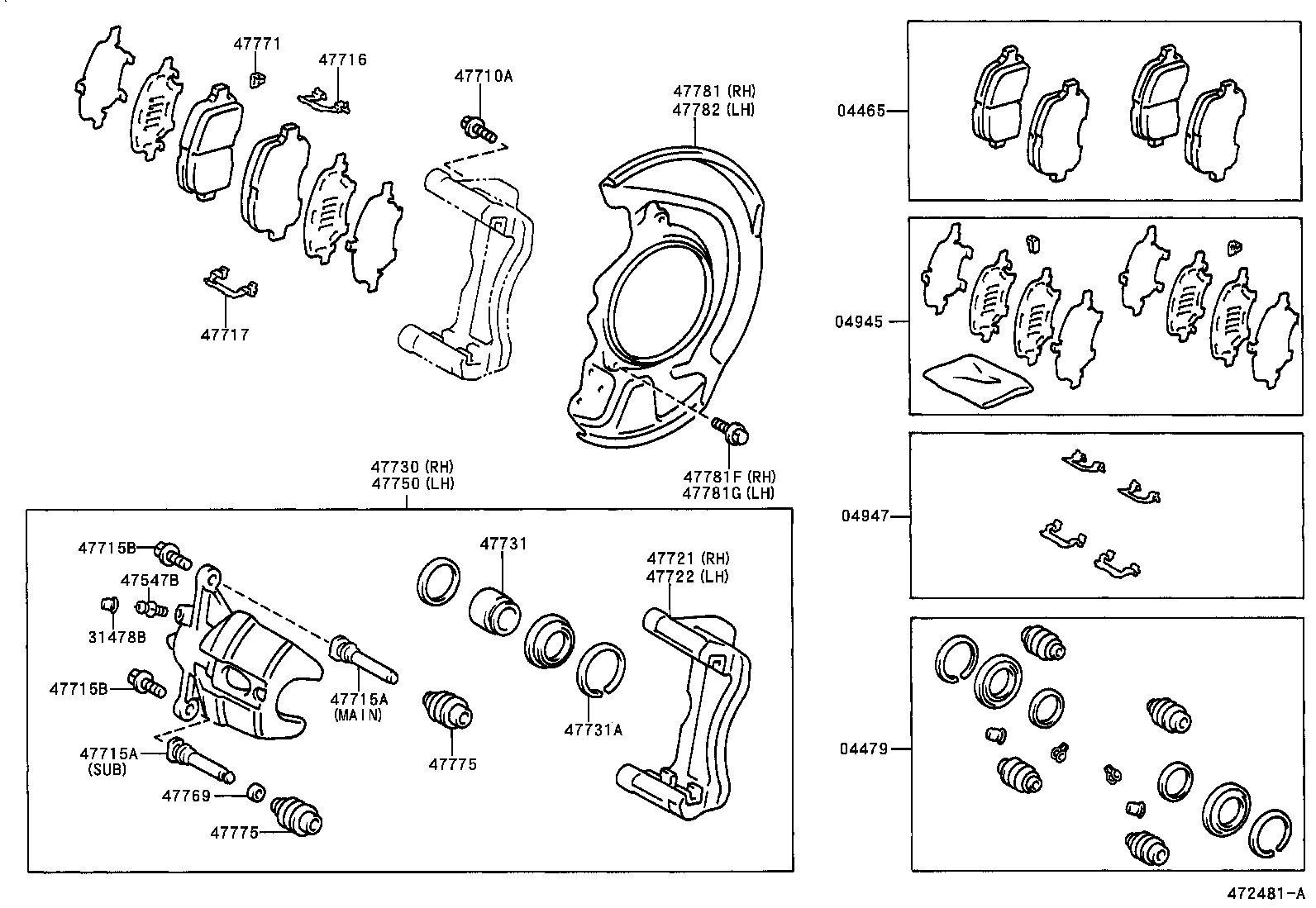

(0104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-44030 |
CXM10,SXM1# ﾏｰｸ AK PA533 |
1 | ||
| 04465-33121 |
ACM10,CXM10,SXM15 ﾏｰｸ AK PA533 |
1 | ||
| 04465-33120 |
ACM1#,CXM10 ﾏｰｸ AK PA533 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-44010 |
CXM10,SXM1# |
1 | ||
| 04479-44050 |
ACM1#,CXM10,SXM15 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-44030 |
ACM1#,CXM10 |
1 | ||
| 04945-33040 |
ACM10,CXM10,SXM15 |
1 | ||
| 04945-44010 |
CXM10,SXM1# |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-33160 |
ACM1#,CXM10,SXM15 |
1 | ||
| 04947-33040 |
CXM10,SXM1# |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
CXM10,SXM1# |
2 | ||
| 31478-30010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47547-27030 |
CXM10,SXM1# |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
CXM10,SXM1# *12−1.25PX29.5−23 |
4 | ||
| 90105-12208 |
ACM1#,CXM10,SXM15 *12−1.25PX29.5−23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-48020 |
ACM1#,CXM10,SXM15 ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47715-22080 |
CXM10,SXM1# ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47714-48050 |
ACM1#,CXM10 ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715-48050 |
ACM1#,CXM10 ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47715-22070 |
CXM10,SXM1# ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715-48010 |
ACM1#,CXM10,SXM15 ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-48020 |
ACM1#,CXM10,SXM15 ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47715-22080 |
CXM10,SXM1# ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47714-48050 |
ACM1#,CXM10 ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715-48050 |
ACM1#,CXM10 ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47715-22070 |
CXM10,SXM1# ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715-48010 |
ACM1#,CXM10,SXM15 ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACM1#,CXM10,SXM15 |
4 | ||
| 90105-08164 |
CXM10,SXM1# |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACM1#,CXM10,SXM15 |
4 | ||
| 90105-08164 |
CXM10,SXM1# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-33010 |
CXM10,SXM1# |
2 | ||
| 47716-33080 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-33070 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47716-33020 |
CXM10,SXM1# |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-44010 |
CXM10,SXM1# |
1 | ||
| 47721-33080 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47721-33081 |
ACM1#,CXM10 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-44010 |
CXM10,SXM1# |
1 | ||
| 47721-33080 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47721-33081 |
ACM1#,CXM10 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-33120 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47730-44010 |
CXM10,SXM1# |
1 | ||
| 47730-33161 |
ACM1#,CXM10 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-44010 |
CXM10,SXM1# |
2 | ||
| 47731-33050 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-67001 |
ACM1#,CXM10,SXM15 |
2 | ||
| 90522-66001 |
CXM10,SXM1# |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-33120 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47750-44010 |
CXM10,SXM1# |
1 | ||
| 47750-33161 |
ACM1#,CXM10 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
CXM10,SXM1# |
2 | ||
| 47769-33020 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-33010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-30070 |
CXM10,SXM1# |
4 | ||
| 47775-33020 |
ACM1#,CXM10,SXM15 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-30070 |
CXM10,SXM1# |
4 | ||
| 47775-33020 |
ACM1#,CXM10,SXM15 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-33010 |
CXM10,SXM1# |
1 | ||
| 47781-33020 |
ACM1#,CXM10 |
1 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90119-06227 |
CXM10,SXM1# |
4 | ||
| 90119-06227 |
ACM1#,CXM10 |
4 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90119-06227 |
ACM1#,CXM10 |
4 | ||
| 90119-06227 |
CXM10,SXM1# |
4 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-33010 |
CXM10,SXM1# |
1 | ||
| 47782-33020 |
ACM1#,CXM10 |
1 | ||
