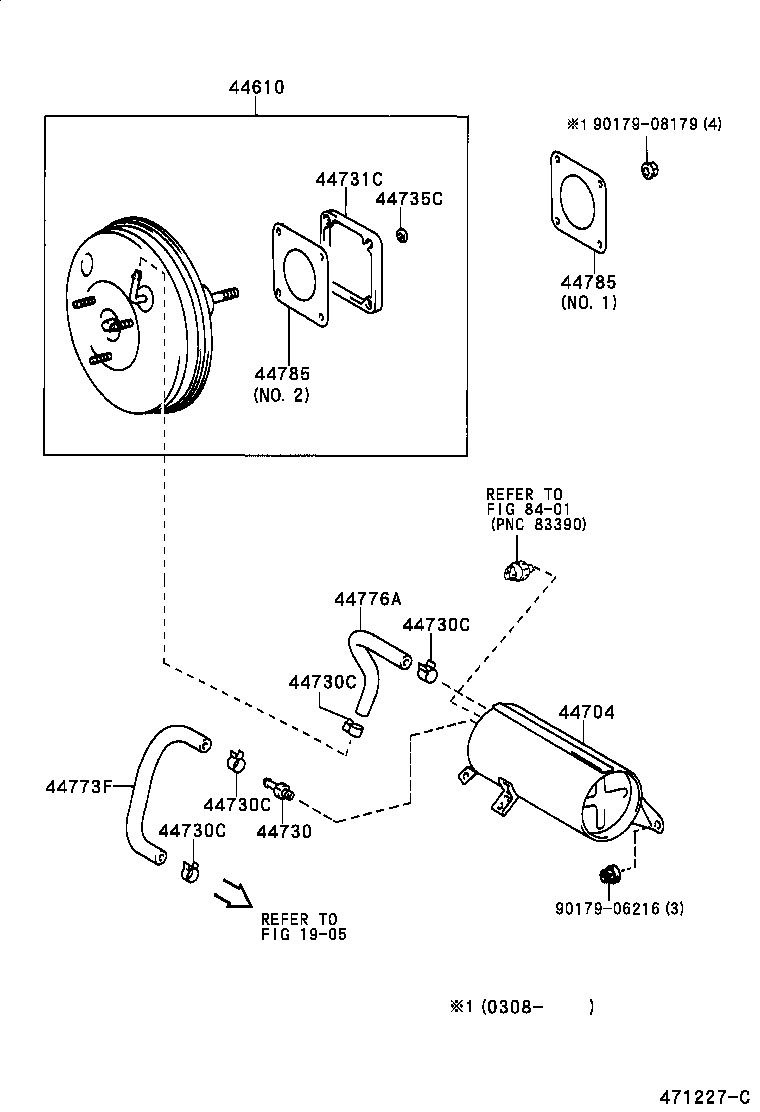

Toyota Gaia CXM10 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-44080	CXM10	05/1998 - 04/2001	1
44610-44080	CXM10	04/2001 - 12/2999	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-44010	CXM10	05/1998 - 04/2001	1
44704-44010	CXM10	04/2001 - 12/2999	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050	CXM10	04/2001 - 12/2999	1
44730-60050	CXM10	05/1998 - 04/2001	1
44730C - CLIP(FOR VACUUM HOSE)
96134-51500	CXM10	04/2001 - 09/2004	4
96134-51500	CXM10	05/1998 - 04/2001	4
44730C - CLIP(FOR VACUUM HOSE)
96134-51500	CXM10	04/2001 - 09/2004	4
96134-51500	CXM10	05/1998 - 04/2001	4
44730C - CLIP(FOR VACUUM HOSE)
96134-51500	CXM10	04/2001 - 09/2004	4
96134-51500	CXM10	05/1998 - 04/2001	4
44730C - CLIP(FOR VACUUM HOSE)
96134-51500	CXM10	04/2001 - 09/2004	4
96134-51500	CXM10	05/1998 - 04/2001	4
44731C - BRACKET, BRAKE BOOSTER
44731-44010	CXM10	04/2001 - 12/2999	1
44731-44010	CXM10	05/1998 - 04/2001	1
44735C - RING, BOOSTER BRACKET STOPPER
44735-30010	CXM10	05/1998 - 04/2001	2
44735-30010	CXM10	04/2001 - 12/2999	2
44773F - HOSE, UNION TO CHECK VALVE
44773-44020	CXM10	05/1998 - 04/2001	1
44773-44020	CXM10	04/2001 - 12/2999	1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-44010	CXM10	05/1998 - 04/2001	1
44776-44010	CXM10	04/2001 - 12/2999	1
44785 - GASKET, BRAKE BOOSTER
44785-20020	CXM10 NO.1	04/2001 - 12/2999	1
44785-32010	CXM10 NO.2	04/2001 - 12/2999	1
44785-20020	CXM10 NO.1	05/1998 - 04/2001	1
44785-32010	CXM10 NO.2	05/1998 - 04/2001	1
44785 - GASKET, BRAKE BOOSTER
44785-20020	CXM10 NO.1	04/2001 - 12/2999	1
44785-32010	CXM10 NO.2	04/2001 - 12/2999	1
44785-20020	CXM10 NO.1	05/1998 - 04/2001	1
44785-32010	CXM10 NO.2	05/1998 - 04/2001	1
Common parts
90179-06216
90179-08179
Linked diagrams
1905
8401

CXM10G-BRSET (1998)

(9805- )CXM10
