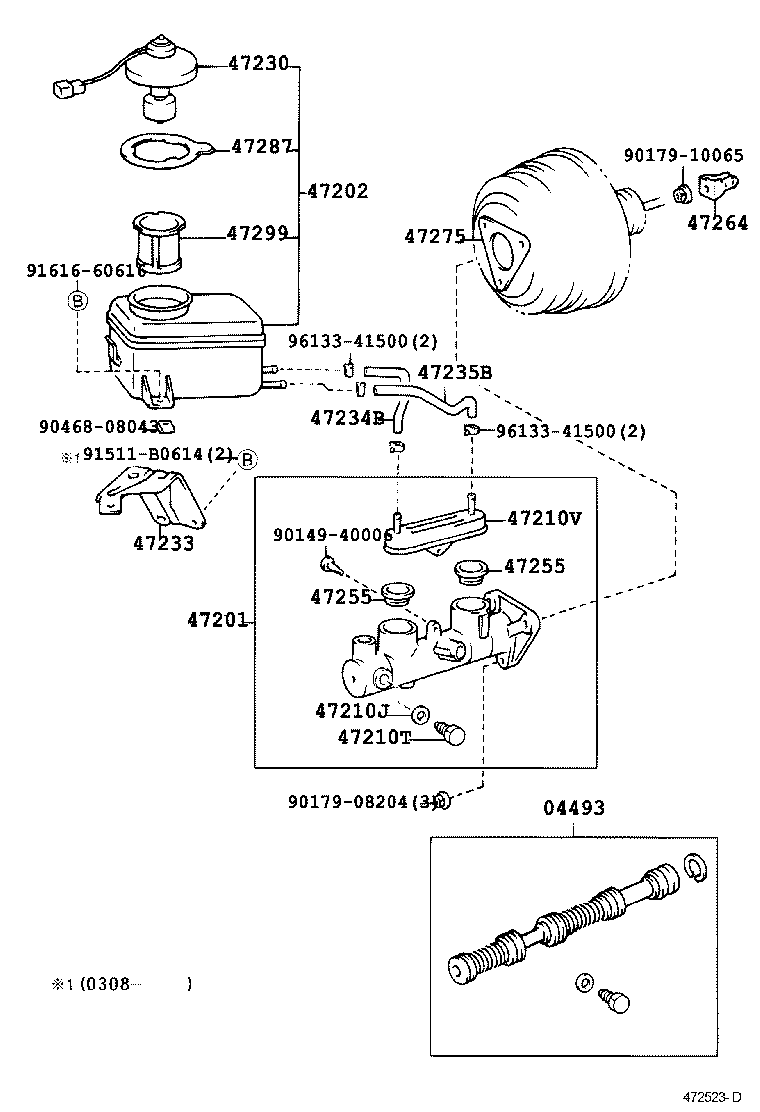

CXM10G-BRSET (1998)
Toyota Gaia
(9805-0104) ; (0104- )ACM1#,SXM15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-44010 |
CXM10,SXM10 |
1 | ||
| 04493-2B010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-44150 |
CXM10 |
1 | ||
| 47201-44021 |
CXM10,SXM10 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-44020 |
CXM10,SXM1# |
1 | ||
| 47220-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
CXM10,SXM1# |
1 | ||
| 90029-43001 |
CXM10 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
ACM1#,CXM10,SXM15 |
1 | ||
| 90109-06077 |
CXM10,SXM1# |
1 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 90029-40011 |
CXM10,SXM1# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-30040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84460-30040 |
CXM10,SXM1# |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-44010 |
CXM10,SXM1# |
1 | ||
| 47233-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-44030 |
CXM10 |
1 | ||
| 47234-44030 |
CXM10 |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-44030 |
CXM10 |
1 | ||
| 47235-44030 |
CXM10 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47255-16010 |
CXM10,SXM1# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47255-16010 |
CXM10,SXM1# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-28010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47264-28010 |
CXM10,SXM1# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-32010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47275-32010 |
CXM10,SXM1# |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47287-20020 |
CXM10,SXM1# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-32010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47299-32010 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| 90468-08043 | ||||
| 91511-B0614 | ||||
| 91616-60616 | ||||
| 96133-41500 | ||||
(0104- )CXM10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-44010 |
CXM10,SXM10 |
1 | ||
| 04493-2B010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-44150 |
CXM10 |
1 | ||
| 47201-44021 |
CXM10,SXM10 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-44020 |
CXM10,SXM1# |
1 | ||
| 47220-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
CXM10,SXM1# |
1 | ||
| 90029-43001 |
CXM10 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
ACM1#,CXM10,SXM15 |
1 | ||
| 90109-06077 |
CXM10,SXM1# |
1 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40011 |
ACM1#,CXM10,SXM15 |
1 | ||
| 90029-40011 |
CXM10,SXM1# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-30040 |
ACM1#,CXM10,SXM15 |
1 | ||
| 84460-30040 |
CXM10,SXM1# |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-44010 |
CXM10,SXM1# |
1 | ||
| 47233-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-44030 |
CXM10 |
1 | ||
| 47234-44030 |
CXM10 |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-44030 |
CXM10 |
1 | ||
| 47235-44030 |
CXM10 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47255-16010 |
CXM10,SXM1# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
ACM1#,CXM10,SXM15 |
2 | ||
| 47255-16010 |
CXM10,SXM1# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-28010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47264-28010 |
CXM10,SXM1# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-32010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47275-32010 |
CXM10,SXM1# |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47287-20020 |
CXM10,SXM1# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-32010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 47299-32010 |
CXM10,SXM1# |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| 90468-08043 | ||||
| 91511-B0614 | ||||
| 91616-60616 | ||||
| 96133-41500 | ||||
