CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

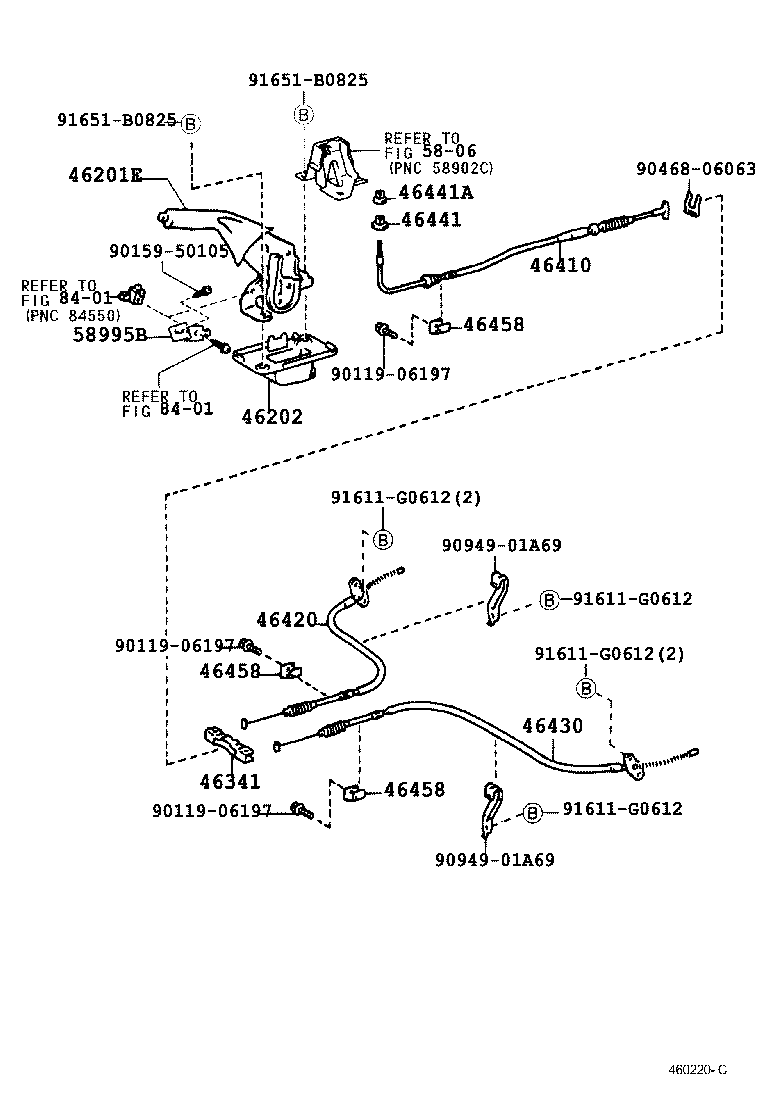

Click highlighted areas on diagram

diagram 46201E 46202 46341 46410 46420 46430 46441 46441A 46458 46458 46458 5806 58995B 8401 8401 9011906197 9011906197 9011906197 9015950105 9046806063 9094901A69 9094901A69 91611G0612 91611G0612 91611G0612 91611G0612 91651B0825 91651B0825
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-44020A0

ACM1#,CXM10

IVORY,TRIM0#

 1
46201-44020A0

CXM10,SXM1#

IVORY,TRIM0#

 1
46202 - BOOT SUB-ASSY, PARKING BRAKE LEVER
46202-44010

CXM10,SXM1#

 1
46202-44010

ACM1#,CXM10,SXM15

 1
46341 - EQUALIZER, PARKING BRAKE
46341-12020

CXM10,SXM1#

 1
46341-12020

ACM1#,CXM10,SXM15

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-44010

CXM10,SXM1#

 1
46410-44010

ACM1#,CXM10,SXM15

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-44010

CXM10,SXM1#

 1
46420-44010

ACM1#,CXM10,SXM15

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-44010

ACM1#,CXM10,SXM15

 1
46430-44010

CXM10,SXM1#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06164

CXM10,SXM1#

 1
46441-12010

ACM1#,CXM10,SXM15

 1
90179-06164

ACM10,CXM10,SXM15

 1
46441A - NUT, WIRE ADJUSTING, NO.2
90179-06058

ACM1#,CXM10,SXM15

 1
90179-06058

CXM10,SXM1#

 1
46458 - RETAINER, CABLE
46458-28010

CXM10,SXM1#

 3
46458-28010

ACM1#,CXM10,SXM15

 3
46458 - RETAINER, CABLE
46458-28010

CXM10,SXM1#

 3
46458-28010

ACM1#,CXM10,SXM15

 3
46458 - RETAINER, CABLE
46458-28010

CXM10,SXM1#

 3
46458-28010

ACM1#,CXM10,SXM15

 3
58995B - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-44020

ACM1#,CXM10

 1
58995-44020

CXM10,SXM1#

 1
Common parts
90119-06197
90159-50105
90468-06063
90949-01A69
91611-G0612
91651-B0825
Linked diagrams
5806
8401
