Toyota Gaia CXM10 POWER STEERING TUBE

CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004

Engine 3CTE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty
44314 - COVER, PULLEY
44314-44010	CXM10	05/1998 - 04/2001	1
44314-44010	CXM10	04/2001 - 12/2999	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-44030	CXM10	05/1998 - 04/2001	1
44348-44031	CXM10	04/2001 - 12/2999	1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-20060	CXM10	04/2001 - 12/2999	1
44350-20060	CXM10	05/1998 - 04/2001	1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-20030	CXM10	04/2001 - 12/2999	1
44381-20030	CXM10	05/1998 - 04/2001	1
44406 - TUBE SUB-ASSY, RETURN
44406-44060	CXM10	04/2001 - 12/2999	1
44406-44060	CXM10	05/1998 - 04/2001	1
44410 - TUBE ASSY, PRESSURE FEED
44410-44050	CXM10	05/1998 - 10/1998	1
44410-44051	CXM10	10/1998 - 04/2001	1
44410-44051	CXM10	04/2001 - 12/2999	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
44416-20220	CXM10,SXM1#	05/1998 - 04/2001	1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-44010	CXM10	05/1998 - 10/1998	1
44457-44011	CXM10	10/1998 - 04/2001	1
44457-44011	CXM10 NO.1	04/2001 - 12/2999	1
44457-44020	CXM10 NO.2	04/2001 - 12/2999	1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-44010	CXM10	05/1998 - 10/1998	1
44457-44011	CXM10	10/1998 - 04/2001	1
44457-44011	CXM10 NO.1	04/2001 - 12/2999	1
44457-44020	CXM10 NO.2	04/2001 - 12/2999	1
Common parts
90105-10074
90105-12215
90109-08253
90119-06541
90119-06731
90467-16008
90467-16031
90467-21010
91512-61025
91626-60616
91651-60616

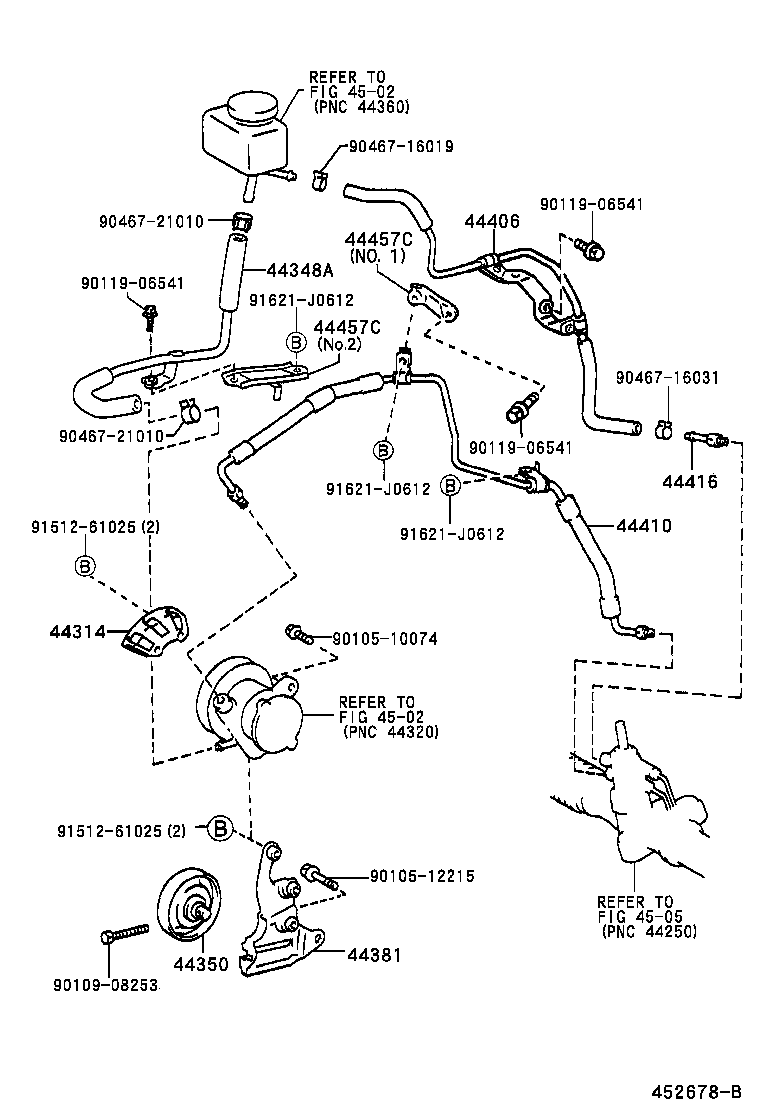

Click highlighted areas on diagram

Part #	Description	Period	Qty
44314 - COVER, PULLEY
44314-44010	CXM10	05/1998 - 04/2001	1
44314-44010	CXM10	04/2001 - 12/2999	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-44030	CXM10	05/1998 - 04/2001	1
44348-44031	CXM10	04/2001 - 12/2999	1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-20060	CXM10	04/2001 - 12/2999	1
44350-20060	CXM10	05/1998 - 04/2001	1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-20030	CXM10	04/2001 - 12/2999	1
44381-20030	CXM10	05/1998 - 04/2001	1
44406 - TUBE SUB-ASSY, RETURN
44406-44060	CXM10	04/2001 - 12/2999	1
44406-44060	CXM10	05/1998 - 04/2001	1
44410 - TUBE ASSY, PRESSURE FEED
44410-44050	CXM10	05/1998 - 10/1998	1
44410-44051	CXM10	10/1998 - 04/2001	1
44410-44051	CXM10	04/2001 - 12/2999	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
44416-20220	CXM10,SXM1#	05/1998 - 04/2001	1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-44010	CXM10	05/1998 - 10/1998	1
44457-44011	CXM10	10/1998 - 04/2001	1
44457-44011	CXM10 NO.1	04/2001 - 12/2999	1
44457-44020	CXM10 NO.2	04/2001 - 12/2999	1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-44010	CXM10	05/1998 - 10/1998	1
44457-44011	CXM10	10/1998 - 04/2001	1
44457-44011	CXM10 NO.1	04/2001 - 12/2999	1
44457-44020	CXM10 NO.2	04/2001 - 12/2999	1
Common parts
90105-10074
90105-12215
90109-08253
90119-06541
90467-16019
90467-16031
90467-21010
91512-61025
91621-J0612
Linked diagrams
4502
4505
