CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

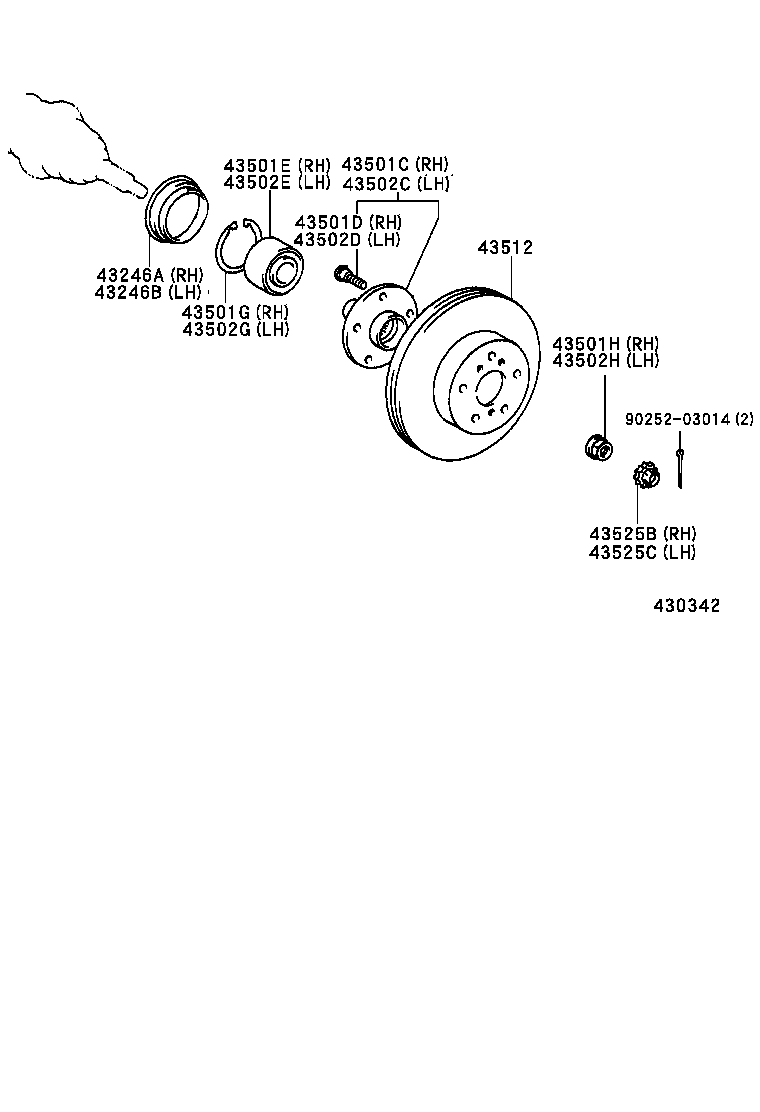

Click highlighted areas on diagram

diagram 43246A 43246B 43501C 43501D 43501E 43501G 43501H 43502C 43502C 43502D 43502E 43502G 43502H 43512 43525B 43525C 9025203014
Part # Description Qty Price
43246A - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
43246-32020

CXM10,SXM1#

 1
43246-32020

ACM1#,CXM10

 1
43246B - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
43246-32020

ACM1#,CXM10

 1
43246-32020

CXM10,SXM1#

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-44010

CXM10,SXM1#

 1
43502-44010

ACM1#,CXM10

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02070

CXM10,SXM1#

 5
90942-02070

ACM1#,CXM10

 5
43501E - BEARING (FOR FRONT AXLE HUB RH)
90369-43009

ACM1#,CXM10

 1
90369-43009

CXM10,SXM1#

 1
43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90521-88001

ACM1#,CXM10

 1
90521-88001

CXM10,SXM1#

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90178-22001

CXM10,SXM1#

 1
90178-22001

ACM1#,CXM10,SXM15

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-44010

ACM1#,CXM10

 1
43502-44010

CXM10,SXM1#

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-44010

ACM1#,CXM10

 1
43502-44010

CXM10,SXM1#

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02070

CXM10,SXM1#

 5
90942-02070

ACM1#,CXM10

 5
43502E - BEARING (FOR FRONT AXLE HUB LH)
90369-43009

CXM10,SXM1#

 1
90369-43009

ACM1#,CXM10

 1
43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90521-88001

CXM10,SXM1#

 1
90521-88001

ACM1#,CXM10

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90178-22001

CXM10,SXM1#

 1
90178-22001

ACM1#,CXM10,SXM15

 1
43512 - DISC, FRONT
43512-44011

ACM1#,CXM10

 2
43512-33020

CXM10,SXM1#

 2
43512-44010

ACM1#,CXM10

 2
43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH
42428-42010

ACM1#,CXM10,SXM15

 1
42428-42010

CXM10,SXM1#

 1
43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH
42428-42010

ACM1#,CXM10,SXM15

 1
42428-42010

CXM10,SXM1#

 1
Common parts
90252-03014
