CXM10G-BRSET (1998)
Toyota Gaia
(9805-0104)CXM10

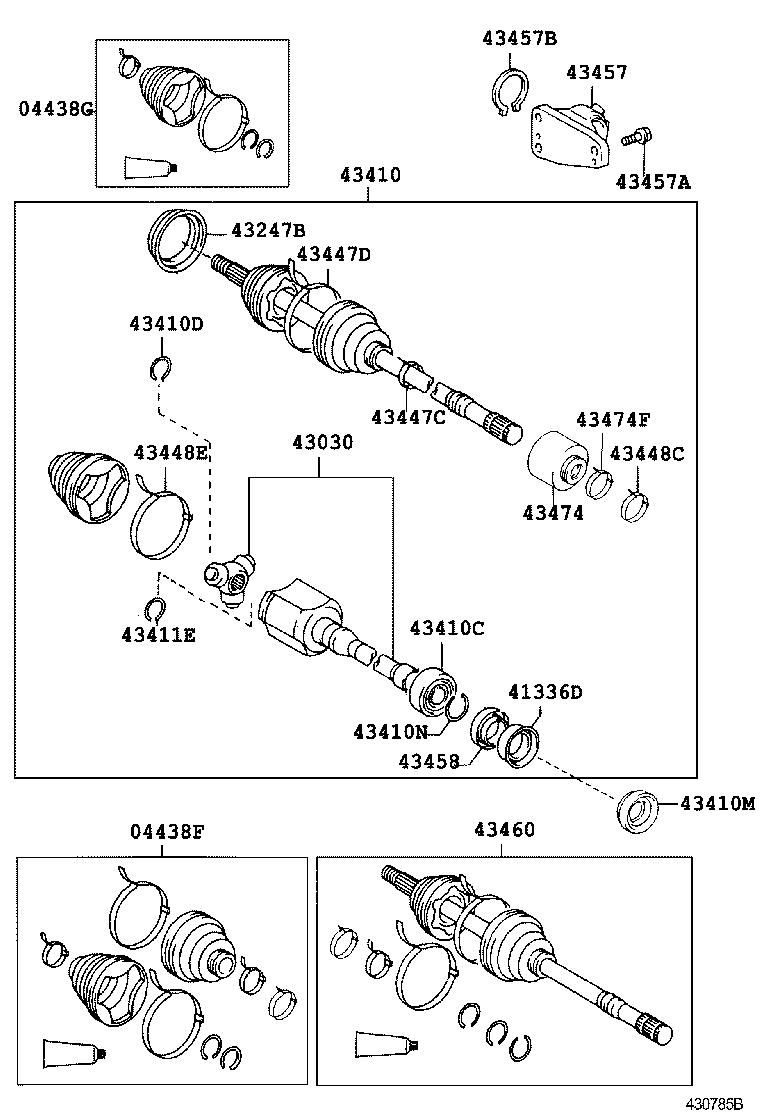

RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-44020 |
CXM10 |
1 | ||
| 04438-44020 |
CXM10 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-44030 |
CXM10 |
1 | ||
| 04438-44030 |
CXM10 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-20011 |
CXM10,SXM10 |
1 | ||
| 41336-20050 |
CXM10,SXM10 |
1 | ||
| 41336-20050 |
ACM10,CXM10 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-44010 |
CXM10 |
1 | ||
| 43030-44010 |
CXM10 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-12010 |
CXM10,SXM1# |
1 | ||
| 43247-12010 |
ACM1#,CXM10 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-44021 |
CXM10 |
1 | ||
| 43410-44021 |
CXM10 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36004 |
ACM10,CXM10 |
1 | ||
| 90363-36001 |
CXM10,SXM1# |
1 | ||
| 90363-36004 |
CXM10,SXM10 |
1 | ||
| 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90520-23056 |
CXM10 |
1 | ||
| 90520-23056 |
CXM10 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-35019 |
CXM10,SXM10 |
1 | ||
| 90311-35045 |
CXM10 |
1 | ||
| 90311-35045 |
CXM10,SXM10 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-33008 |
ACM1#,CXM10,SXM15 |
1 | ||
| 90520-33008 |
CXM10,SXM1# |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-71002 |
CXM10 |
1 | ||
| 90520-71002 |
CXM10 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01A65 |
ACM15,CXM10,SXM15 内径=34.1 |
1 | ||
| 90949-01A65 |
CXM10,SXM15 内径=34.1 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01937 |
ACM15,CXM10,SXM15 内径=95.0 |
1 | ||
| 90949-01937 |
CXM10,SXM15 内径=95.0 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01108 |
ACM15,CXM10,SXM15 |
1 | ||
| 90949-01108 |
CXM10,SXM15 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42346-22010 |
ACM15,CXM10,SXM15 |
1 | ||
| 42346-22010 |
CXM10,SXM15 |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-32060 |
CXM10 |
1 | ||
| 43457-32060 |
CXM10 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10285 |
CXM10 *10−1.25PX22−19.5 |
3 | ||
| 90105-10285 |
CXM10 *10−1.25PX22−19.5 |
3 | ||
| 90119-10461 |
CXM10 *10−1.25PX19.8−8.3 |
1 | ||
| 90119-10461 |
CXM10 *10−1.25PX19.8−8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
ACM15,CXM10,SXM15 |
1 | ||
| 90521-75002 |
CXM10,SXM15 |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-20011 |
CXM10,SXM10 |
1 | ||
| 43458-20011 |
ACM10,CXM10 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-49027 |
CXM10 |
1 | ||
| 43460-49026 |
CXM10 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12030 |
CXM10 |
1 | ||
| 43474-12030 |
CXM10 |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 90949-01696 |
CXM10,SXM15 |
1 | ||
| 90949-01696 |
ACM15,CXM10,SXM15 |
1 | ||
(9805- )CXM10,SXM10

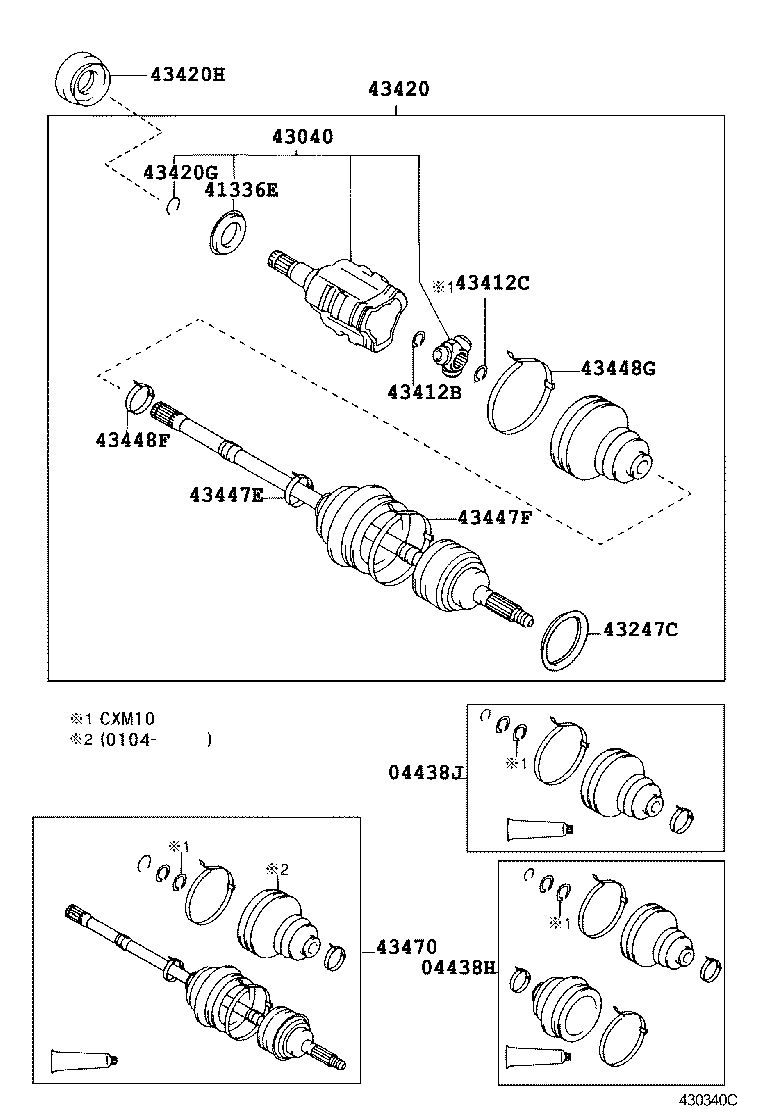

LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-44040 |
CXM10 |
1 | ||
| 04438-44040 |
CXM10 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-44030 |
CXM10 |
1 | ||
| 04438-44030 |
CXM10 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-32020 |
CXM10,SXM15 |
1 | ||
| 41336-32020 |
CXM10,SXM1# |
1 | ||
| 41336-32020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-44010 |
CXM10 |
1 | ||
| 43040-44010 |
CXM10 |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-12010 |
ACM1#,CXM10 |
1 | ||
| 43247-12010 |
CXM10,SXM1# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-23056 |
CXM10 |
1 | ||
| 90520-23056 |
CXM10 |
1 | ||
| 43412C - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER LH) | ||||
| 90520-71002 |
CXM10 |
1 | ||
| 90520-71002 |
CXM10 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-44021 |
CXM10 |
1 | ||
| 43420-44021 |
CXM10 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
CXM10,SXM1# |
1 | ||
| 90521-27005 |
ACM1#,CXM10,SXM15 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-35047 |
CXM10,SXM1# |
1 | ||
| 90311-35047 |
ACM1#,CXM10,SXM15 |
1 | ||
| 90311-35020 |
CXM10,SXM1# |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01A65 |
CXM10,SXM15 内径=34.1 |
1 | ||
| 90949-01A65 |
ACM15,CXM10,SXM15 内径=34.1 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01937 |
CXM10,SXM15 内径=95.0 |
1 | ||
| 90949-01937 |
ACM15,CXM10,SXM15 内径=95.0 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01108 |
CXM10,SXM15 |
1 | ||
| 90949-01108 |
ACM15,CXM10,SXM15 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42346-22010 |
CXM10,SXM15 |
1 | ||
| 42346-22010 |
ACM15,CXM10,SXM15 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-49067 |
CXM10 |
1 | ||
| 43470-49066 |
CXM10 |
1 | ||
(0104- )CXM10

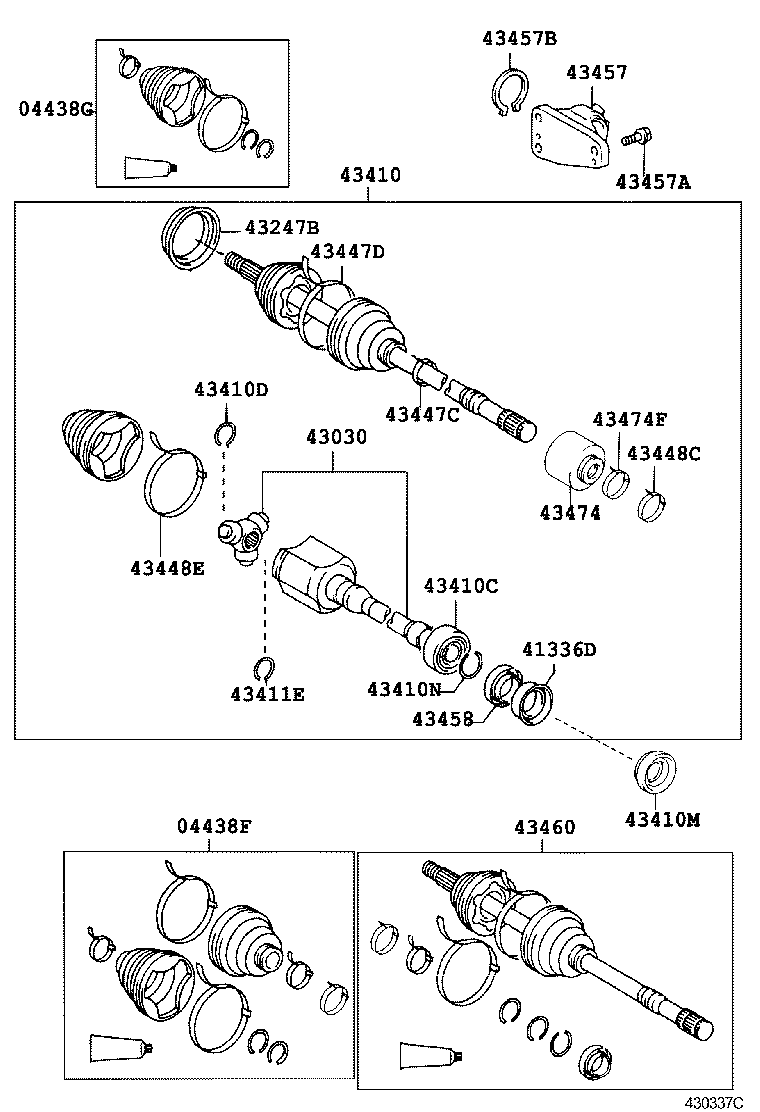

RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-44020 |
CXM10 |
1 | ||
| 04438-44020 |
CXM10 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-44030 |
CXM10 |
1 | ||
| 04438-44030 |
CXM10 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-20011 |
CXM10,SXM10 |
1 | ||
| 41336-20050 |
CXM10,SXM10 |
1 | ||
| 41336-20050 |
ACM10,CXM10 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-44010 |
CXM10 |
1 | ||
| 43030-44010 |
CXM10 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-12010 |
CXM10,SXM1# |
1 | ||
| 43247-12010 |
ACM1#,CXM10 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-44021 |
CXM10 |
1 | ||
| 43410-44021 |
CXM10 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36004 |
ACM10,CXM10 |
1 | ||
| 90363-36001 |
CXM10,SXM1# |
1 | ||
| 90363-36004 |
CXM10,SXM10 |
1 | ||
| 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90520-23056 |
CXM10 |
1 | ||
| 90520-23056 |
CXM10 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-35019 |
CXM10,SXM10 |
1 | ||
| 90311-35045 |
CXM10 |
1 | ||
| 90311-35045 |
CXM10,SXM10 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-33008 |
ACM1#,CXM10,SXM15 |
1 | ||
| 90520-33008 |
CXM10,SXM1# |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-71002 |
CXM10 |
1 | ||
| 90520-71002 |
CXM10 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01A65 |
ACM15,CXM10,SXM15 内径=34.1 |
1 | ||
| 90949-01A65 |
CXM10,SXM15 内径=34.1 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01937 |
ACM15,CXM10,SXM15 内径=95.0 |
1 | ||
| 90949-01937 |
CXM10,SXM15 内径=95.0 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01108 |
ACM15,CXM10,SXM15 |
1 | ||
| 90949-01108 |
CXM10,SXM15 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42346-22010 |
ACM15,CXM10,SXM15 |
1 | ||
| 42346-22010 |
CXM10,SXM15 |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-32060 |
CXM10 |
1 | ||
| 43457-32060 |
CXM10 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10285 |
CXM10 *10−1.25PX22−19.5 |
3 | ||
| 90105-10285 |
CXM10 *10−1.25PX22−19.5 |
3 | ||
| 90119-10461 |
CXM10 *10−1.25PX19.8−8.3 |
1 | ||
| 90119-10461 |
CXM10 *10−1.25PX19.8−8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
ACM15,CXM10,SXM15 |
1 | ||
| 90521-75002 |
CXM10,SXM15 |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-20011 |
CXM10,SXM10 |
1 | ||
| 43458-20011 |
ACM10,CXM10 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-49027 |
CXM10 |
1 | ||
| 43460-49026 |
CXM10 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12030 |
CXM10 |
1 | ||
| 43474-12030 |
CXM10 |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 90949-01696 |
CXM10,SXM15 |
1 | ||
| 90949-01696 |
ACM15,CXM10,SXM15 |
1 | ||
