CXM10G-BRSET (1998)

Toyota Gaia

Production May 1998 - Sep 2004
Engine 3CTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )ACM10,CXM10,SXM10

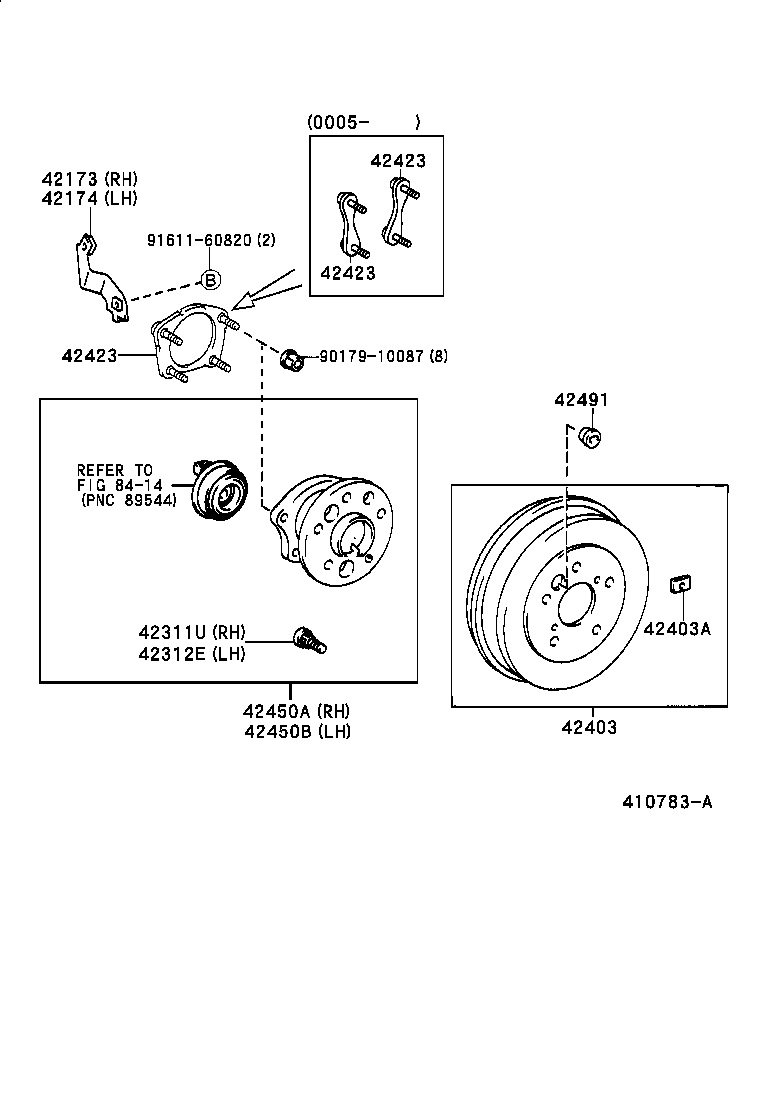

Click highlighted areas on diagram

diagram 42173 42174 42311U 42312E 42403 42403A 42423 42423 42423 42450A 42450B 42491 8414 9017910087 9161160820
Part # Description Qty Price
42173 - BRACKET, REAR AXLE HARNESS, RH
42173-44010

CXM10,SXM10

 1
42173-44010

ACM10,CXM10

 1
42174 - BRACKET, REAR AXLE HARNESS, LH
42174-44010

ACM10,CXM10

 1
42174-44010

CXM10,SXM10

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02070

CXM10,SXM1#

 5
90942-02070

ACM10,CXM10

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02070

ACM10,CXM10

 5
90942-02070

CXM10,SXM1#

 5
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-44010

ACM1#,CXM10

 2
42431-44010

CXM10,SXM1#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01287

CXM10,SXM1#

10G

 1
90937-01287

ACM1#,CXM10,SXM15

10G

 1
90937-01289

ACM1#,CXM10,SXM15

30G

 1
90937-01288

CXM10,SXM1#

20G

 1
90937-01288

ACM1#,CXM10,SXM15

20G

 1
90937-01289

CXM10,SXM1#

30G

 1
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-44010

CXM10,SXM10

 2
42423-28010

CXM10,SXM10

 4
42423-28010

ACM10,CXM10

 4
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-44010

CXM10,SXM10

 2
42423-28010

CXM10,SXM10

 4
42423-28010

ACM10,CXM10

 4
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-44010

CXM10,SXM10

 2
42423-28010

CXM10,SXM10

 4
42423-28010

ACM10,CXM10

 4
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-44010

CXM10,SXM10

 1
42450-44010

ACM10,CXM10

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-44010

ACM10,CXM10

 1
42450-44010

CXM10,SXM10

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-14010

CXM10,SXM1#

 2
47491-14010

ACM1#,CXM10

 2
Common parts
90179-10087
91611-60820
Linked diagrams
8414
