CXM10G-BRSET (1998)
Toyota Gaia
Production
May 1998
-
Sep 2004
Engine
3CTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )3CTE

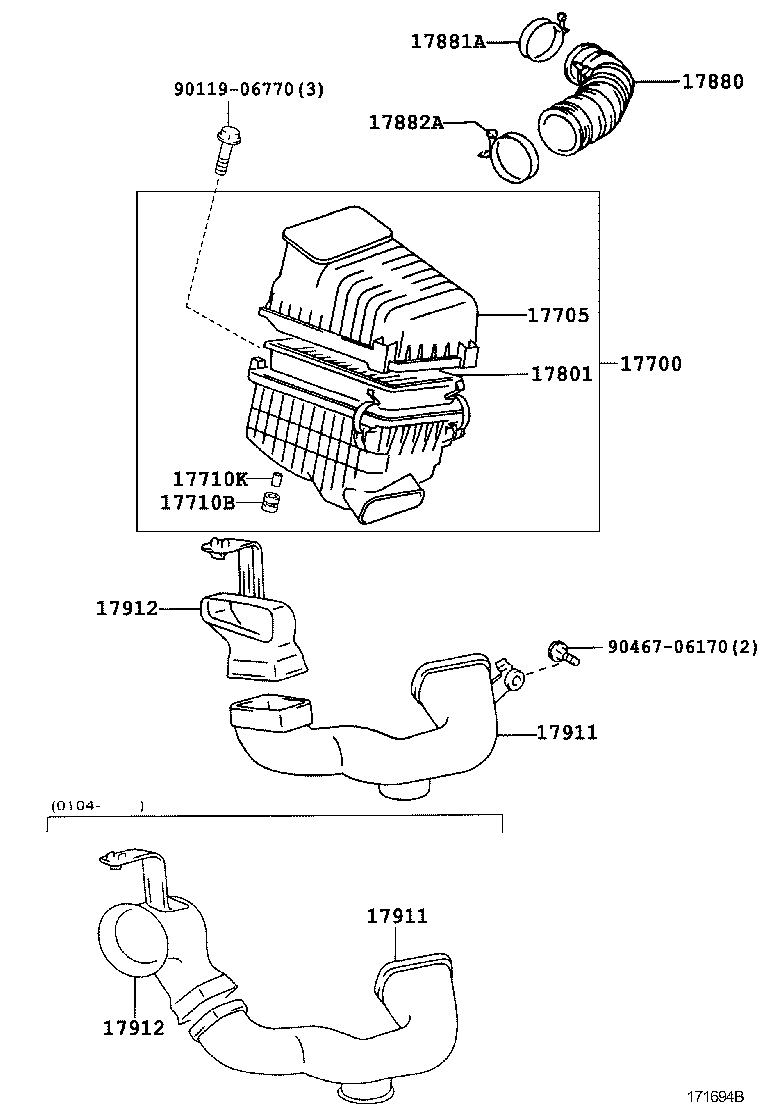

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-64421 |
3CTE..CXM10 |
1 | ||
| 17700-64421 |
3CTE..CXM10 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-64291 |
3CTE..CXM10 |
1 | ||
| 17705-64291 |
3CTE..CXM10 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-11014 |
3CTE..CXM10 |
3 | ||
| 90480-11014 |
3CTE..CXM10 |
3 | ||
| 17710K - COLLAR(FOR AIR CLEANER) | ||||
| 90387-09064 |
3CTE..CXM10 |
3 | ||
| 90387-09064 |
3CTE..CXM10 |
3 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-64060 |
3CTE..CXM10 |
1 | ||
| 17801-64060 |
3CTE..CXM10 |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-64390 |
3CTE..CXM10 |
1 | ||
| 17880-64390 |
3CTE..CXM10 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-65007 |
3CTE..CXM10 |
1 | ||
| 90460-65007 |
3CTE..CXM10 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
3CTE..CXM10 |
1 | ||
| 96111-10710 |
3CTE..CXM10 |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52811-44140 |
3CTE..CXM10 |
1 | ||
| 52811-44040 |
3CTE..CXM10 |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52811-44140 |
3CTE..CXM10 |
1 | ||
| 52811-44040 |
3CTE..CXM10 |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52812-44050 |
3CTE..CXM10 |
1 | ||
| 52812-44010 |
3CTE..CXM10 |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52812-44050 |
3CTE..CXM10 |
1 | ||
| 52812-44010 |
3CTE..CXM10 |
1 | ||
| Common parts | ||||
| 90119-06770 | ||||
| 90467-06170 | ||||
