CXM10G-BRSET (1998)
Toyota Gaia
Production
May 1998
-
Sep 2004
Engine
3CTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )3CTE

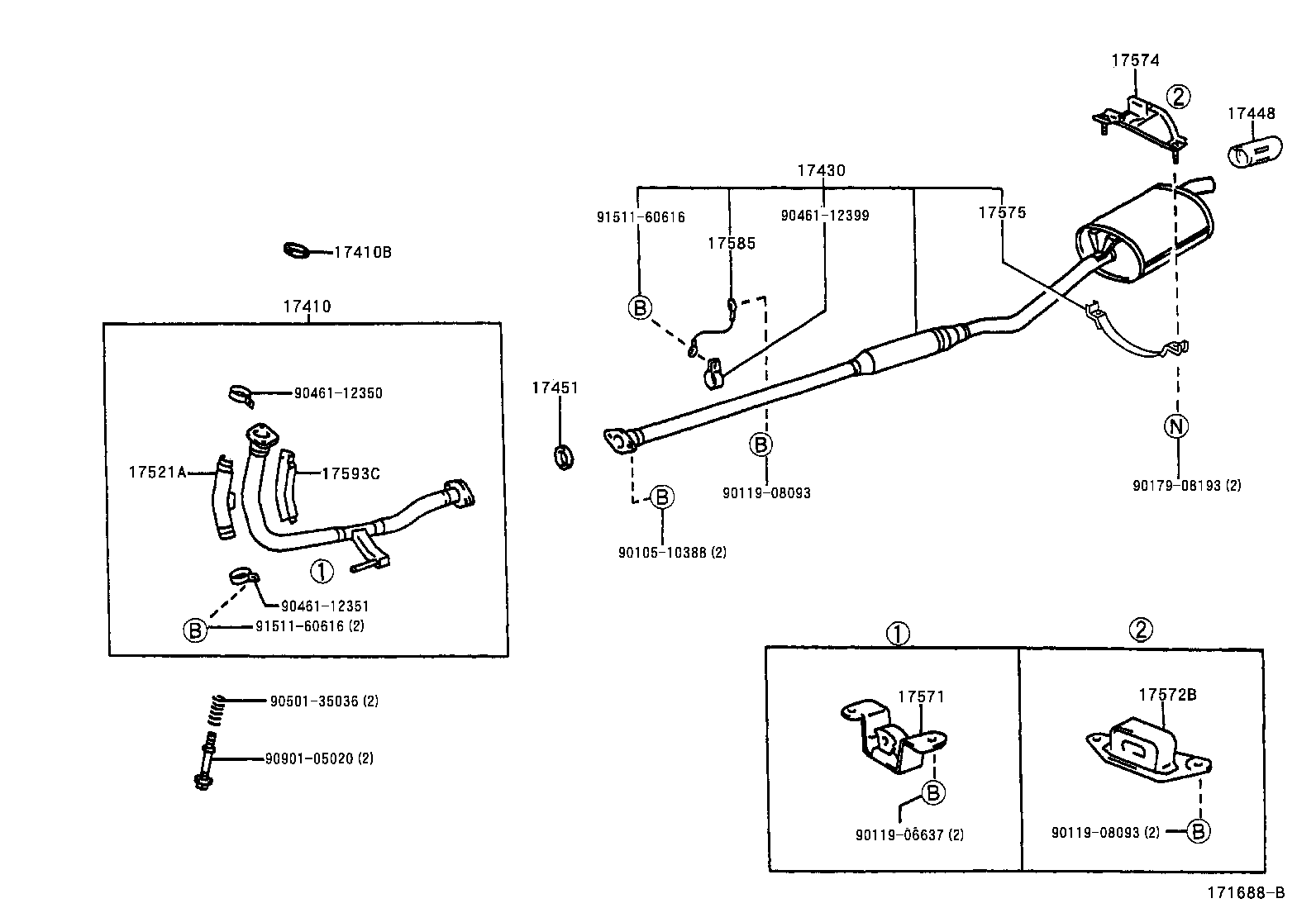

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-64800 |
3CTE..CXM10 |
1 | ||
| 17410-64800 |
3CTE..CXM10 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-64010 |
3CTE..CXM10 |
1 | ||
| 17451-64010 |
3CTE..CXM10 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-6A270 |
3CTE..CXM10 |
1 | ||
| 17430-6A270 |
3CTE..CXM10 |
1 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-74080 |
3CTE,3SFE..CXM10,SXM1# |
1 | ||
| 17448-74080 |
1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06062 |
1AZFSE,3CTE,3SFE..ACM10,CXM10,SXM15 |
1 | ||
| 90917-06062 |
3CTE,3SFE..CXM10,SXM1# |
1 | ||
| 17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1 | ||||
| 17521-64190 |
3CTE..CXM10 |
1 | ||
| 17521-64190 |
3CTE..CXM10 |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-74450 |
3CTE,3SFE..CXM10,SXM10 |
1 | ||
| 17571-74450 |
1AZFSE,3CTE..ACM10,CXM10 |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-74120 |
3CTE,3SFE..CXM10,SXM1# |
1 | ||
| 17572-74120 |
1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15 |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-74140 |
3CTE,3SFE..CXM10,SXM1# |
1 | ||
| 17574-74140 |
1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15 |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-74140 |
3CTE,3SFE..CXM10,SXM1# |
1 | ||
| 17575-74140 |
1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15 |
1 | ||
| 17585 - HANGER, EXHAUST PIPE | ||||
| 17585-74080 |
1AZFSE,3CTE..ACM10,CXM10 |
1 | ||
| 17585-74080 |
3CTE,3SFE..CXM10,SXM10 |
1 | ||
| 17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-64160 |
3CTE..CXM10 |
1 | ||
| 17593-64160 |
3CTE..CXM10 |
1 | ||
| Common parts | ||||
| 90105-10388 | ||||
| 90119-06637 | ||||
| 90119-08093 | ||||
| 90179-08193 | ||||
| 90461-12350 | ||||
| 90461-12351 | ||||
| 90461-12399 | ||||
| 90501-35036 | ||||
| 90901-05020 | ||||
| 91511-60616 | ||||
