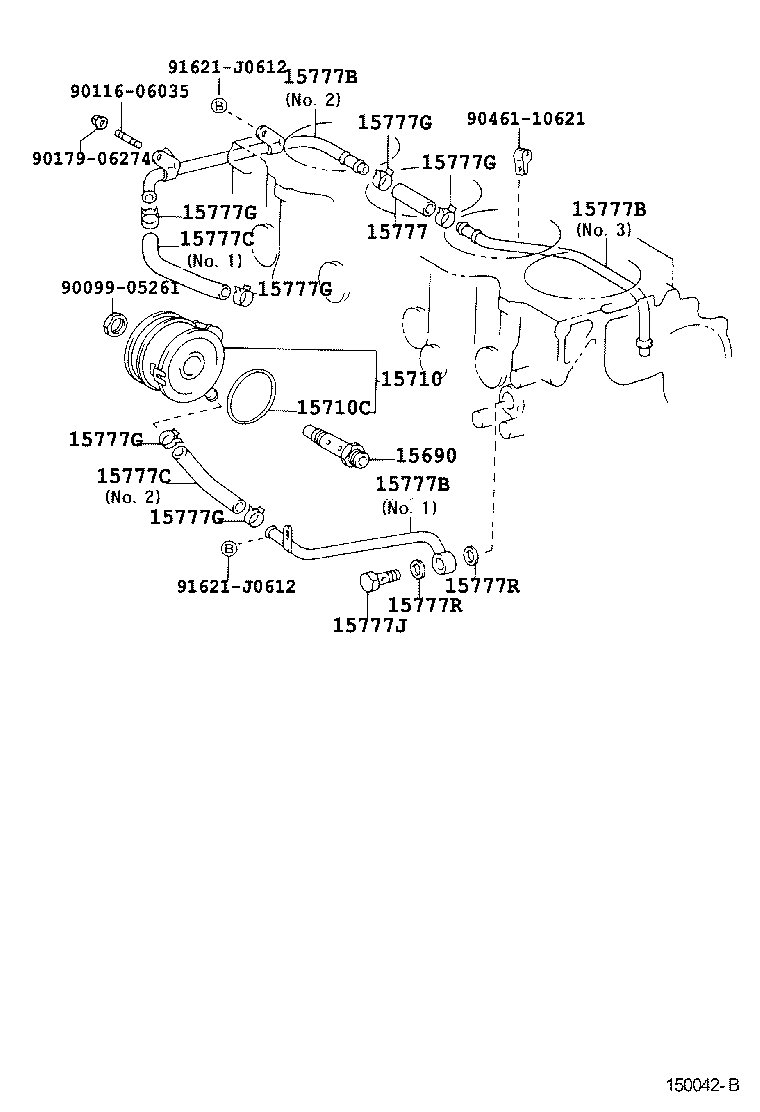

Toyota Gaia CXM10 ENGINE OIL COOLER

Part #	Description	Period	Qty
15690 - VALVE ASSY, OIL COOLER RELIEF
15695-64010	3CTE..CXM10	04/2001 - 09/2004	1
15695-64010	3CTE..CXM10	05/1998 - 04/2001	1
15710 - COOLER ASSY, OIL
15710-64150	3CTE..CXM10	04/2001 - 09/2004	1
15710-64150	3CTE..CXM10	05/1998 - 04/2001	1
15710C - GASKET(FOR OIL COOLER)
90301-67004	3CTE..CXM10	04/2001 - 09/2004	1
90301-67004	3CTE..CXM10	05/1998 - 04/2001	1
15777 - HOSE, OIL COOLER
90445-21006	3CTE..CXM10	04/2001 - 09/2004	1
90445-21006	3CTE..CXM10	05/1998 - 04/2001	1
15777B - PIPE, OIL COOLER
15767-64090	3CTE..CXM10 NO.2	05/1998 - 04/2001	1
15768-64120	3CTE..CXM10 NO.1	04/2001 - 09/2004	1
15769-64011	3CTE..CXM10 NO.3	04/2001 - 09/2004	1
15768-64120	3CTE..CXM10 NO.1	05/1998 - 04/2001	1
15769-64011	3CTE..CXM10 NO.3	05/1998 - 04/2001	1
15767-64090	3CTE..CXM10 NO.2	04/2001 - 09/2004	1
15777B - PIPE, OIL COOLER
15767-64090	3CTE..CXM10 NO.2	05/1998 - 04/2001	1
15768-64120	3CTE..CXM10 NO.1	04/2001 - 09/2004	1
15769-64011	3CTE..CXM10 NO.3	04/2001 - 09/2004	1
15768-64120	3CTE..CXM10 NO.1	05/1998 - 04/2001	1
15769-64011	3CTE..CXM10 NO.3	05/1998 - 04/2001	1
15767-64090	3CTE..CXM10 NO.2	04/2001 - 09/2004	1
15777B - PIPE, OIL COOLER
15767-64090	3CTE..CXM10 NO.2	05/1998 - 04/2001	1
15768-64120	3CTE..CXM10 NO.1	04/2001 - 09/2004	1
15769-64011	3CTE..CXM10 NO.3	04/2001 - 09/2004	1
15768-64120	3CTE..CXM10 NO.1	05/1998 - 04/2001	1
15769-64011	3CTE..CXM10 NO.3	05/1998 - 04/2001	1
15767-64090	3CTE..CXM10 NO.2	04/2001 - 09/2004	1
15777C - HOSE, OIL COOLER
15778-64040	3CTE..CXM10 NO.2	05/1998 - 04/2001	1
15777-64060	3CTE..CXM10 NO.1	04/2001 - 09/2004	1
15778-64040	3CTE..CXM10 NO.2	04/2001 - 09/2004	1
15777-64060	3CTE..CXM10 NO.1	05/1998 - 04/2001	1
15777C - HOSE, OIL COOLER
15778-64040	3CTE..CXM10 NO.2	05/1998 - 04/2001	1
15777-64060	3CTE..CXM10 NO.1	04/2001 - 09/2004	1
15778-64040	3CTE..CXM10 NO.2	04/2001 - 09/2004	1
15777-64060	3CTE..CXM10 NO.1	05/1998 - 04/2001	1
15777G - CLAMP OR CRIP, HOSE
90467-20005	3CTE..CXM10	05/1998 - 04/2001	6
96134-41900	3CTE..CXM10	04/2001 - 09/2004	6
15777G - CLAMP OR CRIP, HOSE
90467-20005	3CTE..CXM10	05/1998 - 04/2001	6
96134-41900	3CTE..CXM10	04/2001 - 09/2004	6
15777G - CLAMP OR CRIP, HOSE
90467-20005	3CTE..CXM10	05/1998 - 04/2001	6
96134-41900	3CTE..CXM10	04/2001 - 09/2004	6
15777G - CLAMP OR CRIP, HOSE
90467-20005	3CTE..CXM10	05/1998 - 04/2001	6
96134-41900	3CTE..CXM10	04/2001 - 09/2004	6
15777G - CLAMP OR CRIP, HOSE
90467-20005	3CTE..CXM10	05/1998 - 04/2001	6
96134-41900	3CTE..CXM10	04/2001 - 09/2004	6
15777G - CLAMP OR CRIP, HOSE
90467-20005	3CTE..CXM10	05/1998 - 04/2001	6
96134-41900	3CTE..CXM10	04/2001 - 09/2004	6
15777J - BOLT, UNION(FOR OIL COOLER PIPE)
90401-20004	3CTE..CXM10	04/2001 - 09/2004	1
90401-20004	3CTE..CXM10	05/1998 - 04/2001	1
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
90430-20014	3CTE..CXM10	04/2001 - 09/2004	2
90430-20014	3CTE..CXM10	05/1998 - 04/2001	2
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
90430-20014	3CTE..CXM10	04/2001 - 09/2004	2
90430-20014	3CTE..CXM10	05/1998 - 04/2001	2
Common parts
90099-05261
90116-06035
90179-06274
90461-10621
91621-J0612

CXM10G-BRSET (1998)

(9805- )3CTE
